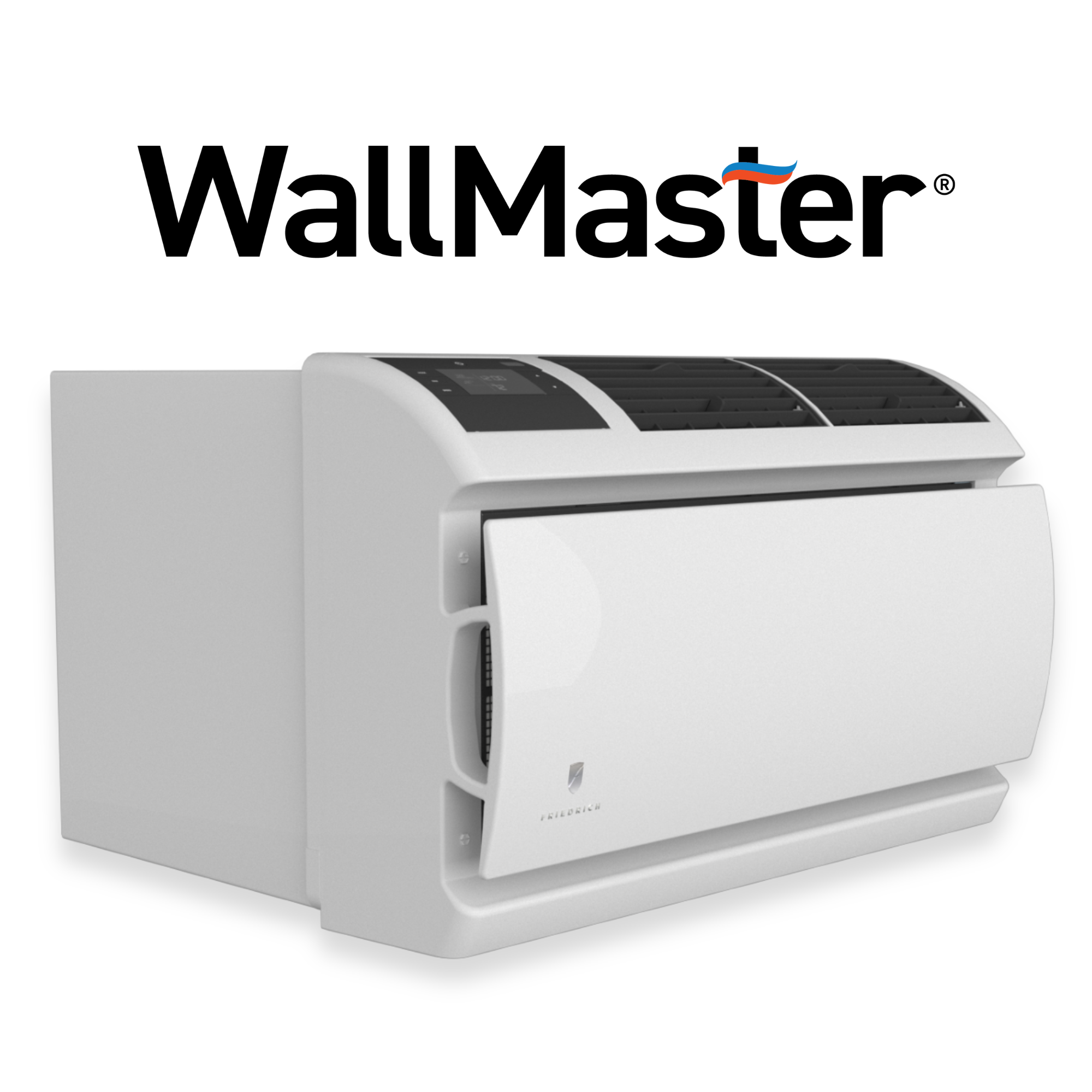

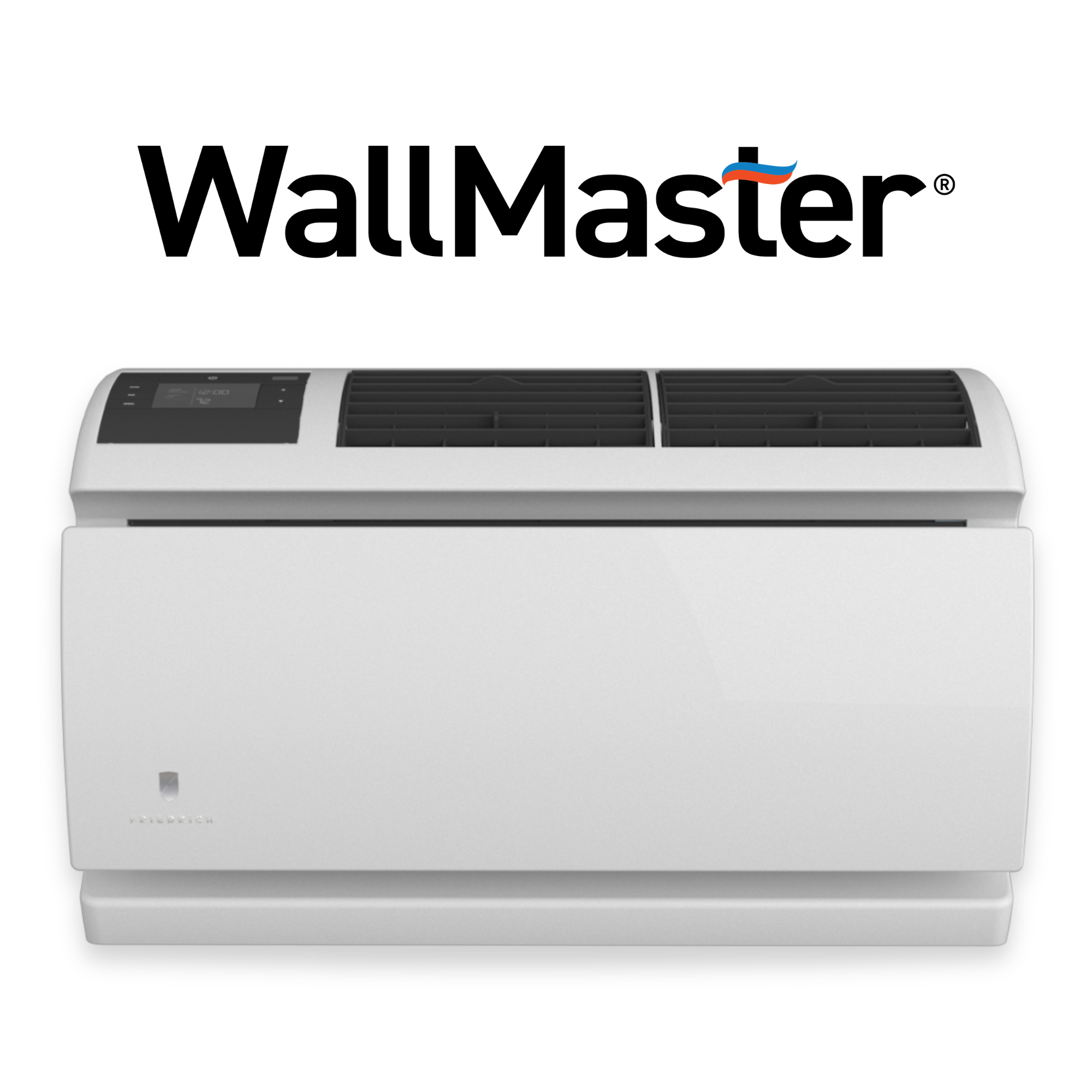

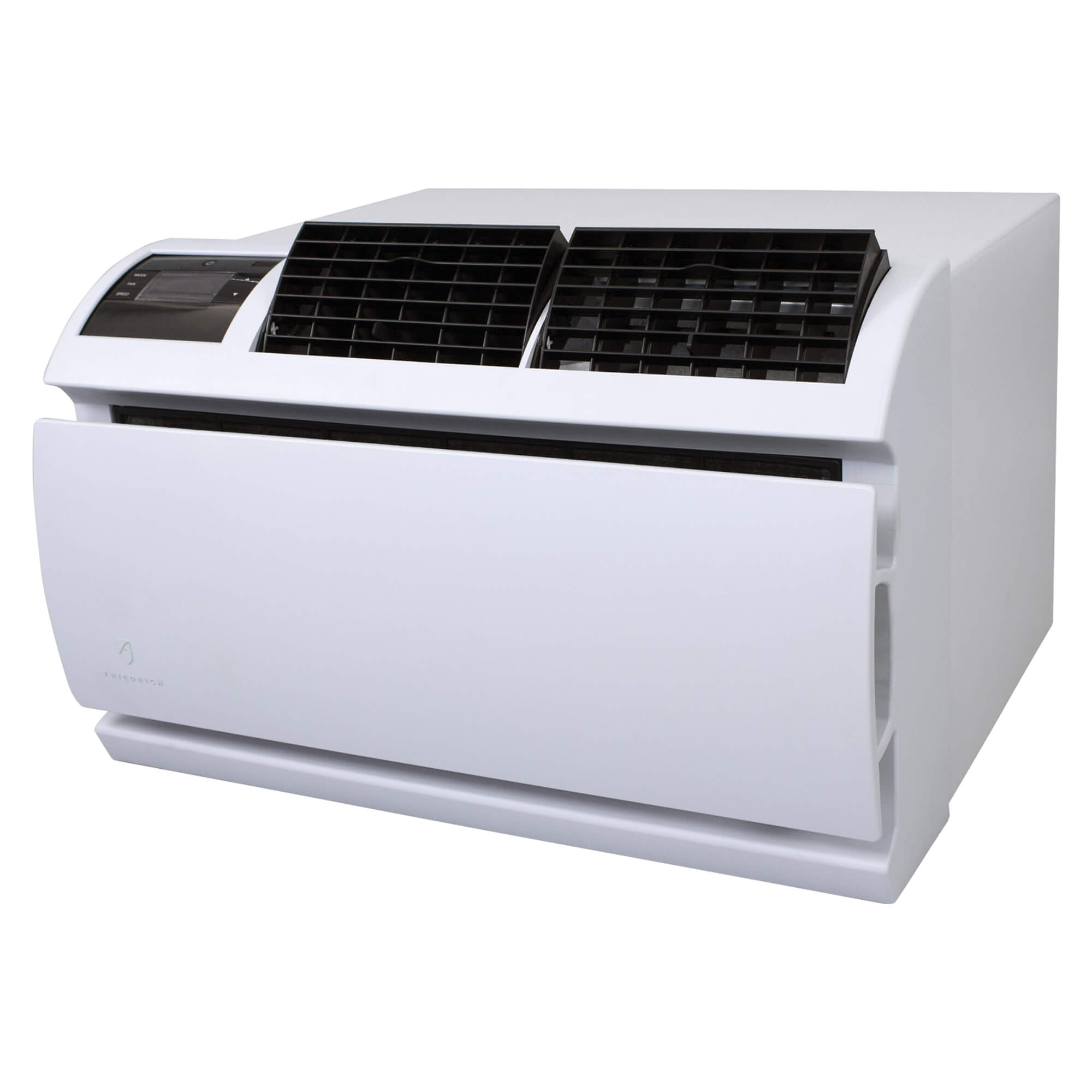

Friedrich WCT12A30B WallMaster Wall Air Conditioner, 12000 BTU Cool, 230V

Product Description

The Friedrich WCT12A30B WallMaster wall air conditioner is a commercial-grade, thru-the-wall unit perfect for existing 27" sleeves. Built with robust materials, it ensures durability and quiet operation. Features include a wireless remote, top-mount controls, a 24-hour programmable timer, and an energy-efficient MoneySaver setting. Designed for thicker walls up to 15 5/16" deep without compromising performance, it offers flexible installation options and a sleek appearance.

• Commercial-grade construction

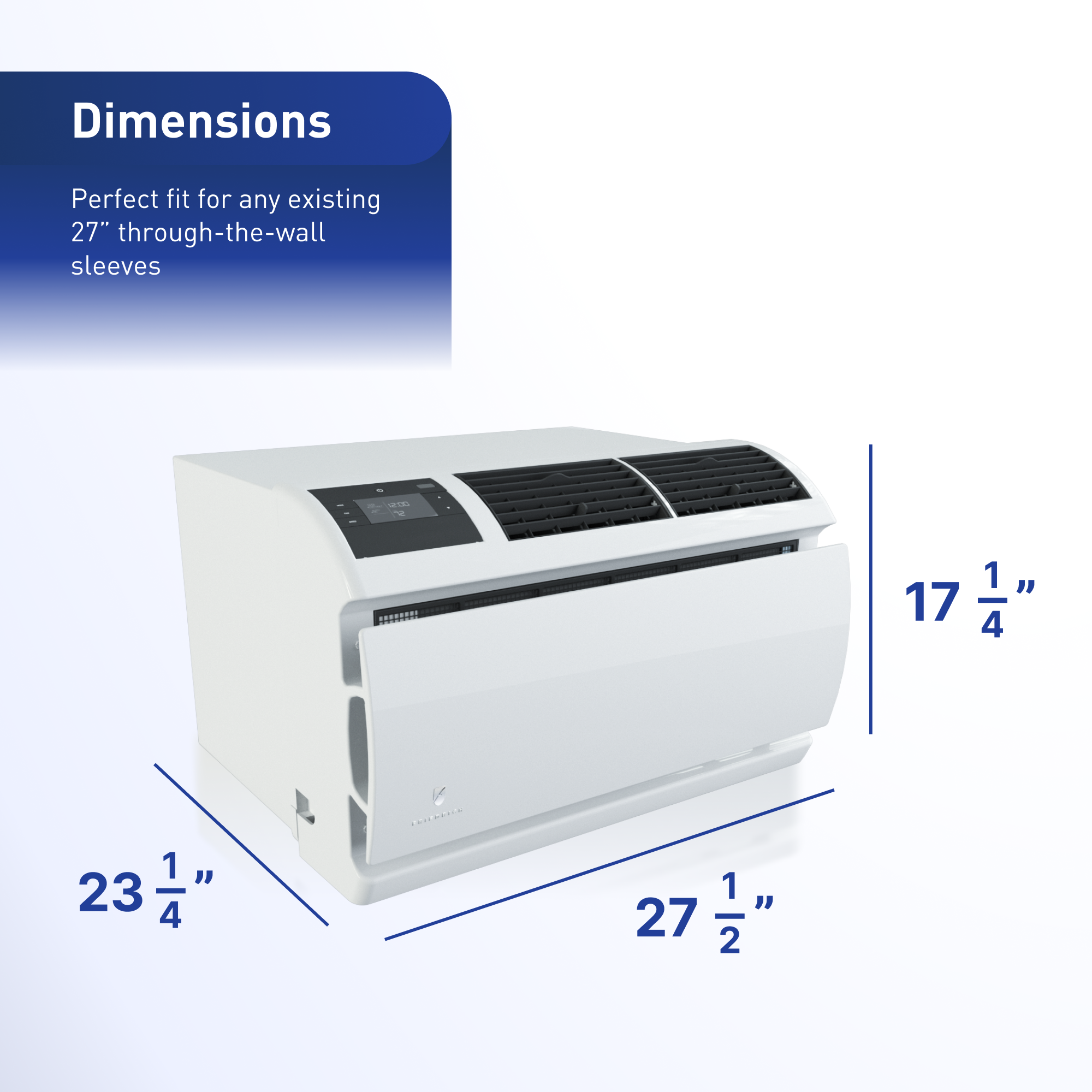

• Perfect fit for existing 27" sleeves
• Durable and quiet operation

Product Highlights

This Friedrich WallMaster air conditioner provides efficient cooling and flexible installation, ideal for commercial and residential use.

Product Information

Standard Information

• Brand: Friedrich
• Manufacturer Part Number: WCT12A30B
• Country of Origin: Mexico

Technical Specifications

• Brand: Friedrich
• Type: Cool Only
• Voltage: 230V AC
• Hertz: 60 Hz
• Phase: 1
• Amp Circuit: 15 A
• BTU Cooling: 12000
• Watts Cooling: 1,224 W
• Amps Cooling: 5.5 A
• CFM: 290 CFM
• Remote Control: Included
• Filter Type: Washable Filter
• Refrigerant: R410A
• Air Discharge: Top Discharge
• Dehumidification: 3.5
• Number of Speeds: 3
• Power Cord Type: NEMA 6-15P
• Assembly Required: No
• Combined Energy Efficiency Ratio (CEER): 9.8
• Energy Efficiency Rating (EER): 9.8
• Certifications: UL, cUL Listed
• Energy Star Certified: Yes
• Manufacturers Part Number: WCT12A30B
• Cord Length: 6 ft
• Coverage Area: 550 ft²
• Max Wall Thickness: 15 in
• Wall Cut-Out Width: 26-1/2 in
• Wall Cut-Out Height: 15-3/4 in
• Includes: Built In Wifi, Quietmaster Technology
• Item: Through-the-Wall Air Conditioner
• Watts: 1250
• Sleeve: No
• High CFM: 290
• Standards: UL Listed
• Duty Rating: Commercial Grade
• Chassis Type: Slide Out
• Control Type: Electronic
• For Use With: WSE Wall Sleeve
• Heating Method: Cooling Only
• Operation Mode: Cool Only
• Fan-Only Speeds: 3
• Cooling Capacity: 12,000 BtuH
• Refrigerant Type: R-410A
• Air Flow Direction: 8 Way
• Fan Speeds Cooling: 3
• Smart Connectivity: Full Function Control
• Dehumidification Rate: 3.8 lb/hr
• Operation Mode - HVAC: Cooling Only
• Programming Capability: 24-hr. On/Off Timer
• Mounting Sleeve Included: No
• Remote Control Functions: On/Off and Temp. Control
• Seacoast Corrosion Protection: None
• NEMA Plug Configuration - HVAC: LCDI, 6-15P
• Country of Origin (subject to change): Mexico
• Item - Air Conditioners and Heat Pumps: Wall Air Conditioner
• Voltage - Air Conditioners and Heat Pumps: 230VAC
• Heating Method - Air Conditioners and Heat Pumps: No Heating
• Operation Mode - Air Conditioners and Heat Pumps: Cool Only
• NEMA Plug Configuration - Air Conditioners and Heat Pumps: 6-15P
• Cooling Area: 550 sq. ft.
• Moisture Removal (Pints Per Hour): 3.5
• Fan Speeds: 3
• Display Type: Digital
• Amperage: 5.5
