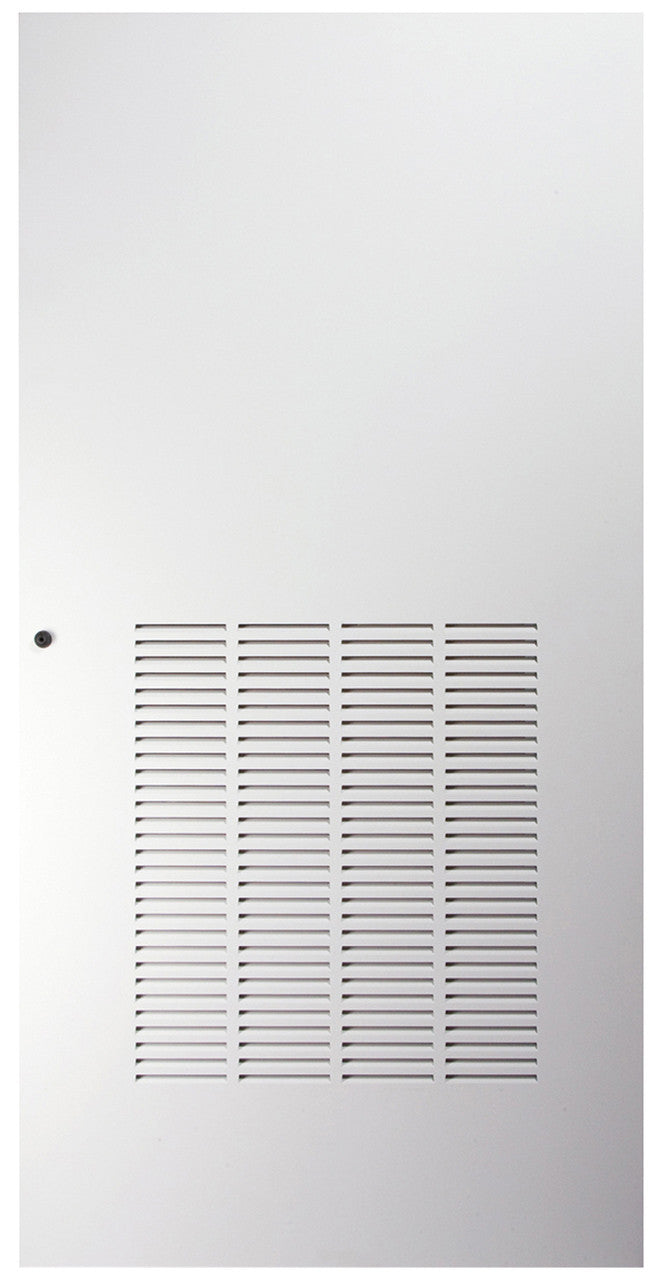

Friedrich VPRG4R Return Air Grille/Access Panel for Vert-I-Pak Single Vertical Packaged Air System

Product Description

The Friedrich VPRG4R is a return air grille designed for use with Vert-I-Pak A Systems. It features a hinged access door that accommodates a field-supplied filter measuring twenty-five inches by twenty inches. The kit includes a hinge bracket for customizable installation of the door, allowing return air openings to be positioned high or low for improved sound control.

For models rated at nine thousand, twelve thousand, or eighteen thousand BTU, install the door with the hinge on the right side and position the return air openings high. For the twenty-four thousand BTU models, the hinge should go on the left side with return air openings placed low on the door.

• Fits Friedrich Vert-I-Pak A Systems
• Includes a hinge bracket for flexible mounting options
• Accommodates a field-supplied filter for efficient air flow

Product Highlights

The VPRG4R provides essential ventilation and air circulation for packaged air systems.

Product Information

Standard Information

• Dimensions: Fifty-eight inches by twenty-nine inches
• Cutout Dimensions: Fifty-five point seventy-five inches by twenty-seven inches

Technical Specifications

• Model: VPRG4R
• Compatible Systems: Vert-I-Pak A Systems
• Recommended Installation: Right hinge for lower BTU models, left hinge for higher BTU model
• Air Filter Size: Twenty-five inches by twenty inches
