Friedrich VPRG4 Return Air Grille/Access Panel for Vert-I-Pak Single Vertical Packaged Air System

Product Description

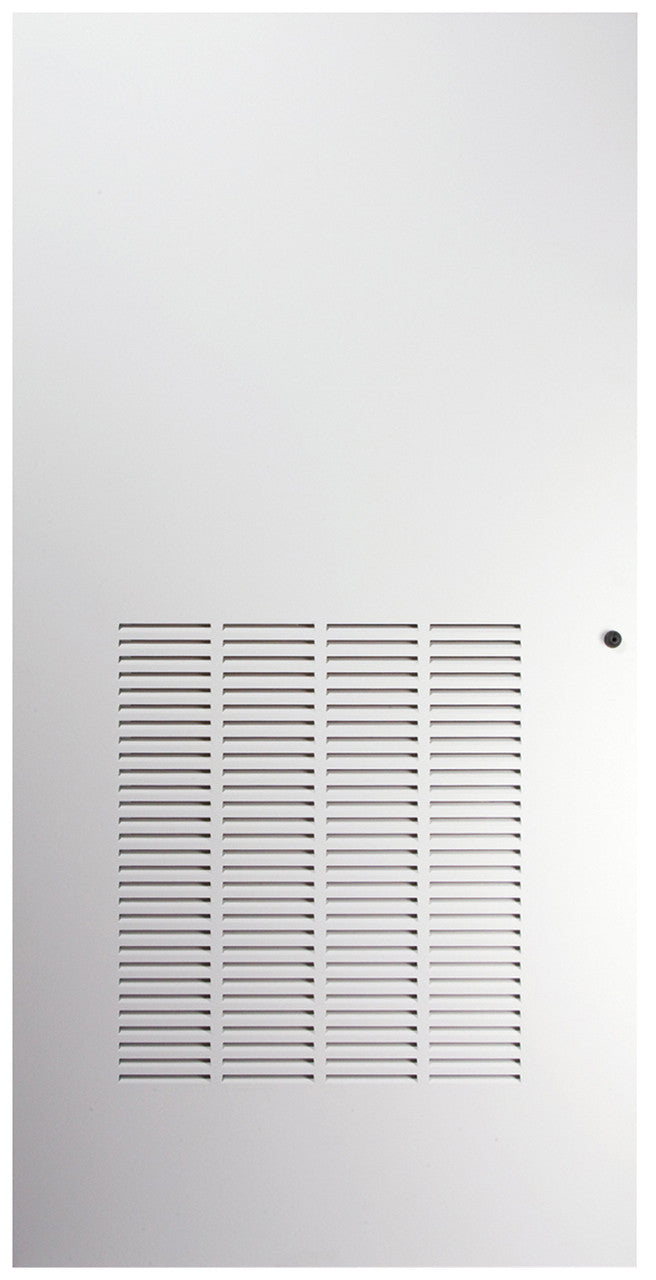

This Friedrich VPRG4 Return Air Grille is designed for use with Vert-I-Pak A Systems. The grille features a hinged access door that accommodates a field-supplied filter measuring twenty-five inches by twenty inches. Included in the kit is a hinge bracket, allowing the return air openings to be positioned high or low, optimizing sound control.

For models rated at nine thousand, twelve thousand, or eighteen thousand BTUs, installing the door with the hinge on the right side and the return air openings positioned high is ideal. For the twenty-four thousand BTU model, the left-side hinge with low openings is recommended.

Dimensions are fifty-eight inches in height and twenty-nine inches in width, while the cutout dimensions are fifty-five and three-fourth inches by twenty-seven inches. The VPRG4 uses a left in-swing door design.

• Compatible with Friedrich Vert-I-Pak systems.
• Includes a door hinge bracket for customizable air flow options.
• Available for various BTU configurations for optimal installation.

Product Highlights

Enhanced air flow and sound attenuation with adjustable grille design.

Product Information

Standard Information

• Brand: Friedrich
• Model: VPRG4

Technical Specifications

• Height: 58 inches
• Width: 29 inches
• Cutout Height: 55.75 inches
• Cutout Width: 27 inches
• Recommended Filter Size: 25 inches x 20 inches
• Door Design: Left in-swing
