Product Description

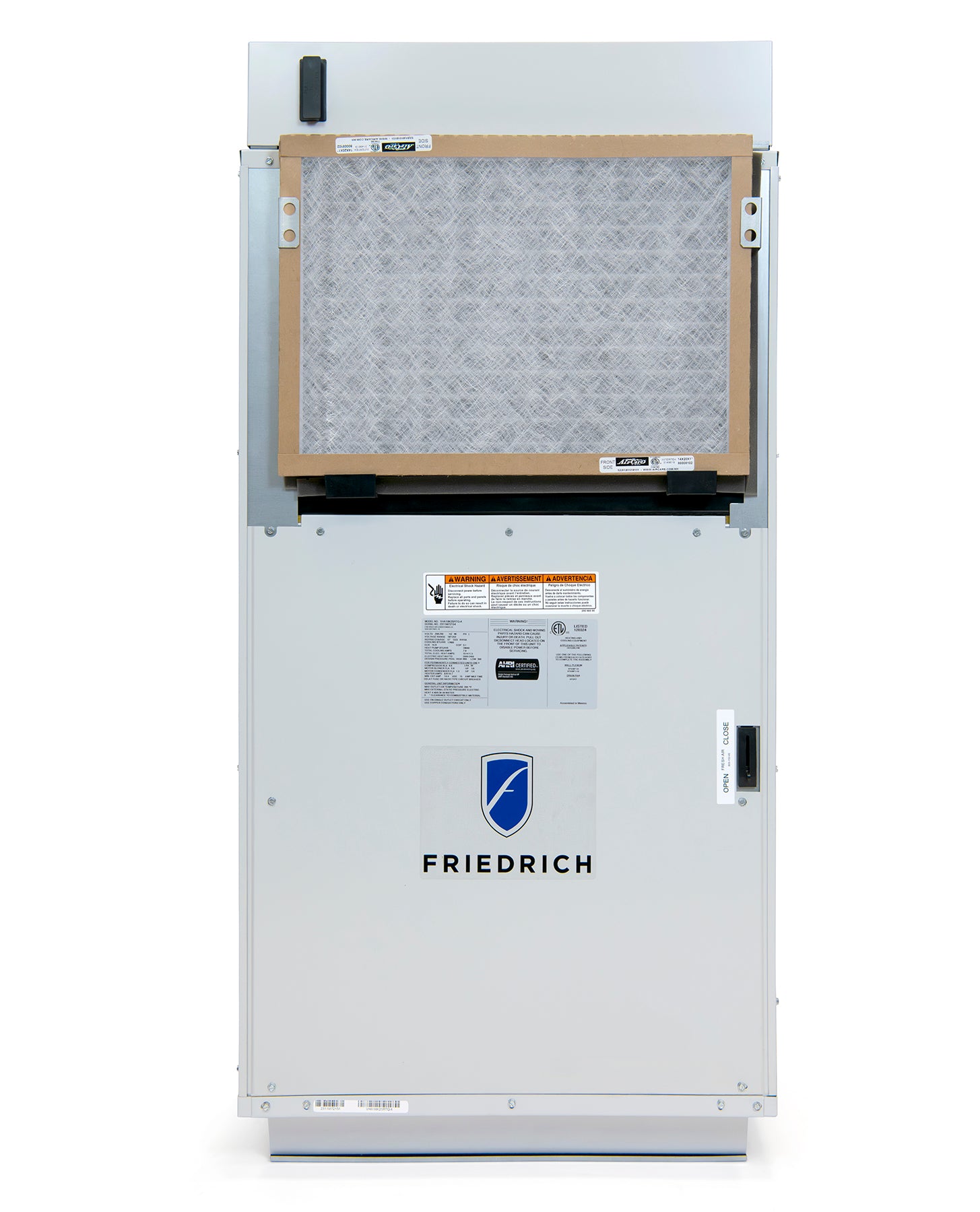

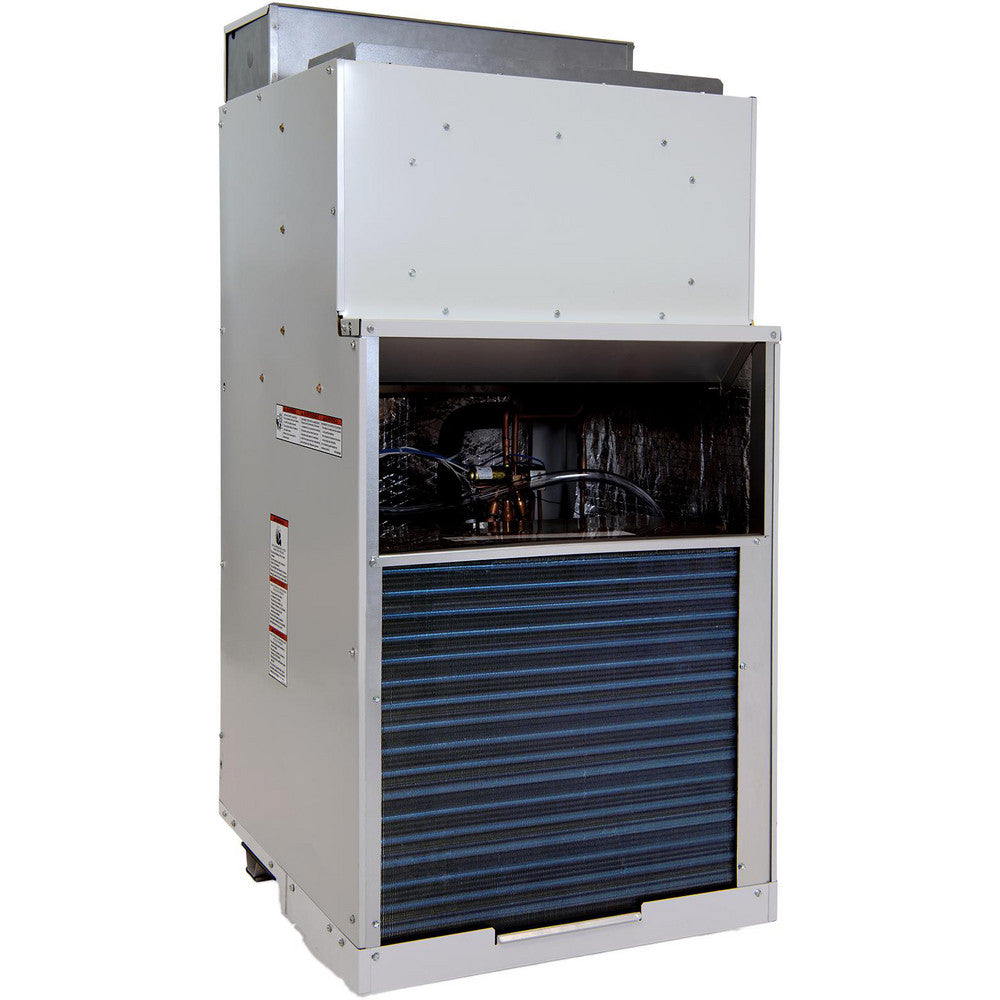

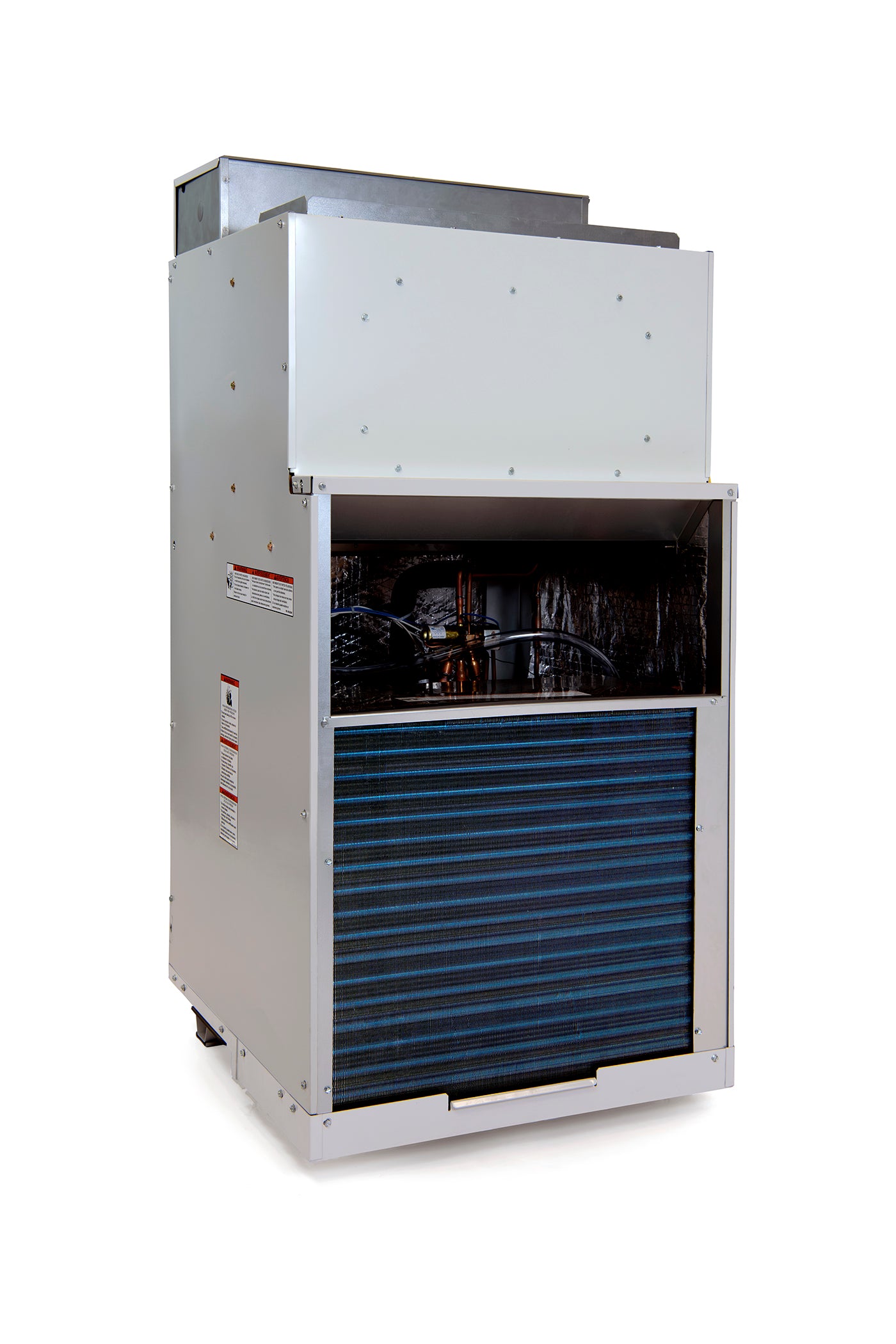

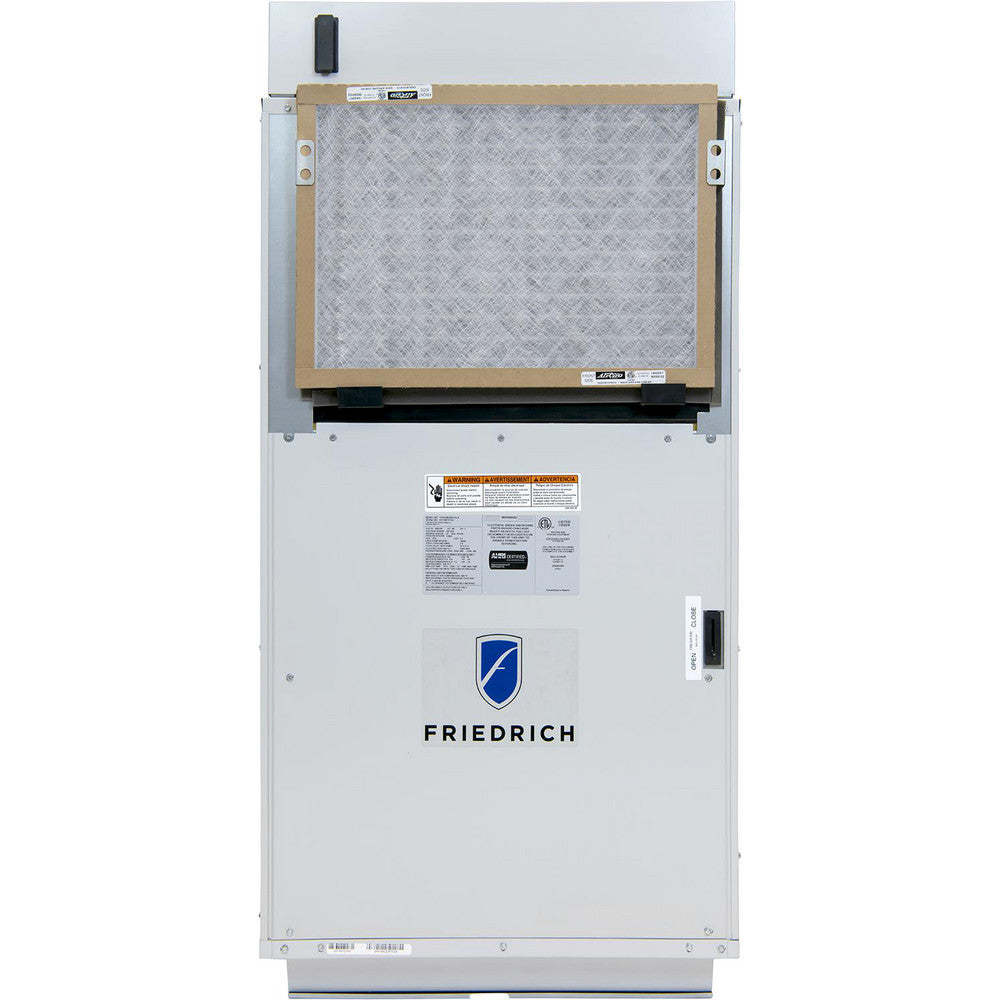

The FRIEDRICH VHA24R75RCQ Vert-I-Pak is a customizable and reliable VTAC unit with heat pump, perfect for extended stay hotels, assisted living, and student housing. This air conditioner stays tucked away and out of sight, fitting neatly into a typical mechanical closet. The VHA24R models are 265 volt and feature 22,600 BTUs of cooling comfort and 19,500 BTUs of heat from the heat pump.
- R-32 refrigerant for up to 12% more efficiency than R410A
- Installs as easily as a PTAC with pre-wired, charged, and piped design
- Features a 7.5 Kw electric heater and requires a 45 Amp circuit
Product Highlights
The Friedrich Vert-I-Pak system offers flexible zone cooling, individual in-room temperature control, and quieter operation. Ideal for commercial use, it provides a homelike appearance and enhanced air quality.
Product Information
Standard Information
-
Brand: FRIEDRICH
-
Manufacturer Part Number: VHA24R75RCQ
-
Country of Origin: Mexico
Technical Specifications
-
Brand: Friedrich
-
Type: Cooling With Heat Pump
-
Cooling BTU: 24000
-
Reverse Cycle BTU: 19500
-
Voltage: 265/277V
-
AMPS: 40
-
EER: 11.0
-
COP: 3.3
-
Auto Restart: YES
-
Fan Modes: Constant/Cycle (Hi/Med/Auto)
-
Freeze Protection: YES
-
Front Desk Connection: YES
-
Modes: Heat/Cool/Heat-Pump
-
Sea Coast Protection: YES
-
Temprature Limiting: YES
-
Refrigerant Type: R32
-
Compressor: Standard
-
Energy Star: No
-
CFMs (@ 0.1 ESP): 580
-
Includes Heat Mode: Yes
-
Heat Type: Heat Pump with Back-Up Electric
-
Electric Heat kW: 7.5
-
Cooling BTUs (@265V): 22600
-
EER2 (@265V): 10.6
-
SEER2 (@265V): 11.9
-
Cooling Amps (@265V): TBD
-
Cooling Watts (@265V): 2132
-
Heat Pump BTUs (@265V): 19500
-
HSPF2 (@265V): 6.7
-
Heat Pump Heating Amps (@265V): TBD
-
Heat Pump Heating Watts (@265V): TBD
-
Vent Location: Ducted Into Room
-
Make-Up Air: No
-
Energy Saver Mode: No
-
Fan Speeds: High or Low
-
Control Type: Wall Thermostat Required (NOT INCLUDED)
-
Connectivity: Not WiFi Compatible
-
Fresh Air Intake: No
-
Overall Depth (in.): 23
-
Overall Width (in.): 23
-
Overall Height (in.): 52
-
Circuit Breaker Size (Amps): 45
-
Basic Heater Size: 7.5 kW
-
Air Conditioner Type: Vertical Packaged
-
BTU Rating: 24000
-
Cooling Area: 1500
-
Operation Mode: Cooling; Heating
-
Air Flow: 700
-
Plug Face: Hard Wire
-
Cooling Method: Air-Cooled Ducted; Air-Cooled Vented
-
Commercial/Residential: Commercial
-
Overall Depth (Decimal Inch): 23
-
Overall Width (Decimal Inch - 4 Decimals): 23
-
Number Of Speeds: 2
-
Heat Pump: Yes
-
Operation Mode - HVAC: Cooling/Heating
-
Hz: 60 Hz
-
Item: Vertical Packaged Air Conditioner
-
Phase: Single
-
Cooling Capacity: 14,700 BtuH
-
Heating Method: Heat Pump/Electric Heat
-
Heating Capacity - Electric: 17,000 BtuH
-
Seacoast Corrosion Protection: Front and Rear Coil
-
Voltage AC: 265V AC
-
For Use With: VPAWP1-14, VPAWP1-8
-
Amps: 9.2/10.5 A
-
Electronic Control Type: Electronic
-
Seasonal Energy Efficiency Ratio 2 (SEER2) Rating: 11.9
-
Watts: 2,132 W
-
Heat Pump Heating Capacity - Minimum: 12,400 BtuH
-
Heating Watts: 1,732 W
-
Airflow: 580 cfm
-
Filter Performance Rating: MERV 13
-
Standards: A2L Refrigerant
-
Exhaust Air Flow: 580 cfm
-
Compressor Type: Rotary
-
Heating Capacity: 18,500 BtuH
-
Cooling Capacity - Maximum: 21,600 BtuH
-
Refrigerant Precharge: 44 oz
-
Coverage Area - Maximum: 1,500 sq ft
-
Power Source: Hardwired
-
Includes Filtration: Air Filtering
-
Coverage Area - Minimum: 1,400 sq ft
-
Compressor Technology: Variable Output (Inverter)
-
Control Location: Wall Thermostat
