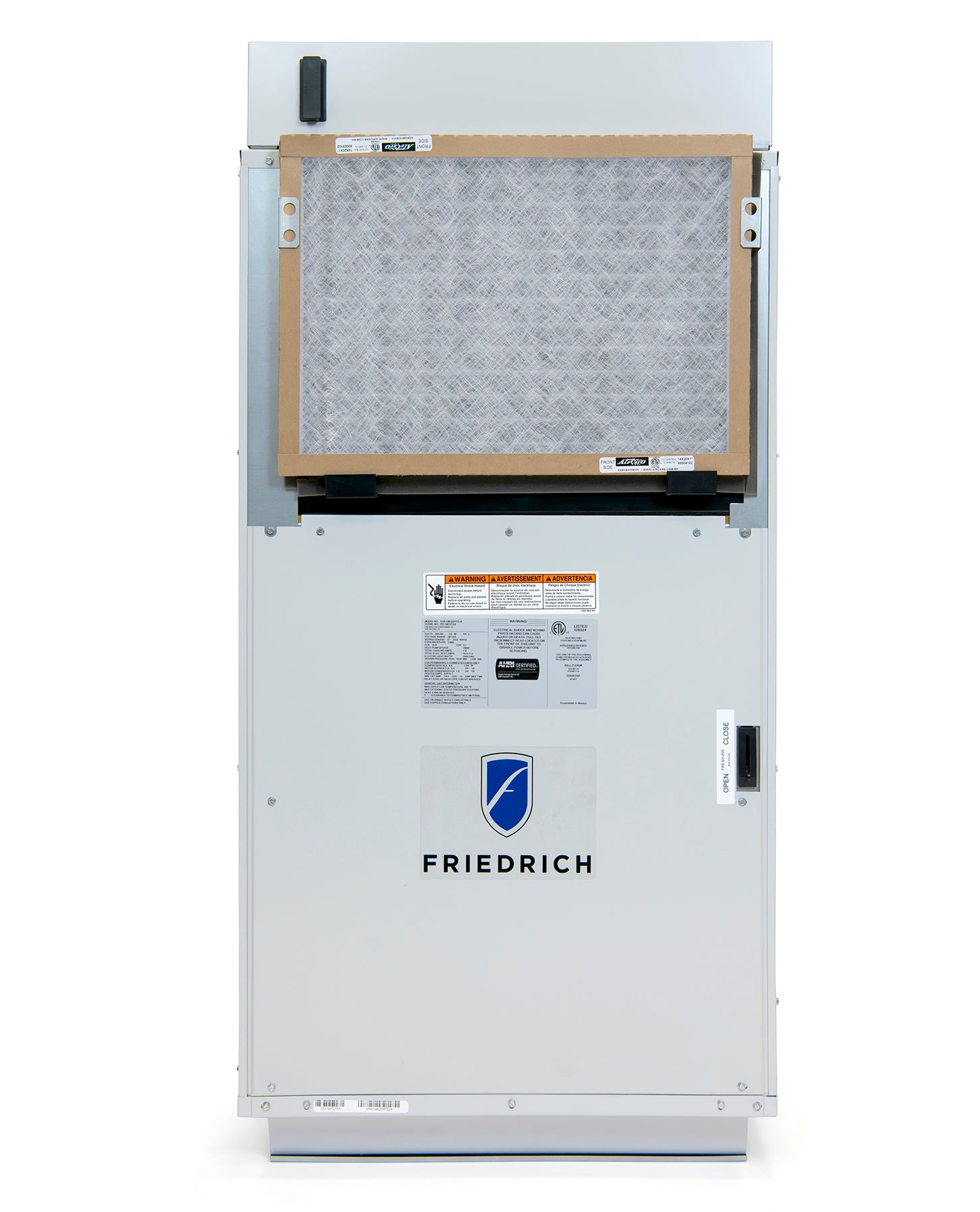

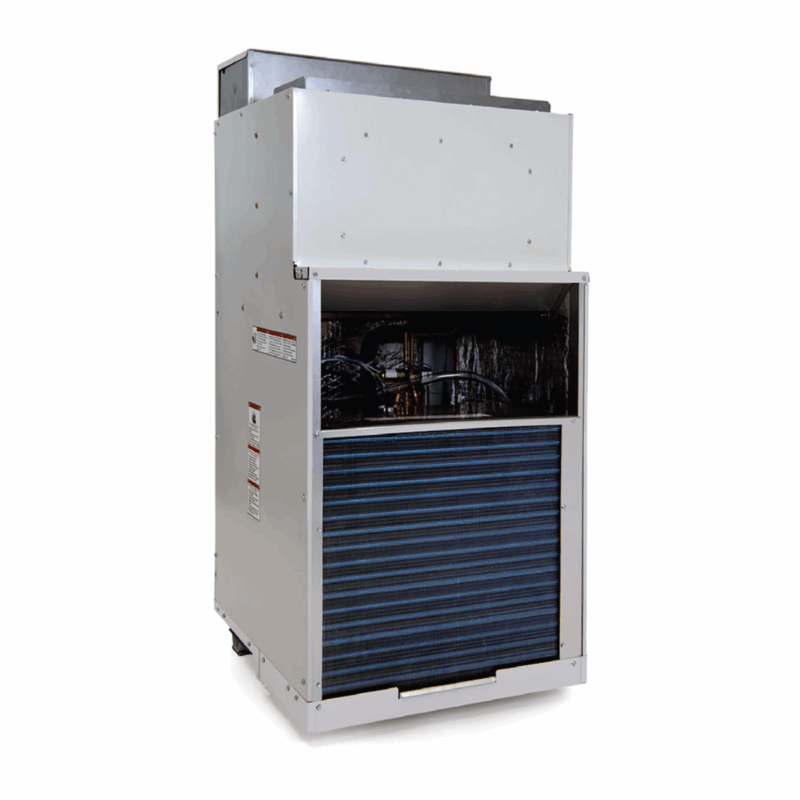

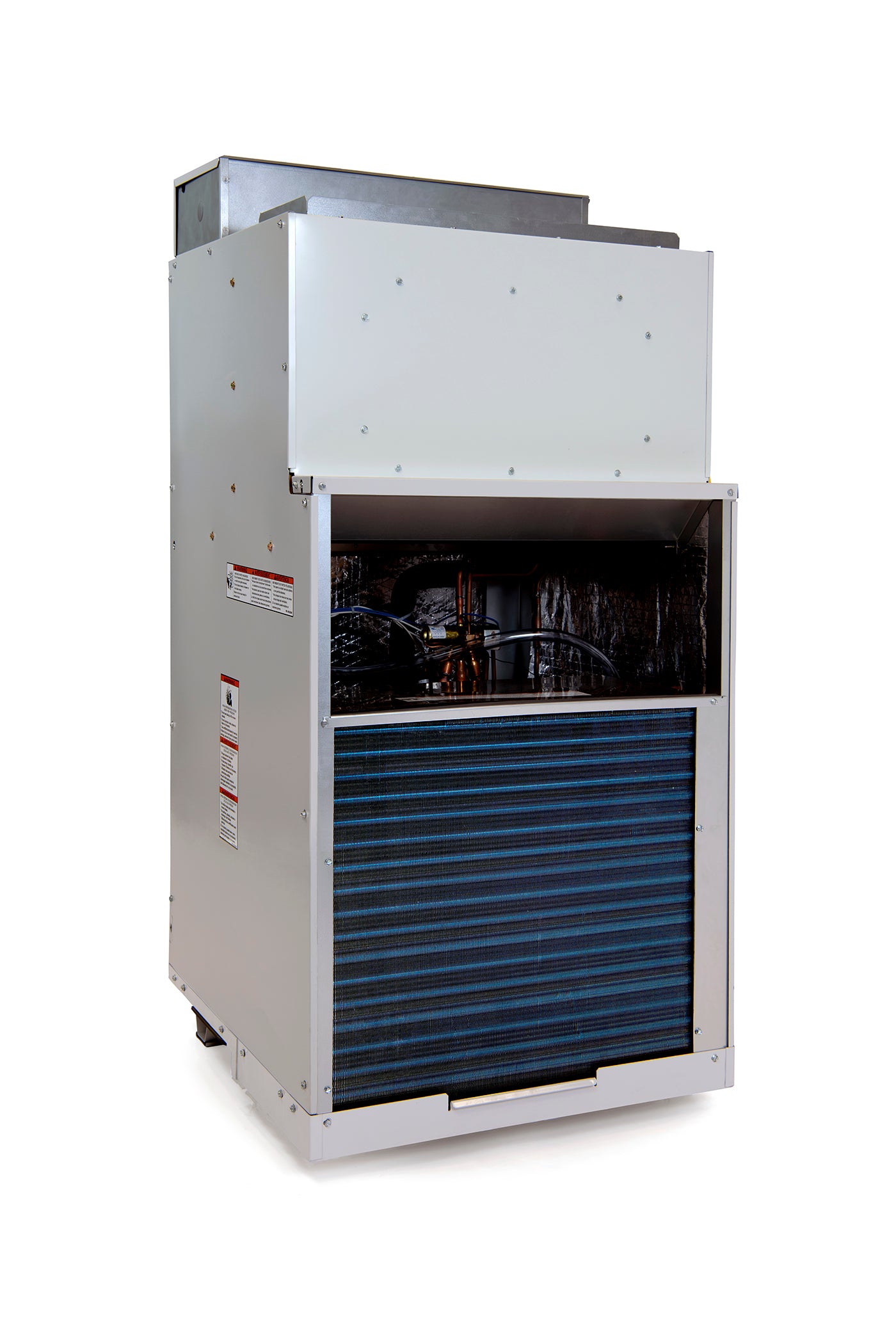

Friedrich VHA24R34RCQ Vert-I-Pak 24000 BTU with Heat Pump - 3.4 kW Electric Heat - 265V R32 Refrigerant

Product Description

The FRIEDRICH VHA24R34RCQ Vert-I-Pak vertical packaged air system offers a simpler way to condition multiple rooms. This 265V unit features 22,600 BTUs of cooling and 19,500 BTUs of heat from the heat pump, with a 3.4 kW electric heater. It uses R-32 refrigerant, which is more efficient and has a lower Global Warming Potential (GWP) than R410A.

• Utilizes R-32 refrigerant for improved efficiency and lower environmental impact.
• Features a free-floating chassis and corrosion-resistant interior.
• Requires a wall thermostat (not included) for control.

Product Highlights

Ideal for extended stay properties, suites, assisted living facilities, and student housing, this air conditioner stays tucked away and out of sight.

Product Information

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: VHA24R34RCQ

Technical Specifications

• Refrigerant Type: R32
• Compressor: Standard
• Energy Star: No
• CFMs (@ 0.1 ESP): 580
• Includes Heat Mode: Yes
• Heat Type: Heat Pump with Back-Up Electric
• Electric Heat kW: 3.4
• Cooling BTUs (@265V): 22600
• EER2 (@265V): 10.6
• SEER2 (@265V): 11.9
• Cooling Amps (@265V): TBD
• Cooling Watts (@265V): 2132
• Heat Pump BTUs (@265V): 19500
• COP (@265V): 3.3
• HSPF2 (@265V): 6.7
• Heat Pump Heating Amps (@265V): TBD
• Heat Pump Heating Watts (@265V): TBD
• Vent Location: Ducted Into Room
• Make-Up Air: No
• Energy Saver Mode: No
• Fan Speeds: High or Low
• Control Type: Wall Thermostat Required (NOT INCLUDED)
• Connectivity: Not WiFi Compatible
• Fresh Air Intake: No
• Overall Depth (in.): 23
• Overall Width (in.): 23
• Overall Height (in.): 52
• Voltage: 265V
• Circuit Breaker Size (Amps): 20
• Minimum Circuit Ampacity: 18
• Branch Circuit Fuse (Amps): 20
• Cooling BTU: 24000
• Reverse Cycle BTU: 19500
• EER: 11.0
• Digital Controls: NO
• Auto Restart: YES
• Fan Modes: Constant/Cycle (Hi/Med/Auto)
• Freeze Protection: YES
• Front Desk Connection: YES
• Modes: Heat/Cool/Heat-Pump
• Sea Coast Protection: YES
• Temprature Limiting: YES
• Item Type: Vertical Package Unit
• Cooling Capacity: 22600 BTU
• Heating Capacity: 19500 BTU
