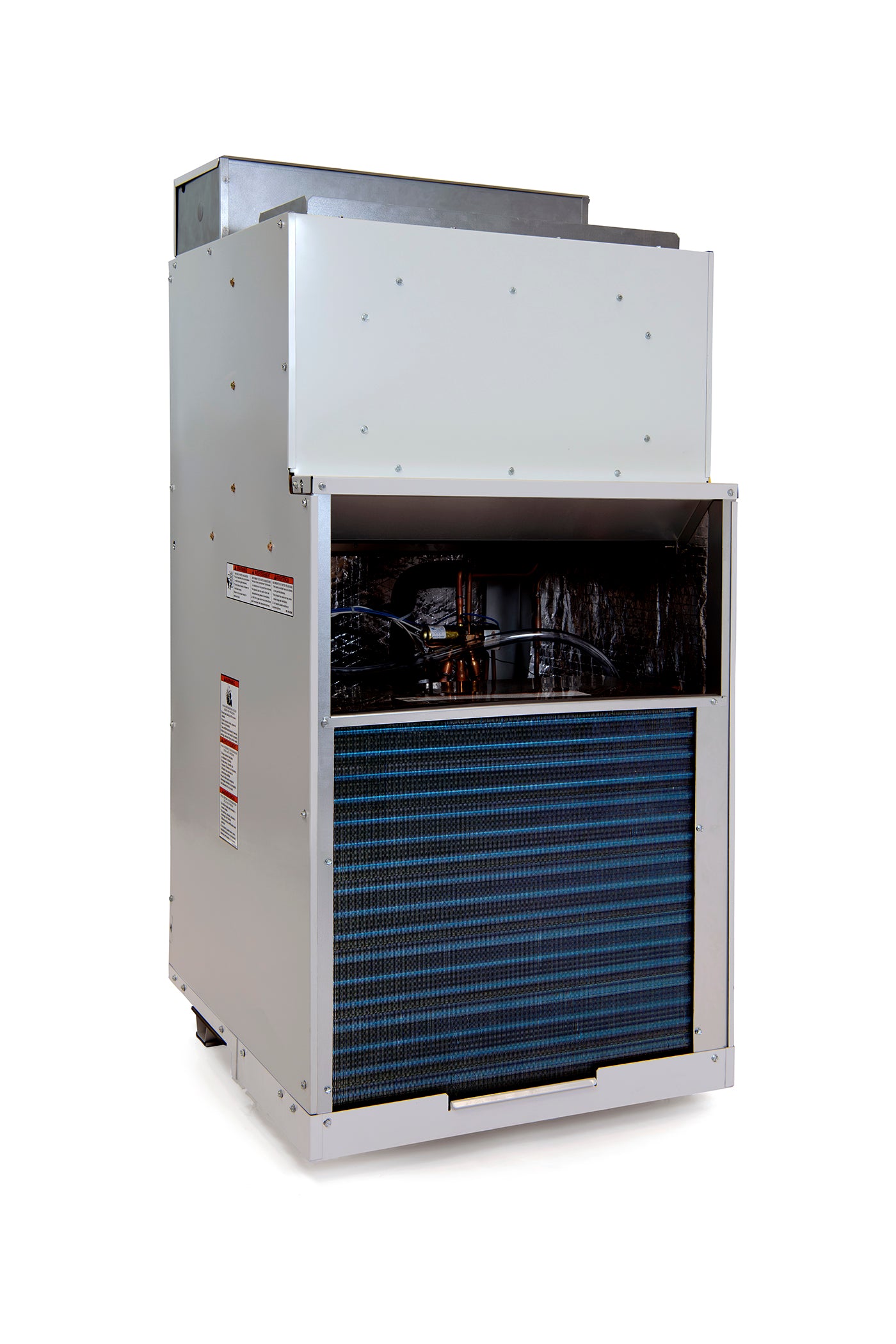

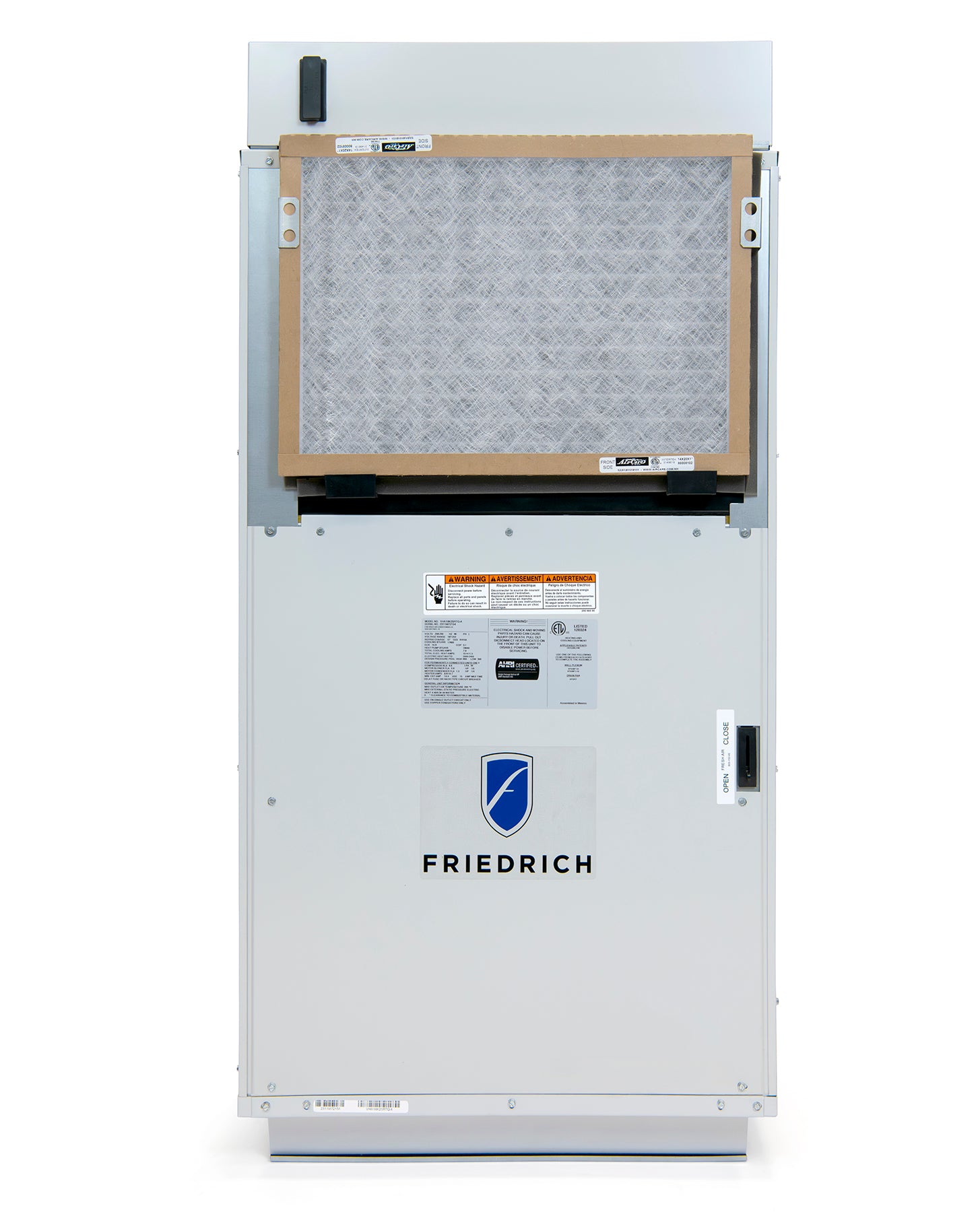

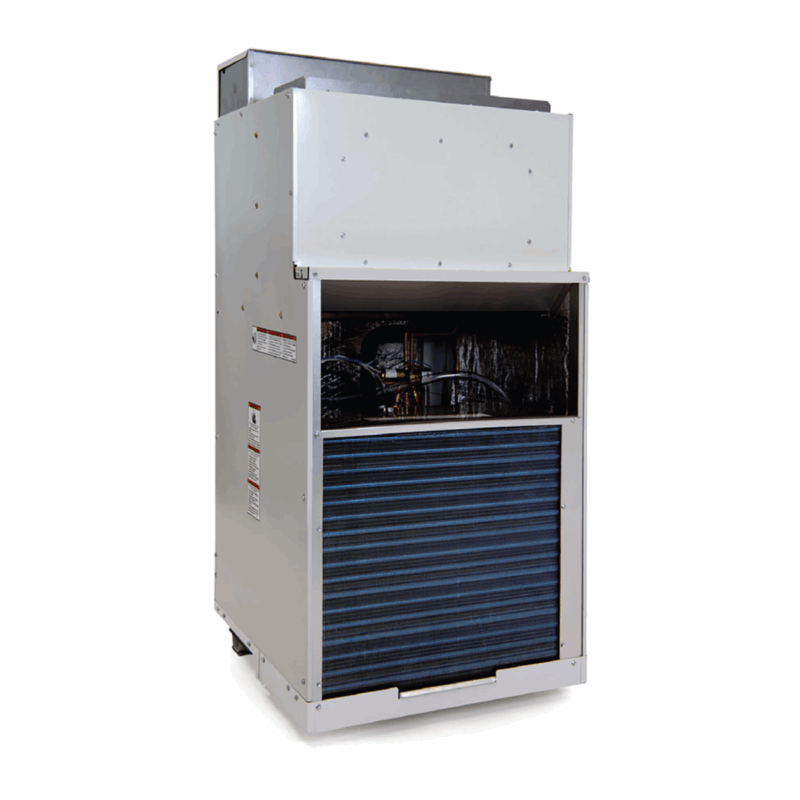

Friedrich VHA24R10RCQ Vert-I-Pak 24000 BTU Class VTAC with Heat Pump 10.0 kW Electric Heat 265V R32 Refrigerant

Product Description

The Friedrich VHA24R10RCQ Vert-I-Pak vertical packaged air system offers a simpler way to condition multiple rooms. This 265V unit features 22,600 BTUs of cooling and 19,500 BTUs of heat from the heat pump, and includes a 10.0 kW electric heater. It uses R-32 refrigerant, which is more efficient and has a lower Global Warming Potential. The unit fits neatly into a typical mechanical closet.

• Utilizes R-32 refrigerant for improved efficiency.
• Features a unique free-floating chassis for ultraquiet operation.
• Offers easy installation with pre-wired, charged, and piped components.

Product Highlights

Ideal for extended stay properties, suites, assisted living facilities, and student housing, providing individual in-room temperature control.

Product Information

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: VHA24R10RCQ

Technical Specifications

• Refrigerant Type: R32
• Compressor: Standard
• Energy Star: No
• Dehumidification (pts/hr): NA
• CFMs (@ 0.1 ESP): 580
• Includes Heat Mode: Yes
• Heat Type: Heat Pump with Back-Up Electric
• Electric Heat kW: 10.0
• Cooling BTU: 22600
• EER2 (@265V): 10.6
• SEER2 (@265V): 11.9
• Cooling Amps (@265V): TBD
• Cooling Watts (@265V): 2132
• Heat Pump BTUs (@265V): 19500
• COP (@265V): TBD
• HSPF2 (@265V): 6.7
• Heat Pump Heating Amps (@265V): TBD
• Heat Pump Heating Watts (@265V): TBD
• Vent Location: Ducted Into Room
• Make-Up Air: No
• Energy Saver Mode: No
• Fan Speeds: High or Low
• Control Type: Wall Thermostat Required (NOT INCLUDED)
• Connectivity: Not WiFi Compatible
• Fresh Air Intake: No
• Overall Depth (in.): 23
• Overall Width (in.): 23
• Overall Height (in.): 52
• Voltage: 265V
• Circuit Breaker Size (Amps): 20
• Basic Heater Size: 10.0 kW
• Reverse Cycle BTU: 19500
• AMPS: 50
• EER: 11.0
• COP @ 47 degrees: 3.0
• Digital Controls: NO
• Auto Restart: YES
• Fan Modes: Constant/Cycle (Hi/Med/Auto)
• Freeze Protection: YES
• Front Desk Connection: YES
• Modes: Heat/Cool/Heat-Pump
• Sea Coast Protection: YES
• Temprature Limiting: YES
• Cooling Power (Watts): 2,475
• Sensible Heat Ratio: 0.70
• Heater Size: 10.0 kW
• Heating BTU: 20000
• Heating Power (Watts): 1,950
• Heating Current (Amps): 8.1
• Heater Watts: 10,000
• Heating Current Amps: 38.6
• Minimum Circuit Ampacity: 48.3
• Branch/Circuit/Fuse MOP/MCOP: 50
• Voltage (1 Phase, 60 Hz): 265
• Volt Range: 292-239
• Cooling Current (Amps): 9.7
• Amps L.R.: 46.0
• Amps F.L.: 9.5
• Indoor Motor (HP): 1/4
• Indoor Motor (A): 1.8
• Outdoor Motor (HP): 1/4
• Outdoor Motor (A): 0.9
• INDOOR CFM LOW/HIGH .10" ESP.10" ESP: 610/700
• .15" ESP.10" ESP: 585/670
• .20" ESP.10" ESP: 560/640
• .25" ESP.10" ESP: 535/610
• .30" ESP.10" ESP: 510/580
• Vent CFM: 60
• R410A Charge (oz.): 65.0
• Item Type: Vertical Package Unit
• Refrigerant: R-32
• Cooling Capacity: 22600 BTU
• Heating Capacity: 19500 BTU
• Watts: 10000
