Product Description

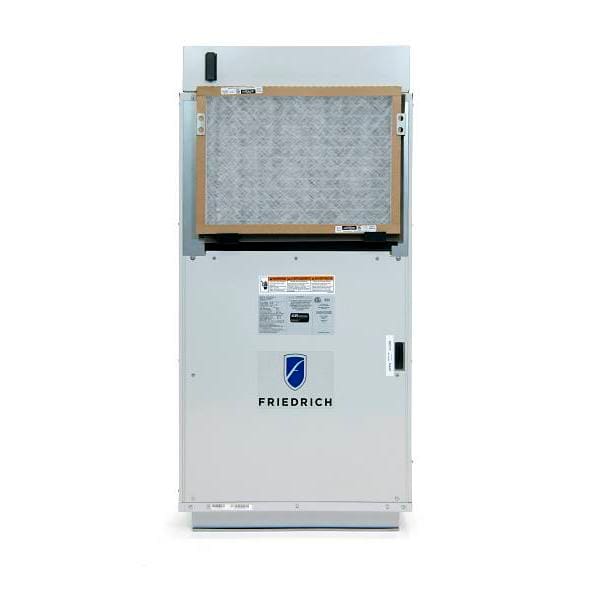

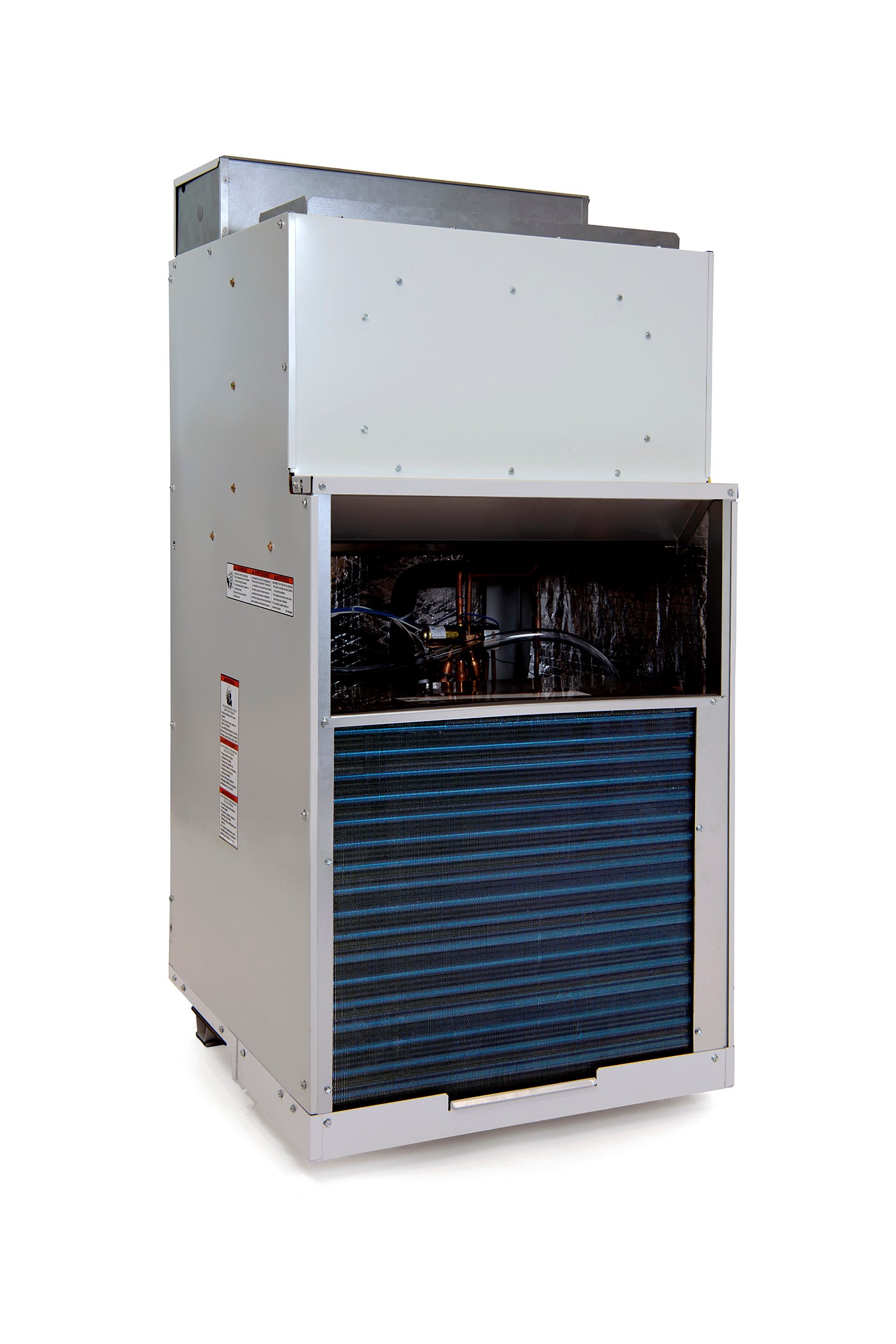

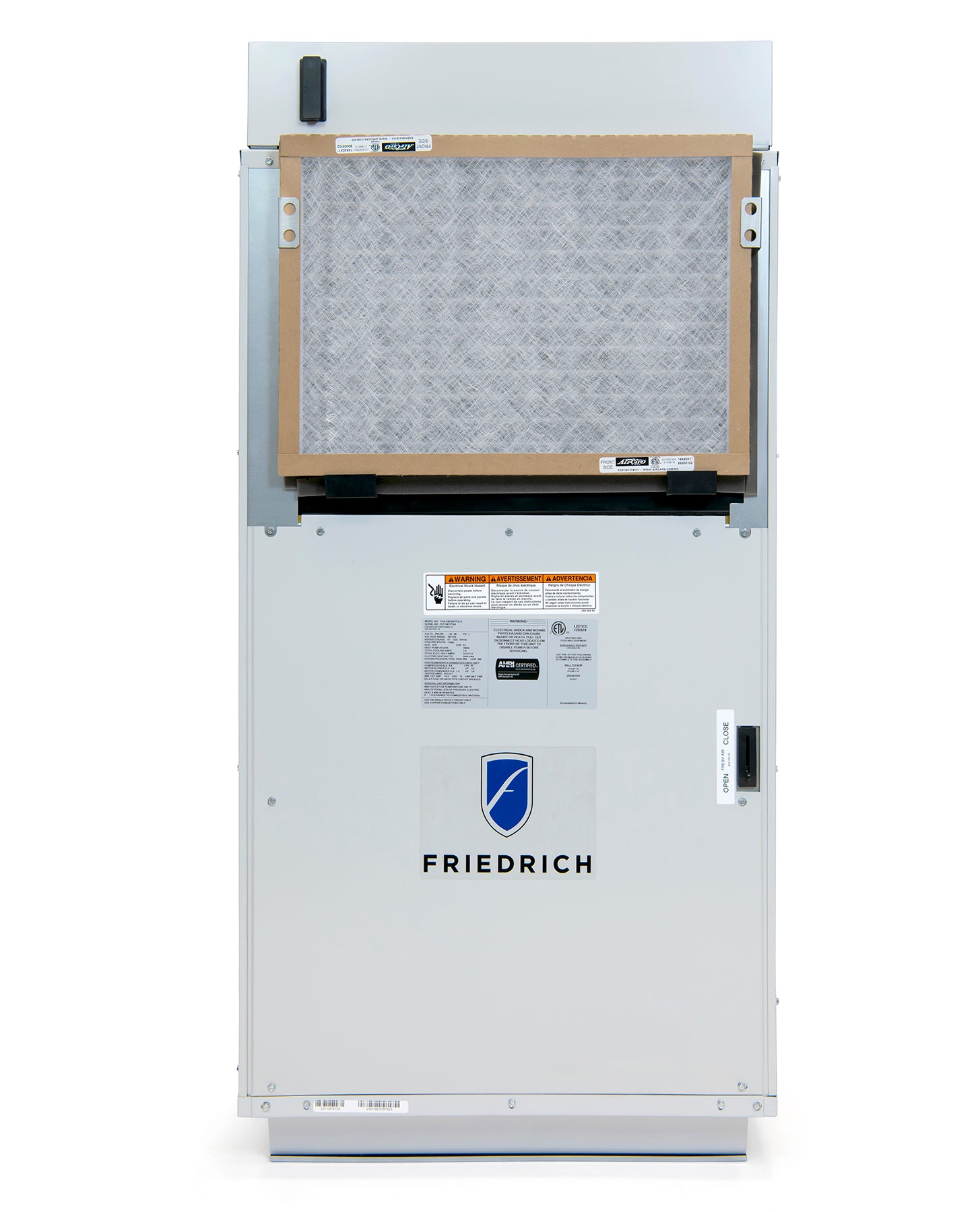

The Friedrich VHA24K75RCQ Vert-I-Pak Vertical Packaged Air System is a simpler way to condition multiple rooms. This unit fits neatly into a typical mechanical closet, creating more versatile indoor living spaces. The VHA24K models are 208/230 volt and feature 22,600 BTUs of cooling and 19,500 BTUs of heat from the heat pump and a 7.5 Kw electric heater. The new line of Friedrich VTACs boasts R-32 low-GWP refrigerant.
- R-32 refrigerant
- Compact and lightweight
- Unique free-floating chassis
Product Highlights
The Friedrich Vert-I-Pak Systems are available with your choice of electric back-up heater size. The VHA24K75RCQ includes a 7.5 Kw electric heater and requires a 45 Amp circuit.
Product Information
Standard Information
-
Brand: FRIEDRICH
-
Manufacturer Part Number: VHA24K75RCQ
-
Country of Origin: MEXICO
Technical Specifications
-
Refrigerant Type: R32
-
Compressor: Standard
-
Energy Star: No
-
CFMs (@ 0.1 ESP): 580
-
Includes Heat Mode: Yes
-
Heat Type: Heat Pump with Back-Up Electric
-
Electric Heat kW: 7.5
-
Cooling BTUs (@230V): 22600
-
EER2 (@230V): 10.6
-
SEER2 (@230V): 12.1
-
Cooling Watts (@230V): 2132
-
Heat Pump BTUs (@230V): 19500
-
HSPF2 (@230V): 6.7
-
Vent Location: Ducted Into Room
-
Make-Up Air: No
-
Energy Saver Mode: No
-
Fan Speeds: High or Low
-
Control Type: Electronic
-
Connectivity: Not WiFi Compatible
-
Fresh Air Intake: No
-
Overall Depth (in.): 23
-
Overall Width (in.): 23
-
Overall Height (in.): 52
-
Voltage: 208-230V
-
Circuit Breaker Size (Amps): 45
-
Brand: Friedrich
-
Cooling BTU: 24000
-
Reverse Cycle BTU: 19500
-
Auto Restart: YES
-
Fan Modes: Constant/Cycle (Hi/Med/Auto)
-
Freeze Protection: YES
-
Front Desk Connection: YES
-
Modes: Heat/Cool/Heat-Pump
-
Sea Coast Protection: YES
-
Temprature Limiting: YES
-
Amperage: 33.4 amp
-
Average Coverage Area: 1400-1500 sq. ft.
-
BTU Heat Rating: 24000 Btu
-
Heating Method: Heat Pump
-
Package Quantity: 1
-
Product Depth: 23 in.
-
Product Height: 52 in.
-
Product Width: 23 in.
-
HazMat: Hazardous
-
MFR #: VHA24K75RCQ
-
UPC #: 724587448603
-
Country of Origin: Mexico
-
Air Filter Width: 25 in
-
Air Filter Height: 20 in
-
Depth: 23 in
-
Sleeve Width (In.): 24 5/8 in
-
Sleeve Height: 30 7/8 in
-
Heating Capacity - Electric: 17,000 BtuH
-
Phase: Single
-
Reverse Cycle Heat COP: 3.3
-
Hz: 60 Hz
-
Operation Mode - HVAC: Cooling/Heating
-
Seacoast Corrosion Protection: Front and Rear Coil
-
Cooling Capacity: 14,700 BtuH
-
Item: Vertical Packaged Air Conditioner
-
Standards: A2L Refrigerant
-
Coverage Area - Maximum: 1,500 sq ft
-
Heating Capacity: 18,500 BtuH
-
Airflow: 580 cfm
-
Coverage Area - Minimum: 1,400 sq ft
-
Exhaust Air Flow: 580 cfm
-
Heat Pump Heating Capacity - Minimum: 12,400 BtuH
-
Refrigerant Precharge: 44 oz
-
Power Source: Corded Electric
-
Compressor Type: Rotary
-
Cooling Capacity - Maximum: 21,800 BtuH
-
Seasonal Energy Efficiency Ratio 2 (SEER2) Rating: 11.9
-
For Use With: VPAWP1-14, VPAWP1-8
-
Compressor Technology: Variable Output (Inverter)
-
Watts: 2,132 W
-
Heating Watts: 1,732 W
-
Includes Filtration: Air Filtering
-
Filter Performance Rating: MERV 13
-
Control Location: Wall Thermostat
-
Electric Heating Capacity - Minimum: 13,900 BtuH
-
Heating System: Heat Pump
-
Refrigerant: R-32
-
Power Phase: 1 Phase
-
Category: Business & Industrial
-
BTU Cooling Rating: 24000 Btu
