Product Description

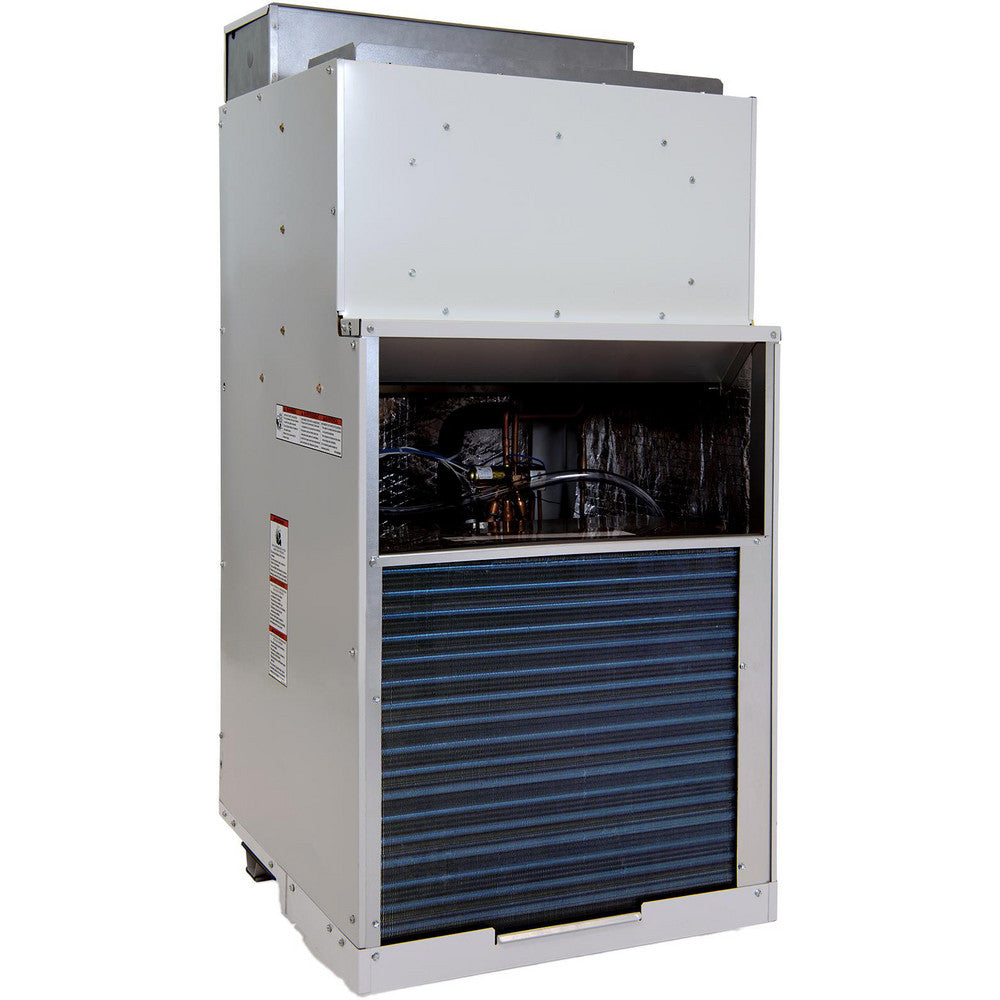

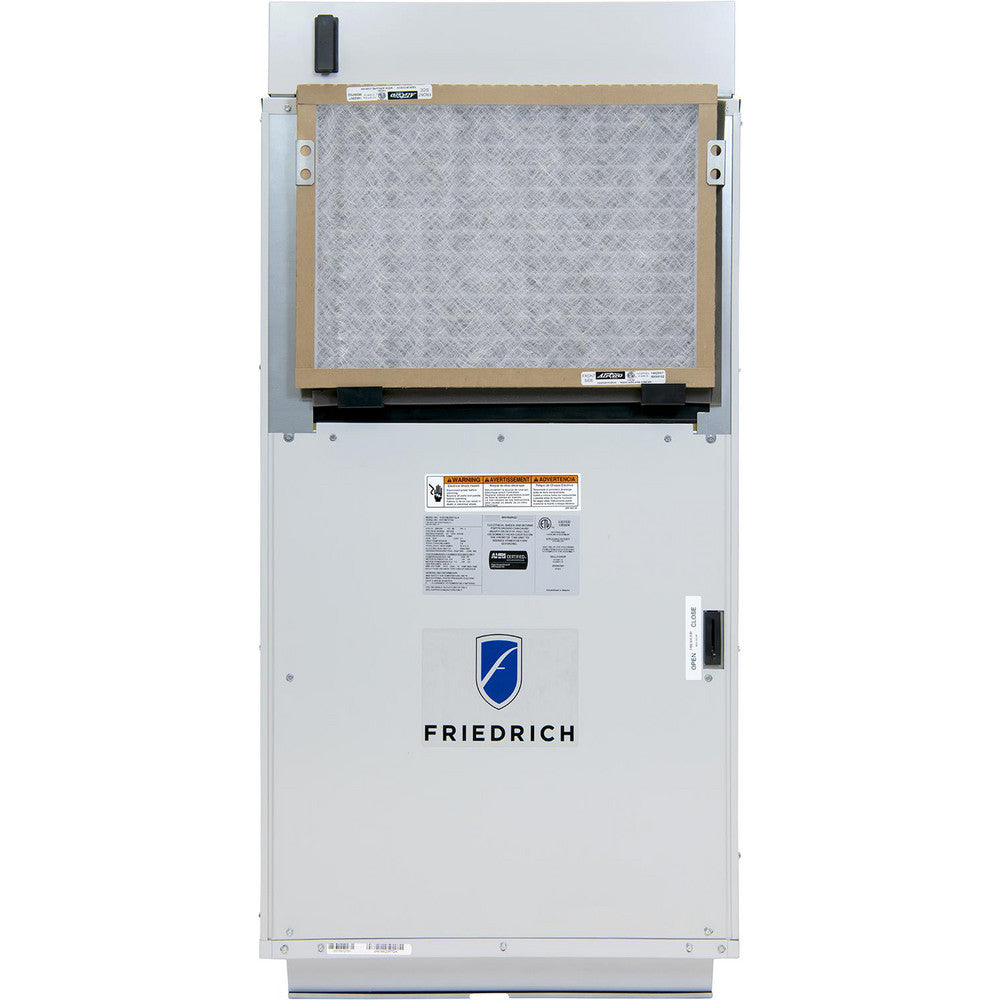

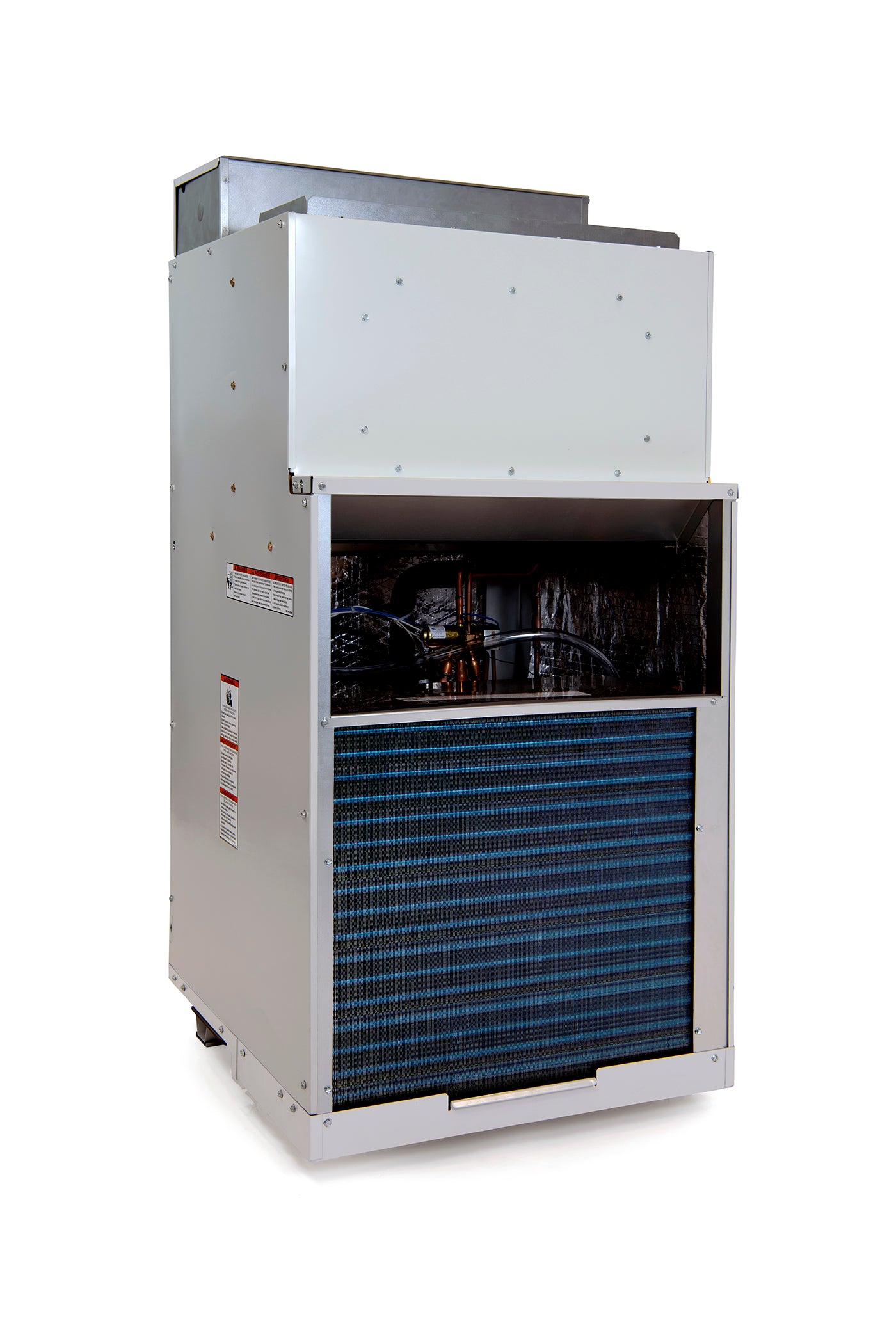

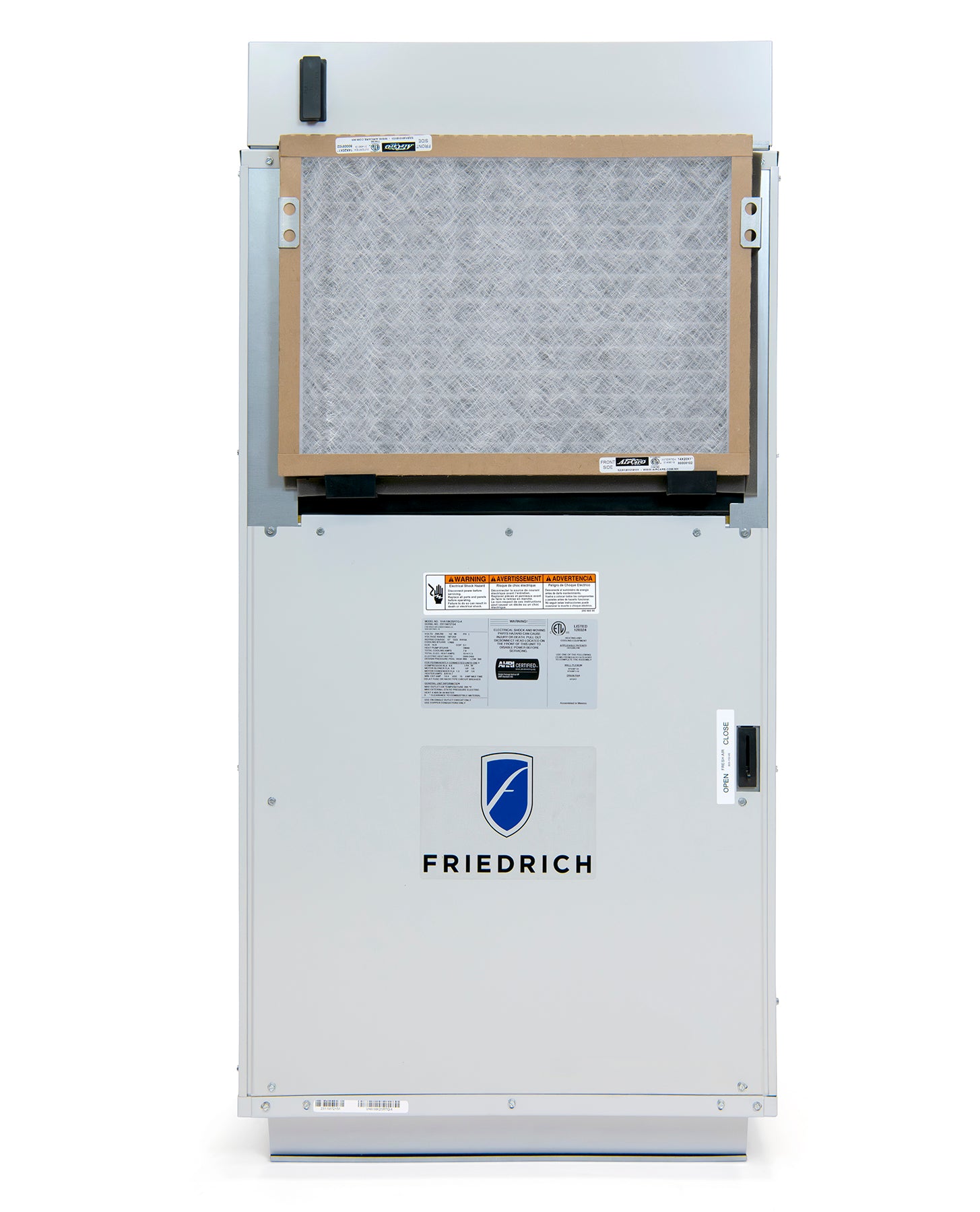

The FRIEDRICH VHA24K50RCQ VTAC with heat pump is a customizable and reliable solution ideal for extended stay hotels, assisted living, and student housing. This air conditioner stays tucked away and out of sight, providing the aesthetics of central HVAC systems with the simplicity of single room ACs. The VHA24K50RCQ includes a 5.0 Kw electric heater and requires a 20 Amp circuit.
- Features R-32 refrigerant.
- Offers flexible installation, mounting from any interior side and comes pre-charged and pre-wired.
- Supports decarbonization efforts with heat pump operation down to 10 degrees F.
Product Highlights
This Friedrich VTAC unit fits neatly into a typical mechanical closet, creating versatile indoor living spaces with individual, in-room temperature control.
Product Information
Standard Information
-
Brand: FRIEDRICH
-
Manufacturer Part Number: VHA24K50RCQ
-
Country of Origin: Mexico
Technical Specifications
-
Brand: Friedrich
-
Type: Cooling With Heat Pump
-
Cooling BTU: 24000
-
Reverse Cycle BTU: 19500
-
Voltage: 208/230V
-
AMPS: 30A
-
EER: 11.0
-
COP: 3.3
-
Auto Restart: YES
-
Fan Modes: Constant/Cycle (Hi/Med/Auto)
-
Freeze Protection: YES
-
Front Desk Connection: YES
-
Modes: Heat/Cool/Heat-Pump
-
Sea Coast Protection: YES
-
Temprature Limiting: YES
-
Refrigerant Type: R32
-
Compressor: Standard
-
Energy Star: No
-
CFMs (@ 0.1 ESP): 580
-
Includes Heat Mode: Yes
-
Heat Type: Heat Pump with Back-Up Electric
-
Electric Heat kW: 5.0
-
Cooling BTUs (@230V): 22600
-
EER2 (@230V): 10.6
-
SEER2 (@230V): 12.1
-
Cooling Amps (@230V): TBD
-
Cooling Watts (@230V): 2132
-
Heat Pump BTUs (@230V): 19500
-
HSPF2 (@230V): 6.7
-
Heat Pump Heating Amps (@230V): TBD
-
Heat Pump Heating Watts (@230V): TBD
-
Vent Location: Ducted Into Room
-
Make-Up Air: No
-
Energy Saver Mode: No
-
Fan Speeds: High or Low
-
Control Type: Wall Thermostat Required (NOT INCLUDED)
-
Connectivity: Not WiFi Compatible
-
Fresh Air Intake: No
-
Overall Depth (in.): 23
-
Overall Width (in.): 23
-
Overall Height (in.): 52
-
Circuit Breaker Size (Amps): 30
-
Basic Heater Size: 5.0 kW
-
Air Conditioner Type: Vertical Packaged
-
BTU Rating: 24000
-
Cooling Area: 1500
-
Operation Mode: Cooling; Heating
-
Air Flow: 700
-
Plug Face: Hard Wire
-
Cooling Method: Air-Cooled Ducted; Air-Cooled Vented
-
Commercial/Residential: Commercial
-
Thermostat: Thermostat
-
Number Of Speeds: 2
-
Heat Pump: Yes
-
Power Source: Corded Electric
-
Refrigerant: R-32
-
Material: Steel
-
MPN: VHA24K50RCQ
-
Power Phase: 1 Phase
-
Heating System: Heat Pump
-
Model: Friedrich VHA24K50RCQ
-
Item Width: 23 in
-
Country of Origin: United States
-
Item Depth: 23 in
-
Item Height: 52 in
