Friedrich VHA24K25RCQ Vert-I-Pak 24000 BTU with Heat Pump - 2.5 kW Electric Heat REPLACEMENT MPN

Product Description

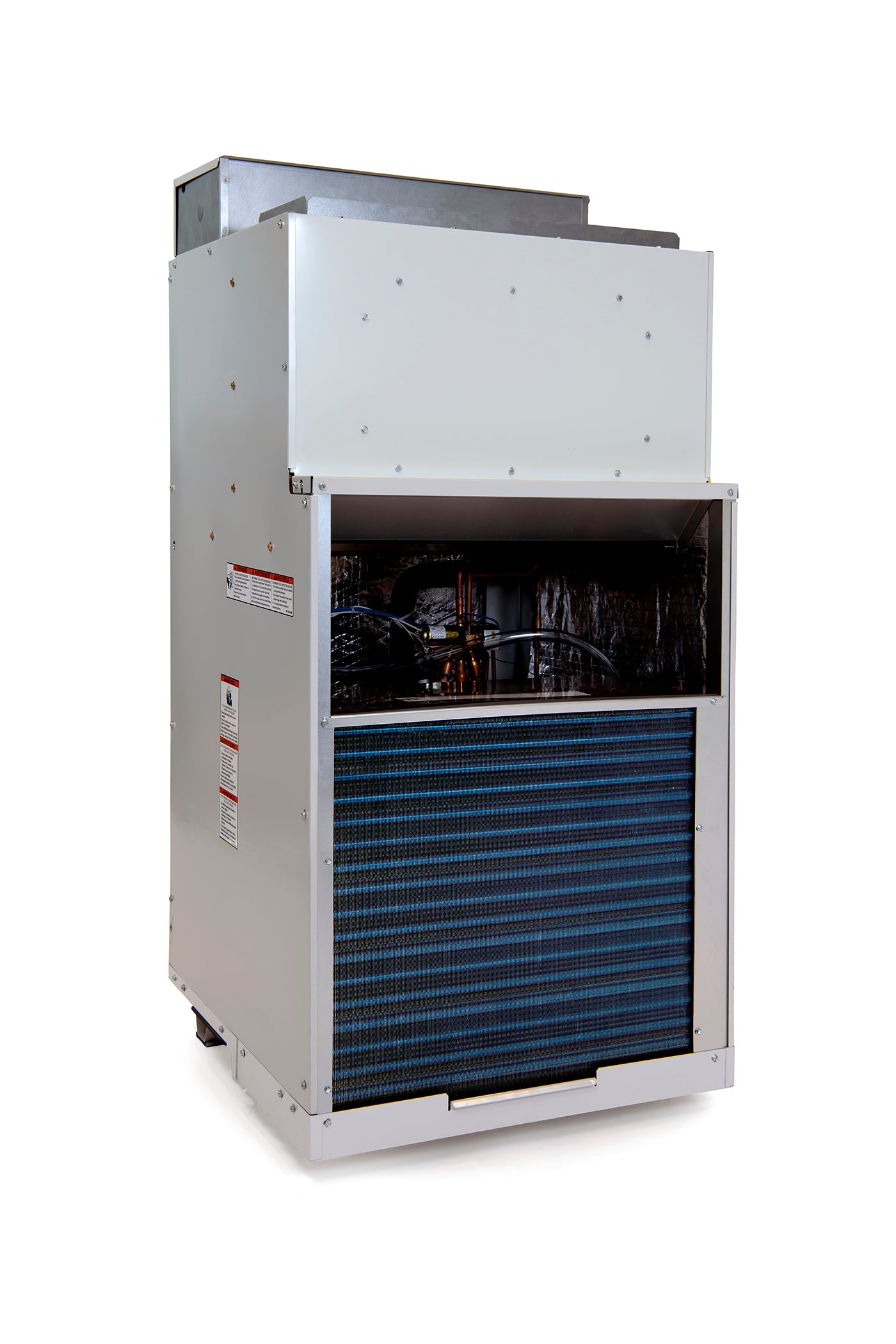

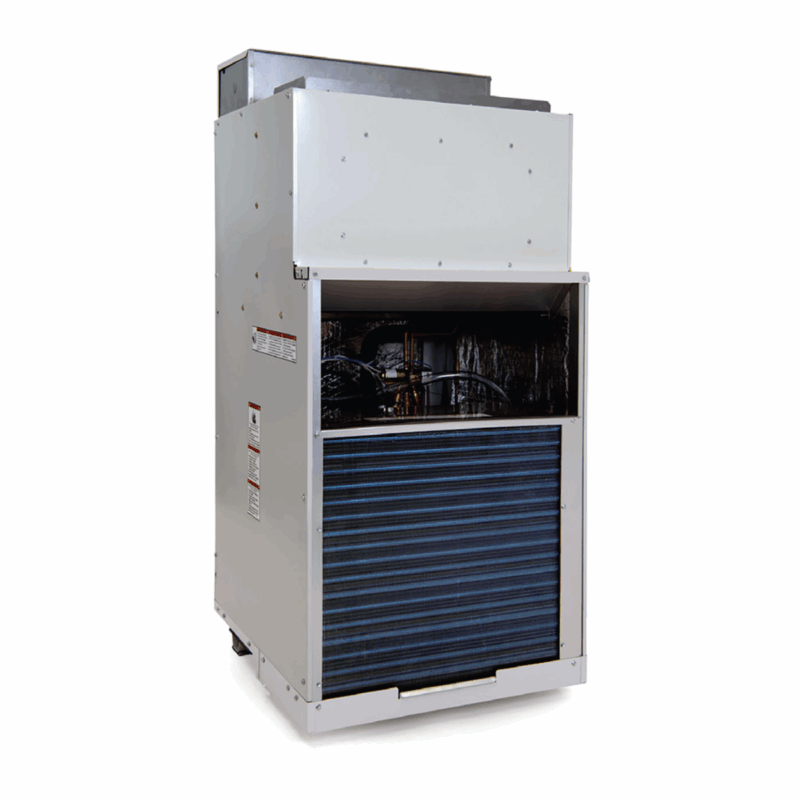

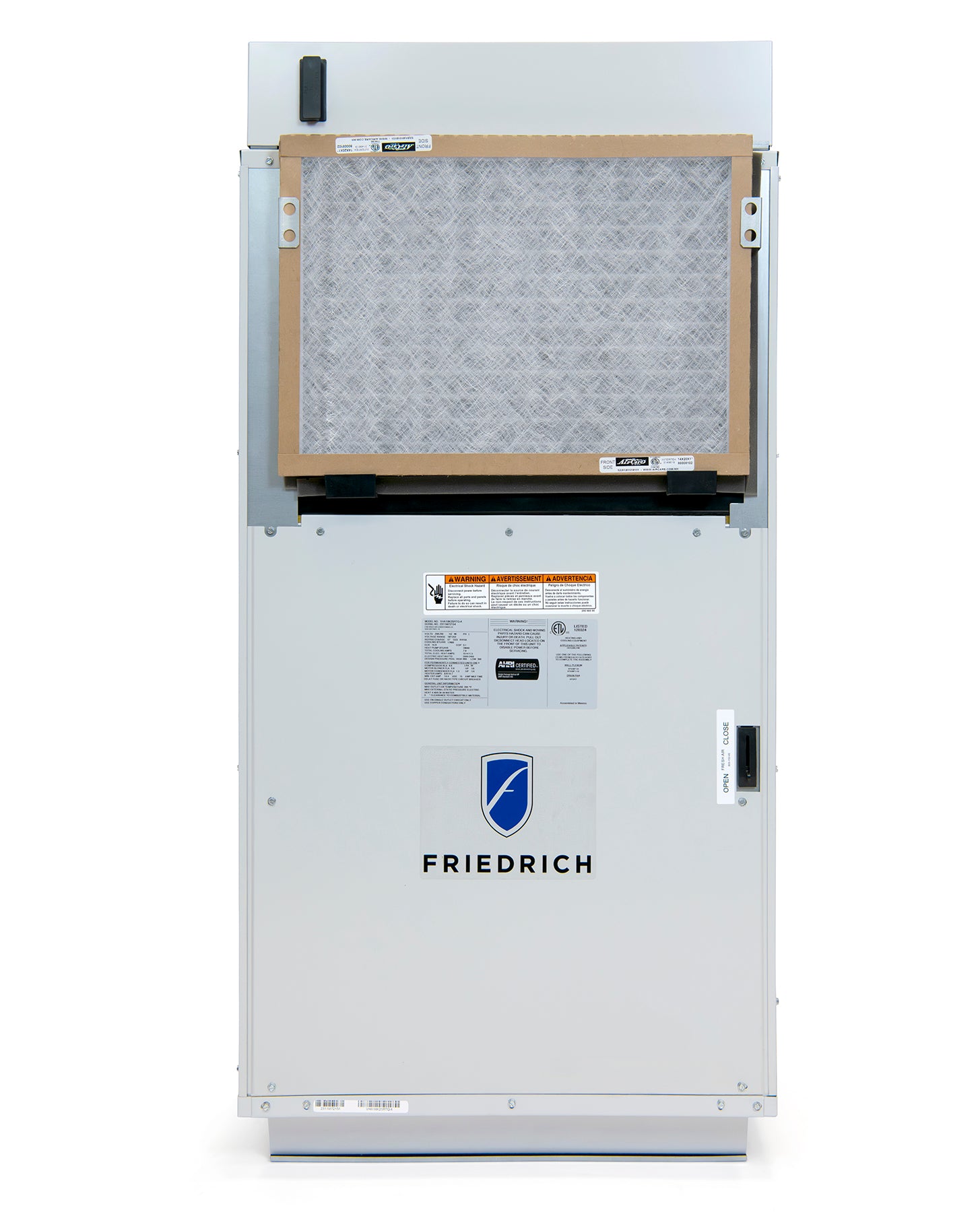

The FRIEDRICH VHA24K25RCQ Vert-I-Pak vertical packaged air system offers a simpler way to condition multiple rooms. This 208/230 volt unit features 22,600 BTUs of cooling and 19,500 BTUs of heat from the heat pump, utilizing R-32 refrigerant. It fits neatly into a typical mechanical closet, providing individual, in-room temperature control. The VHA24K25RCQ includes a 2.5 kW electric heater and requires a 15 Amp circuit.

• R-32 refrigerant for improved efficiency and lower Global Warming Potential (GWP).
• Compact design fits neatly into a typical mechanical closet.
• Features a free-floating chassis and corrosion-resistant interior.

Product Highlights

The Friedrich Vert-I-Pak offers a quiet, energy-efficient solution for multi-room conditioning, ideal for extended-stay properties, suites, and student housing. It installs easily and provides individual temperature control.

Product Information

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: VHA24K25RCQ

Technical Specifications

• Refrigerant Type: R32
• Compressor: Standard
• Energy Star: No
• CFMs (@ 0.1 ESP): 580
• Includes Heat Mode: Yes
• Heat Type: Heat Pump with Back-Up Electric
• Electric Heat kW: 2.5
• Cooling BTUs (@230V): 22600
• EER2 (@230V): 10.6
• SEER2 (@230V): 12.1
• Cooling Watts (@230V): 2132
• Heat Pump BTUs (@230V): 19500
• HSPF2 (@230V): 6.7
• Vent Location: Ducted Into Room
• Make-Up Air: No
• Energy Saver Mode: No
• Fan Speeds: High or Low
• Control Type: Wall Thermostat Required (NOT INCLUDED)
• Connectivity: Not WiFi Compatible
• Fresh Air Intake: No
• Overall Depth (in.): 23
• Overall Width (in.): 23
• Overall Height (in.): 52
• Voltage: 208-230V
• Circuit Breaker Size (Amps): 15
• Cooling BTU: 22500
• Reverse Cycle BTU: 19500
• AMPS: 15A
• EER: 11.0
• COP: 3.3
• Digital Controls: NO
• Auto Restart: YES
• Fan Modes: Constant/Cycle (Hi/Med/Auto)
• Freeze Protection: YES
• Front Desk Connection: YES
• Modes: Heat/Cool/Heat-Pump
• Sea Coast Protection: YES
• Temprature Limiting: YES
• Cooling Capacity: 22600 BTU
• Heating Capacity: 19500 BTU
• Watts: 2450
• Cooling Power (Watts): 2,525/2,505
• Sensible Heat Ratio: 0.70
• Heater Size: 2.5 kW
• Heating BTU: 20,000
• COP @ 47 degrees: 3.0/3.0
• Heating Power (Watts): 1,953/1,953
• Heating Current (Amps): 8.5/9.4
• Heater Watts: 2,500/2,050
• Heating Current Amps: 10.9/9.9
• Minimum Circuit Ampacity: 17.2
• Branch/Circuit/Fuse MOP/MCOP: 25
• Voltage (1 Phase, 60 Hz): 230/208
• Volt Range: 253-197
• Cooling Current (Amps): 10.9/10.6
• Amps L.R.: 46.0
• Amps F.L.: 9.5
• Indoor Motor (HP): 1/4
• Indoor Motor (A): 1.9
• Outdoor Motor (HP): 1/4
• Outdoor Motor (A): 0.85
• INDOOR CFM LOW/HIGH .10" ESP.10" ESP: 610/700
• INDOOR CFM LOW/HIGH .15" ESP.10" ESP: 585/670
• INDOOR CFM LOW/HIGH .20" ESP.10" ESP: 560/640
• INDOOR CFM LOW/HIGH .25" ESP.10" ESP: 535/610
• INDOOR CFM LOW/HIGH .30" ESP.10" ESP: 510/580
• Vent CFM: 60
• R410A Charge (oz.): 65.0
