Product Description

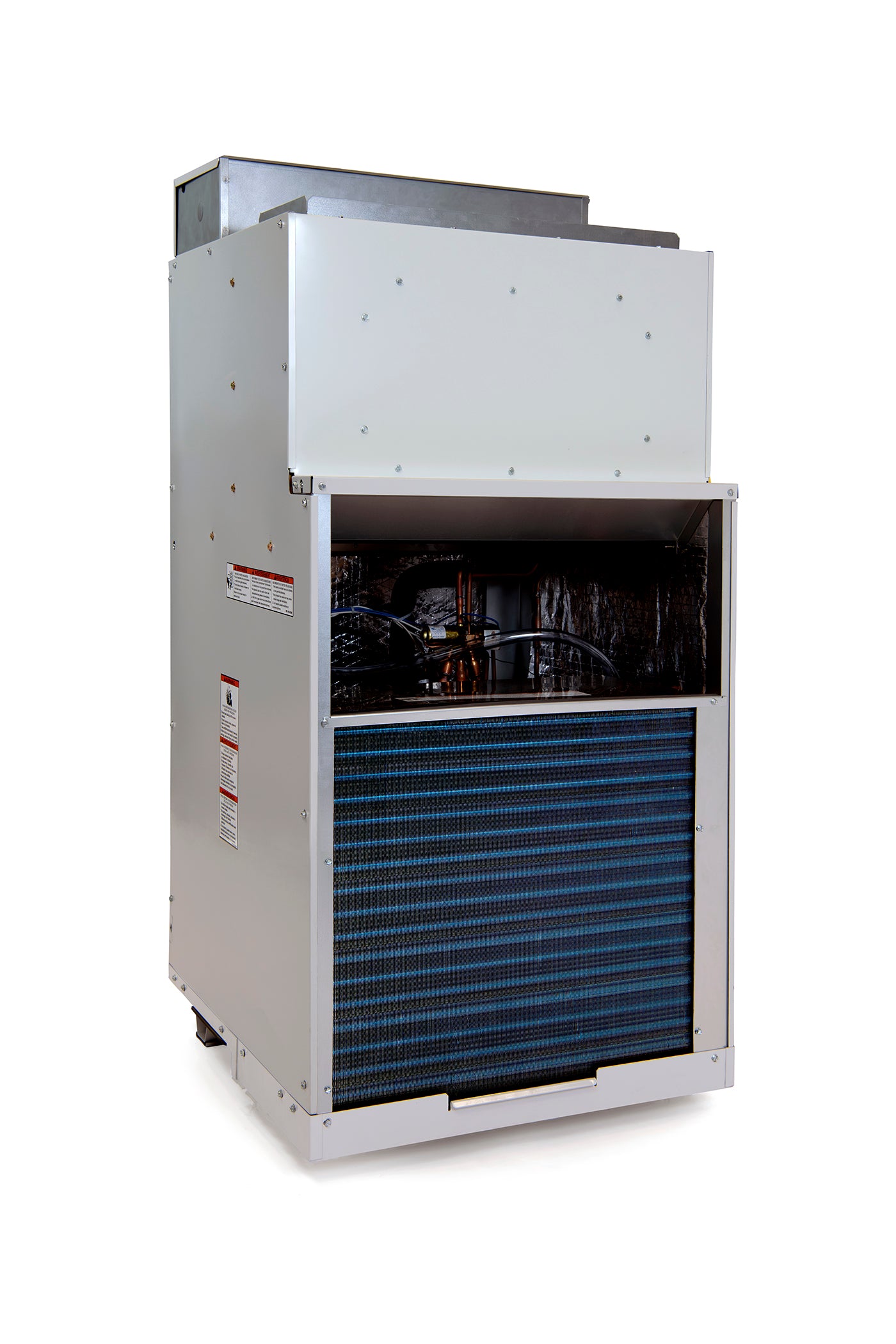

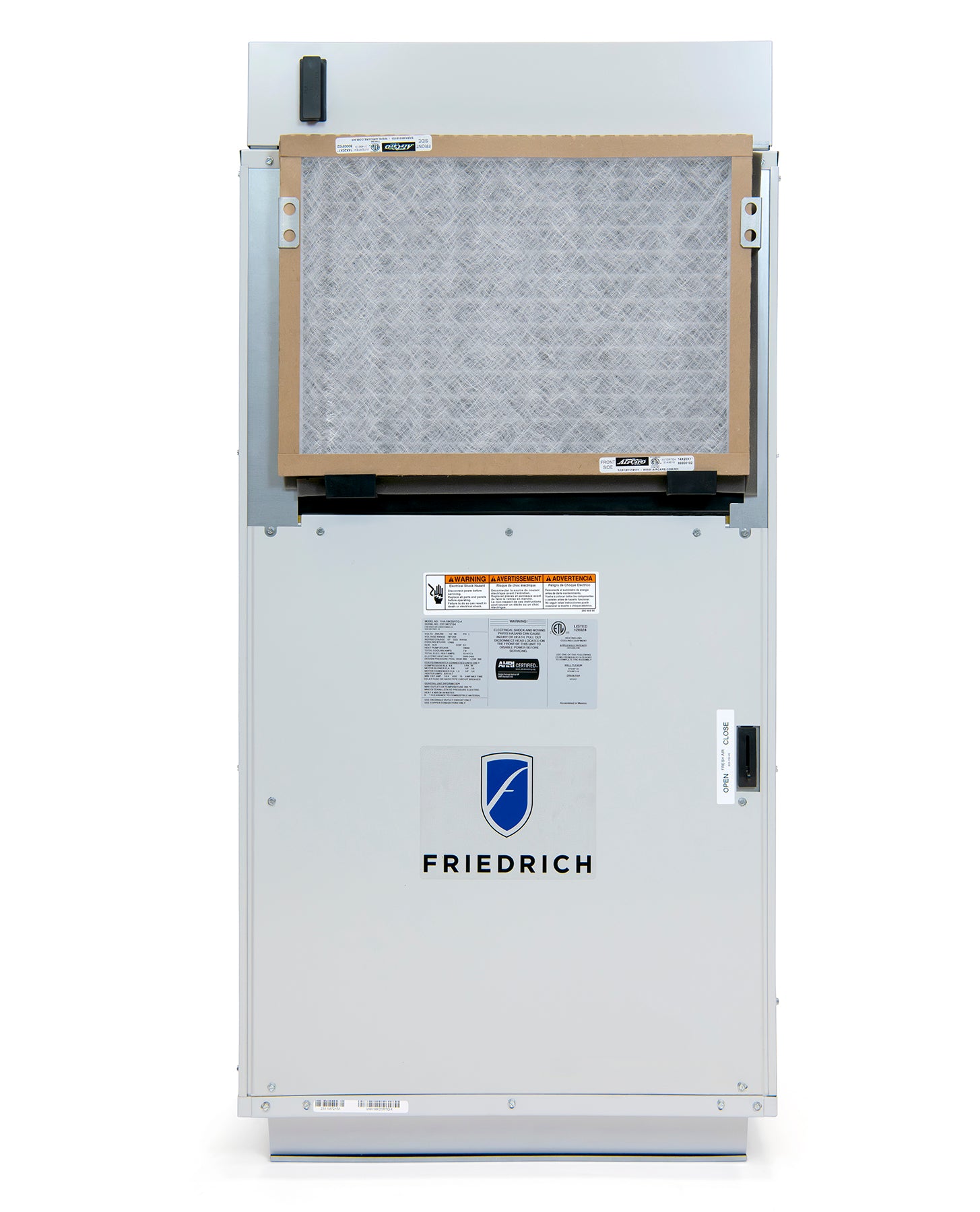

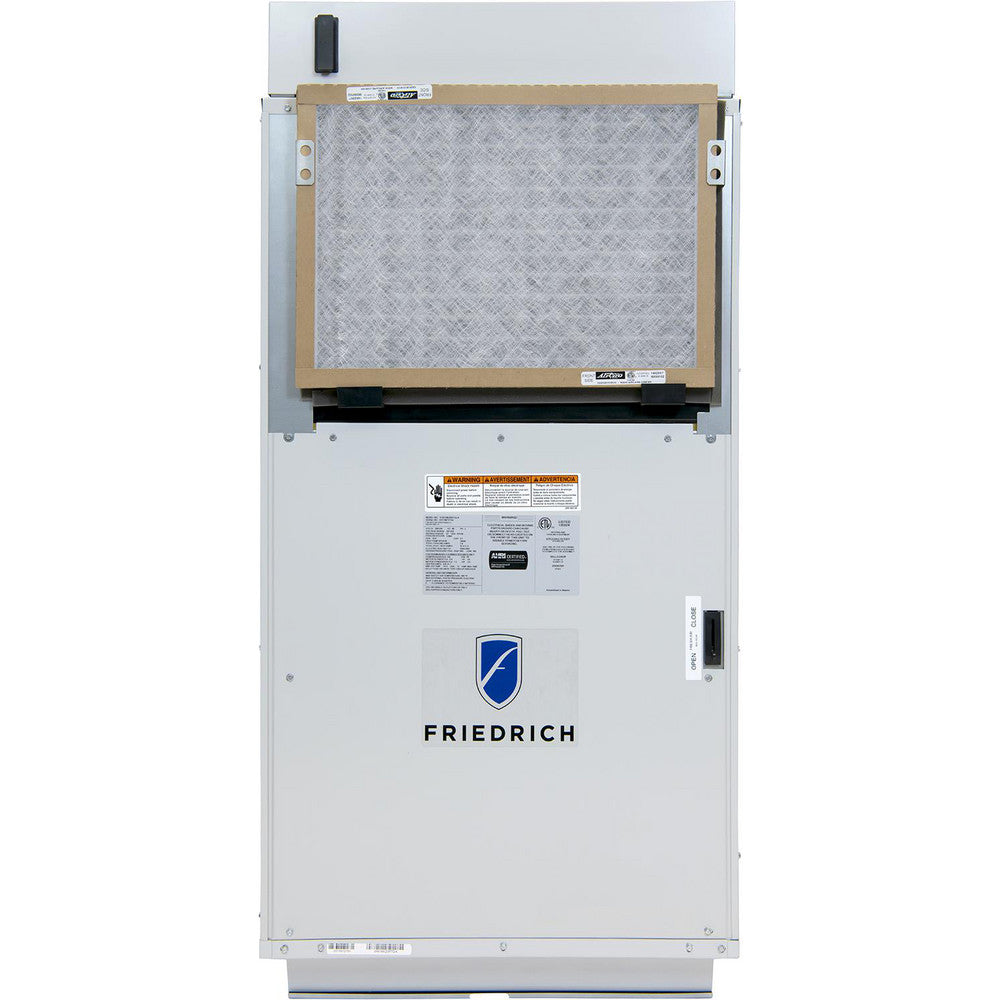

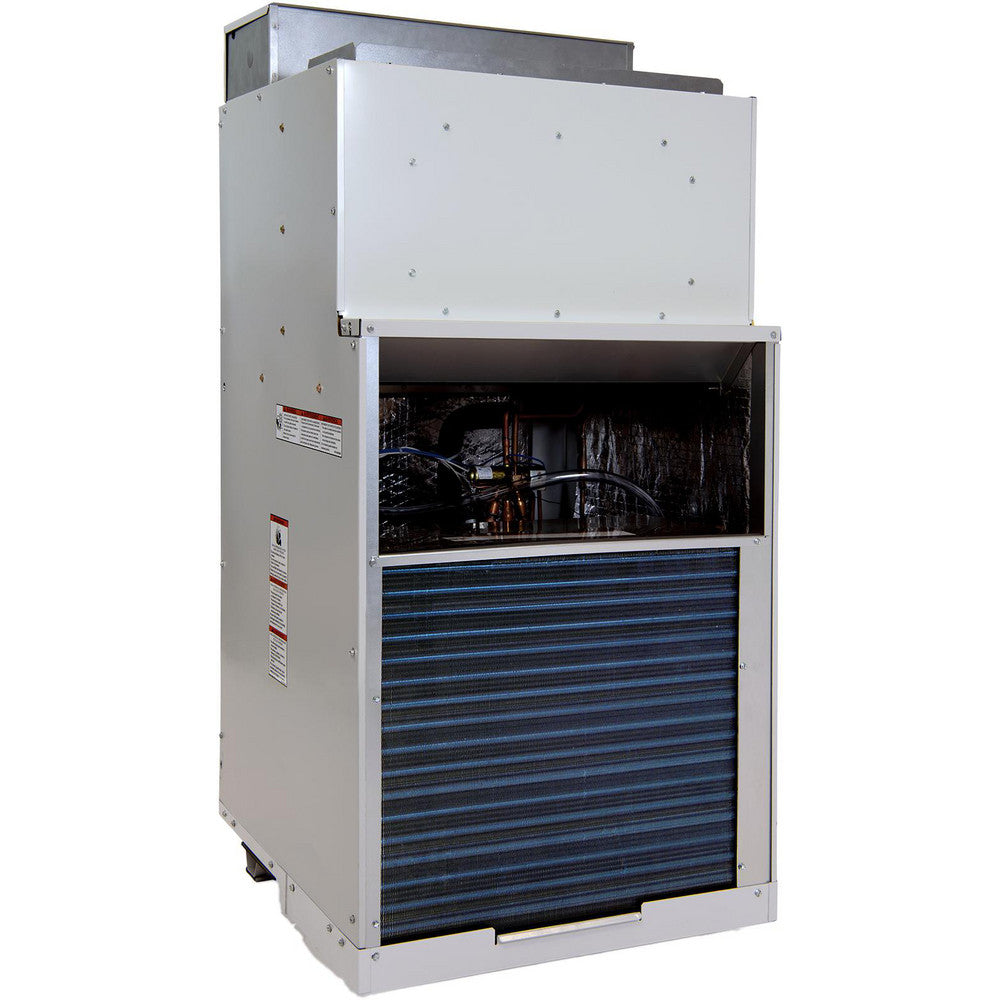

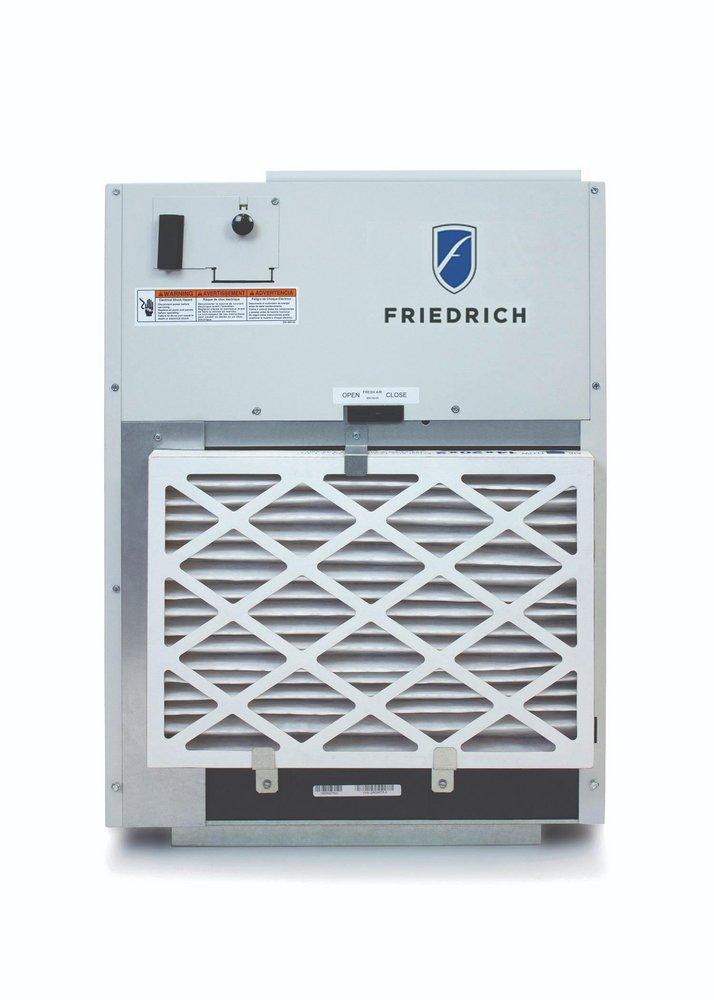

The FRIEDRICH VHA18R50RCQ Vert-I-Pak is a customizable and reliable VTAC unit with heat pump, ideal for extended stay hotels, assisted living, and student housing. This air conditioner offers the aesthetics of central HVAC systems while remaining tucked away. The VHA18R50RCQ includes a 5.0 Kw electric heater and requires a 30 Amp circuit.
- Features R-32 refrigerant for improved efficiency and lower Global Warming Potential (GWP).
- Operates with heat pump down to 10°F, with back-up electric heater.
- Offers flexible installation, mounting from any interior side and comes pre-charged and pre-wired.
Product Highlights
The Friedrich Vert-I-Pak provides a simpler way to condition multiple rooms with individual, in-room temperature control. It installs easily and eliminates the clutter of split systems.
Product Information
Standard Information
-
Brand: FRIEDRICH
-
Manufacturer Part Number: VHA18R50RCQ
-
Country of Origin: Mexico
Technical Specifications
-
Brand: Friedrich
-
Type: Cooling With Heat Pump
-
Cooling BTU: 18000
-
Reverse Cycle BTU: 16700
-
Voltage: 265 VAC
-
AMPS: 30A
-
EER: 11.0
-
COP: 3.3
-
Auto Restart: YES
-
Fan Modes: Constant/Cycle (Hi/Med/Auto)
-
Freeze Protection: YES
-
Front Desk Connection: YES
-
Modes: Heat/Cool/Heat-Pump
-
Sea Coast Protection: YES
-
Temprature Limiting: YES
-
Refrigerant Type: R32
-
Compressor: Standard
-
Energy Star Rated: No
-
CFMs (@ 0.1 ESP): 560
-
Includes Heat Mode: Yes
-
Heat Type: Heat Pump with Back-Up Electric
-
Electric Heat kW: 5.0
-
Cooling BTUs (@265V): 17800
-
EER2 (@265V): 10.6
-
SEER2 (@265V): 12.1
-
Cooling Amps (@265V): TBD
-
Cooling Watts (@265V): 1679
-
Heat Pump BTUs (@265V): 16200
-
HSPF2 (@265V): 6.7
-
Heat Pump Heating Amps (@265V): TBD
-
Heat Pump Heating Watts (@265V): TBD
-
Vent Location: Ducted Into Room
-
Make-Up Air: No
-
Energy Saver Mode: No
-
Fan Speeds: High or Low
-
Control Type: Wall Thermostat Required (NOT INCLUDED)
-
Connectivity: Not WiFi Compatible
-
Fresh Air Intake: No
-
Overall Depth (in.): 23
-
Overall Width (in.): 23
-
Overall Height (in.): 47
-
Circuit Breaker Size (Amps): 30
-
Basic Heater Size: 5.0 kW
-
Air Conditioner Type: Vertical Packaged
-
BTU Rating: 18000
-
Cooling Area: 1000
-
Operation Mode: Cooling; Heating
-
Air Flow: 640
-
Plug Face: Hard Wire
-
Cooling Method: Air-Cooled Ducted; Air-Cooled Vented
-
Commercial/Residential: Commercial
-
Thermostat: Thermostat
-
Number Of Speeds: 2
-
Heat Pump: Yes
-
A2L Compatible: Yes
-
BTU Cooling Rating: 17800 Btu/h
-
BTU Heat Rating: 16200 Btu/h
-
Depth: 23
-
Max CFM: 560
-
Volts: 265V
-
Unit Size: 1.5
-
Height: 25
-
Length: 26
-
Width: 52
-
Cooling Capacity: 18,000
-
Heating Capacity: 9,800-16,200
-
Air Flow Direction: Vertical
-
Blower Motor HP: 1/5 HP
-
Blower Motor Speeds: 2
-
Condenser Fan CFM: 950
-
Condenser Motor HP: 1/4 HP
-
Condenser Motor Speeds: 1
-
Product Family: VHA
-
Unit Type: CBU - Compressor Bearing Unit
-
Unit Cooling: Yes
-
Compressor Type: Rotary
-
Cycle/Hertz: 60 Hz
-
Electric Heat Range [kW]: 5
-
Locked Rotor Amps (LRA): 30
-
Maximum Overcurrent Protection (MOCP): 30
-
Phase: Single
-
Rated Load Amps (RLA): 6.8
-
Substantial Commodity: Steel; Copper; Aluminum
-
Drain Connection Size: 3/4"
