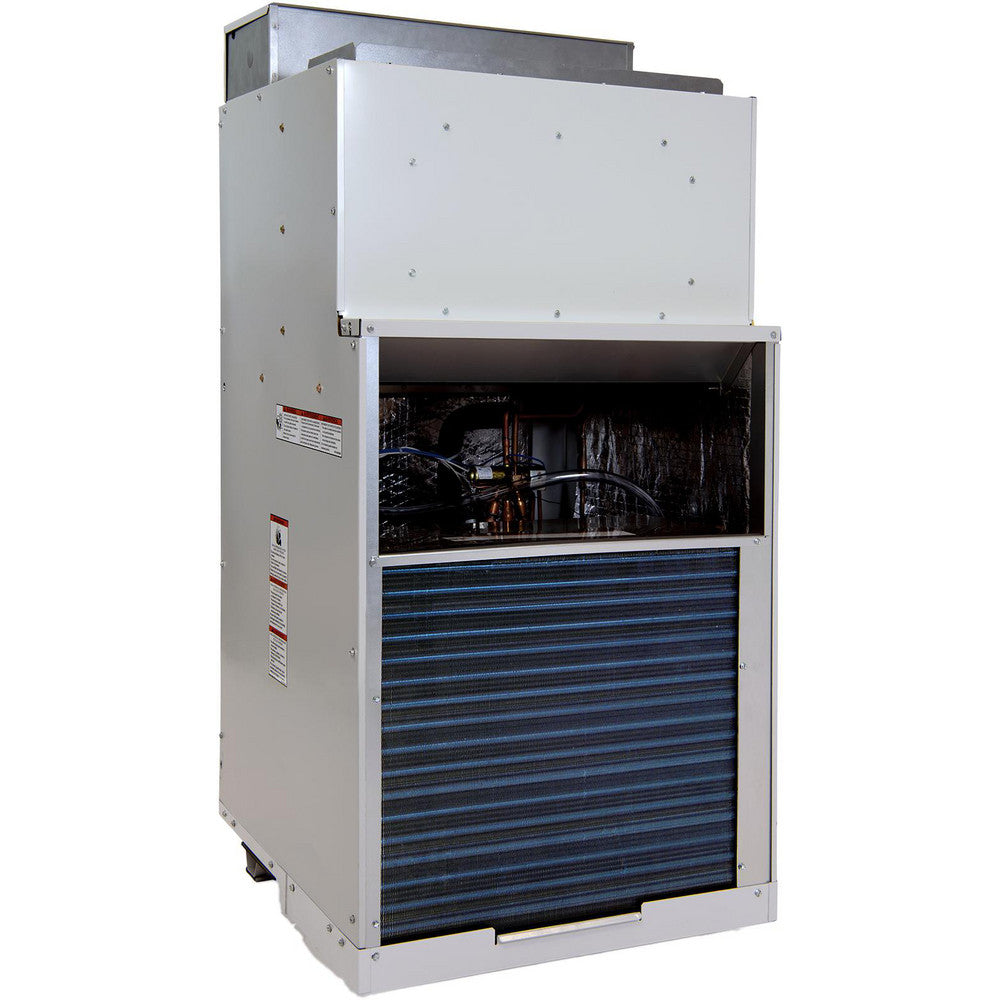

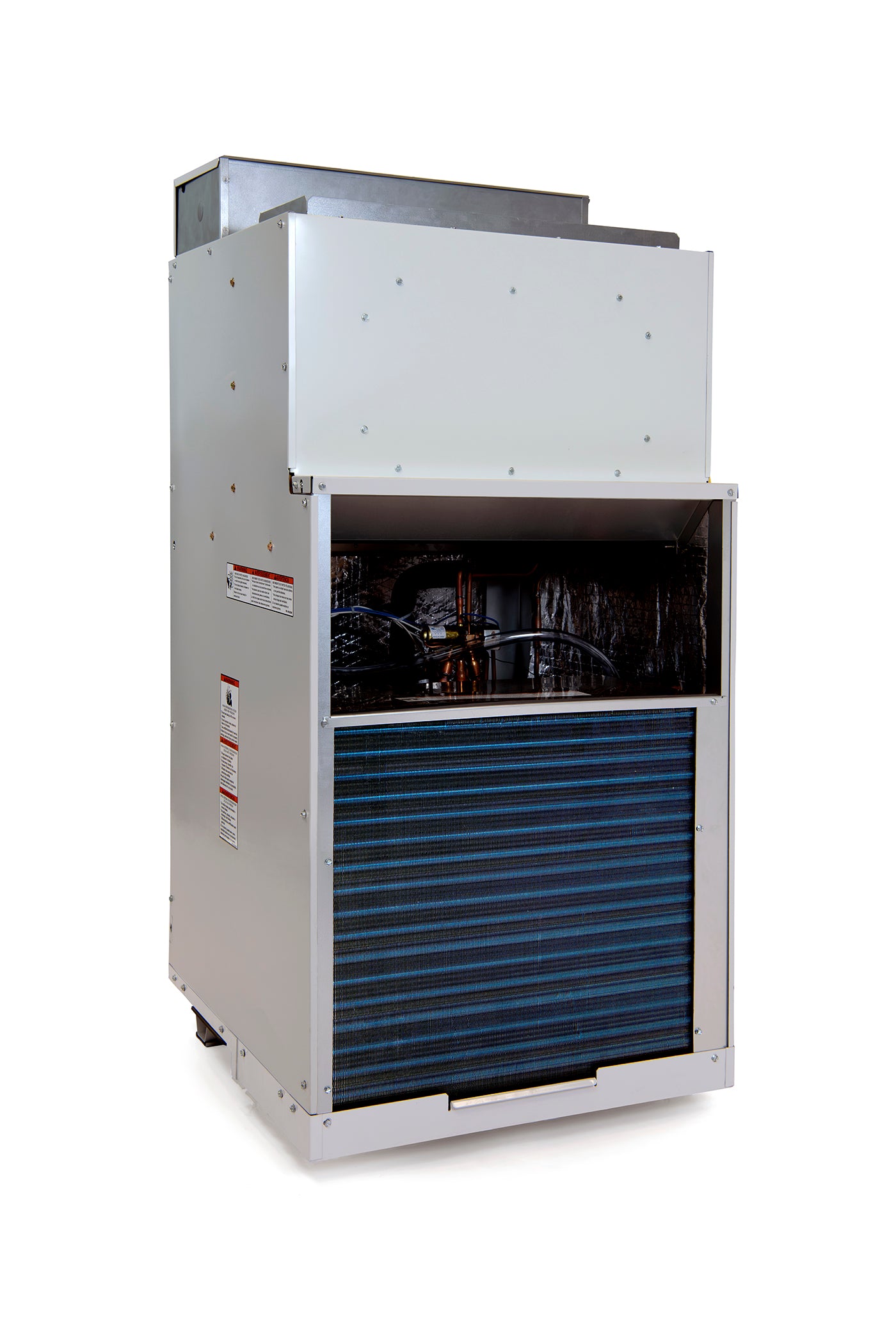

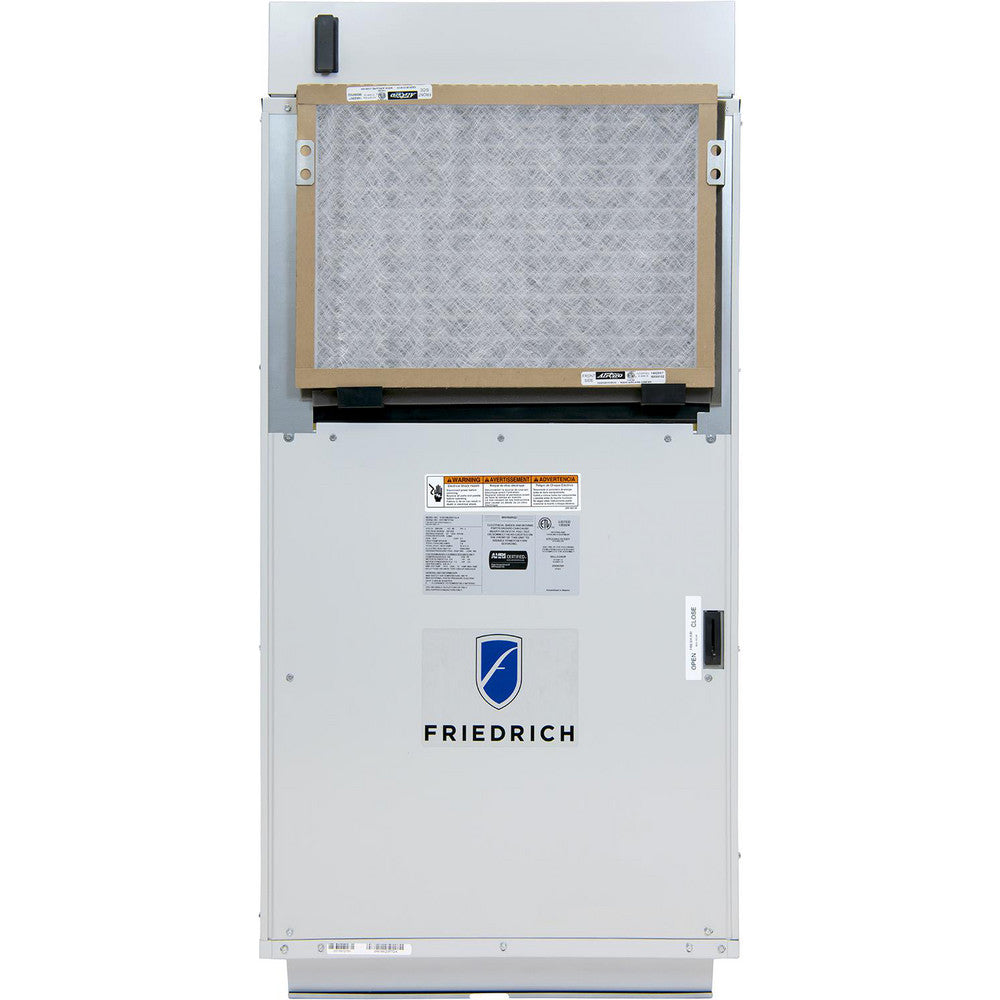

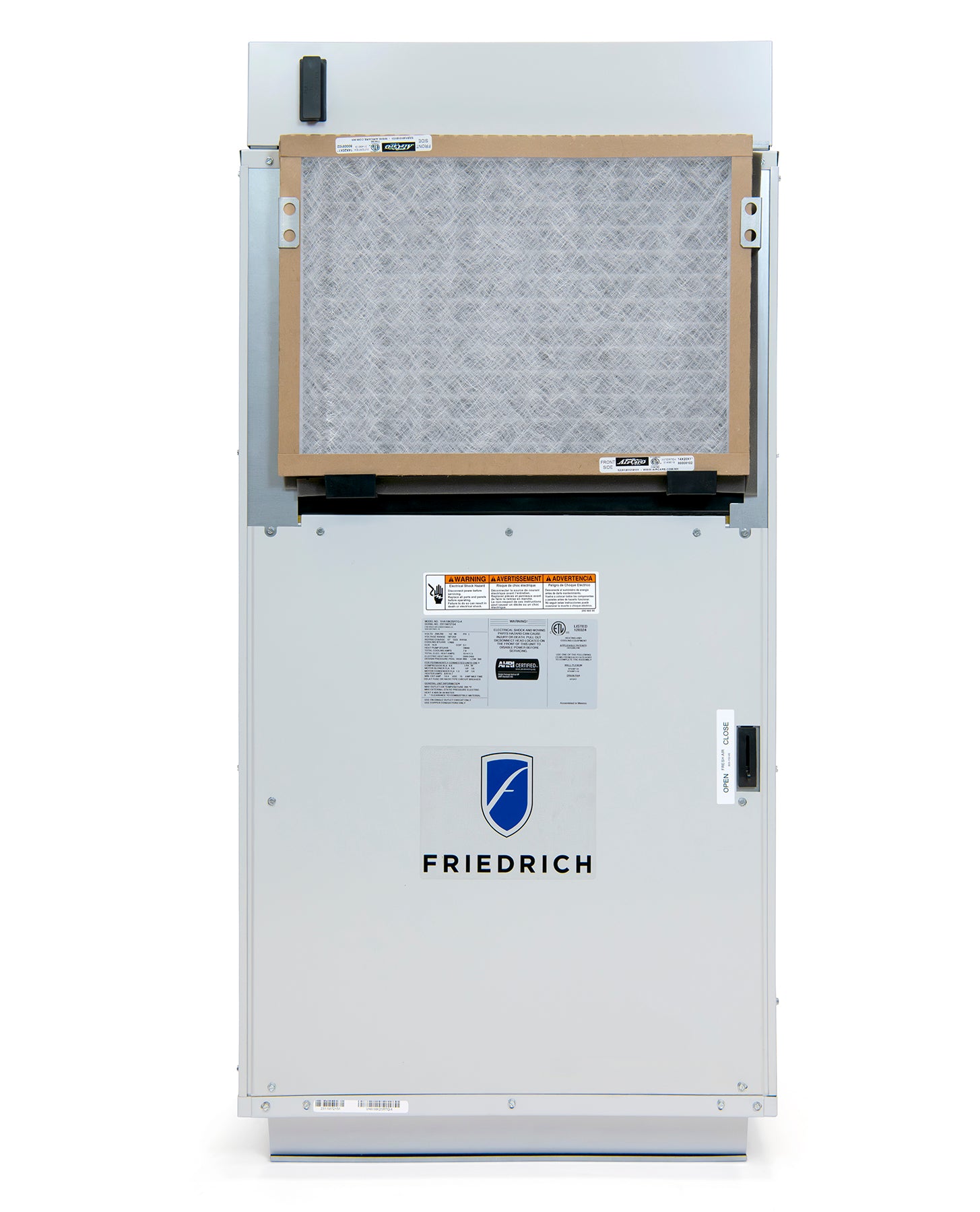

Friedrich VHA18R34RCQ Vert-I-Pak 18000 BTU Class VTAC with Heat Pump 3.4 kW Electric Heat 265V R32 Refrigerant

Product Description

The Friedrich VHA18R34RCQ Vert-I-Pak vertical packaged air system offers a simpler way to condition multiple rooms. This 265V commercial unit features 17800 BTUs of cooling and 16200 BTUs of heat from the heat pump, utilizing R-32 low-GWP refrigerant. It has a 3.4 kW electric heater and requires a 20 Amp circuit. The unit is rated with 10.6 EER2, 12.1 SEER2, and 6.7 HSPF2 ratings.

• Utilizes R-32 refrigerant for improved efficiency and lower Global Warming Potential (GWP).
• Features heat pump operation down to 10°F.
• Requires a rectangular duct transition to 10" and a new platform for support.

Product Highlights

Ideal for extended stay properties, suites, assisted living facilities, and student housing, providing individual, in-room temperature control.

Product Information

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: VHA18R34RCQ
• Country of Origin: Mexico

Technical Specifications

• Refrigerant Type: R32
• Compressor: Standard
• Energy Star: No
• CFMs (@ 0.1 ESP): 560
• Includes Heat Mode: Yes
• Heat Type: Heat Pump with Back-Up Electric
• Electric Heat kW: 3.4
• Cooling BTUs (@265V): 17800
• EER2 (@265V): 10.6
• SEER2 (@265V): 12.1
• Cooling Watts (@265V): 1679
• Heat Pump BTUs (@265V): 16200
• HSPF2 (@265V): 6.7
• Vent Location: Ducted Into Room
• Make-Up Air: No
• Energy Saver Mode: No
• Fan Speeds: High or Low
• Control Type: Wall Thermostat Required (NOT INCLUDED)
• Connectivity: Not WiFi Compatible
• Fresh Air Intake: No
• Overall Depth (in.): 23
• Overall Width (in.): 23
• Overall Height (in.): 47
• Voltage: 265-277V
• Circuit Breaker Size (Amps): 20
• Basic Heater Size: 3.4 kW
• Assembly Required: No
• Amps Heating: 13.4 A
• BTU Heating: 18000
• Number of Speeds: 2
• Watts Heating: 3350 W
• Phase: 1
• Refrigerant Charge: 40 oz
• Air Discharge: 60
• Manufacturers Part Number: VHA18R34RCQ
• Brand: Friedrich
• Type: Packaged Terminal Air Conditioner with Heat Pump
• CFM: 560 CFM
• Remote Control: No
• Controls: Electronic
• Hertz: 60 Hz
• Amp Circuit: 16.9 A
• Amps Cooling: 9.1 A
• Temperature Range Cooling: 60 to 115 °F
• Temperature Range Heating: 40 to 70 °F
• Length: 25
• Width: 26 in
• Depth: 23 in
• Coverage Area: 700-1000 ft²
• Cooling BTU: 18000
• Reverse Cycle BTU: 16700
• AMPS: 20A
• EER: 11.0
• COP: 3.3
• Digital Controls: NO
• Auto Restart: YES
• Fan Modes: Constant/Cycle (Hi/Med/Auto)
• Freeze Protection: YES
• Front Desk Connection: YES
• Modes: Heat/Cool/Heat-Pump
• Sea Coast Protection: YES
• Temprature Limiting: YES
• Air Conditioner Type: Vertical Packaged
• BTU Rating: 18000
• Cooling Area: 1000
• SEER2 Rating: 12.1
• EER2 Rating: 10.6
• Operation Mode: Cooling; Heating
• Air Flow: 640
• Plug Face: Hard Wire
• Cooling Method: Air-Cooled Ducted; Air-Cooled Vented
• Commercial/Residential: Commercial
• Thermostat: Thermostat
• Overall Depth (Decimal Inch): 23
• Overall Width (Decimal Inch - 4 Decimals): 23
• Overall Height (Decimal Inch): 47
• Heat Pump: Yes
• UNSPSC Code: 40101701
