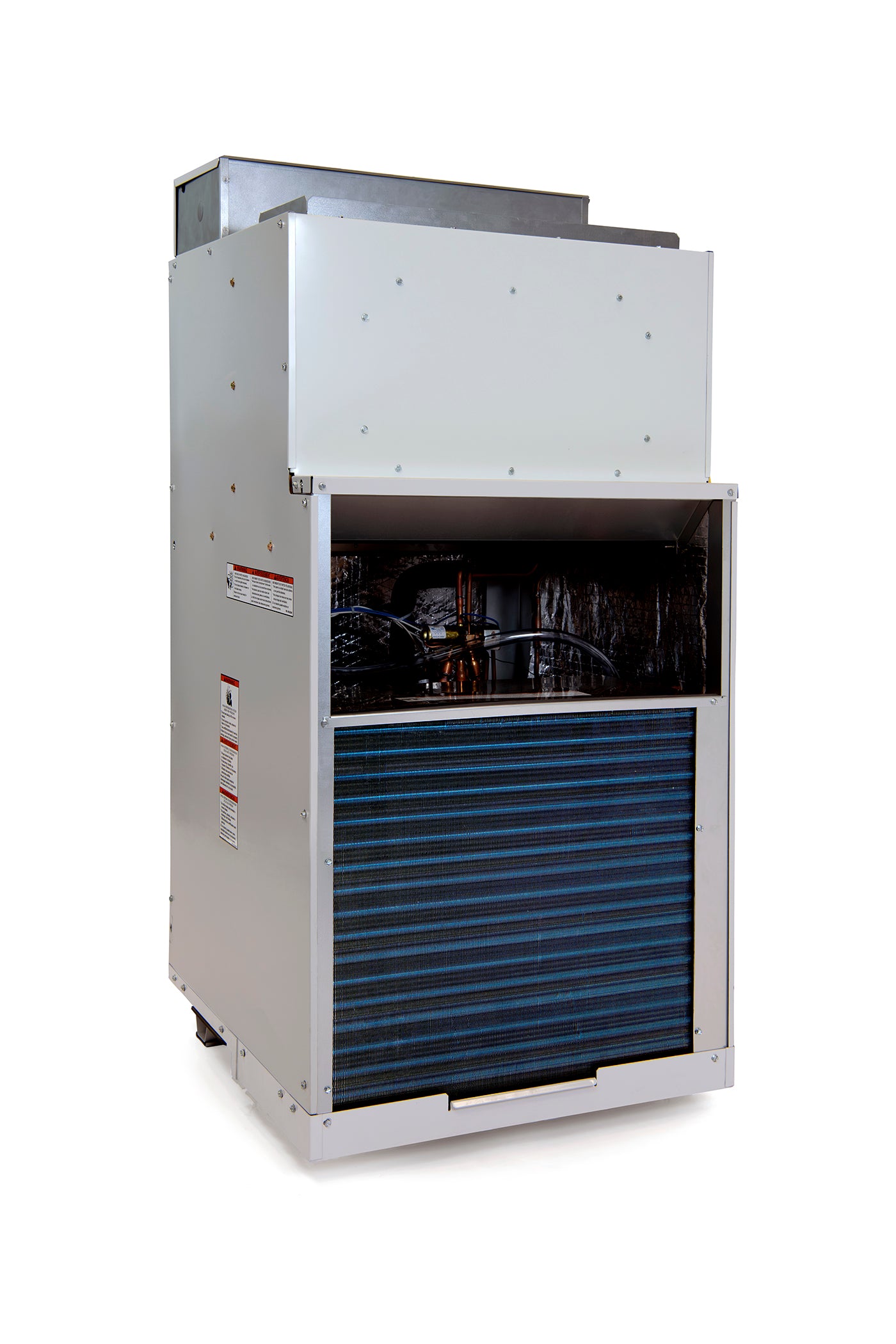

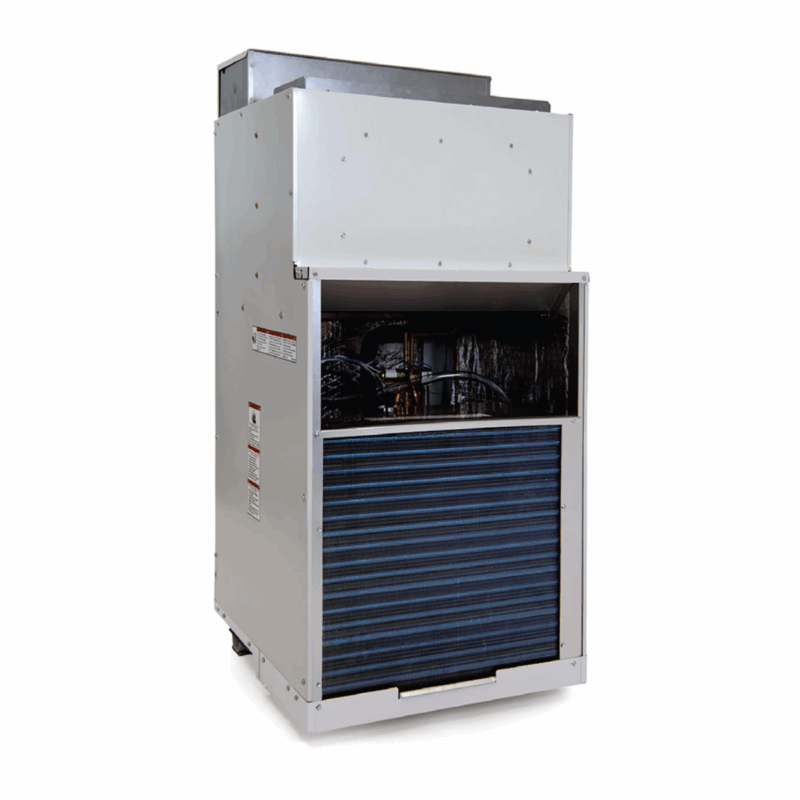

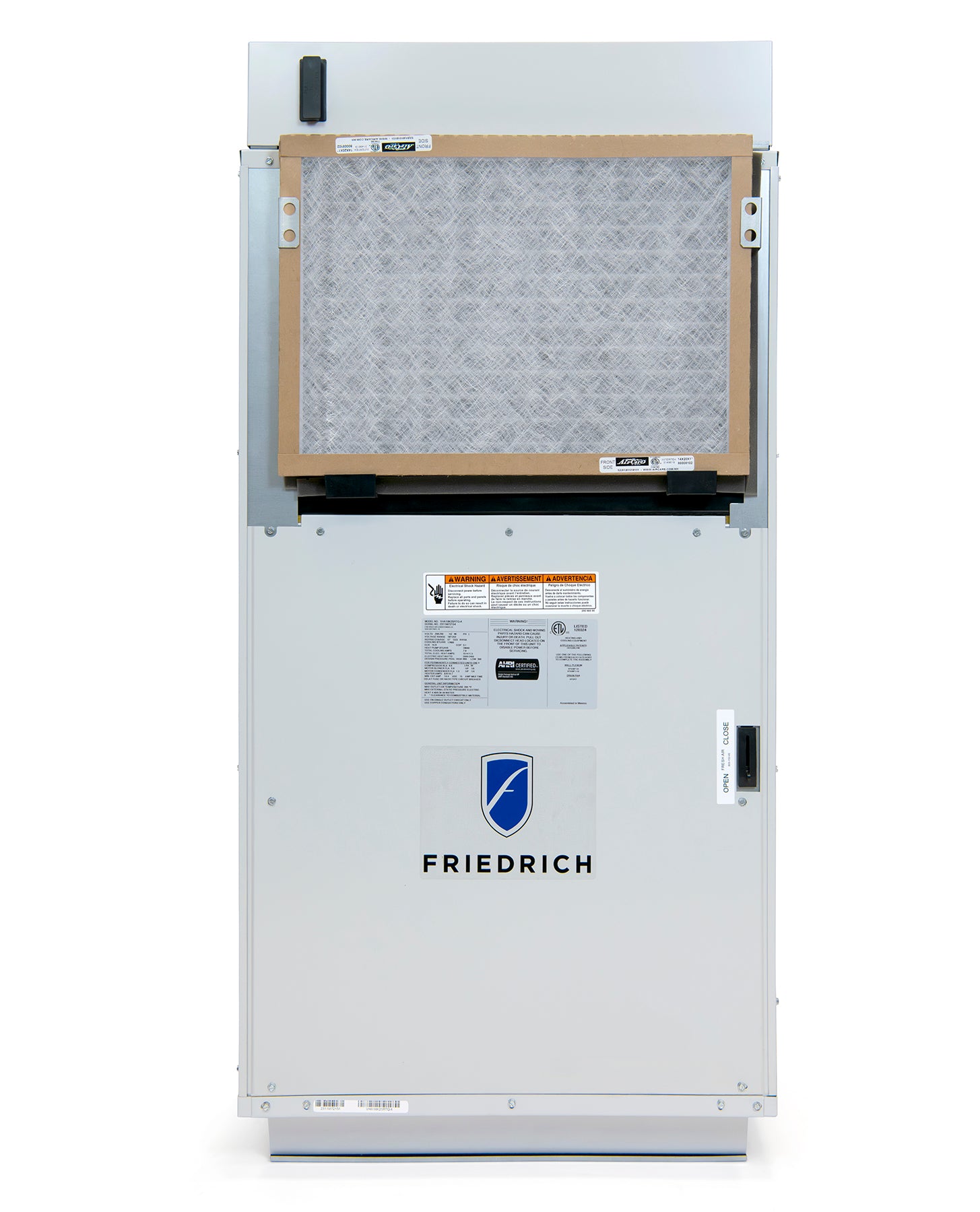

Friedrich VHA18R25RCQ Vert-I-Pak 18000 BTU Class VTAC with Heat Pump 2.5 kW Electric Heat

Product Description

The Friedrich VHA18R25RCQ Vert-I-Pak vertical packaged air system offers a simpler way to condition multiple rooms. This 265V commercial unit features 17,800 BTUs of cooling and 16,200 BTUs of heat from the heat pump, along with a 2.5 kW electric heater. It uses R-32 refrigerant, which is more efficient and has a lower Global Warming Potential (GWP).

• R-32 refrigerant for improved efficiency and reduced environmental impact.
• Compact design fits neatly into a typical mechanical closet.
• Requires a wall thermostat (not included) for temperature control.

Product Highlights

Ideal for extended stay properties, suites, assisted living facilities, and student housing, providing individual, in-room temperature control.

Product Information

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: VHA18R25RCQ

Technical Specifications

• Refrigerant Type: R32
• Compressor: Standard
• Energy Star: No
• CFMs (@ 0.1 ESP): 560
• Includes Heat Mode: Yes
• Heat Type: Heat Pump with Back-Up Electric
• Electric Heat kW: 2.5
• Cooling BTUs (@265V): 17800
• EER2 (@265V): 10.6
• SEER2 (@265V): 12.1
• Cooling Watts (@265V): 1679
• Heat Pump BTUs (@265V): 16200
• HSPF2 (@265V): 6.7
• Vent Location: Ducted Into Room
• Make-Up Air: No
• Energy Saver Mode: No
• Fan Speeds: High or Low
• Control Type: Wall Thermostat Required (NOT INCLUDED)
• Connectivity: Not WiFi Compatible
• Fresh Air Intake: No
• Overall Depth (in.): 23
• Overall Width (in.): 23
• Overall Height (in.): 47
• Voltage: 265V
• Circuit Breaker Size (Amps): 15
• Brand: Friedrich
• Type: Cooling With Heat Pump
• Cooling BTU: 18000
• Reverse Cycle BTU: 16700
• AMPS: 15A
• EER: 11.0
• Digital Controls: NO
• Auto Restart: YES
• Fan Modes: Constant/Cycle (Hi/Med/Auto)
• Freeze Protection: YES
• Front Desk Connection: YES
• Modes: Heat/Cool/Heat-Pump
• Sea Coast Protection: YES
• Temprature Limiting: YES
• Item Type: Vertical Package Unit
• Refrigerant: R-32
• Cooling Capacity: 17800 BTU
• Heating Capacity: 16200 BTU
• Watts: 2450
