Friedrich VHA18K75RCQ Vert-I-Pak 18000 BTU Class VTAC with Heat Pump - 7.5 kW Electric Heat 230V - R32 Refrigerant

Product Description

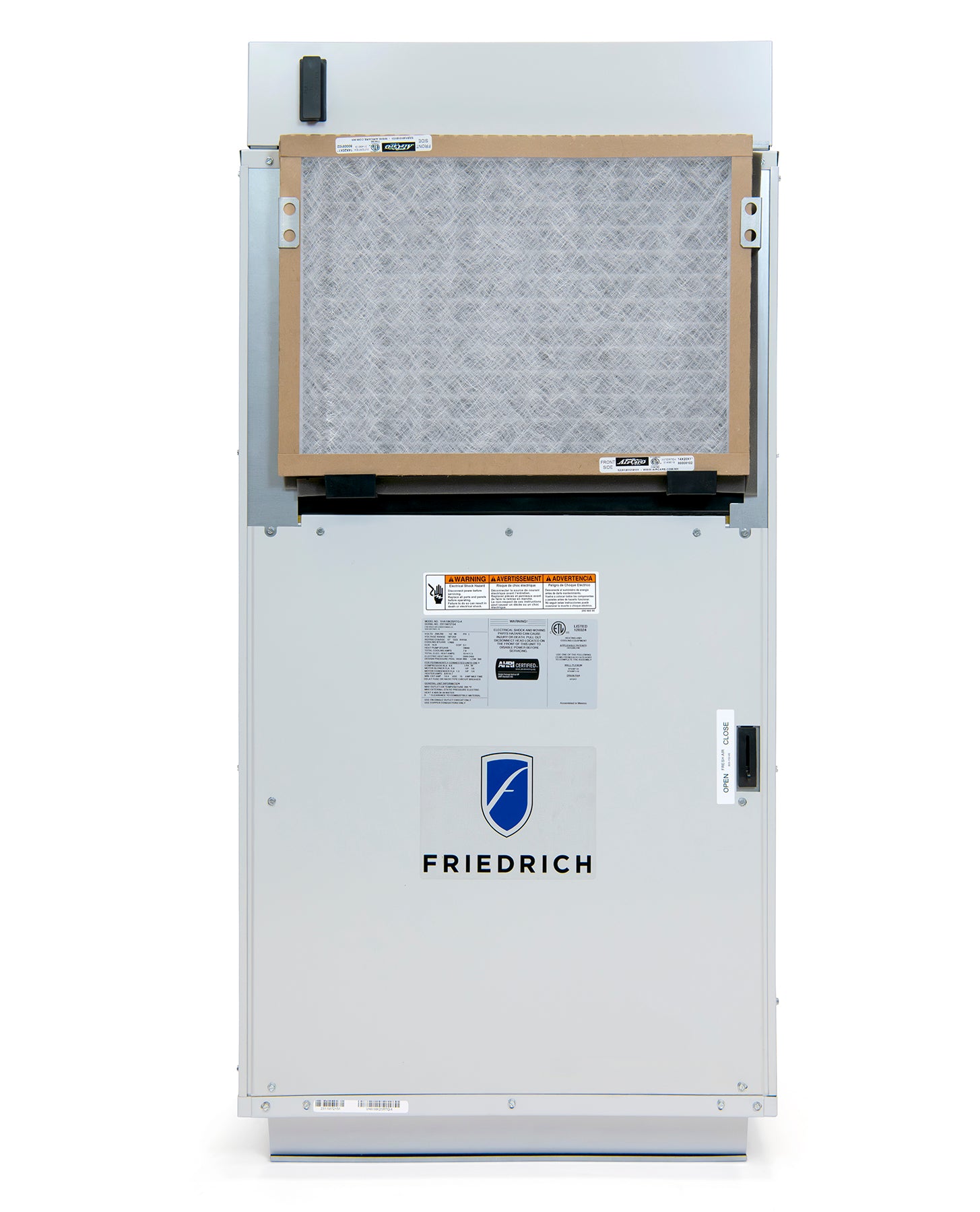

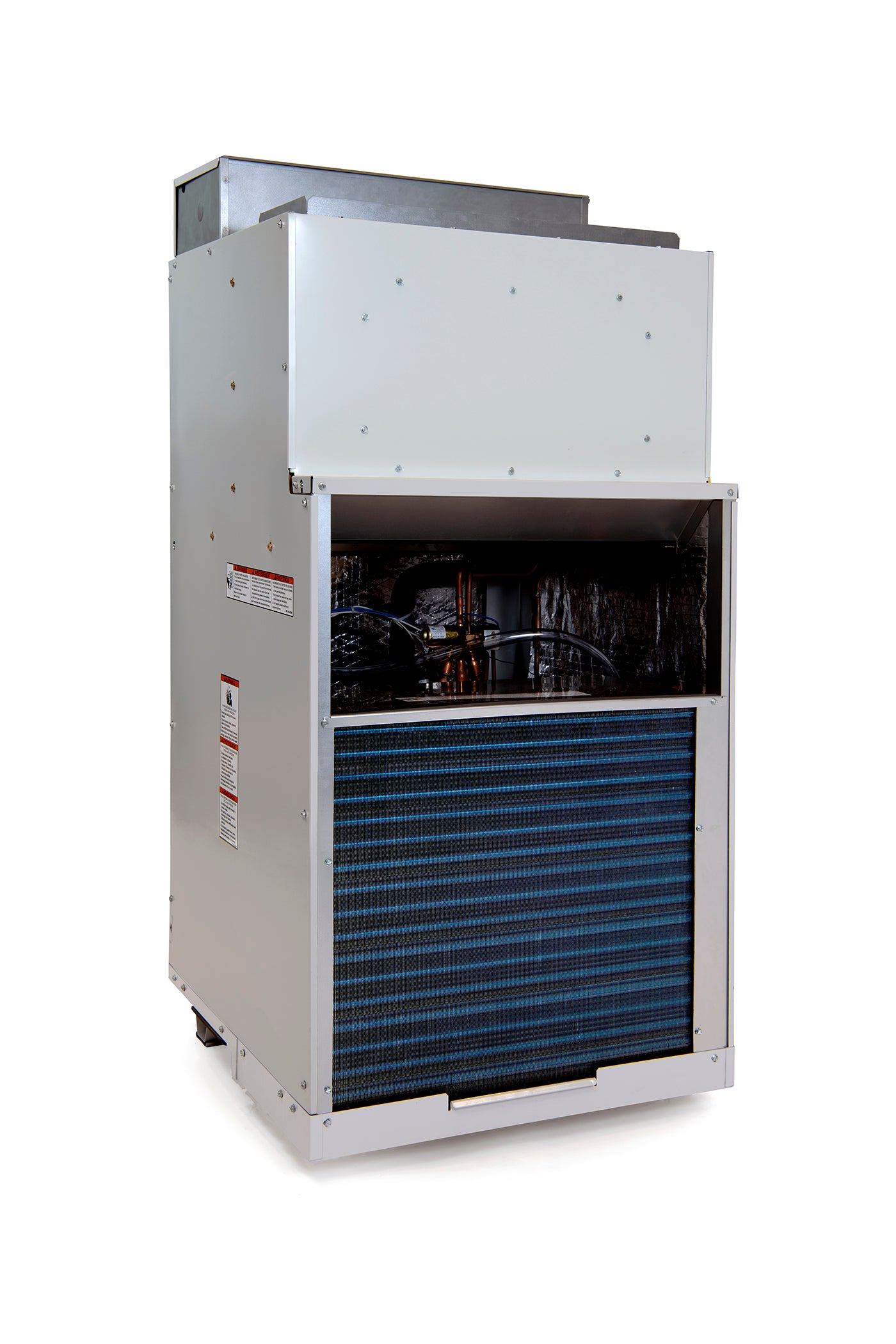

The FRIEDRICH VHA18K75RCQ Vert-I-Pak is a vertical packaged air system designed to condition multiple rooms. Operating on 208/230V, it delivers 17,800 BTUs of cooling and 16,200 BTUs of heat from its heat pump. This unit incorporates a 7.5 kW electric heater, requiring a 45 Amp circuit, and utilizes R-32 low-GWP refrigerant. It meets AHRI standards with ratings of 10.6 EER2 and 12.1 SEER2.

• Utilizes R-32 low-GWP refrigerant for enhanced efficiency and reduced environmental impact.
• Features a heat pump capable of operating down to 10°F, supplemented by a 7.5 kW electric heater.
• Designed for simplified installation, pre-wired, charged, and piped, requiring only electrical hook-up.

Product Highlights

This Vert-I-Pak system offers efficient multi-room climate control with a heat pump, 7.5 kW electric heat, and R-32 refrigerant, ideal for various commercial and residential applications.

Product Information

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: VHA18K75RCQ

Technical Specifications

• Refrigerant Type: R32
• Compressor: Standard
• Energy Star: No
• CFMs (@ 0.1 ESP): 560
• Includes Heat Mode: Yes
• Heat Type: Heat Pump with Back-Up Electric
• Electric Heat kW: 7.5
• Cooling BTUs (@230V): 17800
• EER2 (@230V): 10.6
• SEER2 (@230V): 12.1
• Cooling Watts (@230V): 1679
• Heat Pump BTUs (@230V): 16200
• HSPF2 (@230V): 6.7
• Vent Location: Ducted Into Room
• Make-Up Air: No
• Energy Saver Mode: No
• Fan Speeds: High or Low
• Control Type: Wall Thermostat Required (NOT INCLUDED)
• Connectivity: Not WiFi Compatible
• Fresh Air Intake: No
• Voltage: 208-230V
• Circuit Breaker Size (Amps): 45
• Electric Heat Data (208V): {'Watts': '6135', 'BTUs': '20900', 'Heating Amps': '30.3', 'Minimum Circuit Ampacity': '41.8', 'Branch Circuit Fuse (Amps)': '45', 'Basic Heater Size': '7.5 kW'}
• Electric Heat Data (230V): {'Watts': '7500', 'BTUs': '25600', 'Heating Amps': '33.4', 'Minimum Circuit Ampacity': '41.8', 'Branch Circuit Fuse (Amps)': '45', 'Basic Heater Size': '7.5 kW'}
