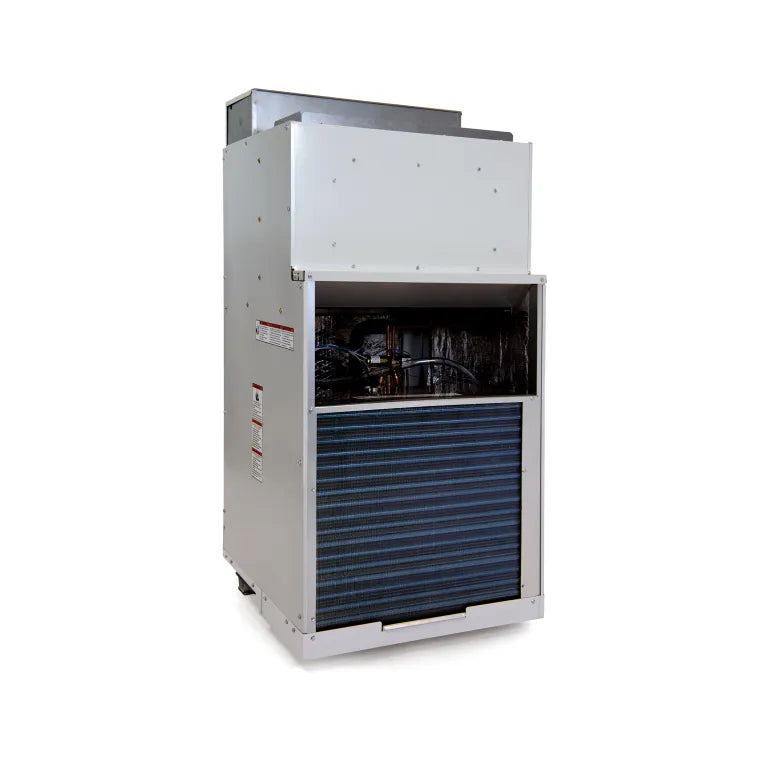

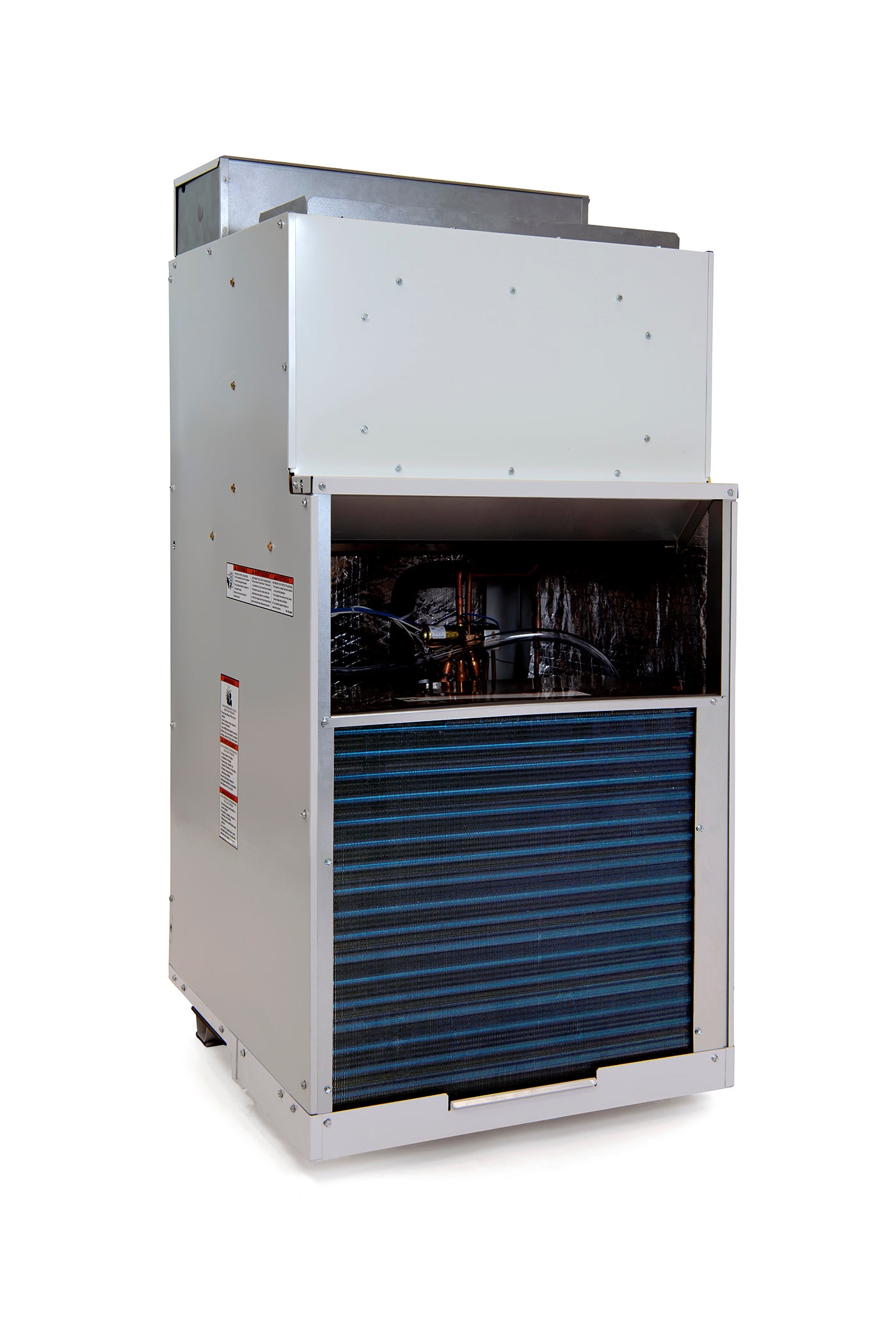

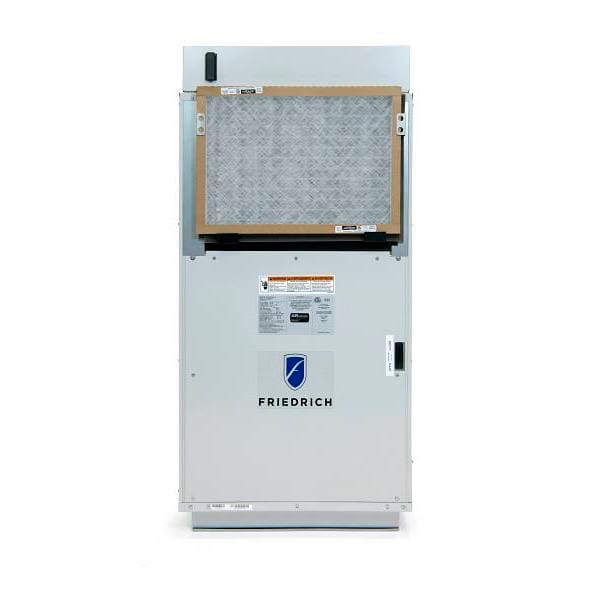

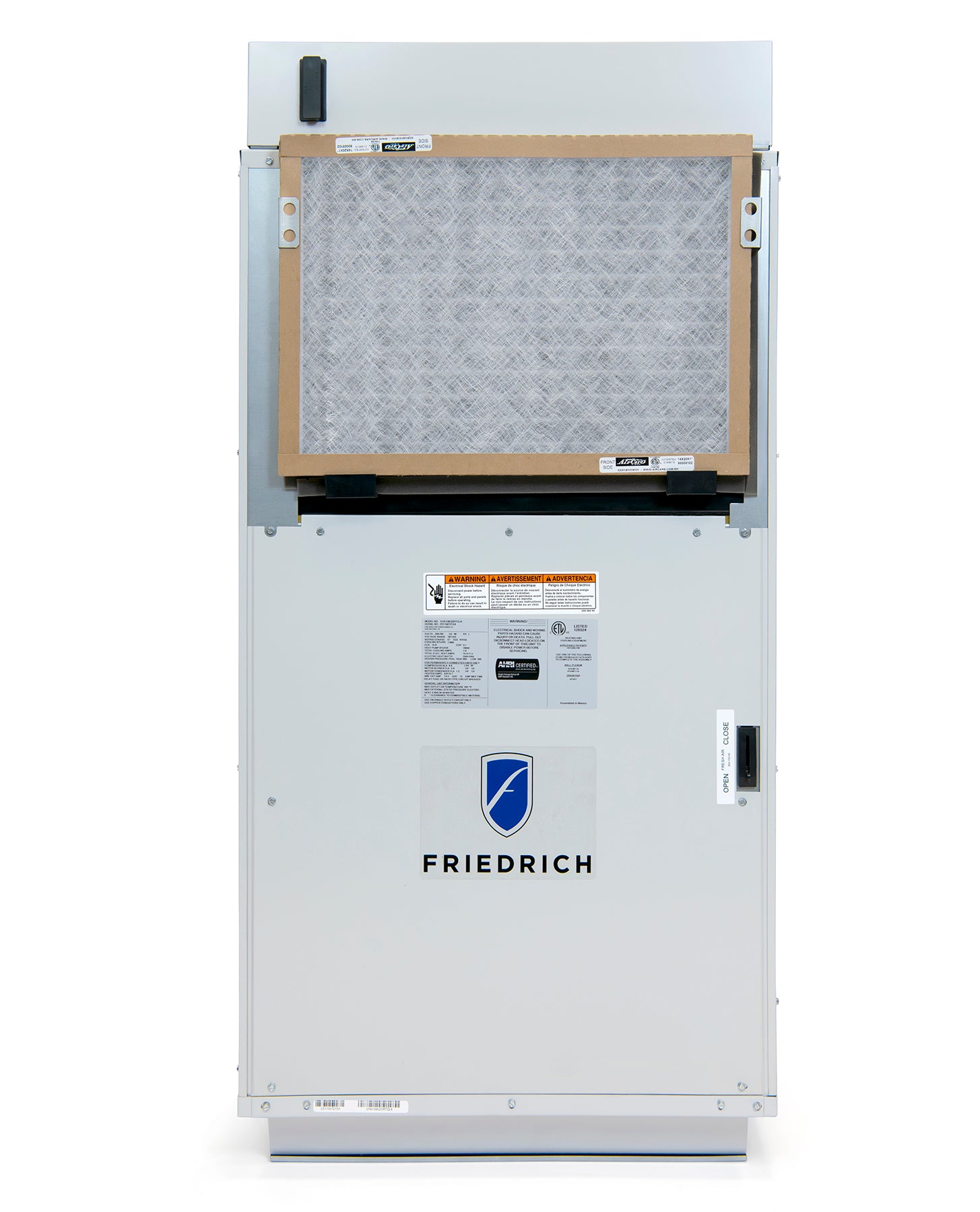

Friedrich VHA18K50RCQ Vert-I-Pak 18000 BTU Class VTAC with Heat Pump - 5.0 kW Electric Heat

Product Description

The FRIEDRICH VHA18K50RCQ Vert-I-Pak is a customizable and reliable VTAC with heat pump, ideal for extended stay hotels, assisted living, and student housing. This air conditioner stays tucked away and out of sight, fitting neatly into a typical mechanical closet for versatile indoor living spaces. It features 17,800 BTUs of cooling and 16,200 BTUs of heat from the heat pump and includes a 5.0 kW electric heater.

• R-32 refrigerant for up to 12% more efficiency than R410A
• Unique free-floating chassis
• Easy to connect right, left or rear drain connection

Product Highlights

The FRIEDRICH Vert-I-Pak offers a simpler way to condition multiple rooms, installs as easily as a PTAC, and provides a better system inside and out.

Product Information

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: VHA18K50RCQ
• Country of Origin: MEXICO

Technical Specifications

• Brand: Friedrich
• Type: Cooling With Heat Pump
• Cooling BTU: 18000
• Reverse Cycle BTU: 16700
• Voltage: 208/230V
• AMPS: 30A
• EER: 11.0
• COP: 3.3
• Digital Controls: NO
• Auto Restart: YES
• Fan Modes: Constant/Cycle (Hi/Med/Auto)
• Freeze Protection: YES
• Front Desk Connection: YES
• Modes: Heat/Cool/Heat-Pump
• Sea Coast Protection: YES
• Temprature Limiting: YES
• Refrigerant Type: R32
• Compressor: Standard
• Energy Star: No
• CFMs (@ 0.1 ESP): 560
• Includes Heat Mode: Yes
• Heat Type: Heat Pump with Back-Up Electric
• Electric Heat kW: 5.0
• Cooling BTUs (@230V): 17800
• EER2 (@230V): 10.6
• SEER2 (@230V): 12.1
• Cooling Amps (@230V): TBD
• Cooling Watts (@230V): 1679
• Heat Pump BTUs (@230V): 16200
• COP (@230V): TBD
• HSPF2 (@230V): 6.7
• Heat Pump Heating Amps (@230V): TBD
• Heat Pump Heating Watts (@230V): TBD
• Vent Location: Ducted Into Room
• Make-Up Air: No
• Energy Saver Mode: No
• Fan Speeds: High or Low
• Control Type: Wall Thermostat Required (NOT INCLUDED)
• Connectivity: Not WiFi Compatible
• Fresh Air Intake: No
• Overall Depth (in.): 23
• Overall Width (in.): 23
• Overall Height (in.): 47
• Circuit Breaker Size (Amps): 30
• Amperage: 22.5 amp
• Average Coverage Area: 700-1000 sq. ft.
• BTU Cooling Rating: 18000 Btu
• BTU Heat Rating: 18000 Btu
• Commercial/Residential: Commercial/Residential
• Product Depth: 23 in.
• Product Height: 47 in.
• Product Width: 23 in.
• HazMat: Hazardous
• Refrigerant: R-32
