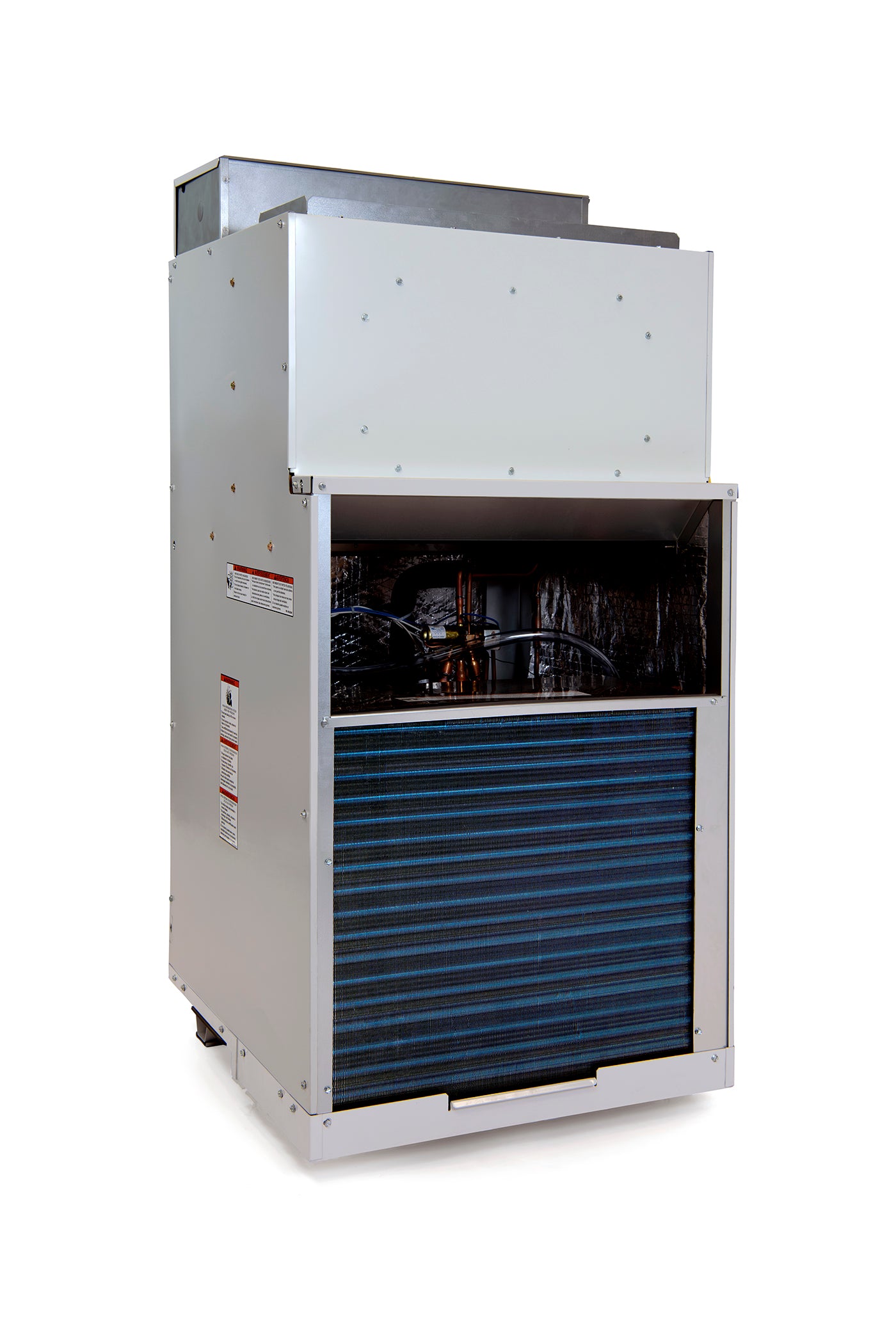

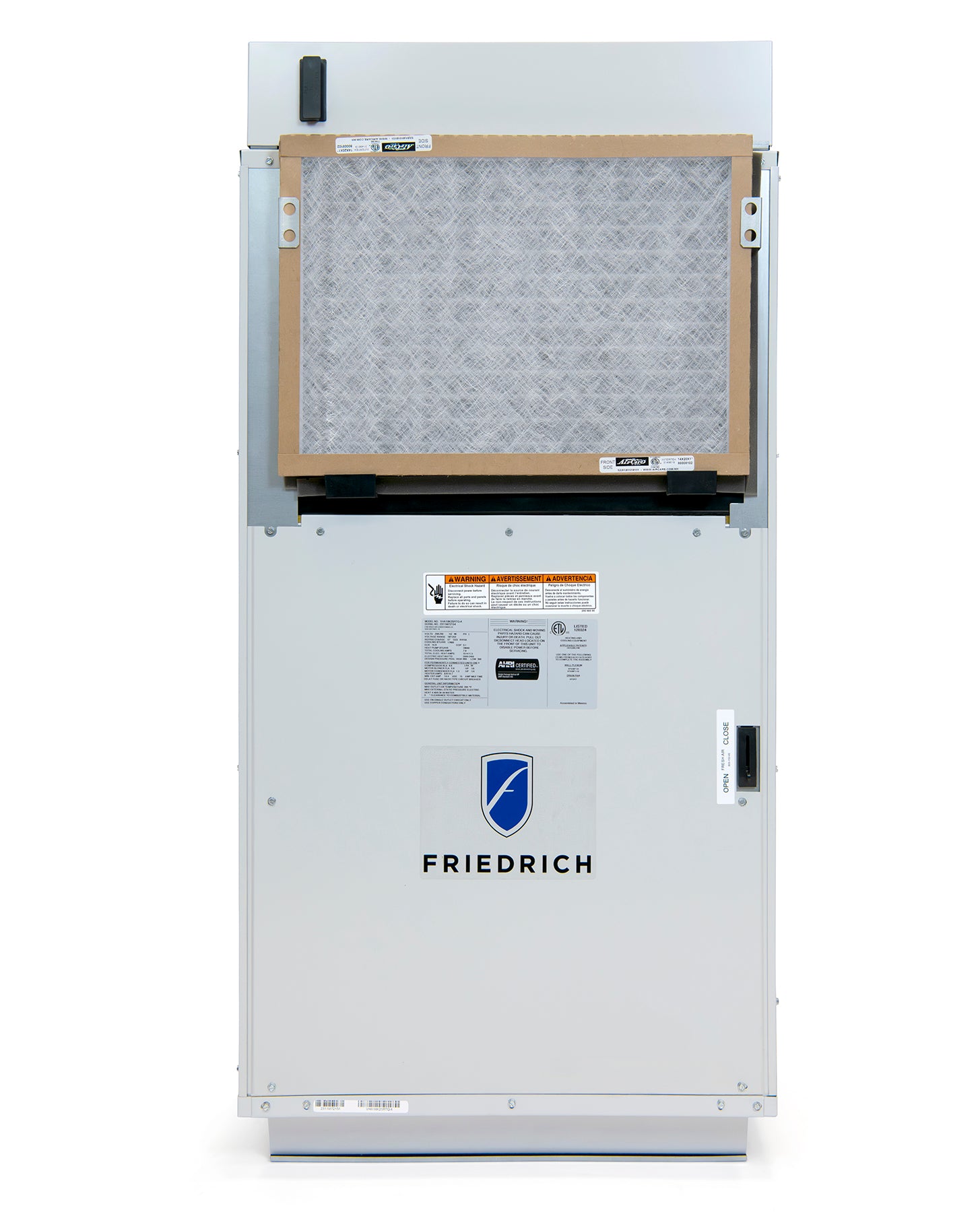

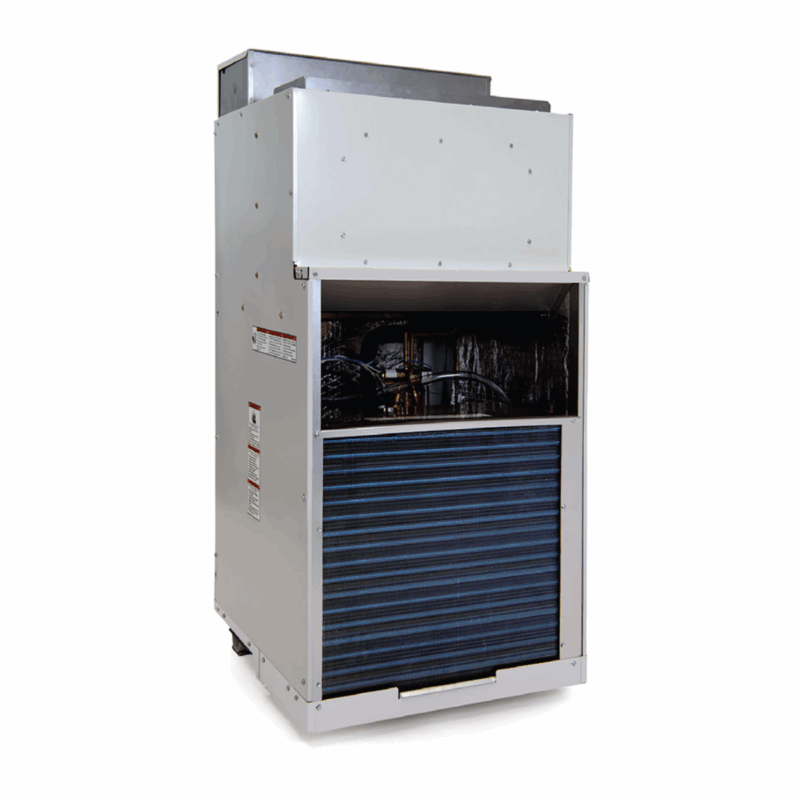

Friedrich VHA18K25RCQ Vert-I-Pak 18000 BTU Class VTAC with Heat Pump - 2.5 kW Electric Heat - 230V - R32 Refrigerant

Product Description

The Friedrich VHA18K25RCQ Vert-I-Pak vertical packaged air system offers a simpler way to condition multiple rooms. This 208/230 volt unit features 17,800 BTUs of cooling and 16,200 BTUs of heat from the heat pump, and includes a 2.5 kW electric heater. The unit uses R-32 low-GWP refrigerant and requires a 15 Amp circuit.

• Utilizes R-32 refrigerant.
• Features a unique free-floating chassis.
• Requires a wall thermostat (not included).

Product Highlights

The Friedrich Vert-I-Pak system provides efficient cooling and heating, with easy installation and versatile application.

Product Information

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: VHA18K25RCQ
• Country of Origin: MEXICO

Technical Specifications

• Refrigerant Type: R32
• Compressor: Standard
• Energy Star: No
• Air Delivery CFM: 560
• Includes Heat Mode: Yes
• Heat Type: Heat Pump with Back-Up Electric
• Electric Heat kW: 2.5
• Cooling BTUs (@230V): 17800
• EER2 (@230V): 10.6
• SEER2 (@230V): 12.1
• Cooling Amps (@230V): TBD
• Cooling Watts (@230V): 1679
• Heat Pump BTUs (@230V): 16200
• COP (@230V): TBD
• HSPF2 (@230V): 6.7
• Heat Pump Heating Amps (@230V): TBD
• Heat Pump Heating Watts (@230V): TBD
• Vent Location: Ducted Into Room
• Make-Up Air: No
• Energy Saver Mode: No
• Fan Speeds: High or Low
• Control Type: Wall Thermostat Required (NOT INCLUDED)
• Connectivity: Not WiFi Compatible
• Fresh Air Intake: No
• Overall Depth (in.): 23
• Overall Width (in.): 23
• Overall Height (in.): 47
• Voltage: 208-230V
• Circuit Breaker Size (Amps): 15
• Cooling BTU: 18000
• Reverse Cycle BTU: 16700
• AMPS: 15A
• EER: 11.0
• Digital Controls: NO
• Auto Restart: YES
• Fan Modes: Constant/Cycle (Hi/Med/Auto)
• Freeze Protection: YES
• Front Desk Connection: YES
• Modes: Heat/Cool/Heat-Pump
• Sea Coast Protection: YES
• Temprature Limiting: YES
• BtuH Cooling: 13100
• BtuH Heating: 7000-8500
• Type: Single Package Heat Pump
• Fan Motor: 1/5 HP
• Compressor RLA: 7.8 / 7.4
• Compressor LRA: 40
• Cooling Capacity: 17,800 Btu
• Heating Capacity: 16,400 Btu
• Heater Size: 2.5 kW
• Airflow: 560 CFM
