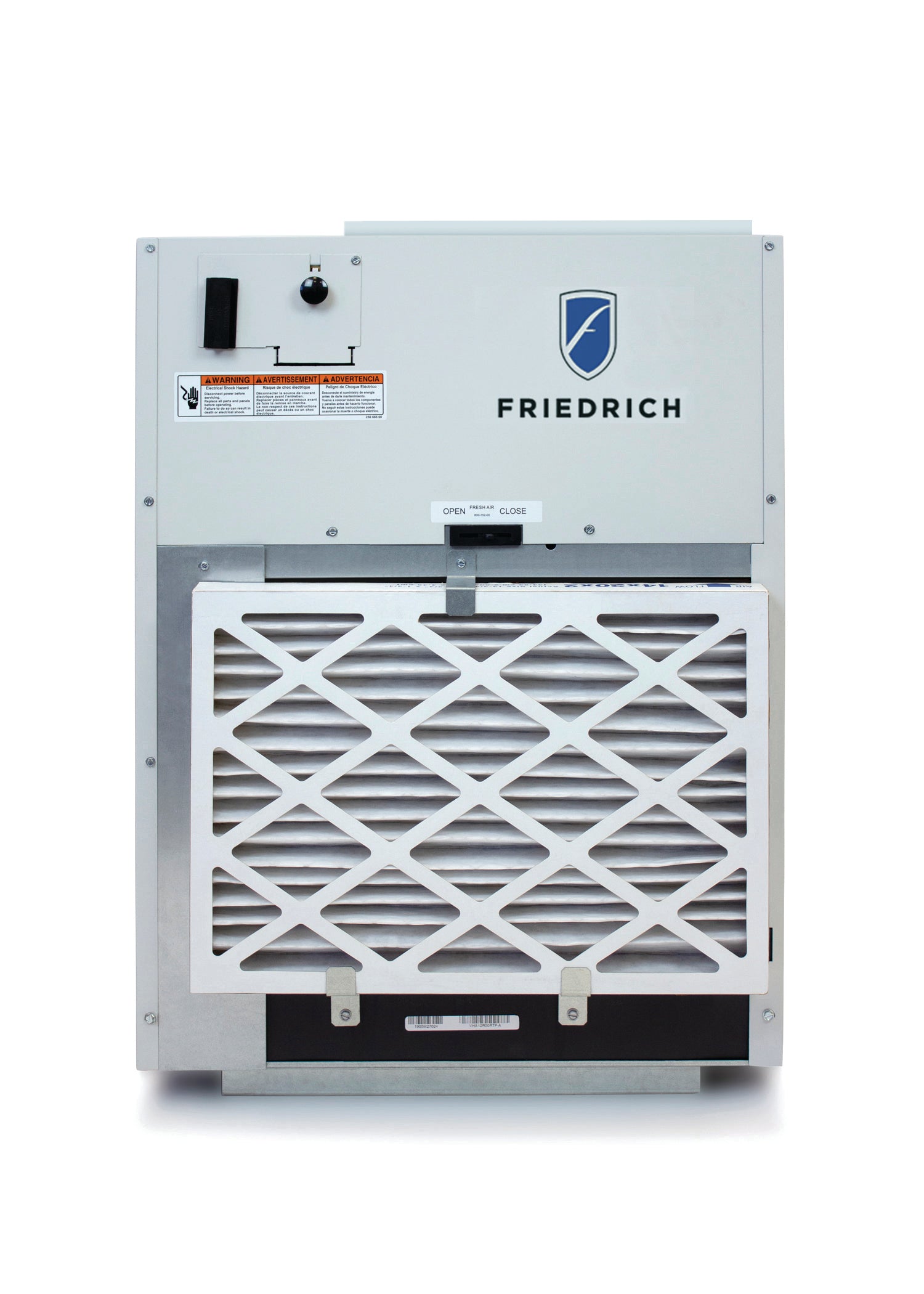

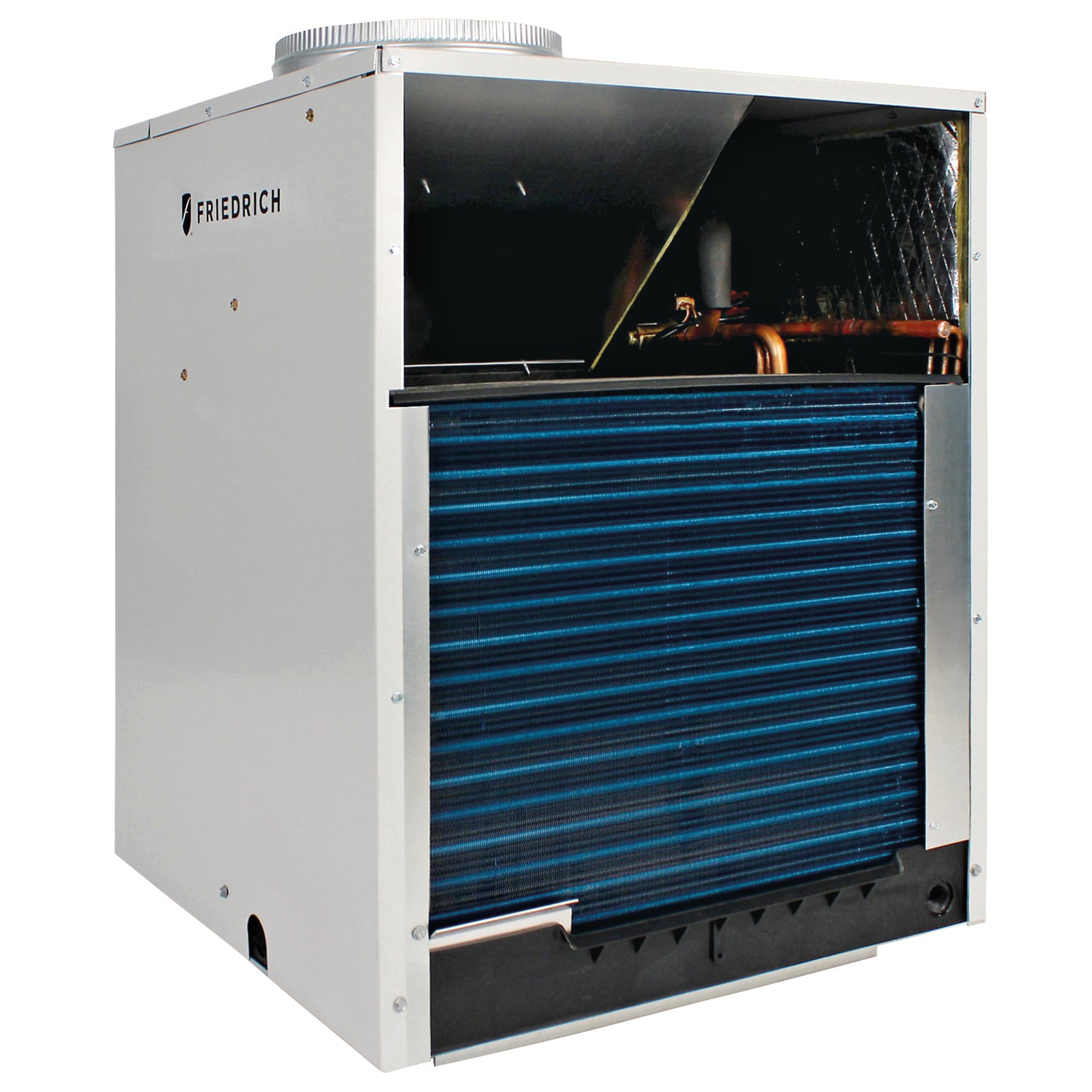

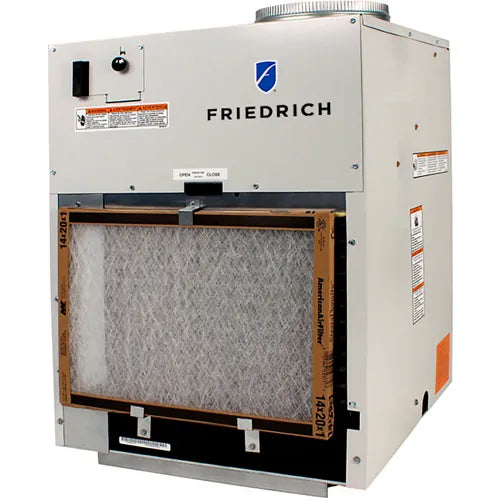

Friedrich VHA12R50RCQ Vert-I-Pak 12000 BTU Class VTAC with Heat Pump 5.0 kW Electric Heat 265V

Product Description

The FRIEDRICH VHA12R50RCQ VTAC with heat pump offers the simplicity of single room ACs with the aesthetics of central HVAC systems. A customizable and reliable solution, this air conditioner is ideal for extended stay hotels, assisted living, and student housing, staying tucked away and out of sight. Requires a wall thermostat (not included).

• Cooling With Heat Pump
• Customizable and reliable solution
• Perfect for extended stay hotels, assisted living, and student housing
• Stays tucked away and out of sight

Product Highlights

The FRIEDRICH VHA12R50RCQ VTAC unit is designed for individual, in-room temperature control. It operates quietly and offers a visually appealing living space.

Product Information

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: VHA12R50RCQ

Technical Specifications

• Brand: Friedrich
• Type: Cooling With Heat Pump
• Cooling BTU: 12000
• Reverse Cycle BTU: 8300
• Voltage: 265/277V
• AMPS: 30A
• EER: 11.0
• COP: 3.3
• Auto Restart: YES
• Fan Modes: Constant/Cycle (Hi/Med/Auto)
• Freeze Protection: YES
• Front Desk Connection: YES
• Modes: Heat/Cool/Heat-Pump
• Sea Coast Protection: YES
• Temprature Limiting: YES
• Refrigerant Type: R32
• Compressor: Standard
• Energy Star: No
• CFMs (@ 0.1 ESP): 420
• Includes Heat Mode: Yes
• Heat Type: Heat Pump with Back-Up Electric
• Electric Heat kW: 5.0
• Cooling BTUs (@265V): 11200
• EER2 (@265V): 10.6
• SEER2 (@265V): 12.3
• Cooling Watts (@265V): 1057
• Heat Pump BTUs (@265V): 10400
• HSPF2 (@265V): 6.3
• Vent Location: Ducted Into Room
• Make-Up Air: No
• Energy Saver Mode: No
• Fan Speeds: High or Low
• Control Type: Wall Thermostat Required (NOT INCLUDED)
• Connectivity: Not WiFi Compatible
• Fresh Air Intake: No
• Overall Depth (in.): 23
• Overall Width (in.): 23
• Overall Height (in.): 32
• Circuit Breaker Size (Amps): 30
• Watts: 5000
• Heating Amps: 19.7
• Minimum Circuit Ampacity: 24.7
• Branch Circuit Fuse (Amps): 30
• Basic Heater Size: 5.0 kW
• Phase: 1
• Refrigerant Charge: 28.7 oz
• Air Discharge: 60
• Remote Control: No
• Controls: Electronic
• Hertz: 60 Hz
• Amp Circuit: 24.7 A
• Amps Cooling: 5.8 A
• Temperature Range Cooling: 60 to 115 °F
• Temperature Range Heating: 40 to 70 °F
• Weight: 149 lbs
• Coverage Area: 450-550 ft²
• A2L Compatible: Yes
• BTU Cooling Rating: 11200 Btu/h
• BTU Heat Rating: 10400 Btu/h
• Volts: 265V
• Max CFM: 420
