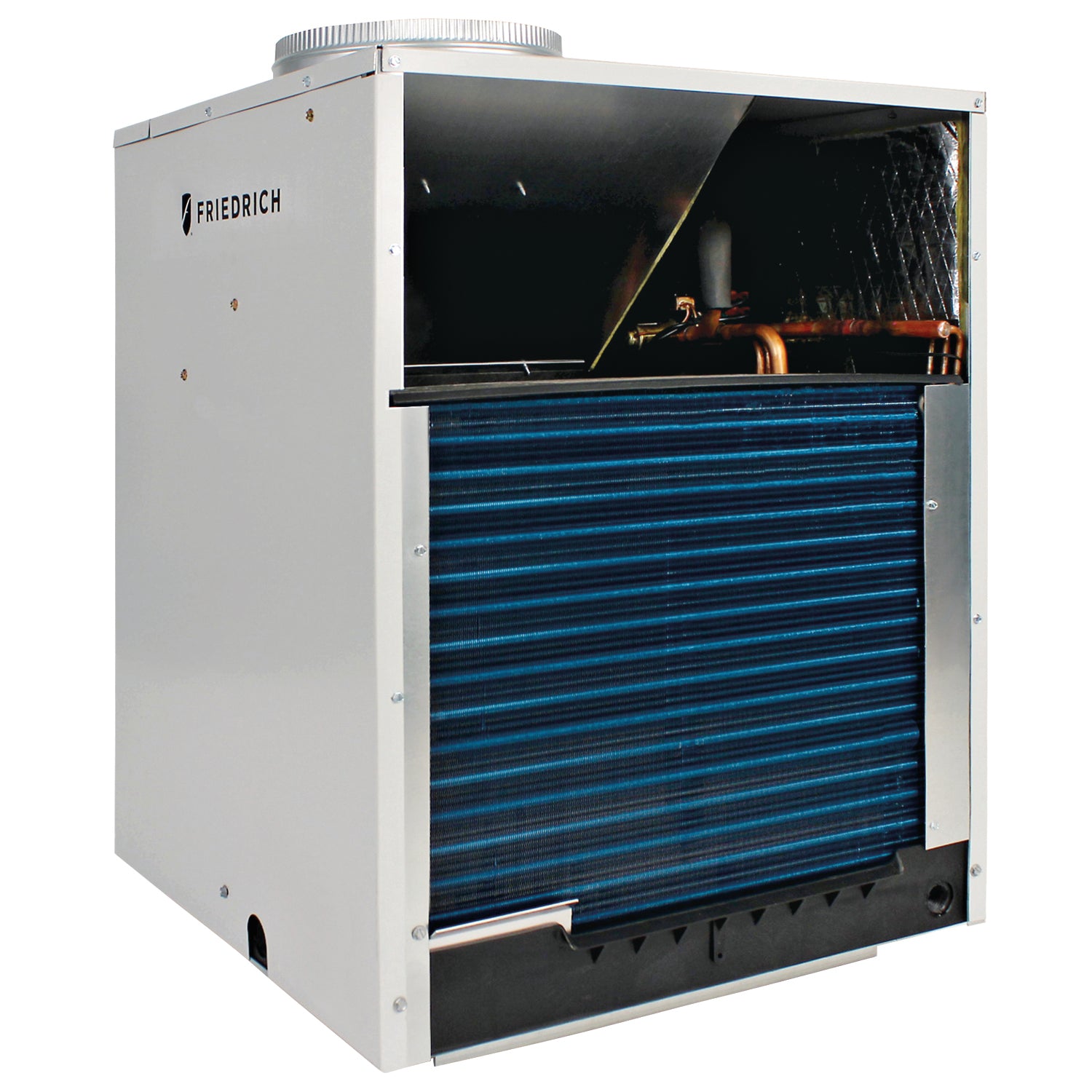

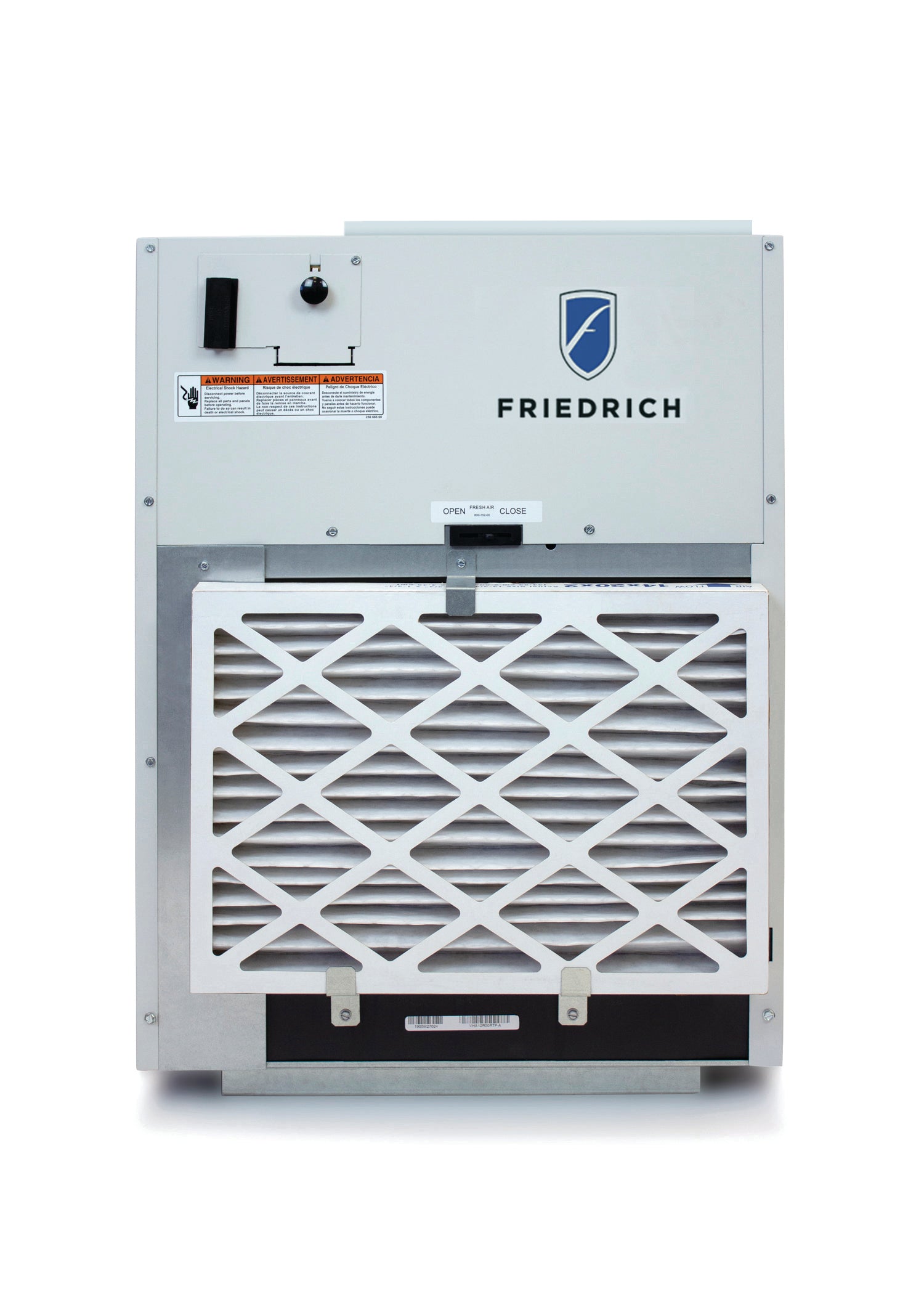

Friedrich VHA12R25RCQ VTAC with Heat Pump 12000 BTU 265/277V

Product Description

The Friedrich VHA12R25RCQ VTAC with Heat Pump is a vertical terminal air conditioner designed for commercial applications. This unit provides 12000 Cooling BTU and 8300 Reverse Cycle BTU, operating at 265/277V. It offers a customizable solution for extended stay hotels, assisted living, and student housing, integrating discreetly into mechanical closets. The system features a heat pump with 2.5 kW electric heat and utilizes R32 refrigerant for efficient operation.

• Customizable and reliable solution for commercial applications.
• Provides 12000 Cooling BTU and 8300 Reverse Cycle BTU.
• Features Auto Restart, Freeze Protection, and Sea Coast Protection.

Product Highlights

This Friedrich VHA12R25RCQ VTAC with Heat Pump offers efficient cooling and heating, utilizing R32 refrigerant and a 2.5 kW electric heat option, suitable for various commercial lodging environments.

Product Information

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: VHA12R25RCQ

Technical Specifications

• Type: Cooling With Heat Pump
• Cooling BTU: 12000
• Reverse Cycle BTU: 8300
• Input Voltage: 265/277V
• Amperage: 15A
• EER: 11.0
• COP: 3.3
• Digital Controls: No
• Auto Restart: Yes
• Fan Modes: Constant/Cycle (Hi/Med/Auto)
• Freeze Protection: Yes
• Front Desk Connection: Yes
• Modes: Heat/Cool/Heat-Pump
• Sea Coast Protection: Yes
• Temperature Limiting: Yes
• Refrigerant Type: R32
• Compressor Type: Standard
• Energy Star Certified: No
• Dehumidification (pts/hr): NA
• CFMs (@ 0.1 ESP): 420
• Heat Type: Heat Pump with Back-Up Electric
• Electric Heat kW: 2.5
• SEER2 (@265V): 12.3
• Cooling Amps (@265V): TBD
• Cooling Watts (@265V): 1057
• HSPF2 (@265V): 6.3
• Heat Pump Heating Amps (@265V): TBD
• Heat Pump Heating Watts (@265V): TBD
• Vent Location: Ducted Into Room
• Make-Up Air: No
• Energy Saver Mode: No
• Control Type: Wall Thermostat Required (NOT INCLUDED)
• Connectivity: Not WiFi Compatible
• Fresh Air Intake: No
• Circuit Breaker Size (Amps): 15
• Electric Heat Watts: 2500
• Electric Heat BTUs: 8500
• Electric Heating Amps: 11.0
• Minimum Circuit Ampacity: 14.2
• Branch Circuit Fuse (Amps): 15
