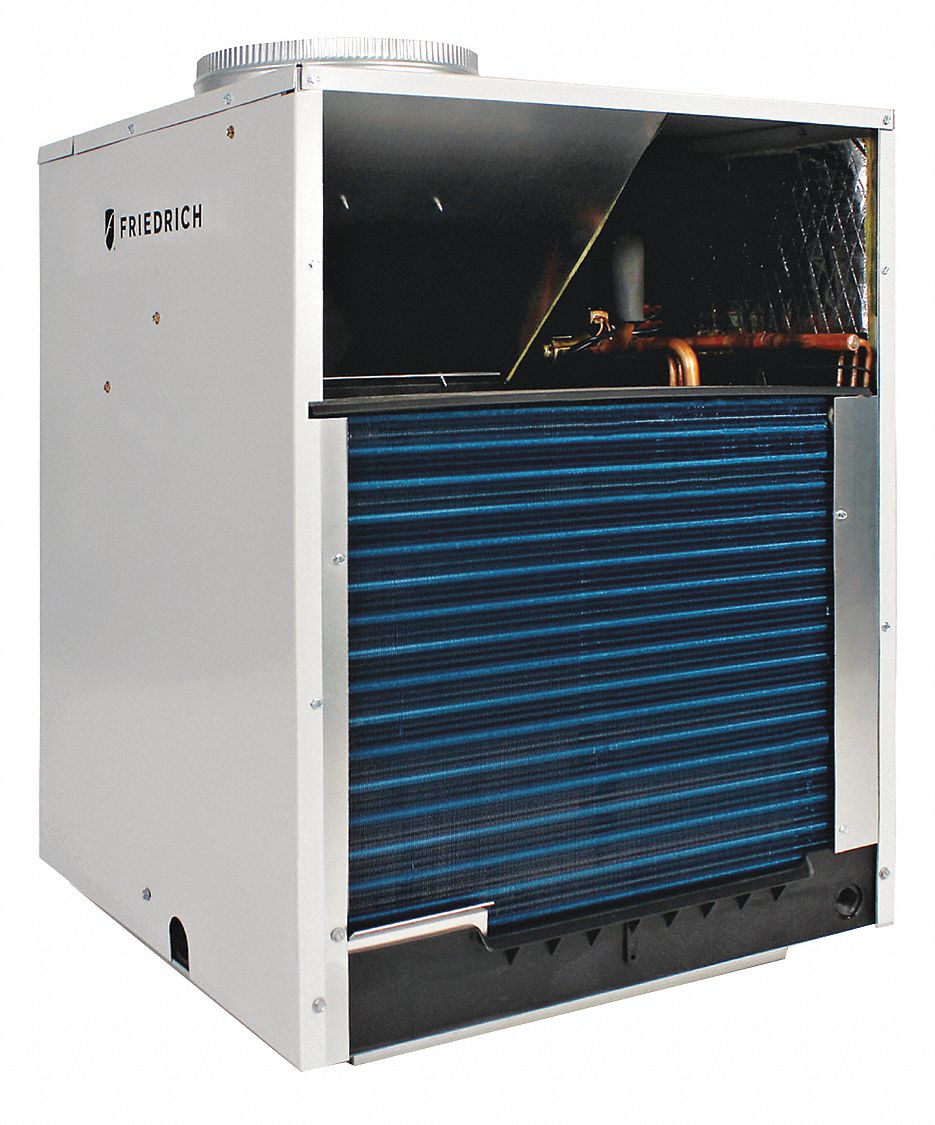

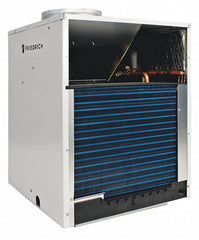

Friedrich VHA12K34 vertical packaged A/C 11,500 BtuH 23 inches W, 32 inches H

Product Description

The FRIEDRICH VHA12K34 is a vertical packaged air conditioner designed for cooling and heating applications. It offers a cooling capacity of 11,500 BtuH and utilizes a heat pump with electric heat for heating, providing 11,600 BtuH electric and 10,600 BtuH heat pump capacity. Operating at 208-230V AC, 1 phase, 60 Hz, it has an 11.0 EER and 4.9 Amps. This unit is suitable for average coverage areas of 450 to 550 sq ft.

• Average Coverage Area 450 to 550 sq ft
• Operation Mode - HVAC Cooling/Heating
• Cooling Capacity 11,500 BtuH

Product Highlights

This vertical packaged air conditioner provides efficient cooling and heating for medium-sized spaces, featuring a heat pump with electric heat and R-410A refrigerant.

Product Information

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: VHA12K34
• Country of Origin: Mexico

Technical Specifications

• Product Type: Vertical Packaged Air Conditioner
• Input Voltage: 208-230V AC
• Frequency: 60 Hz
• Phase: 1
• Current: 4.9 A
• Control Voltage: 24V AC/DC
• Operation Mode: Cooling/Heating
• Cooling Capacity: 11,500 BtuH
• Heating Method: Heat Pump with Electric Heat
• Electric Heating Capacity: 11,600 BtuH
• Heat Pump Heating Capacity: 10,600 BtuH
• Heating Power: 3.4 kW
• EER: 11.0
• Reverse Cycle Heat COP: 3.3
• Refrigerant Type: R-410A
• Airflow Rate: 490 CFM
• Exhaust Airflow Rate: 60 CFM
• Max. External Static Pressure: 0.3 in
• Height: 32 in
• Width: 23 in
• Depth: 23 in
• Average Coverage Area: 450 sq ft to 550 sq ft
