Friedrich VHA09R34RCQ Vert-I-Pak Single Package Heat Pump 9 BTU 3.4 kW

FRIEDRICH
Brand: FRIEDRICH
SKU: VHA09R34RCQ
Availability: Out Of Stock
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
$3,172.65
$3,172.65
LTL Delivery

This product weighs 166 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

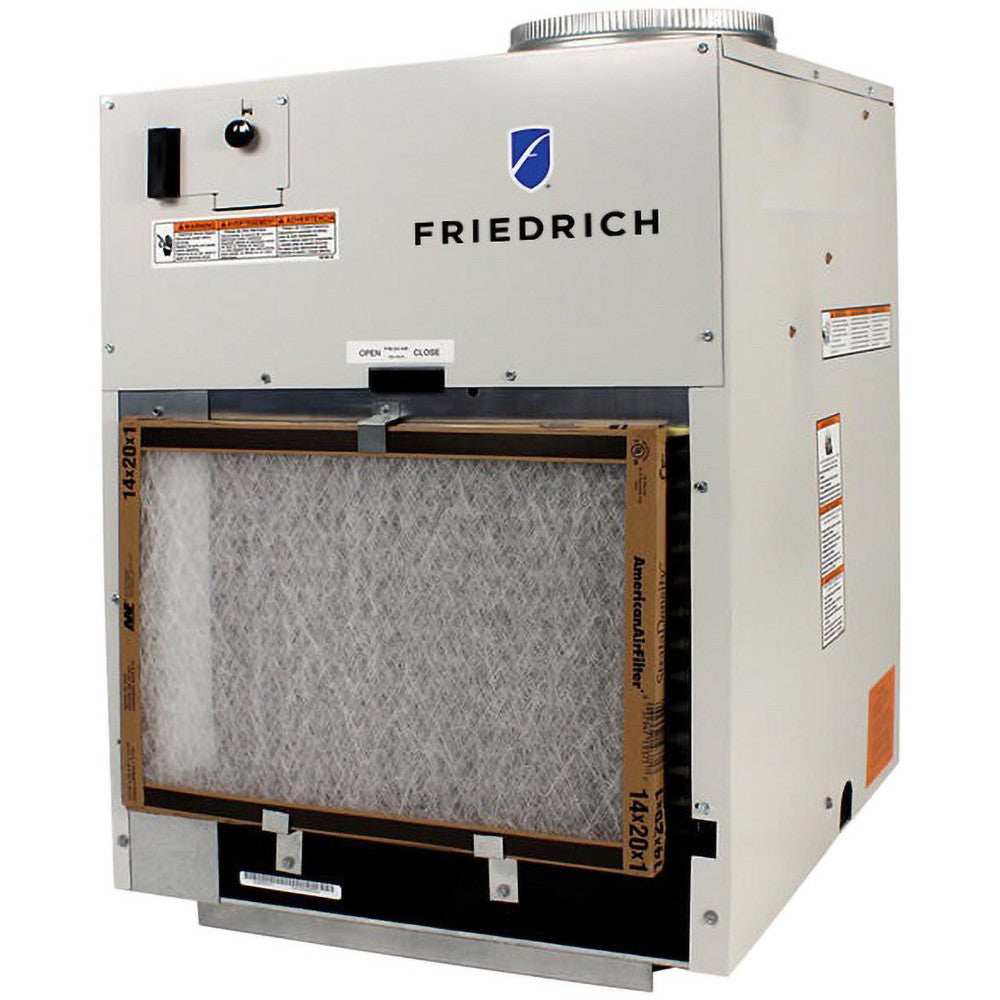

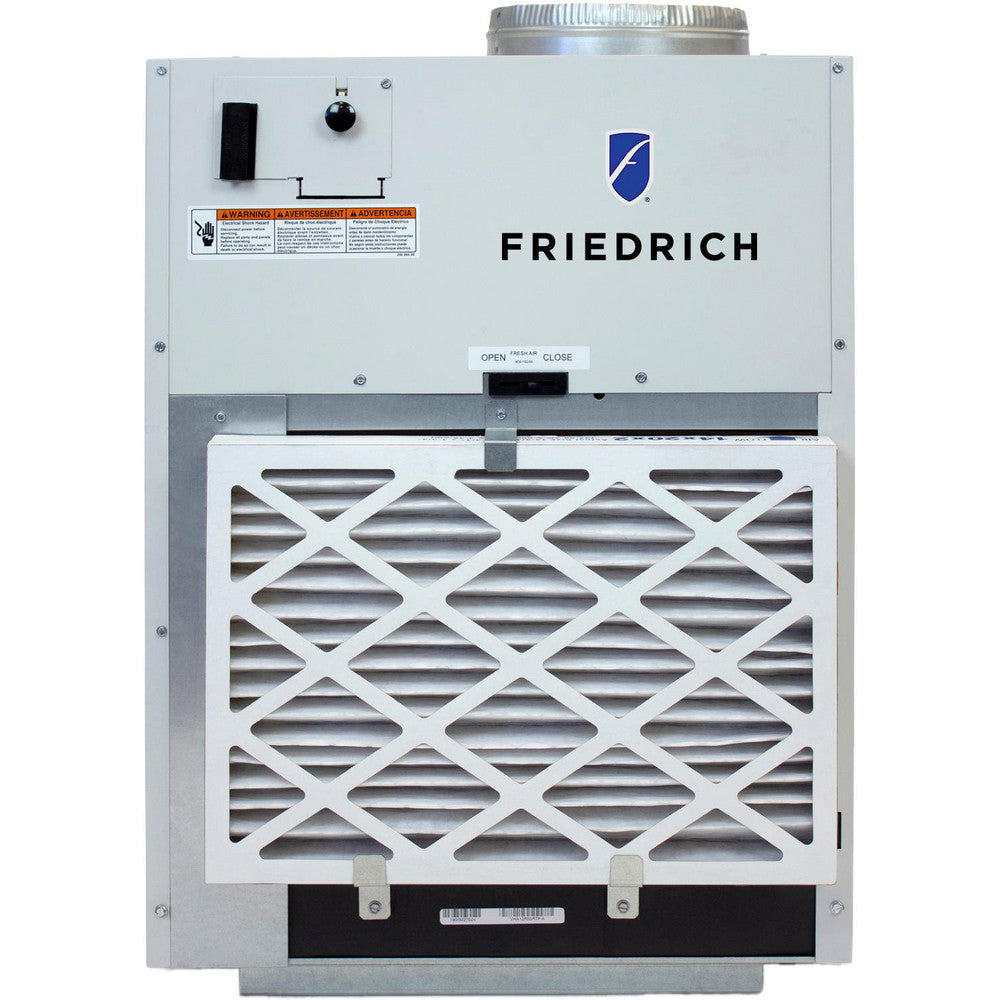

The FRIEDRICH VHA09R34RCQ Vert-I-Pak single package heat pump is factory assembled, piped, wired, and fully charged with R-32 refrigerant. Certified in accordance with AHRI Standard 210/240 under space constrained unitary small equipment. ETL listed, factory run-tested, and features QuietMaster technology and FreshAire IAQ.

  • Integrated energy management
  • Advanced condensate removal
  • Supports decarbonization efforts with heat pump operation down to 10°F
  • Compliant with A2L refrigerant standards

Product Highlights

This Vert-I-Pak heat pump offers high efficiency, earth-friendly design, and flexible installation for a hassle-free setup.

Product Information

Standard Information

  • Brand: FRIEDRICH
  • Manufacturer Part Number: VHA09R34RCQ
  • Country of Origin: CHN

Technical Specifications

  • Ratings/Certifications: AHRI - Usage
  • CFM: 360
  • COP: 3.3
  • Cooling Capacity: 9,000
  • Country of Origin: CHN
  • EER: 11
  • EER2: 10.6
  • Energy Star Rated: No
  • Heating Capacity: 4,900-8,600
  • Prop 65: Yes
  • Air Flow Direction: Vertical
  • Blower Motor HP: 1/8 HP
  • Blower Motor Speeds: 2
  • Condenser Fan CFM: 650
  • Condenser Motor HP: 1/4 HP
  • Condenser Motor Speeds: 1
  • Brand: Friedrich
  • Equipment Type: Heat Pump
  • Product Family: VHA
  • Unit Type: CBU - Compressor Bearing Unit
  • Compressor Type: Rotary
  • Cycle/Hertz: 60 Hz
  • Electric Heat Range [kW]: 3.4
  • Locked Rotor Amps (LRA): 21
  • Maximum Overcurrent Protection (MOCP): 20
  • Phase: Single
  • Rated Load Amps (RLA): 4.2
  • Substantial Commodity: Steel; Copper; Aluminum
  • Voltage: 265 VAC
  • Drain Connection Size: 3/4"
  • Refrigerant: R-32
  • Air Conditioner Type: Vertical Packaged
  • BTU Rating: 9000
  • Cooling Area: 400
  • SEER2 Rating: 12.3
  • Operation Mode: Cooling; Heating
  • Air Flow: 405
  • Plug Face: Hard Wire
  • Cooling Method: Air-Cooled Ducted; Air-Cooled Vented
  • Commercial/Residential: Commercial
  • Control Type: Thermostat
  • Overall Depth (Decimal Inch): 23
  • Overall Depth (Inch): 23
  • Overall Width (Decimal Inch - 4 Decimals): 23
  • Overall Width (Inch): 23
  • Overall Height (Decimal Inch): 32
  • Overall Height (Inch): 32
  • Number Of Speeds: 2
  • Heat Pump: Yes
