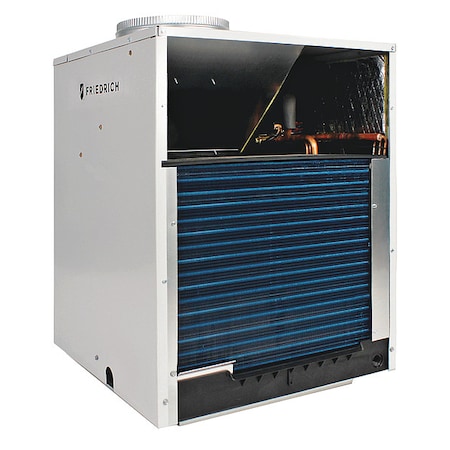

Friedrich vha09r34 vertical packaged a/c 9300 btuh cooling 23 inches w 32 inches h

Product Description

The FRIEDRICH VHA09R34 is a Vertical Packaged Air Conditioner designed for an average coverage area of 350 to 400 sq ft. It operates in cooling and heating modes, featuring a 9300 BtuH cooling capacity and a heat pump with electric heat. The electric heating capacity is 11,600 BtuH, while the heat pump provides 8,300 BtuH. This unit has an 11.0 EER and operates on 265V AC, 1 Phase, 60 Hz power with a 24V AC/DC control voltage.

• Average Coverage Area 350 to 400 sq ft
• Cooling Capacity 9300 BtuH
• Heating Method: Heat Pump with Electric Heat

Product Highlights

Features an 11.0 EER and Reverse Cycle Heat COP 3.3 for efficient operation.

Product Information

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: VHA09R34
• Country of Origin: Mexico

Technical Specifications

• Frequency: 60 Hz
• EER: 11.0
• Operating Current: 3.5 Amps
• Product Type: Vertical Packaged Air Conditioner
• Depth: 23 in
• Phase: 1
• Width: 23 in
• Height: 32 in
• Input Voltage: 265V AC
• Air Flow (CFM): 490
• Max. ESP: 0.3 in
• Vent Air Flow (CFM): 60
• Heating Power: 3.4 kW
• Indoor Air Flow (CFM): 490
• Cooling Capacity: 9300 BtuH
• Heating Capacity: 11,600 BtuH
• Power Supply Amperage: 20A
• Control Voltage: 24V AC/DC
• Heating Method: Heat Pump with Electric Heat
• Operation Mode: Cool Heat with Backup Electric Heat
• Exhaust Air Flow (CFM): 60
• Refrigerant Type: R-410A
• Min. Circuit Amps: 21.0
• Refrigerant Charge: 38 oz.
• Reverse Cycle Heat COP: 3.3
• Reverse Cycle Heat BtuH: 8500
• Heating Capacity - Electric: 11,600 BtuH
• Heating Capacity - Heat Pump: 8,300 BtuH
• Average Coverage Area: 350 to 400 sq ft
