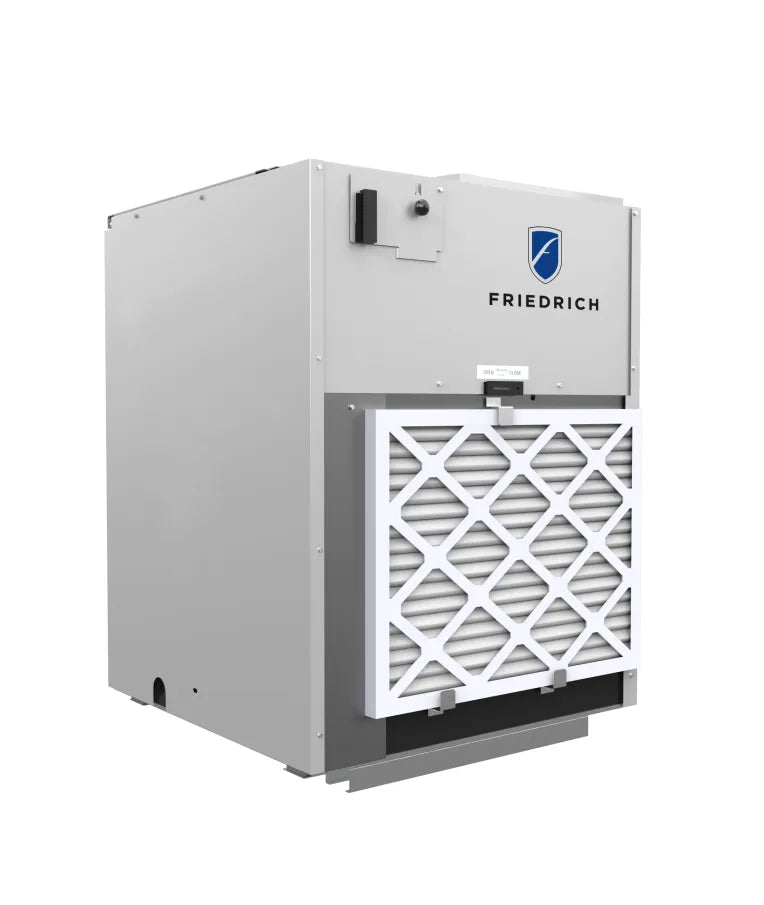

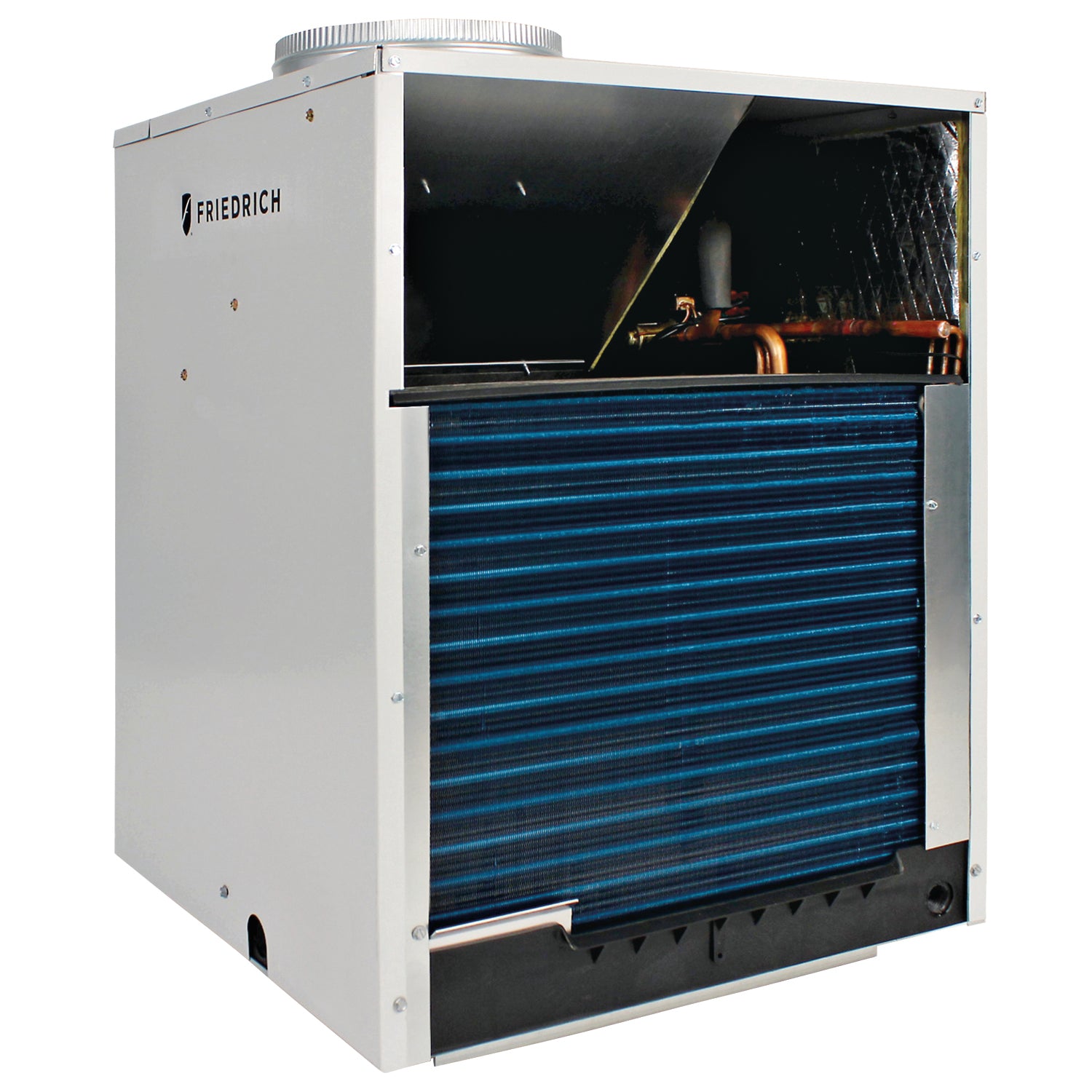

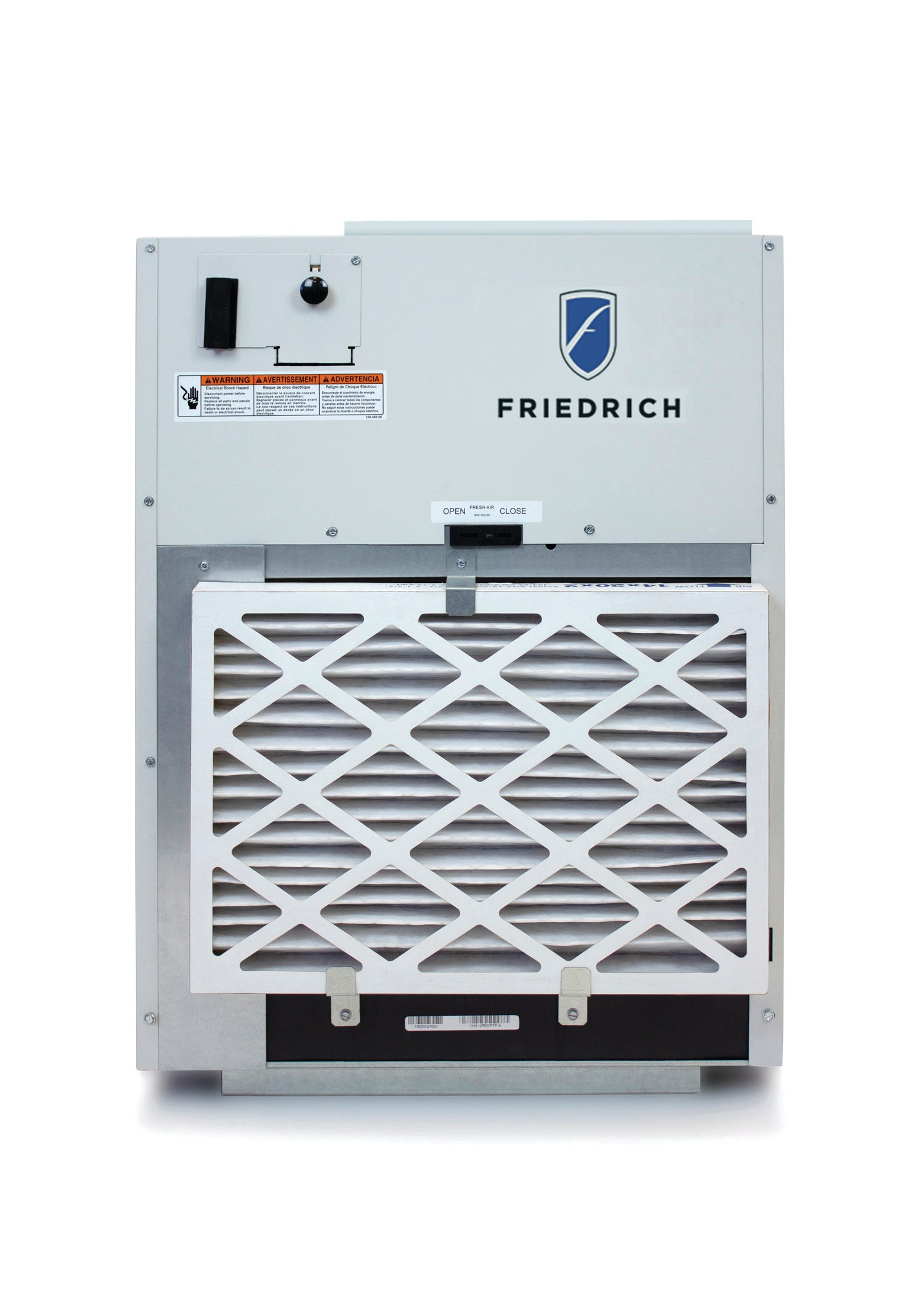

Friedrich VHA09K50RCQ Vert-I-Pak 9000 BTU Class VTAC with Heat Pump 5.0 kW Electric Heat

Product Description

The Friedrich VHA09K50RCQ Vert-I-Pak vertical packaged air system offers a simpler way to condition multiple rooms. This 208-230V VTAC features 9400 BTUs of cooling and 8600 BTUs of heat from the heat pump, and includes a 5.0 kW electric heater requiring a 30 Amp circuit. The unit uses R-32 refrigerant and fits neatly into a typical mechanical closet.

• R-32 refrigerant for improved efficiency and lower Global Warming Potential (GWP).
• Compact design fits neatly into a typical mechanical closet.
• Compatible with single stage thermostats and wired/wireless energy management systems.

Product Highlights

The Friedrich Vert-I-Pak offers individual, in-room temperature control and easy installation, ideal for extended stay properties, suites, assisted living facilities, and student housing.

Product Information

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: VHA09K50RCQ
• Country of Origin: MEXICO

Technical Specifications

• Refrigerant Type: R32
• Compressor: Standard
• Energy Star: No
• Air Delivery CFM: 360
• Includes Heat Mode: Yes
• Heat Type: Heat Pump with Back-Up Electric
• Electric Heat kW: 5.0
• Cooling BTUs (@230V): 9400
• EER2 (@230V): 10.6
• SEER2 (@230V): 12.3
• Cooling Watts (@230V): 887
• Heat Pump BTUs (@230V): 8600
• HSPF2 (@230V): 6.3
• Vent Location: Ducted Into Room
• Make-Up Air: No
• Energy Saver Mode: No
• Fan Speeds: High or Low
• Control Type: Wall Thermostat Required (NOT INCLUDED)
• Connectivity: Not WiFi Compatible
• Fresh Air Intake: No
• Overall Depth (in.): 23
• Overall Width (in.): 23
• Overall Height (in.): 32
• Voltage: 208-230V
• Circuit Breaker Size (Amps): 30
• Cooling BTU: 9000
• Reverse Cycle BTU: 8300
• AMPS: 30A
• EER: 11.0
• COP: 3.3
• Digital Controls: NO
• Auto Restart: YES
• Fan Modes: Constant/Cycle (Hi/Med/Auto)
• Freeze Protection: YES
• Front Desk Connection: YES
• Modes: Heat/Cool/Heat-Pump
• Sea Coast Protection: YES
• Temprature Limiting: YES
• BtuH Cooling: 7100
• BtuH Heating: 13900-17000
• Fan Motor: 1/8 HP
• Compressor RLA: 4.1 / 3.8
• Compressor LRA: 20
• Cooling Capacity: 9,400 Btu
• Heating Capacity: 8,600 Btu
• Airflow: 360 CFM
• Heater Size: 5.0kW
