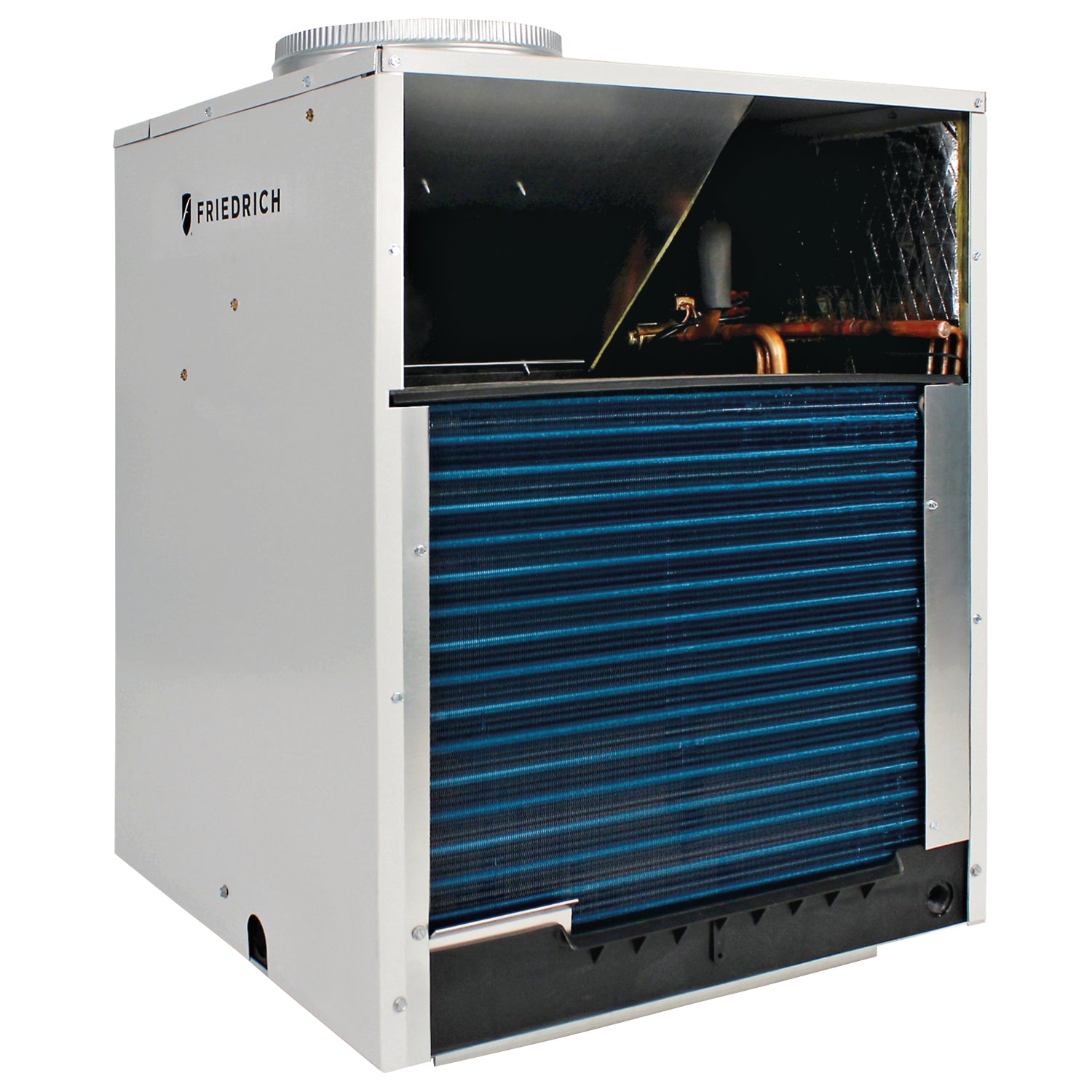

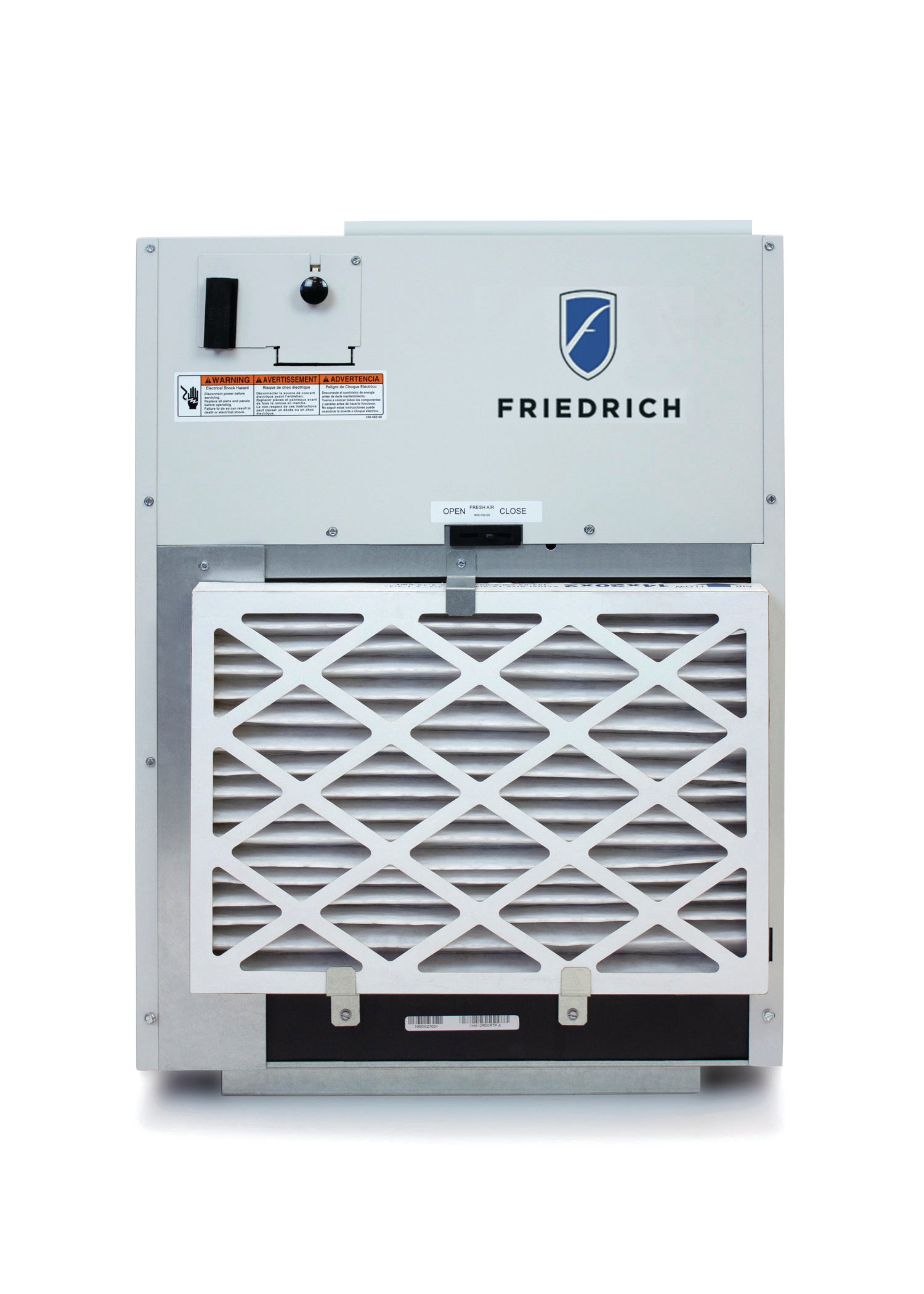

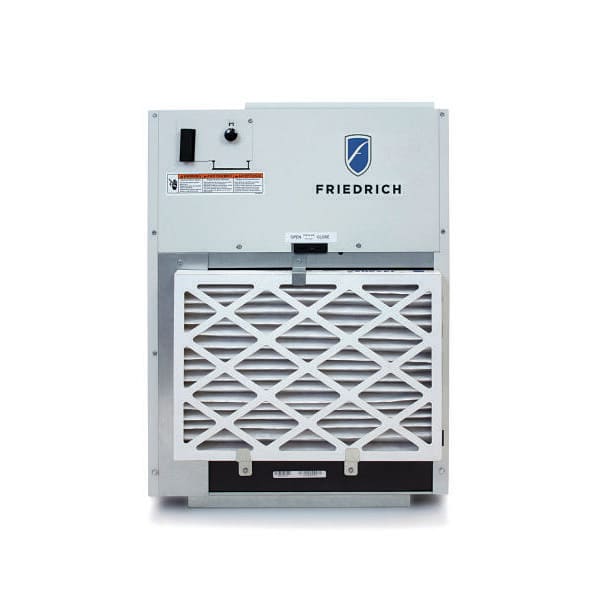

Friedrich VHA09K25RCQ Vert-I-Pak 9000 BTU Class VTAC with Heat Pump - 2.5 kW Electric Heat replacement

Product Description

The FRIEDRICH VHA09K25RCQ Vert-I-Pak is a customizable and reliable VTAC unit with heat pump, ideal for extended stay hotels, assisted living, and student housing. This air conditioner stays tucked away and out of sight, providing the aesthetics of central HVAC systems with the simplicity of single room ACs. The VHA09K models feature 9,400 BTUs of cooling and 8,600 BTUs of heat from the heat pump and requires a 15 Amp circuit.

• R-32 refrigerant for up to 12% more efficiency than R410A.
• Compact and lightweight design.
• Easy to connect right, left or rear drain connection.

Product Highlights

This Friedrich Vert-I-Pak offers a simpler way to condition multiple rooms with flexible zone cooling and easy installation, pre-wired, charged and piped.

Product Information

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: VHA09K25RCQ
• Country of Origin: MEXICO

Technical Specifications

• Brand: Friedrich
• Type: FVHA09K25RTQ
• Cooling BTU: 9000
• Reverse Cycle BTU: 8300
• Voltage: 208/230V
• AMPS: 15A
• EER: 11.0
• COP: 3.3
• Digital Controls: NO
• Auto Restart: YES
• Fan Modes: Constant/Cycle (Hi/Med/Auto)
• Freeze Protection: YES
• Front Desk Connection: YES
• Modes: Heat/Cool/Heat-Pump
• Sea Coast Protection: YES
• Temprature Limiting: YES
• Refrigerant Type: R32
• Compressor: Standard
• Energy Star: No
• CFMs (@ 0.1 ESP): 360
• Includes Heat Mode: Yes
• Heat Type: Heat Pump with Back-Up Electric
• Electric Heat kW: 2.5
• Cooling BTUs (@230V): 9400
• EER2 (@230V): 10.6
• SEER2 (@230V): 12.3
• Cooling Amps (@230V): TBD
• Cooling Watts (@230V): 887
• Heat Pump BTUs (@230V): 8600
• HSPF2 (@230V): 6.3
• Heat Pump Heating Amps (@230V): TBD
• Heat Pump Heating Watts (@230V): TBD
• Vent Location: Ducted Into Room
• Make-Up Air: No
• Energy Saver Mode: No
• Fan Speeds: High or Low
• Control Type: Wall Thermostat Required (NOT INCLUDED)
• Connectivity: Not WiFi Compatible
• Fresh Air Intake: No
• Overall Depth (in.): 23
• Overall Width (in.): 23
• Overall Height (in.): 32
• Circuit Breaker Size (Amps): 15
• Amperage: 11.5 amp
• Average Coverage Area: 350-400 sq. ft.
• BTU Cooling Rating: 9000 Btu
• BTU Heat Rating: 86000 Btuh/h
• Commercial/Residential: Commercial/Residential
• Product Depth: 23 in.
• Product Height: 32 in.
• Product Width: 23 in.
• HazMat: Hazardous
• A2L Compatible: Yes
• CEC Compliant: For Sale in CA
• Max CFM: 360
• Proposition 65: Cancer and Reproductive Harm
• Refrigerant: R-32
