Product Description

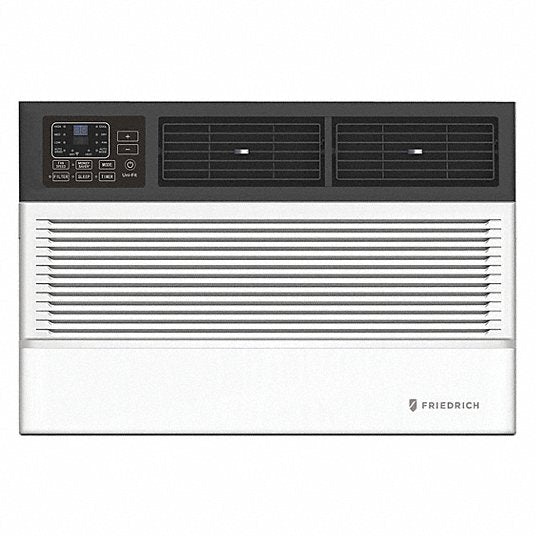

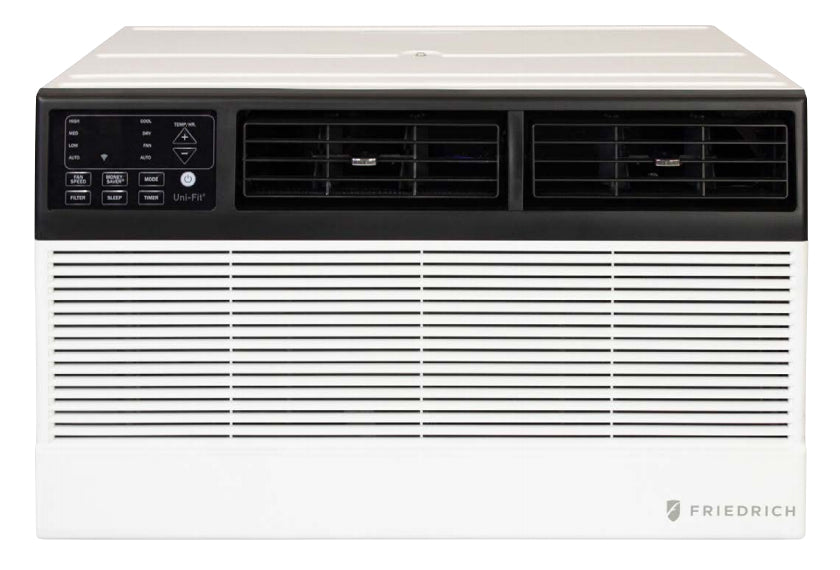

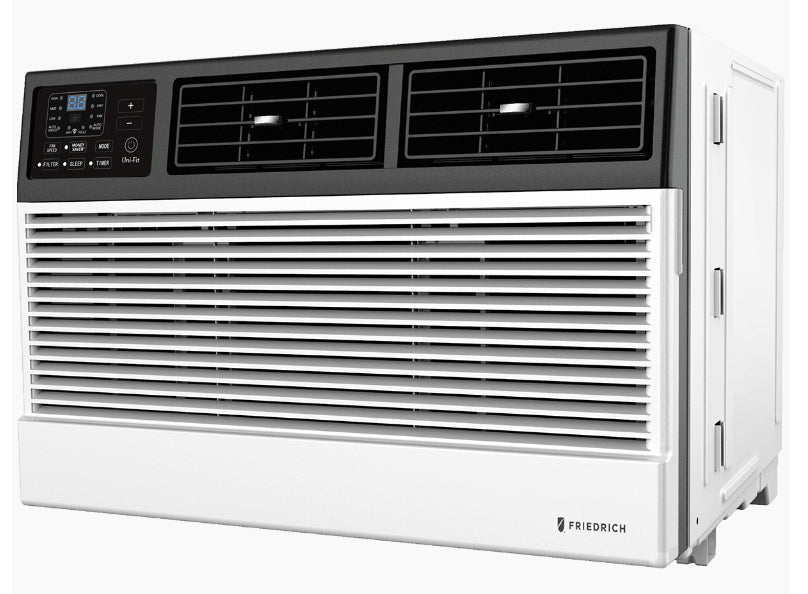

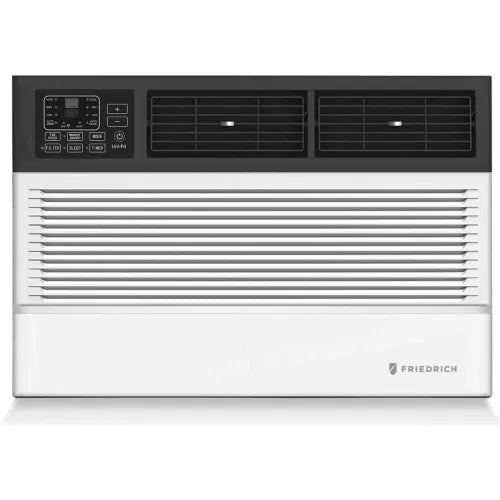

The Friedrich Uni-Fit® UET12B33A wall air conditioner offers 11200 BTU cooling and integrated Wi-Fi control via the Friedrich Go™ app. It features QuietMaster® technology and is voice compatible. Designed for a universal fit in existing sleeves from 24 ½"-27", it ships with a two-piece trim ring. This unit uses R32 refrigerant with a lower global warming potential.
- QuietMaster® Technology ensures quiet performance with superior components, up to 25% quieter than competitors.
- Equipped with three cooling and fan-only speeds, as well as 8-way air flow control and auto restart function.
- Utilizes R32 refrigerant, which has a lower global warming potential (GWP), and comes in recyclable packaging.
Product Highlights
This Friedrich Uni-Fit® air conditioner provides efficient cooling, quiet operation, and smart control for a comfortable environment.
Product Information
Standard Information
-
Brand: FRIEDRICH
-
Manufacturer Part Number: UET12B33A
-
Country of Origin: China
Technical Specifications
-
Brand: Friedrich
-
Type: Cooling with Heat
-
CFM: 290 CFM
-
Hertz: 60 Hz
-
Phase: 1
-
Voltage: 208 / 230 V
-
Controls: Electronic
-
Includes: Built In Wifi, Quietmaster Technology
-
BTU Cooling: 11200
-
BTU Heating: 11,200
-
Filter Type: Washable Mesh
-
Refrigerant Type: R32
-
Depth: 18 in
-
Width: 24-5/8 in
-
Height: 14-3/8 in
-
Amps Cooling: 5.2/5.6 A
-
Amps Heating: 15.3 / 14.0 A
-
Air Discharge: Top Discharge
-
Watts Cooling: 1,112 W
-
Watts Heating: 3,180 W
-
Remote Control: Included
-
Power Cord Type: LCDI Type Plug
-
Dehumidification: 3.8
-
Number of Speeds: 2
-
Cord Length: 6 ft
-
Assembly Required: No
-
Coverage Area: 450 ft²
-
Max Wall Thickness: 16-1/4 in
-
Wall Cut-Out Width: 24-5/8 in
-
Wall Cut-Out Height: 14-3/8 in
-
Manufacturers Part Number: UET12B33A
-
Certifications: UL, cETL Listed
-
Energy Star Certified: No
-
Energy Efficiency Rating (EER): 9.8
-
Combined Energy Efficiency Ratio (CEER): 9.7
-
Model: UET12B33A
-
Operation Mode: Cooling/Heating
-
Cooling Capacity (BTUh): 12,000
-
Electric Heat Capacity (BTUh): 10,600
-
Room Size: Medium
-
Cooling Speeds: 3
-
Number of Fan Speeds: 3 Fan Speeds
-
Heat/Cool: Yes
-
No. of Air Flow Directions: 8
-
Moisture Removal (Pints/hr): 1.6 Pints/hr
-
Filter Description: Washable air filter
-
Washable Filter: Yes
-
Inverter Technology: No
-
Chassis Type: Thru the Wall
-
Additional Features: Built-in Wi-Fi control on the go with the FriedrichGo app, Smart home / voice command device compatability (Amazon Alexa or Google Home)
or Google Home)
-
Universal Fit Wall Sleeve: Yes
-
General Features: Heat, Quiet, Smart
-
WiFi Connected: Yes
-
Wifi/App Controllable: Wifi/Smartphone App Controllable
-
Smart Features: App Controllable, Status Monitoring & Alert, Works with Voice Assistant
-
Works with: Amazon Alexa
-
Control Type: Digital
-
Temperature Display: Yes
-
Automatic Timer: Yes
-
Delay Timer: No
-
Automatic Shut Off/Sleep Mode: Yes
-
Quietest: No
-
Replacement Sleeve Included: No
-
Replacement Sleeve Model: USEZ
-
Upgradeable Filter: No
-
Upgradeable Filter Model Number: -
-
Trim Kit Included: Yes
-
Energy Efficiency Ratio: 9.7 EER
-
Power Cord Length (in.): 57 Inches
-
Power Requirements: 220 Volt 20 Amp Dedicated Circuit (Perpendicular Plug)
-
Voltage (V): 230 Volts
-
Amperage: 20 Amps
-
Auto Restart: Yes
-
Power Cord Location: Left Side
-
Cooling Amps: 6.5 Amps
-
Outlet Type: 230V Grounded Outlet
-
ADA Compliant: No
-
CSA Listed: No
-
ETL Listed: No
-
UL Listed: Yes
-
Air Flow Direction: Eight-Way
-
Minimum Average Coverage Area: 450 sq ft
-
Maximum Average Coverage Area: 550 sq ft
-
Compressor Type: Rotary
-
Duty Rating: Residential Grade
-
Maximum Electric Heating Capacity: 10,600 BtuH
-
For Sleeve Depth: 20-5/16 in
-
For Sleeve Height: 14-1/2 in
-
For Sleeve Width: 24-1/4 in
-
Heating Method: Electric Heat
-
Max. Wall Thickness: 16-1/4 in
-
Mounting Sleeve Included: Sleeve Not Included
-
NEMA Plug Configuration: 6-20P
-
Smart Connectivity: Wi-Fi
-
Standards: Energy Star
-
UNSPSC: 40101701
-
Sleeve Required for Install: Yes
-
Fits Sleeve Size (in.): 26
-
Dehumidification (pts/hr): 1.65
-
CFMs: 276
-
Includes Heat Mode: Yes
-
Heat Type: Electric Resistance Only
-
Cooling BTUs (@230V): 12000
-
EER (@230V): 9.7
-
CEER (@230V): 9.6
-
Cooling Amps (@230 Volt): 5.9
-
Cooling Watts (@230 Volt): 1230
-
Electric Heat Strip Size (kW - @230V): 3.5
-
Electric Heating BTUs (@230V): 10600
-
Electric Heating Amps (@230V): 15
-
Electric Heating Watts (@230V): 3500
-
Vent Location: Front Top
-
Make-Up Air: No
-
Energy Saver Mode: Yes
-
Fan Speeds: 4
-
24 Hour ON/OFF Timer: Yes
-
Fresh Air Intake: No
-
Sleep Mode: Yes
-
Wall Cut-Out Width (in.): 26.125
-
Wall Cut-Out Height (in.): 15.75
-
Extension Into Room (Min)(in.): 3.5
-
Extension Outside (Min.)(in.): 0.5
-
Circuit Breaker Size (Amps): 20
-
Plug Face (NEMA): 6-20P
-
Connectivity: Not WiFi Compatible
