Product Description

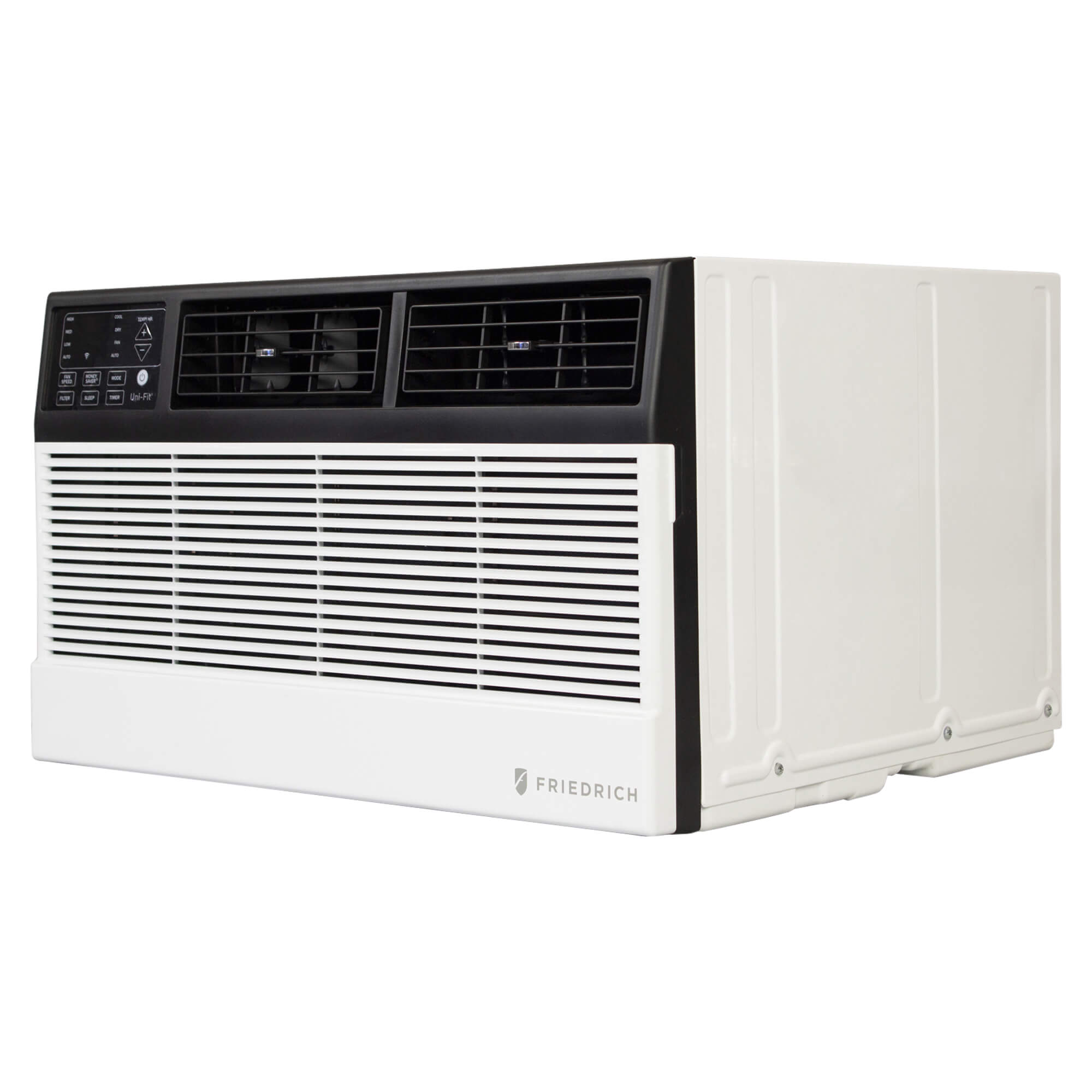

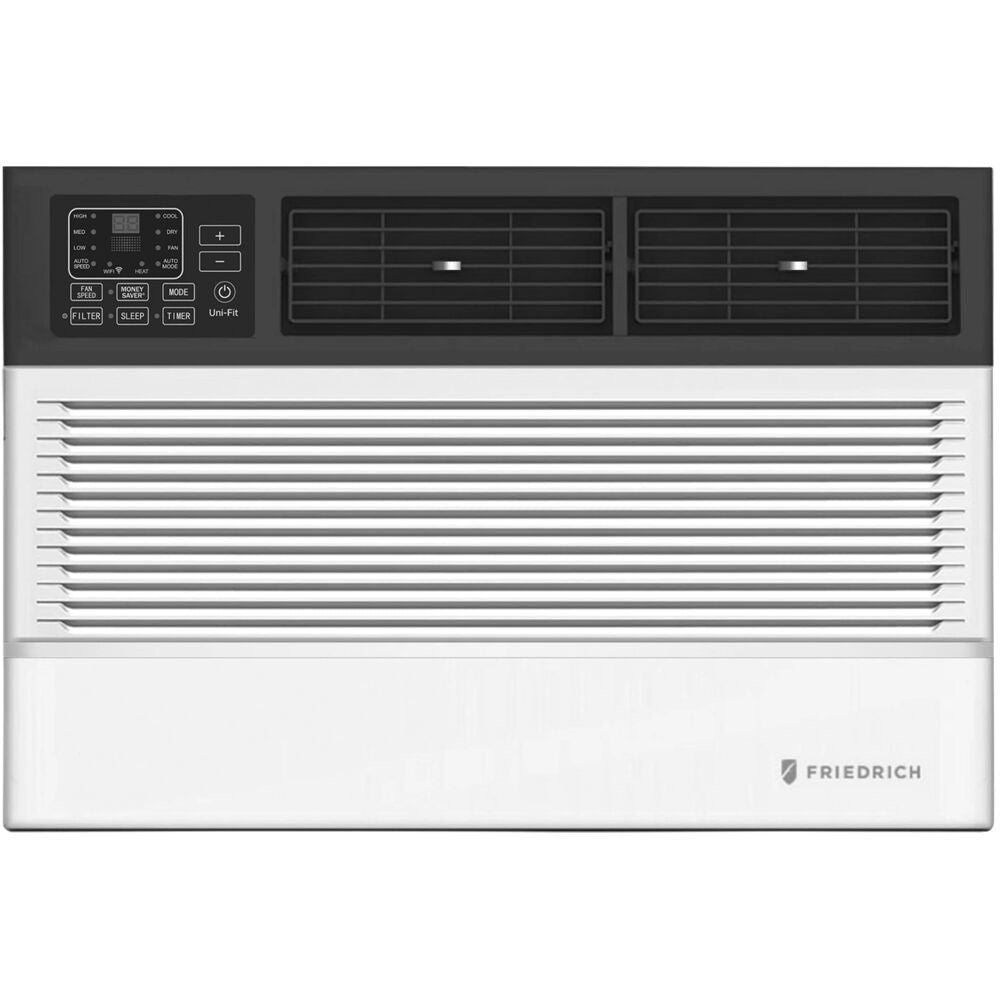

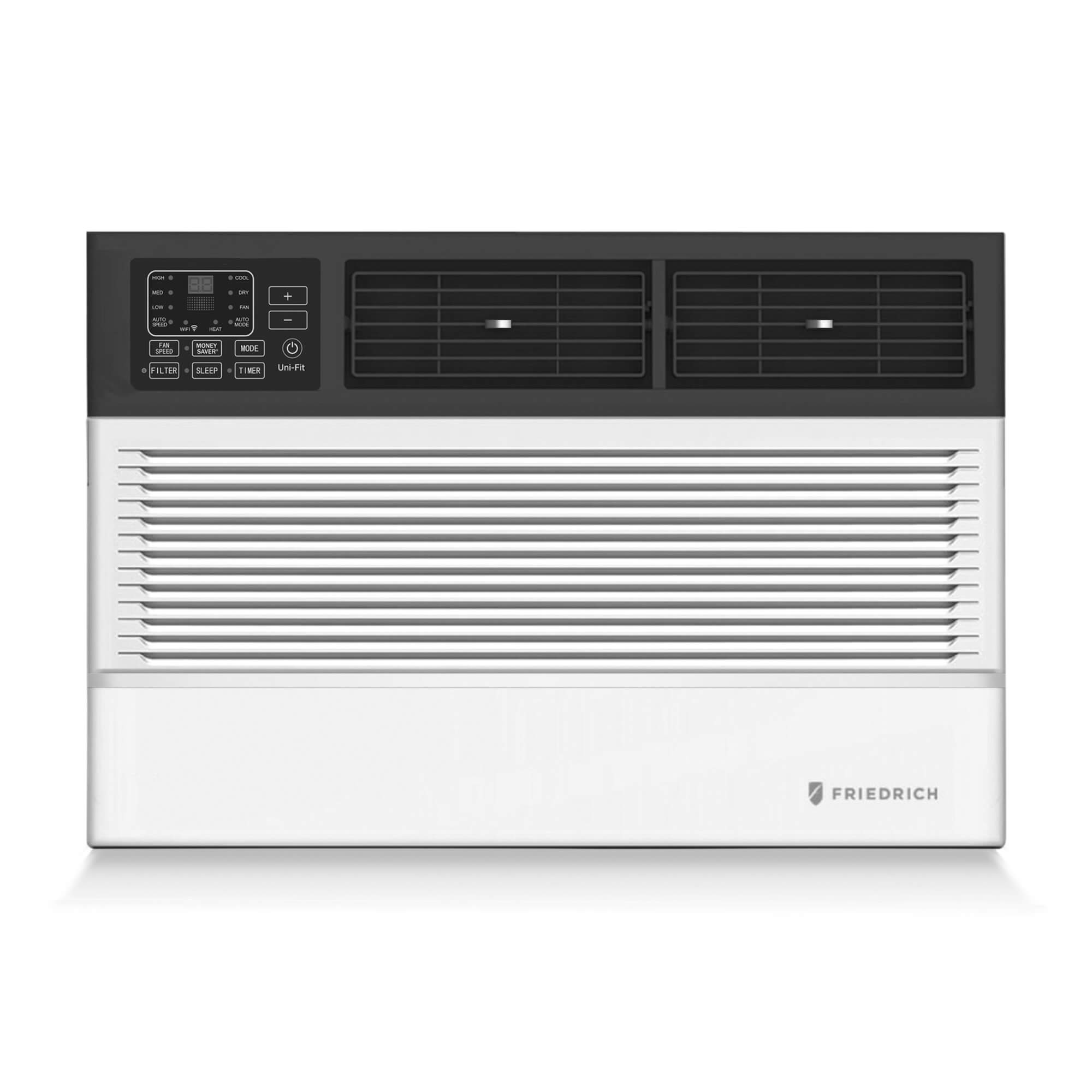

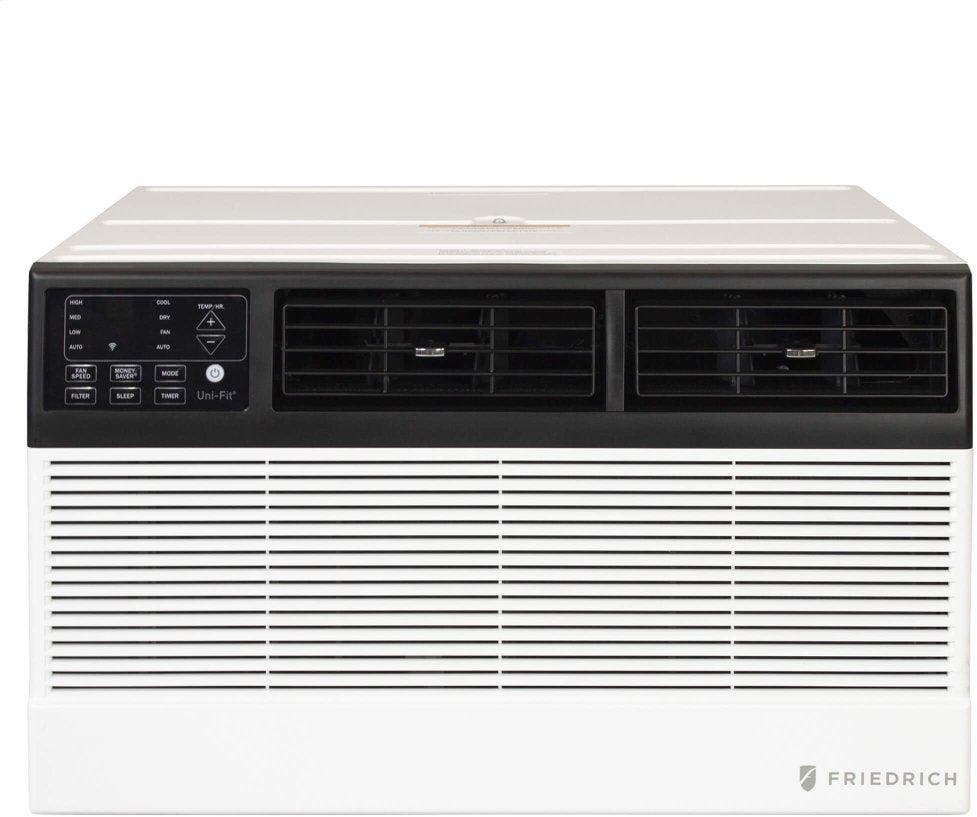

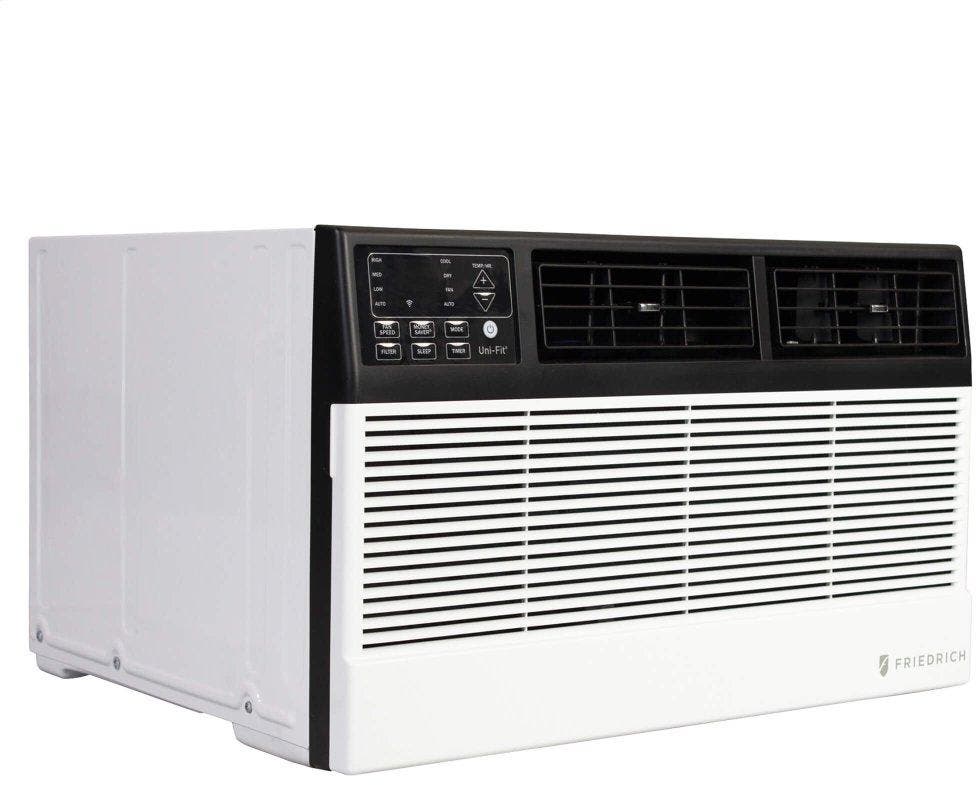

The Friedrich UET10B33A Uni-Fit® offers outstanding energy efficiency and integrated Wi-Fi control from your smartphone with Friedrich Go™. It features QuietMaster® technology and voice command compatibility. Designed to fit existing sleeves from 24 ½"-27", it ships with a two-piece trim ring. This unit uses R32 refrigerant and has three cooling and fan-only speeds as well as 8-way air flow control.
- QuietMaster® Technology engineered for quiet performance.
- Integrated Wi-Fi control from your smartphone plus voice command compatibility.
- Designed to fit in 24 ½, 26 and 27-inch sleeves.
Product Highlights
The Friedrich Uni-Fit® provides efficient cooling and heating with smart features and a design for easy installation.
Product Information
Standard Information
-
Brand: FRIEDRICH
-
Manufacturer Part Number: UET10B33A
Technical Specifications
-
Type: Cooling with Heat
-
Brand: Friedrich
-
Hertz: 60 Hz
-
Phase: 1
-
Voltage: 230 V
-
Controls: Electronic, Wifi Enabled
-
Includes: Built In Wifi, Quietmaster Technology
-
Amp Circuit: 20 A
-
BTU Cooling: 10000
-
BTU Heating: 10,600
-
Filter Type: Washable, Antimicrobial Filter
-
Refrigerant: R32
-
Amps Cooling: 4.9 A
-
Amps Heating: 15 A
-
Air Discharge: Top Discharge
-
Watts Cooling: 1,030 W
-
Watts Heating: 3,500 W
-
Remote Control: Included
-
Power Cord Type: NEMA 6-20P
-
Dehumidification: 1.2
-
Number of Speeds: 2
-
Cord Length: 4 ft
-
Assembly Required: No
-
Coverage Area: 450 ft²
-
Max Wall Thickness: 16-1/4 in
-
Wall Cut-Out Width: 24-5/8 in
-
Wall Cut-Out Height: 14-3/8 in
-
Manufacturers Part Number: UET10B33A
-
Certifications: UL, cUL Listed
-
Energy Star Certified: No
-
Energy Efficiency Rating (EER): 9.8
-
Combined Energy Efficiency Ratio (CEER): 9.6
-
CFM: 276 CFM
-
Sleeve Required for Install: Yes
-
Fits Sleeve Size (in.): 26
-
Compressor: Standard
-
Electric Heat Strip Size (kW - @230V): 3.5
-
Vent Location: Front Top
-
Make-Up Air: No
-
Energy Saver Mode: Yes
-
Fan Speeds: 4
-
Control Type: Electronic/Digital
-
Filter Access: Lift-Out
-
24 Hour ON/OFF Timer: Yes
-
Fresh Air Intake: No
-
Sleep Mode: Yes
-
Extension Into Room (Min)(in.): 3.5
-
Extension Outside (Min.)(in.): 0.5
-
Voltage (V): 208-230V
-
Plug Face (NEMA): 6-20P
-
Circuit Breaker Size (Amps): 20
-
Auto Restart: Yes
-
Outlet Type: 230V Grounded Outlet
-
ADA Compliant: No
-
Wall Mounted: Yes
-
Heating: Yes
-
Cooling Area/Room Size: 450
-
Uni-Fit Series: Yes
