Product Description

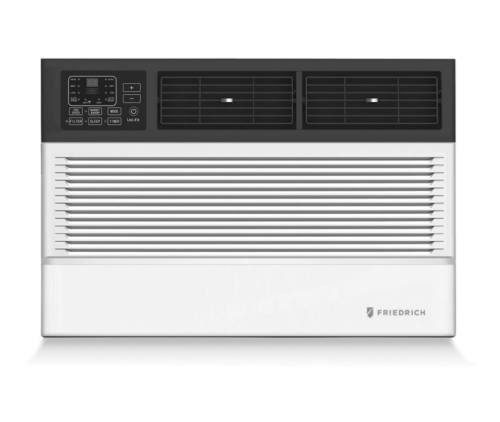

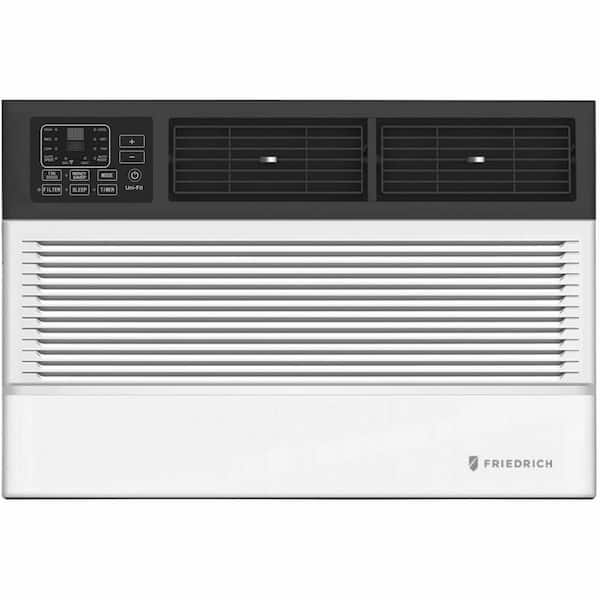

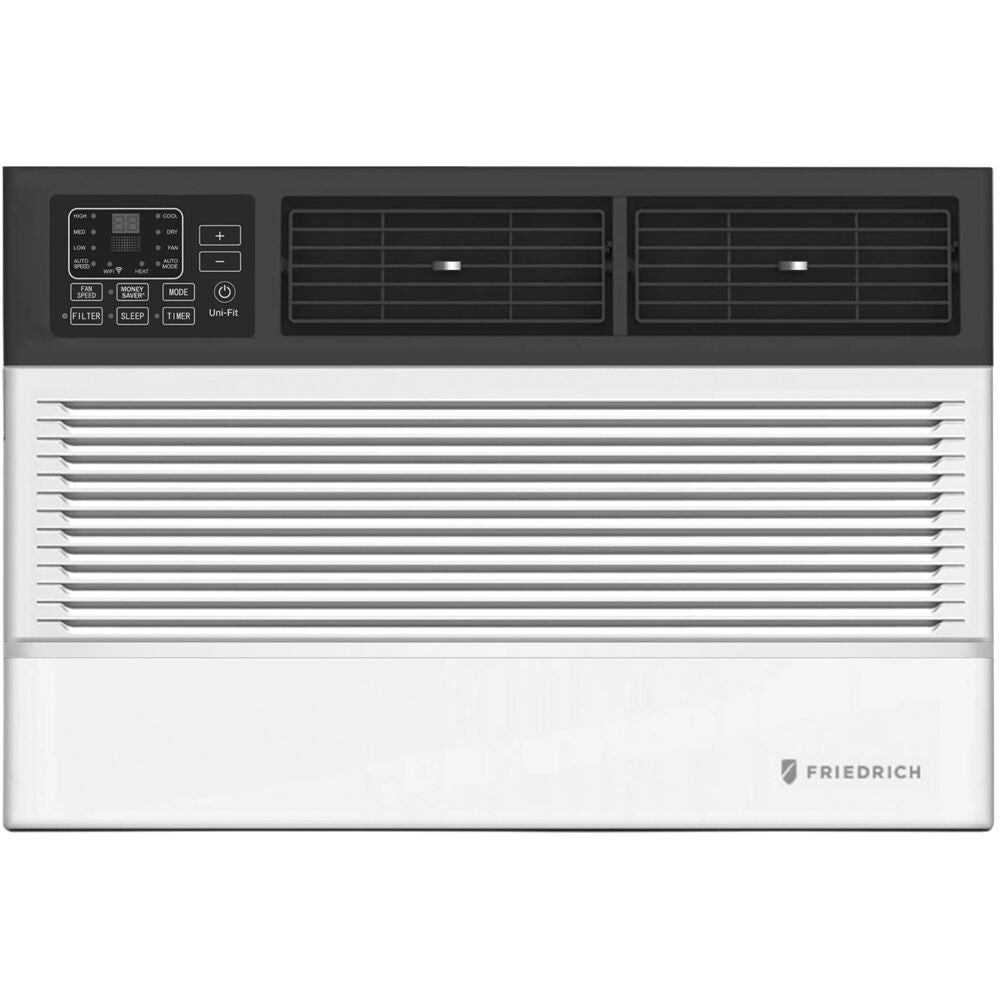

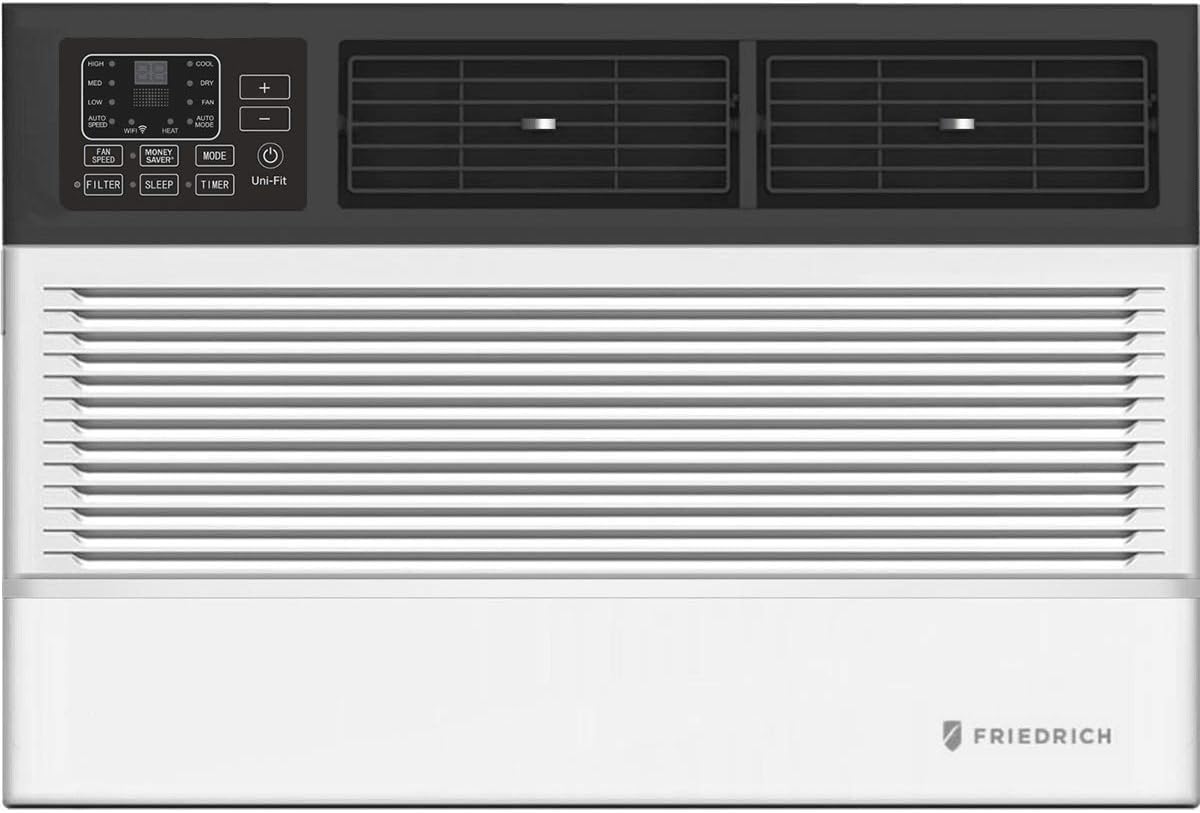

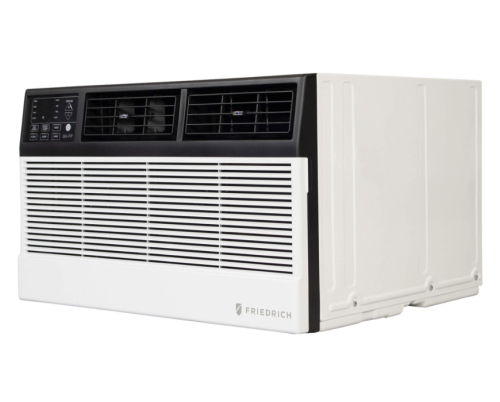

The FRIEDRICH UCT12B10A Uni-Fit smart through-the-wall air conditioner provides 12,000 BTU of cooling. Designed for easy replacement in most sleeves, the chassis fits existing sleeves from 24 1/2" to 27". Features include QuietMaster technology for up to 25% quieter operation and smart Wi-Fi control via the FriedrichGo app, compatible with Amazon Alexa and Google Home.
- Universal fit for easy replacement in sleeves from 24 1/2" to 27"
- Smart Wi-Fi control with the FriedrichGo app, compatible with Amazon Alexa and Google Home
- QuietMaster Technology ensures up to 25% quieter operation
Product Highlights
The Friedrich Uni-Fit delivers long-lasting performance and superior value. Control your comfort with voice commands via Google Home & Amazon Alexa for unparalleled convenience.
Product Information
Standard Information
-
Brand: FRIEDRICH
-
Manufacturer Part Number: UCT12B10A
-
Country of Origin: China
Technical Specifications
-
EER: 10.6
-
Amps: 10.1 A
-
Item: Through-the-Wall Air Conditioner
-
Depth: 20.28 in
-
Watts: 1,130
-
Width: 24.21 in
-
Height: 14.5 in
-
Series: UNI-FIT
-
Voltage: 115V AC
-
Standards: cULus Listed
-
CEER Rating: 10.5
-
Duty Rating: Residential Grade
-
For Use With: USC Wall Sleeve
-
Heating Method: Not Applicable
-
Cooling Capacity: 12,000 BtuH
-
Number of Speeds: 3
-
Refrigerant Type: R32
-
Power Cord Length: 6 ft
-
Air Flow Direction: 8 Way
-
Smart Connectivity: WiFi Control
-
Operation Mode - HVAC: Cooling Only
-
Programming Capability: 24-hr. On/Off Timer
-
Fits Wall Sleeve - H x W x D: 15 1/2 in x 25 7/8 in x 16 3/4 in
-
Seacoast Corrosion Protection: Front and Rear Coil
-
NEMA Plug Configuration - HVAC: 5-15P
-
Room Size: Medium
-
Cooling BTU: 12000 BTU
-
Cooling Speeds: 3
-
Number of Fan Speeds: 3 Fan Speeds
-
Heat/Cool: No
-
No. of Air Flow Directions: 8
-
CFM: 282 CFM
-
Moisture Removal (Pints/hr): 3.38 Pints/hr
-
Filter Description: Washable air filter
-
Washable Filter: Yes
-
Charcoal Filter: No
-
Inverter Technology: No
-
Chassis Type: Thru the Wall
-
Additional Features: Built-in Wi-Fi control on the go with the FriedrichGo app, Smart home / voice command device compatability (Amazon Alexa or Google Home)
or Google Home)
-
Universal Fit Wall Sleeve: Yes
-
General Features: Smart
-
WiFi Connected: Yes
-
Wifi/App Controllable: Wifi/Smartphone App Controllable
-
Smart Features: App Controllable, Status Monitoring & Alert, Works with Voice Assistant
-
Works with: Amazon Alexa
-
Control Type: Digital
-
Temperature Display: Yes
-
Automatic Timer: Yes
-
Delay Timer: No
-
Automatic Shut Off/Sleep Mode: Yes
-
Quietest: No
-
Remote Control Included: Yes
-
Replacement Sleeve Included: No
-
Replacement Sleeve Model: USEZ
-
Upgradeable Filter: No
-
Upgradeable Filter Model Number: -
-
Trim Kit Included: Yes
-
Energy Star Rated: No
-
Energy Efficiency Ratio: 10.1 EER
-
Power Cord Length (in.): 72 Inches
-
Power Requirements: 110 Volt 15 or 20 Amp Circuit (Parallel Plug)
-
Voltage (V): 115 Volts
-
Amperage: 15 Amps
-
Auto Restart: Yes
-
Power Cord Location: Left Side
-
Cooling Amps: 11.5 Amps
-
Outlet Type: 115V Grounded Outlet
-
ADA Compliant: No
-
CSA Listed: No
-
ETL Listed: No
-
UL Listed: Yes
