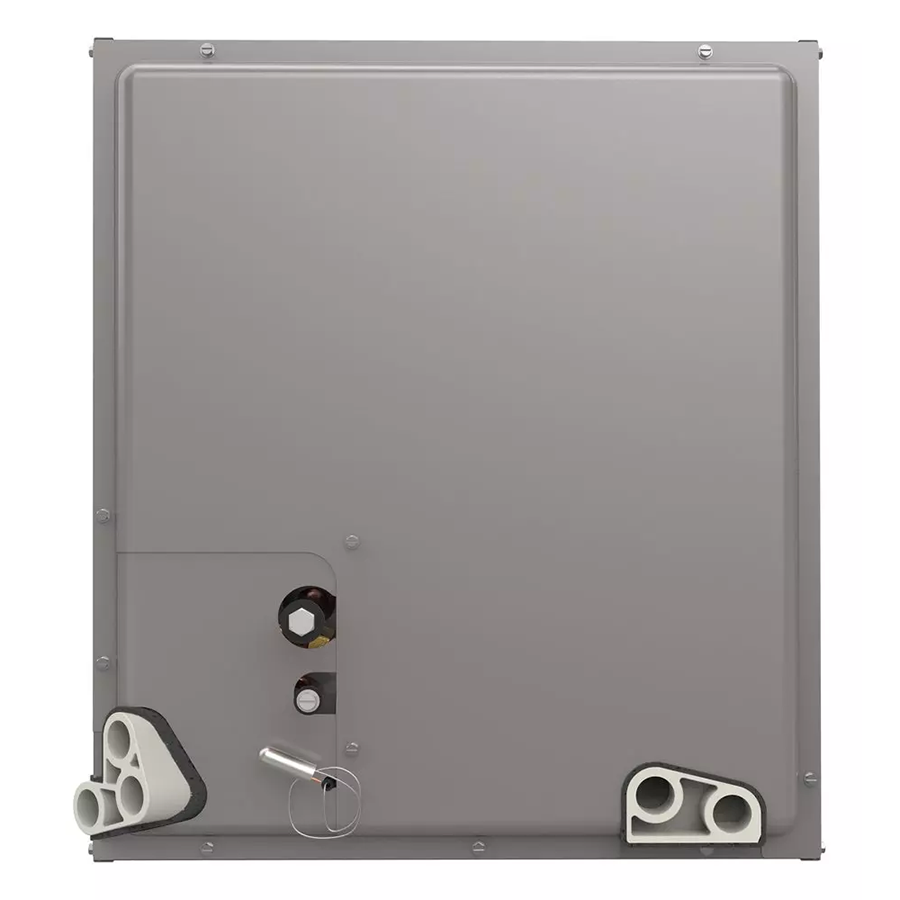

Friedrich TCFY6021STAAMC Cased Evaporator Coil 4-5 Ton R454B

Product Description

The FRIEDRICH TCFY6021STAAMC is a cased evaporator coil rated for 4 to 5 ton (60,000 BTU/h) residential and light commercial split-system air conditioning applications. It is designed for use with R454B refrigerant, a lower-GWP A2L refrigerant that is becoming the standard in modern residential cooling equipment. The coil ships with a factory-installed thermostatic expansion valve (TXV) for precise refrigerant metering. At 21 inches wide, the multi-position configuration allows installation in upflow, downflow, or horizontal orientations depending on the air handler or furnace setup. Licensed HVAC technicians are the intended installers for this component.

This evaporator coil is suited for split-system cooling or heat pump installations where a 4 to 5 ton capacity is required. The multi-position design gives installing contractors flexibility across a range of air handler and furnace configurations without requiring a separate coil SKU for each orientation. The included TXV eliminates the need to source a separate metering device, which simplifies installation on matched-system setups. This coil is intended for use in systems charged with R454B refrigerant only.

Key Features

• 60,000 BTU/h nominal capacity supporting 4 to 5 ton system sizing
• Designed for R454B refrigerant, a lower-GWP A2L alternative to R410A
• Factory-installed TXV for accurate refrigerant metering without additional components
• Multi-position orientation supports upflow, downflow, and horizontal installations
• Cased construction provides a finished, ready-to-install assembly with structural rigidity
• 21-inch width fits standard air handler and furnace coil cabinet openings in this tonnage range

Compatibility

Designed as an OEM-style cased evaporator coil for multi-position split-system and heat pump installations requiring 4 to 5 ton capacity and R454B refrigerant compatibility. Verify system refrigerant type and tonnage match before installation.

Installation Notes

Installation must be performed by an EPA Section 608 certified HVAC technician, as this coil is part of a refrigerant-containing system using an A2L classified refrigerant (R454B), which requires attention to applicable local codes and manufacturer handling guidelines. De-energize the air handler or furnace and recover any existing refrigerant charge before disconnecting the refrigerant circuit. Verify that the condensing unit, line set, and all system components are rated and approved for use with R454B prior to commissioning. Confirm coil orientation and drain pan positioning before securing the cased assembly in the cabinet.

Technical Specifications

• Nominal Capacity: 60,000 BTU/h (4 to 5 Ton)
• Refrigerant: R454B
• Metering Device: TXV (factory installed)
• Casing: Cased
• Orientation: Multi-position
• Width: 21 inches

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: TCFY6021STAAMC
