Friedrich PZH15K5SC Ptac Heat Pump 14500 Btu 208/230V 30A R32

Product Description

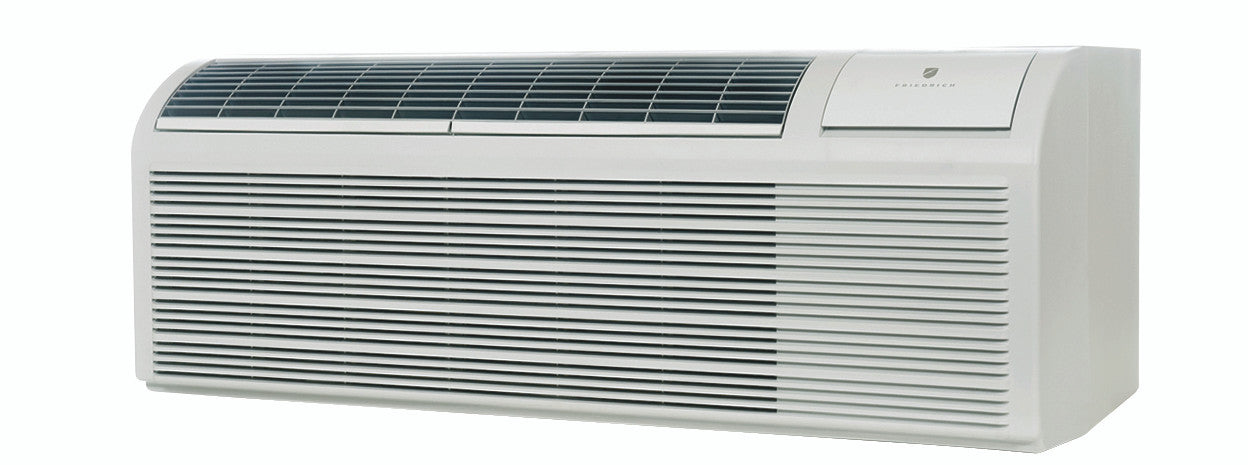

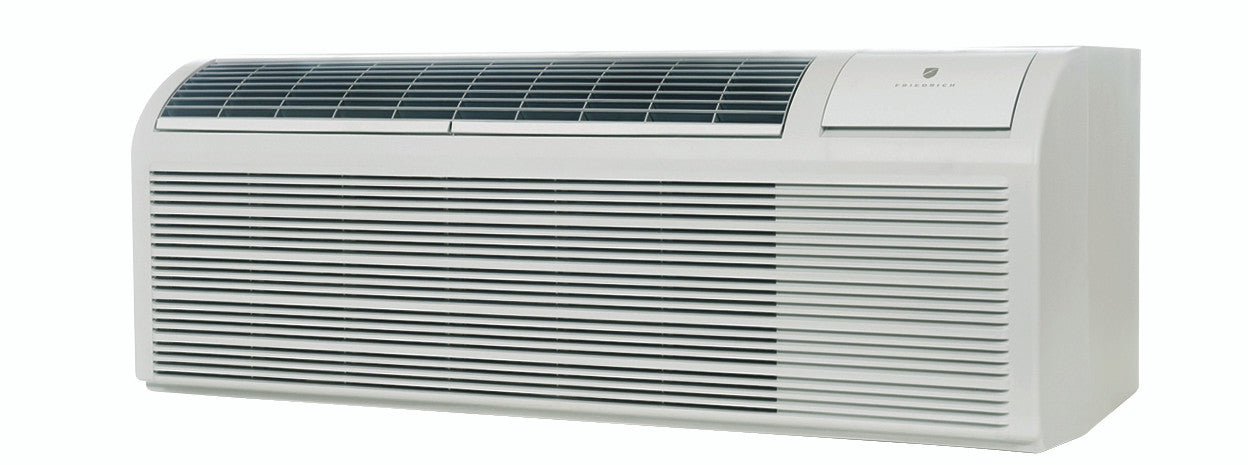

The FRIEDRICH PZH15K5SC is a packaged terminal air conditioner (PTAC) delivering 14,500 BTU of cooling capacity at 230 volts with a reverse-cycle heat pump rated at 13,600 BTU and a 5.0 kW backup electric resistance heat strip. It operates on 208/230 volt, 30-amp power and uses R32 refrigerant, which carries a lower Global Warming Potential than R410A. The unit achieves an Energy Efficiency Ratio (EER) of 10.0 and a Coefficient of Performance (COP) of 3.2 in heat pump mode. It is designed for installation by HVAC technicians in standard 42-inch PTAC sleeves. The digital touch pad with LCD readout, two-fan-speed operation, and internal diagnostic program make commissioning and service straightforward for trade professionals.

The PZH15K5SC belongs to the Friedrich ZoneAire Select Series, suited for both commercial and residential applications including hotels, motels, assisted living facilities, condominiums, and multi-unit residential buildings. The unit fits any standard 42-inch PTAC sleeve, which simplifies replacement installations. Its DiamonBlue Advanced Corrosion protection and aluminum end plates make it a viable option for coastal environments where salt air accelerates corrosion on standard units. A fresh air damper allows controlled introduction of outdoor air when required by ventilation standards. Compatible wall thermostats for this unit include the RT7 (wired, non-programmable), the RT7P (wired, programmable), and the WRT2 (wireless, programmable).

Key Features

• 14,500 BTU cooling at 230V and 14,300 BTU at 208V with EER of 10.0 at both voltages
• R32 refrigerant with lower Global Warming Potential compared to R410A
• Heat pump mode at 13,600 BTU (230V) with COP of 3.2 plus 5.0 kW backup electric heat strip
• DiamonBlue Advanced Corrosion protection and aluminum end plates for extended service life in coastal climates
• Room Freeze Protection activates heat when room temperature drops below 50 degrees F in unoccupied spaces
• Indoor coil frost sensor protects the compressor, automatic room temperature sampling every nine minutes
• Anti-microbial washable filter with top lift-out access and internal diagnostic program for fault alerts

Compatibility

The PZH15K5SC fits any standard PTAC sleeve measuring 42 inches wide by 16-1/16 inches high by 14-1/8 inches deep. Required wall cutout dimensions are 42-1/4 inches wide by 16-1/4 inches high. A sleeve and rear grille are required for new installations and are not included with the unit. Compatible thermostats include the Friedrich RT7, RT7P, and WRT2.

Installation Notes

Installation must be performed by a qualified HVAC technician in accordance with local mechanical codes and the manufacturer installation instructions. Disconnect all power at the breaker before servicing or installing the unit. A dedicated 30-amp, 208/230-volt circuit is required. For new installations, a compatible PTAC sleeve and rear grille must be sourced and installed separately before inserting the chassis.

Technical Specifications

• Cooling Capacity: 14,500 BTU/h at 230V / 14,300 BTU/h at 208V
• EER: 10.0 (at both 208V and 230V)
• Heat Pump Capacity: 13,600 BTU/h at 230V / 13,200 BTU/h at 208V
• COP: 3.2 (at both 208V and 230V)
• Electric Heat Strip: 5.0 kW / 17,061 BTU/h
• Voltage: 208/230 volts
• Amperage (30-Amp Circuit): 6.3 amps cooling at 230V / 6.9 amps cooling at 208V
• Cooling Watts: 1,450 watts at 230V / 1,430 watts at 208V
• Refrigerant: R32
• Fan Speeds: 2 speeds plus auto
• Airflow (CFM): 412 low / 471 high
• Dehumidification: 4.29 pints/hr
• Sleeve Size (W x H x D): 42 inches x 16-1/16 inches x 14-1/8 inches
• Wall Cutout (W x H): 42-1/4 inches x 16-1/4 inches
• Net Weight: 108 pounds
• Control Type: Electronic digital with LCD readout
• Fresh Air Intake: Yes
• Certifications: ETL, AHRI
• Warranty: 2-year parts and labor; limited warranty on sealed refrigeration system years 3 through 5 from date of installation

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: PZH15K5SC
