Product Description

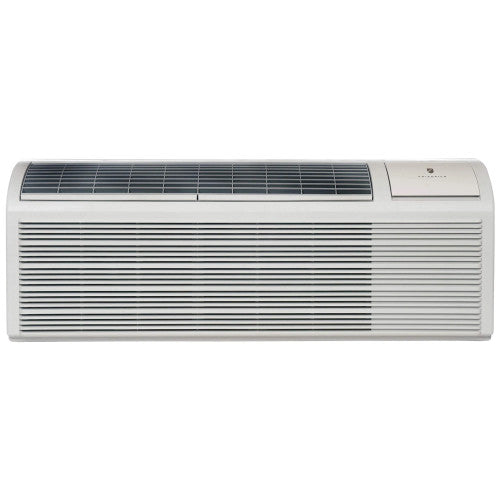

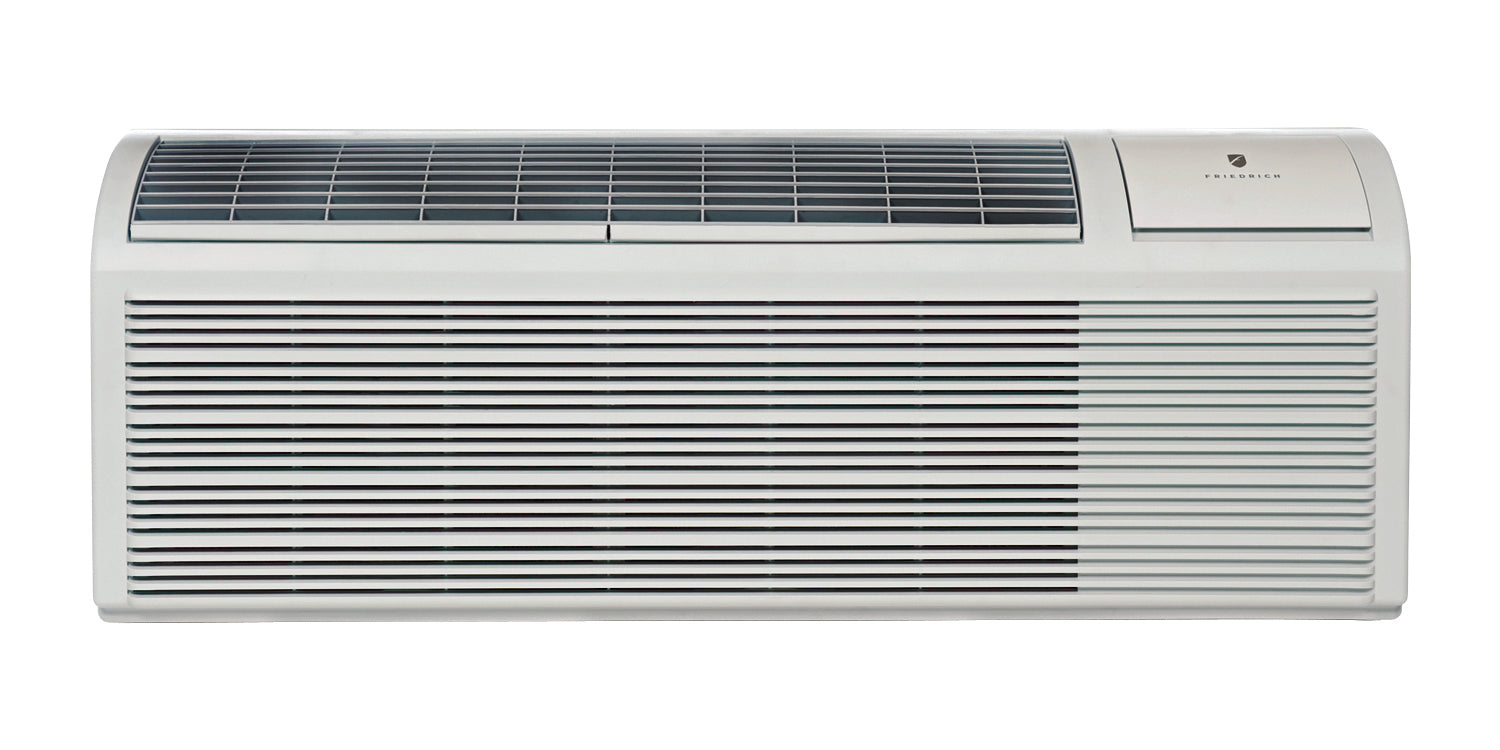

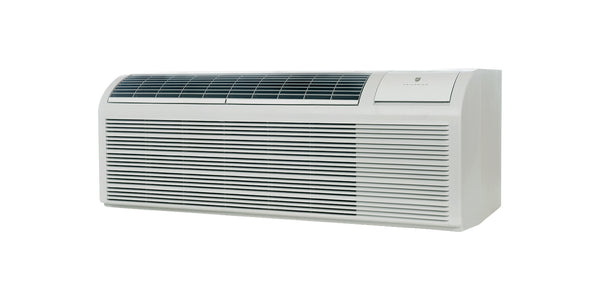

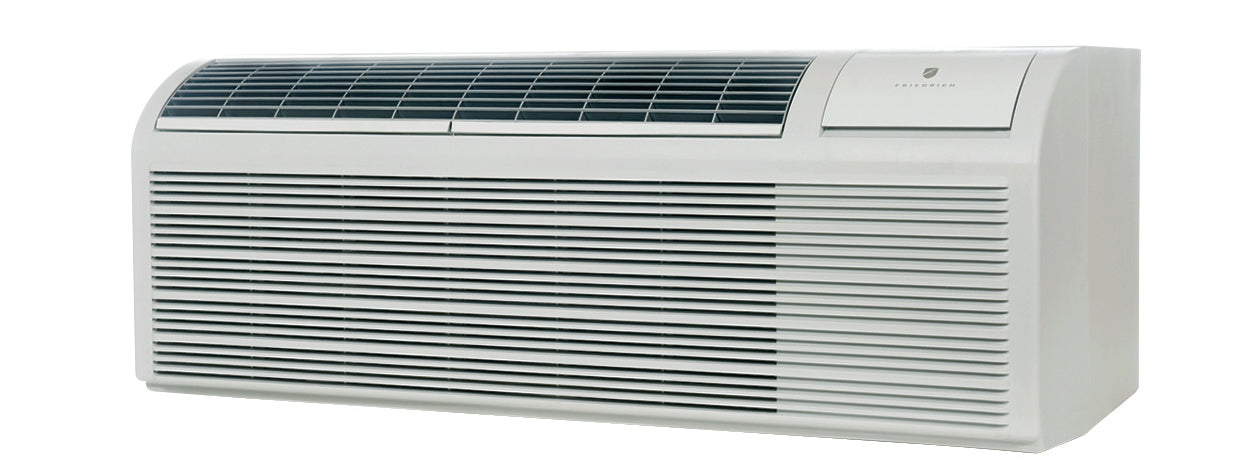

The Friedrich PZH15K3SC ZoneAire Select PTAC air conditioner offers exceptional value, energy efficiency, and quiet operation. Constructed with durable materials and high-quality components, this unit is available in capacities ranging from 7,000 to 15,000 BTU. It features user-friendly controls with an easy-to-read LED display and dehumidification to improve comfort and reduce mold growth.
- Durable Construction
- Energy Efficiency
- Comfort & Convenience
- Sound Reduction Technology
Product Highlights
This Friedrich PTAC features a super-efficient refrigeration design with EERs up to 12.0 and COP up to 3.55. It also has two permanently lubricated fan motors for added durability and reduced sound levels indoors.
Product Information
Standard Information
-
Brand: FRIEDRICH
-
Manufacturer Part Number: PZH15K3SC
Technical Specifications
-
Model Type: Single-speed
-
Model Function: Cool with Heat Pump
-
Cooling BTU: 14,500/14,300
-
Heating BTU: 13,600/13,200
-
EER: 10
-
Voltage: 230/208
-
Type of Through-the-Wall: 42" PTAC
-
Sleeve Required for Install: Yes
-
Fits Sleeve Size (in.): 42
-
Refrigerant Type: R32
-
Compressor: Standard
-
Energy Star: No
-
Dehumidification (pts/hr): TBD
-
CFMs: TBD (L / H)
-
Includes Heat Mode: Yes
-
Heat Type: Heat Pump with Back-Up Electric
-
Cooling BTUs (@208V): 14300
-
EER (@208V): 10.0
-
Cooling Amps (@208V): 6.9
-
Cooling Watts (@208V): 1430
-
Electric Heat Strip Size (kW @208V): 3.6
-
Electric Heating BTUs (@208V): 12284
-
Electric Heating Amps (@208V): 17.3
-
Electric Heating Watts (@208V): 3600
-
Heat Pump BTUs (@208V): 13200
-
COP (@208V): 3.2
-
Heat Pump Heating Amps (@208V): 5.8
-
Heat Pump Heating Watts (@208V): 1210
-
Cooling BTUs (@230V): 14500
-
Cooling Amps (@230V): 6.3
-
Cooling Watts (@230V): 1450
-
Electric Heat Strip Size (kW - @230V): 3.6
-
Electric Heating BTUs (@230V): 12284
-
Electric Heating Amps (@230V): 15.7
-
Electric Heating Watts (@230V): 3600
-
Heat Pump BTUs (@230V): 13600
-
COP (@230V): 3.2
-
Heat Pump Heating Amps (@230V): 6.3
-
Heat Pump Heating Watts (@230V): 1245
-
Vent Location: Front Top
-
Make-Up Air: No
-
Energy Saver Mode: No
-
Fan Speeds: 2
-
Control Type: Electronic/Digital
-
Filter Access: Top Lift Out
-
Connectivity: Not WiFi Compatible
-
24 Hour ON/OFF Timer: No
-
Remote Control: No
-
Fresh Air Intake: Yes
-
Sleep Mode: No
-
Net Weight (lbs.): 108
-
Certifications: ETL, AHRI
-
Plug Face (NEMA): 6-20P
-
Circuit Breaker Size (Amps): 20
-
Cord Length: 67"
-
Air Conditioner Type: PTHP
-
Manufacturer: Friedrich
-
Manufacturer Sku: PZH15K3SC
-
Condition: New
-
Machine Volts: 208/230
-
Machine Amps: 20 amp
-
Cord Included: Yes
-
Plug Type: NEMA 6-20
-
Controls: Electronic
-
Heat: Heat Pump
-
Heater Size (KW): 3.5 KW
-
Fits Standard 42" x 16" Sleeve: Yes
-
Automatic Restart: Yes
-
Seacoast Protection: Yes
-
Freeze Protection: Yes
-
Number of Fan Motors: 2
-
Sleeve Included: No
-
Exterior Grille Included: No
-
Maximum Cooling Watts: 1450
-
Maximum Cooling Amps: 6.9
-
Actual Cooling BTUs @ 208V: 14300
-
Actual Cooling BTUs @ 230V: 14500
-
Actual Heating BTUs Heat Pump @ 208V: 13200
-
Actual Heating BTUs Heat Pump @ 230V: 13600
-
CFM (Cool/Wet Coil) - High: 471
-
CFM (Cool/Wet Coil) - Low: 412
