Product Description

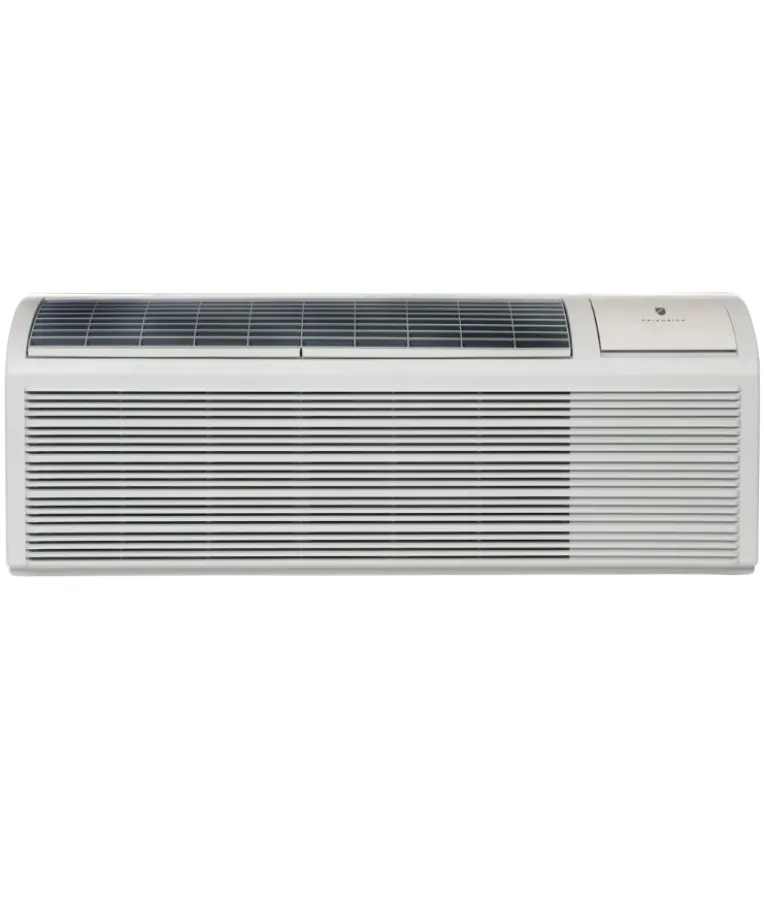

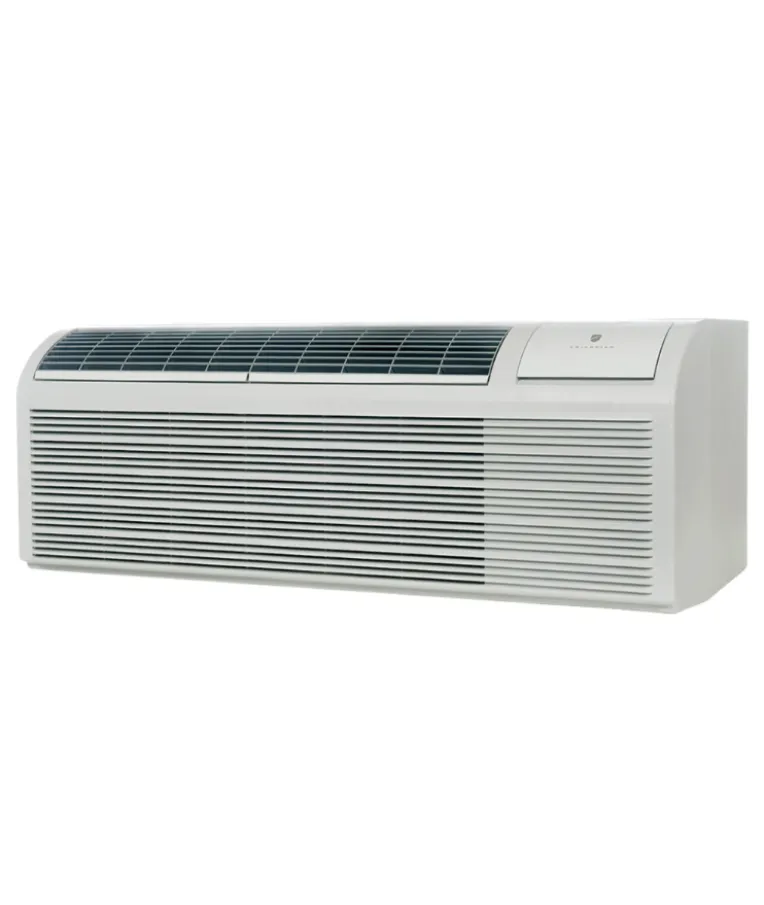

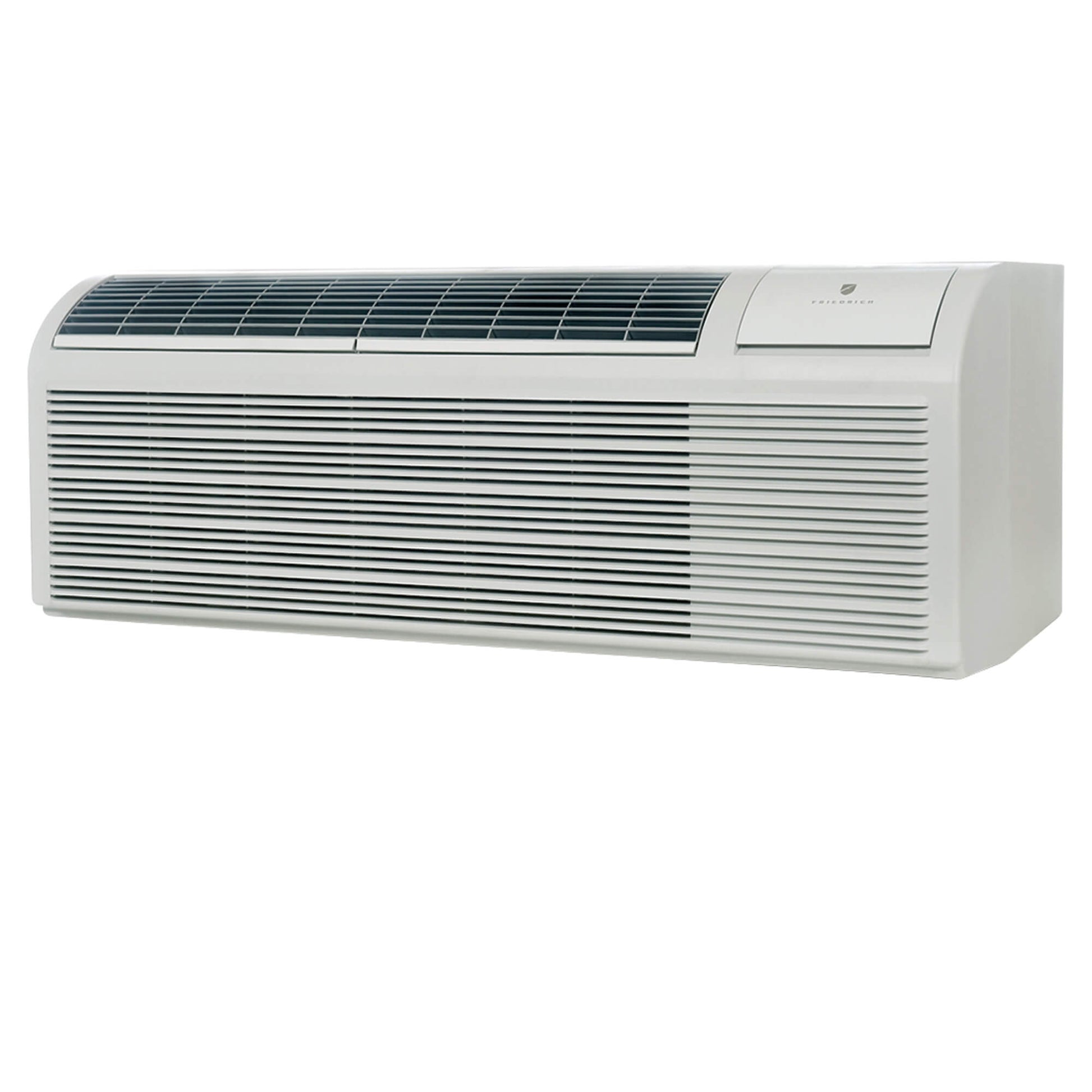

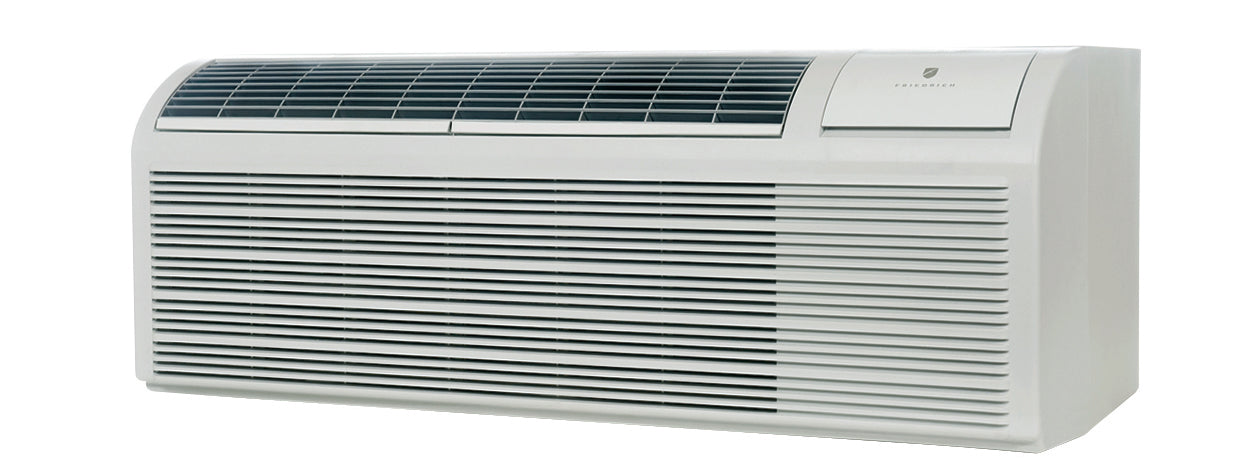

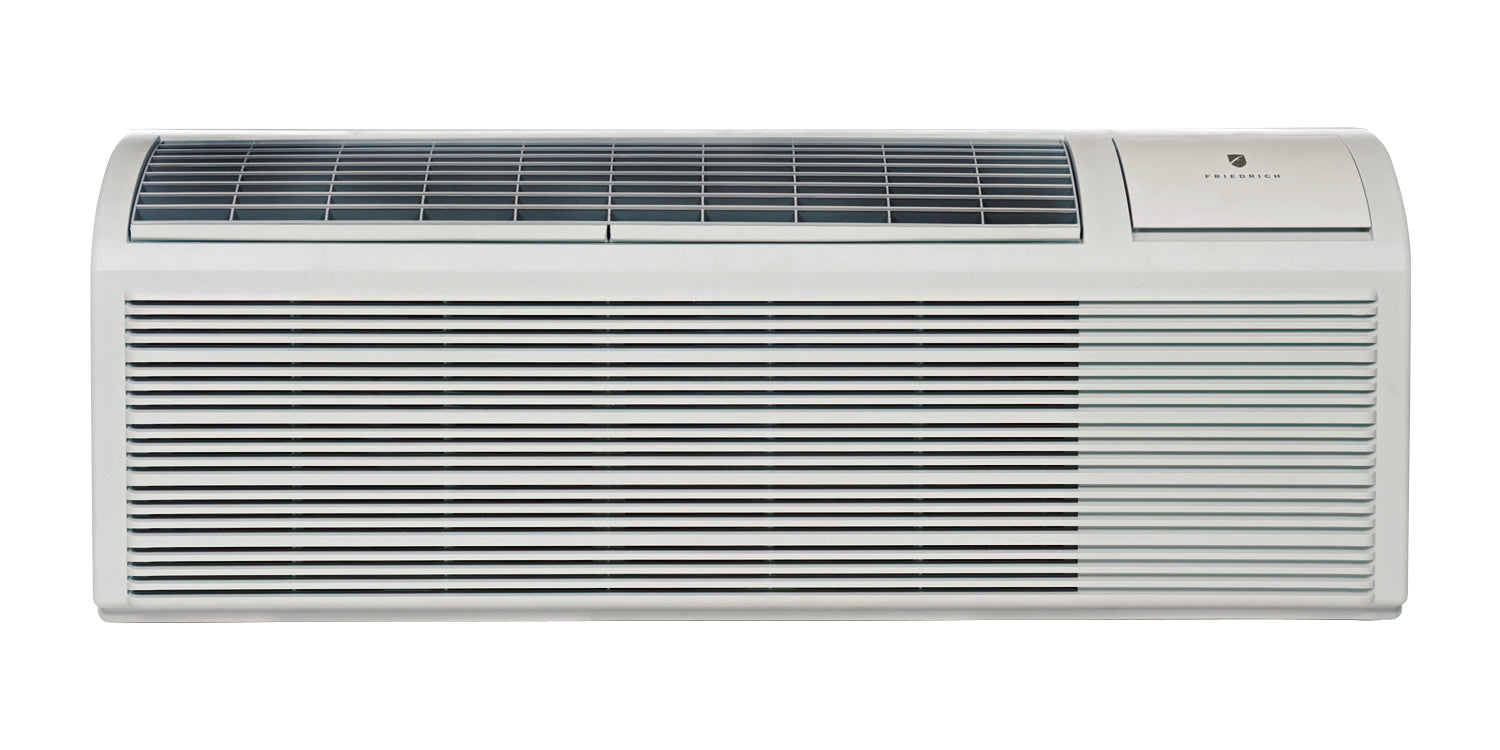

The Friedrich PZH12K5SC ZoneAire Select Series PTAC is a 12,000 BTU cooling PTAC with a 10,400 BTU reverse cycle heat pump and back-up electric resistive heat. The heat pump mode provides instant heat, quickly warming the room to the desired temperature. Friedrich PTACs are quiet, efficient, and reliable for commercial and residential use. It uses R32 refrigerant with low Global Warming Potential (GWP).
- Uses R32 refrigerant with low Global Warming Potential (GWP)
- Aluminum end plates and DiamonBlue Advanced Corrosion protection
- Automatic sampling of the room temperature every nine minutes
Product Highlights
This Friedrich PTAC unit features a fresh air damper, internal diagnostic program, and an easy-to-use digital control pad with LCD readout.
Product Information
Standard Information
-
Brand: FRIEDRICH
-
Manufacturer Part Number: PZH12K5SC
Technical Specifications
-
Type of Through-the-Wall: 42" PTAC
-
Sleeve Required for Install: Yes
-
Fits Sleeve Size (in.): 42
-
Refrigerant Type: R32
-
Compressor: Standard
-
Energy Star Certified: No
-
Dehumidification (pts/hr): TBD
-
CFMs: TBD (L / H)
-
Includes Heat Mode: Yes
-
Heat Type: Heat Pump with Back-Up Electric
-
Cooling BTUs (@208V): 11800
-
EER (@208V): 10.6
-
Cooling Amps (@208V): 5.3
-
Cooling Watts (@208V): 1110
-
Electric Heat Strip Size (kW @208V): 5.0
-
Electric Heating BTUs (@208V): 17061
-
Electric Heating Amps (@208V): 24.1
-
Electric Heating Watts (@208V): 5000
-
Heat Pump BTUs (@208V): 10200
-
COP (@208V): 3.4
-
Heat Pump Heating Amps (@208V): 4.2
-
Heat Pump Heating Watts (@208V): 880
-
Cooling BTUs (@230V): 12000
-
Cooling Amps (@230V): 4.9
-
Cooling Watts (@230V): 1130
-
Electric Heat Strip Size (kW - @230V): 5.0
-
Electric Heating BTUs (@230V): 17061
-
Electric Heating Amps (@230V): 21.7
-
Electric Heating Watts (@230V): 5000
-
Heat Pump BTUs (@230V): 12000
-
Heat Pump Heating Amps (@230V): 3.9
-
Heat Pump Heating Watts (@230V): 895
-
Vent Location: Front Top
-
Make-Up Air: No
-
Energy Saver Mode: No
-
Fan Speeds: 2
-
Control Type: Electronic/Digital
-
Filter Access: Top Lift Out
-
Connectivity: Not WiFi Compatible
-
24 Hour ON/OFF Timer: No
-
Remote Control: No
-
Fresh Air Intake: Yes
-
Sleep Mode: No
-
Net Weight (lbs.): 107
-
Certifications: ETL, AHRI
-
Voltage: 208-230V
-
Plug Face (NEMA): 6-20P
-
Circuit Breaker Size (Amps): 20
-
Cord Length: 67"
-
Air Conditioner Type: PTHP
-
Manufacturer: Friedrich
-
Manufacturer Sku: PZH12K5SC
-
Condition: New
-
Machine Volts: 208/230
-
Machine Amps: 30 amp
-
Cord Included: Yes
-
Plug Type: NEMA 6-30
-
Controls: Electronic
-
Heat: Heat Pump
-
Heater Size (kW): 5.0 KW
-
Fits Standard 42" x 16" Sleeve: Yes
-
Product Length: 42
-
Product Width: 21.5
-
Product Height: 16
-
Automatic Restart: Yes
-
Seacoast Protection: Yes
-
Freeze Protection: Yes
-
Number of Fan Motors: 2
-
Energy Efficiency Rating (EER): 10.6
-
COP Rating: 3.4
-
Sleeve Included: No
-
Exterior Grille Included: No
-
Maximum Cooling Watts: 1130
-
Front Cover Included: Yes
-
Maximum Cooling Amps: 5.3
-
Actual Cooling BTUs @ 208V: 11800
-
Actual Cooling BTUs @ 230V: 12000
-
Actual Heating BTUs Heat Pump @ 208V: 10200
-
Actual Heating BTUs Heat Pump @ 230V: 10400
-
CFM (Cool/Wet Coil) - High: 412
-
CFM (Cool/Wet Coil) - Low: 365
-
Cooling Capacity (BTUh): 12,000/11,800
-
Heat Pump Capacity (BTUh): 10,400/10,200
-
Electric Heat Capacity (BTUh): 17,000
-
EER(2): 10.6
-
Current (Amps): 4.9/5.3
-
Reverse Heat. Amps: 3.9/4.2
-
Compressor LRA: 23.9
-
Compressor RLA: 4.51
-
Vent CFM: 75
-
Product Height (in.): 16"
-
Product Width (in.): 42"
-
Product Depth (in.): 21.5"
