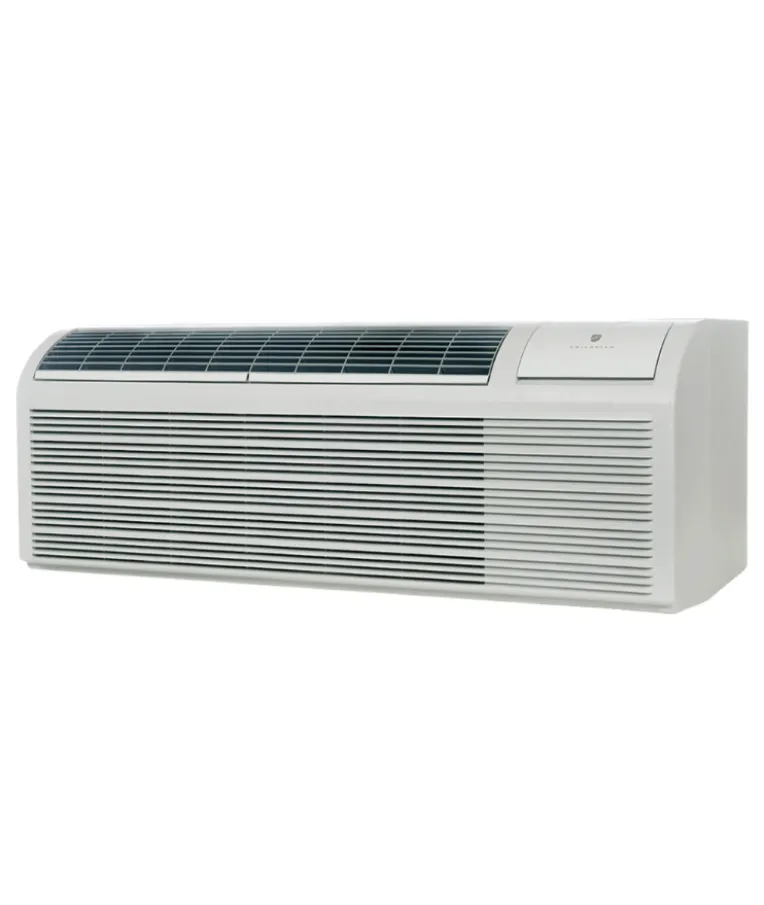

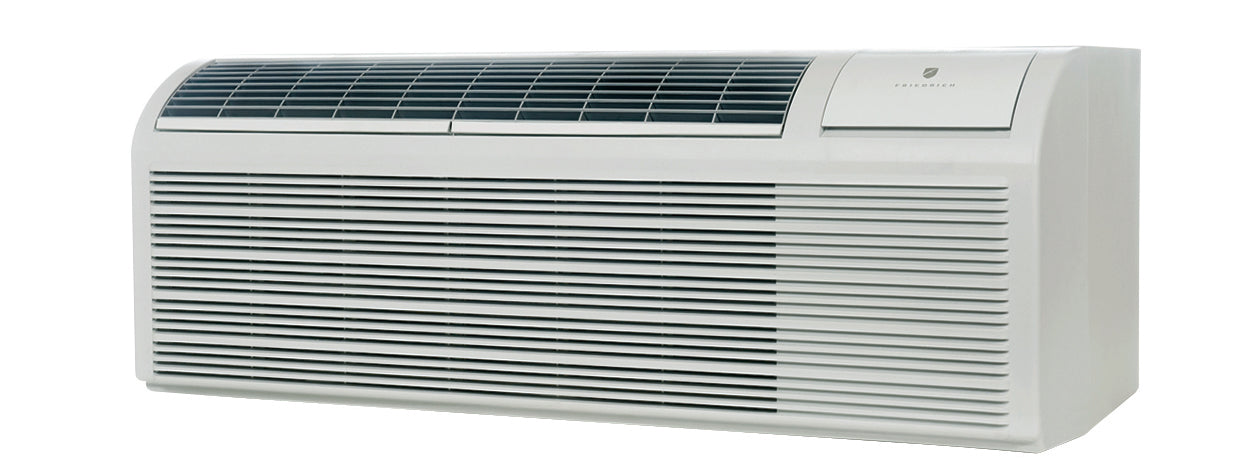

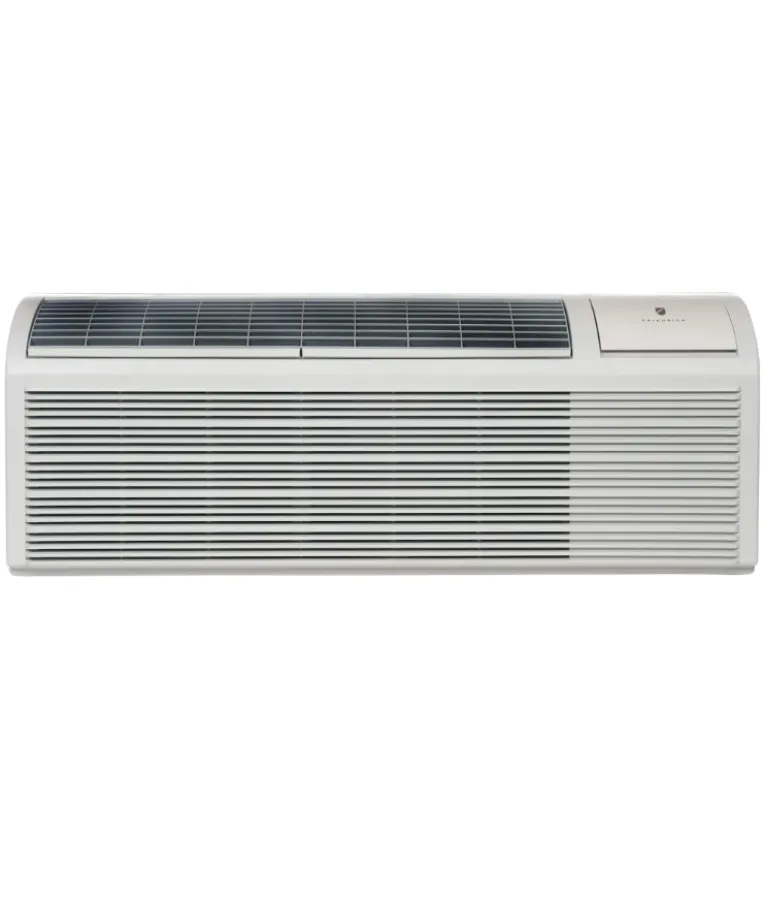

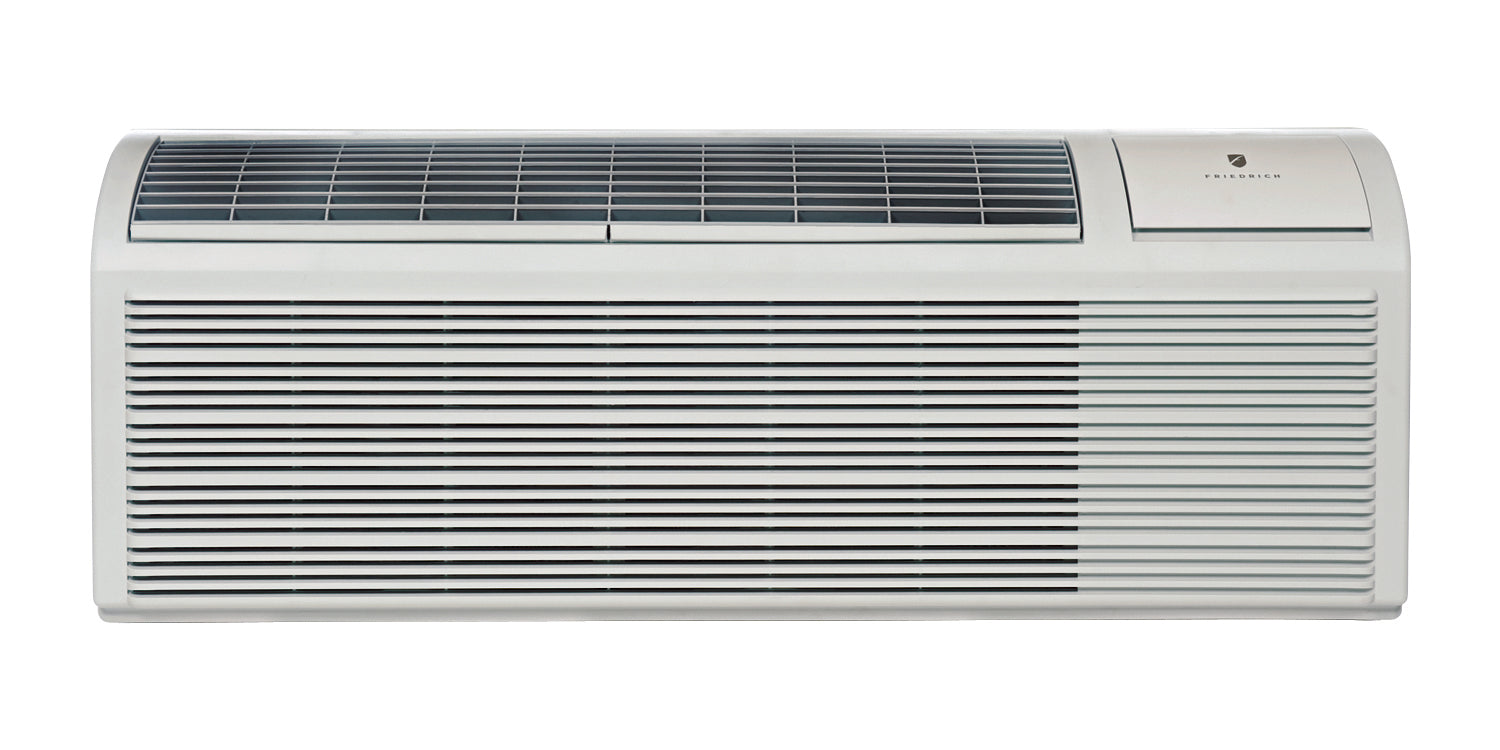

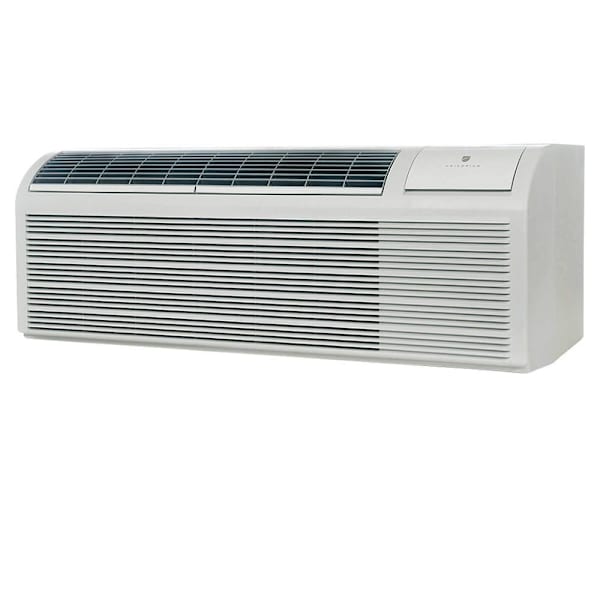

Friedrich PZH09R3SC 9000 BTU Class Select Series 11.5 EER PTAC Air Conditioner with Heat Pump - 20 Amp - 265 Volt - R32 Refrigerant

Product Description

The Friedrich PZH09R3SC is a 9000 BTU cooling PTAC with an 8,200 BTU reverse cycle heat pump and back-up electric resistive heat. This ZoneAire Select PTAC unit is efficient for both commercial and residential applications. It uses R32 refrigerant with low Global Warming Potential (GWP) and has an EER of 11.5. The unit uses 265V electricity and includes a 20 Amp power cord which provides 3.6 kW of electric heat.

• Uses R32 refrigerant with low Global Warming Potential (GWP)
• 9,000 BTU cooling with 8,200 BTUs reverse cycle heat pump and back-up electric resistive heat
• EER of 11.5

Product Highlights

This Friedrich PTAC provides reliable performance with aluminum end plates and DiamonBlue Advanced Corrosion protection. It features automatic room temperature sampling and a fresh air damper.

Product Information

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: PZH09R3SC
• Country of Origin: CHINA

Technical Specifications

• Type of Through-the-Wall: 42" PTAC
• Sleeve Required for Install: Yes
• Fits Sleeve Size (in.): 42
• Refrigerant Type: R32
• Compressor: Standard
• Energy Star: No
• Dehumidification (pts/hr): 1.1
• CFMs: 365 / 412 (L / H)
• Includes Heat Mode: Yes
• Heat Type: Heat Pump with Back-Up Electric
• Cooling BTUs (@265V): 9000
• EER (@265V): 11.5
• Cooling Amps (@265V): 3.5
• Cooling Watts (@265V): 780
• Electric Heat Strip Size (kW - @265V): 3.6
• Electric Heating BTUs (@265V): 12284
• Electric Heating Amps (@265V): 13.58
• Electric Heating Watts (@265V): 3600
• Heat Pump BTUs (@265V): 8200
• COP (@265V): TBD
• Heat Pump Heating Amps (@265V): 3.1
• Heat Pump Heating Watts (@265V): 685
• Vent Location: Front Top
• Make-Up Air: No
• Energy Saver Mode: No
• Fan Speeds: 2
• Control Type: Electronic/Digital
• Filter Access: Top Lift Out
• Connectivity: Not WiFi Compatible
• 24 Hour ON/OFF Timer: No
• Remote Control: No
• Fresh Air Intake: Yes
• Sleep Mode: No
• Certifications: ETL, AHRI
• Voltage: 265-277V
• Plug Face (NEMA): 7-20P
• Circuit Breaker Size (Amps): 20
• Cord Length: 27.5"
• Reverse Cycle BTU: 8500
• Dehumidification (Pints/Hr): 1.6
• Digital Controls: YES
• Auto Restart: YES
• Fan Modes: Constant/Cycle (Hi/Med/Auto)
• Freeze Protection: YES
• Front Desk Connection: YES
• Modes: Heat/Cool/Heat-Pump
• Sea Coast Protection: YES
• Temprature Limiting: YES
• Options: Base Model
• Cooling BTU: 9,000 BTU
• Heating BTU: 8,200
• Heater Size (KW): 3.5 KW
• Fits Standard 42" x 16" Sleeve: Yes
• Product Length: 42
• Product Width: 21.5
• Product Height: 16
• Wi-Fi Compatible: No
• Energy Efficiency Rating (EER): 11.5
• COP Rating: 3.5
• Sleeve Included: No
• Exterior Grille Included: No
• Maximum Cooling Watts: 780
• Maximum Cooling Amps: 3.1
• Actual Cooling BTUs @ 265V: 9000
• CFM (Cool/Wet Coil) - High: 390
• CFM (Cool/Wet Coil) - Low: 330
• Heating Watts: 685
• Moisture Removal (pints/hr.): 1.1
• Current (Amps): 3.5
• Reverse Heat. Amps: 3.1
• Compressor LRA: 16.0
• Compressor RLA: 2.45
• Indoor CFM, High: 412
• Indoor CFM, Low: 365
• Vent CFM: 75
