Product Description

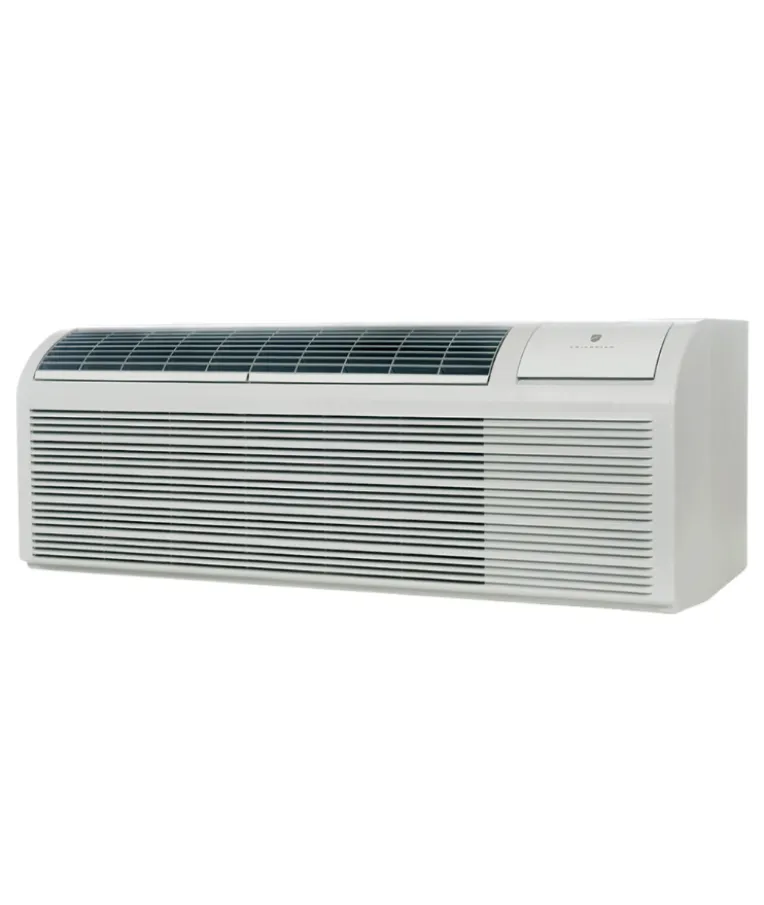

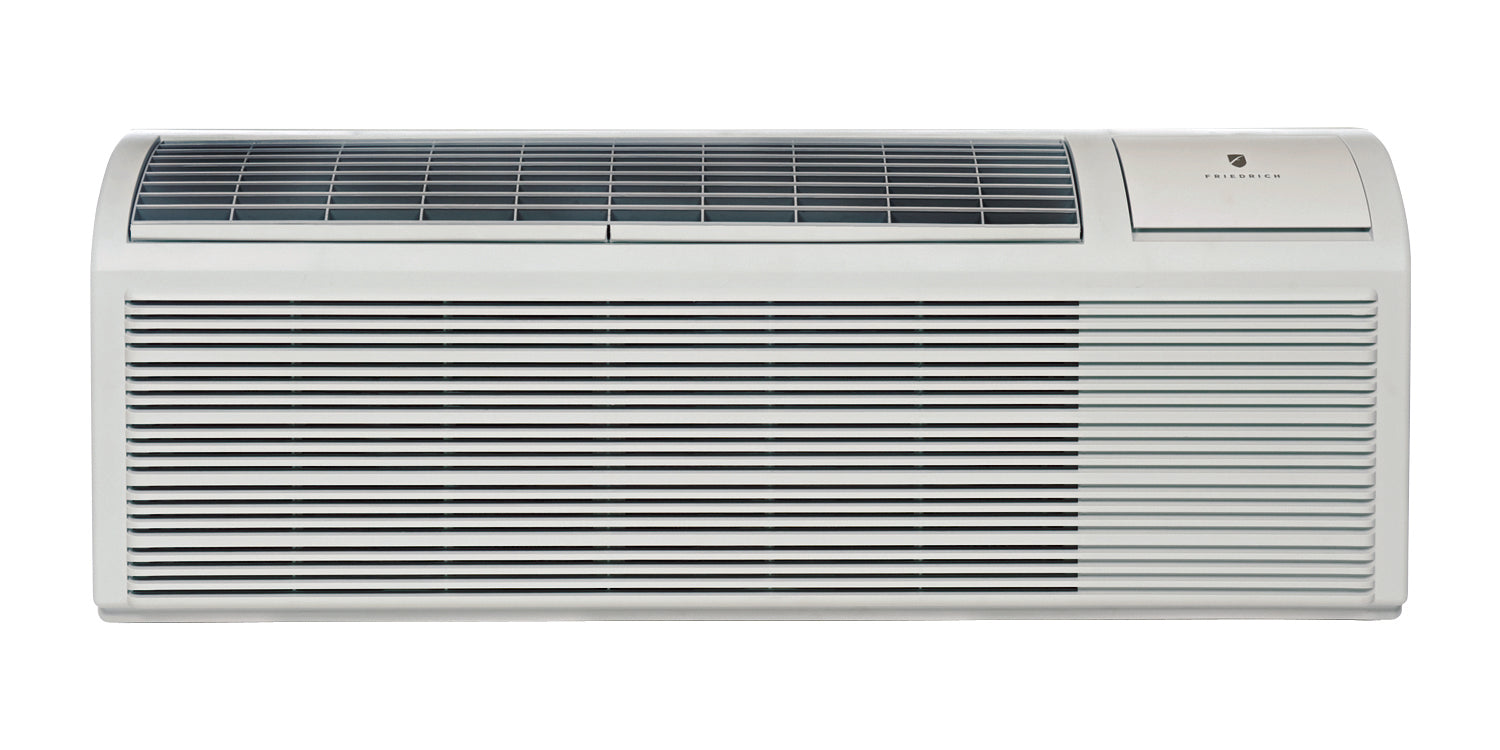

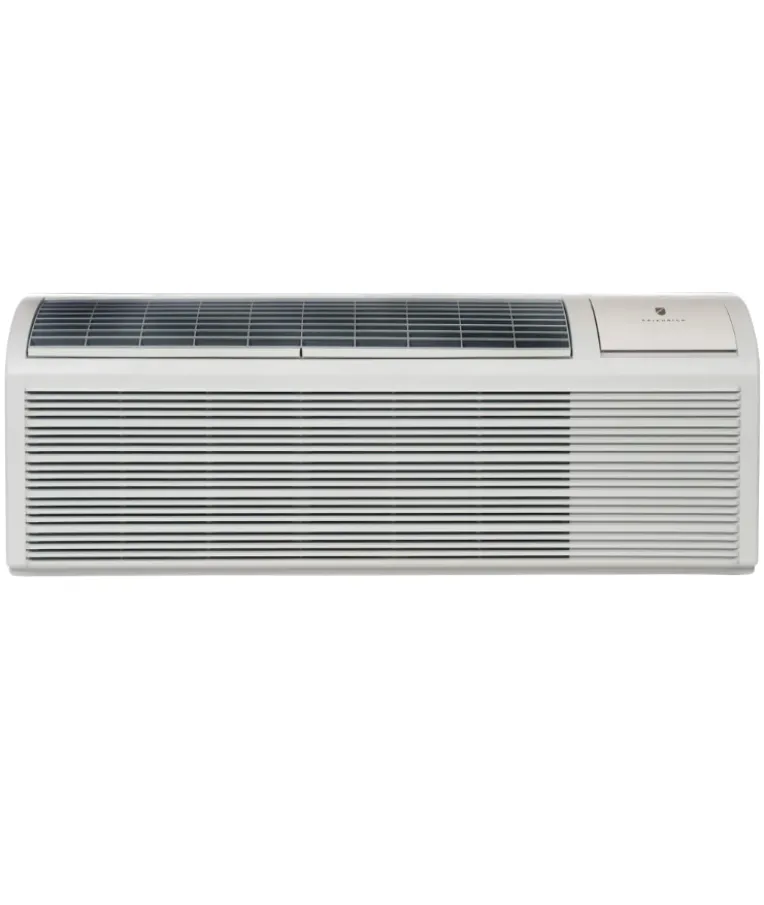

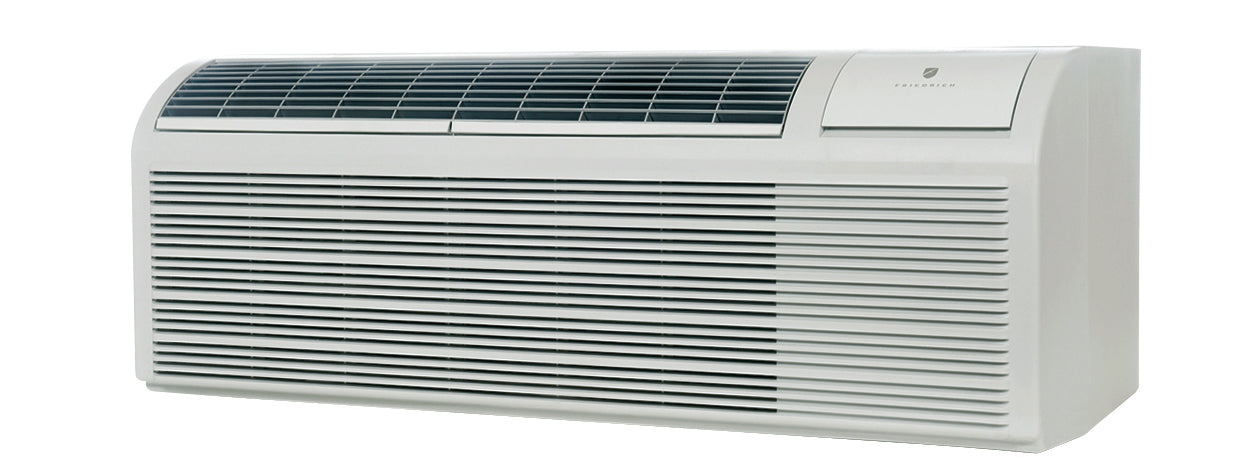

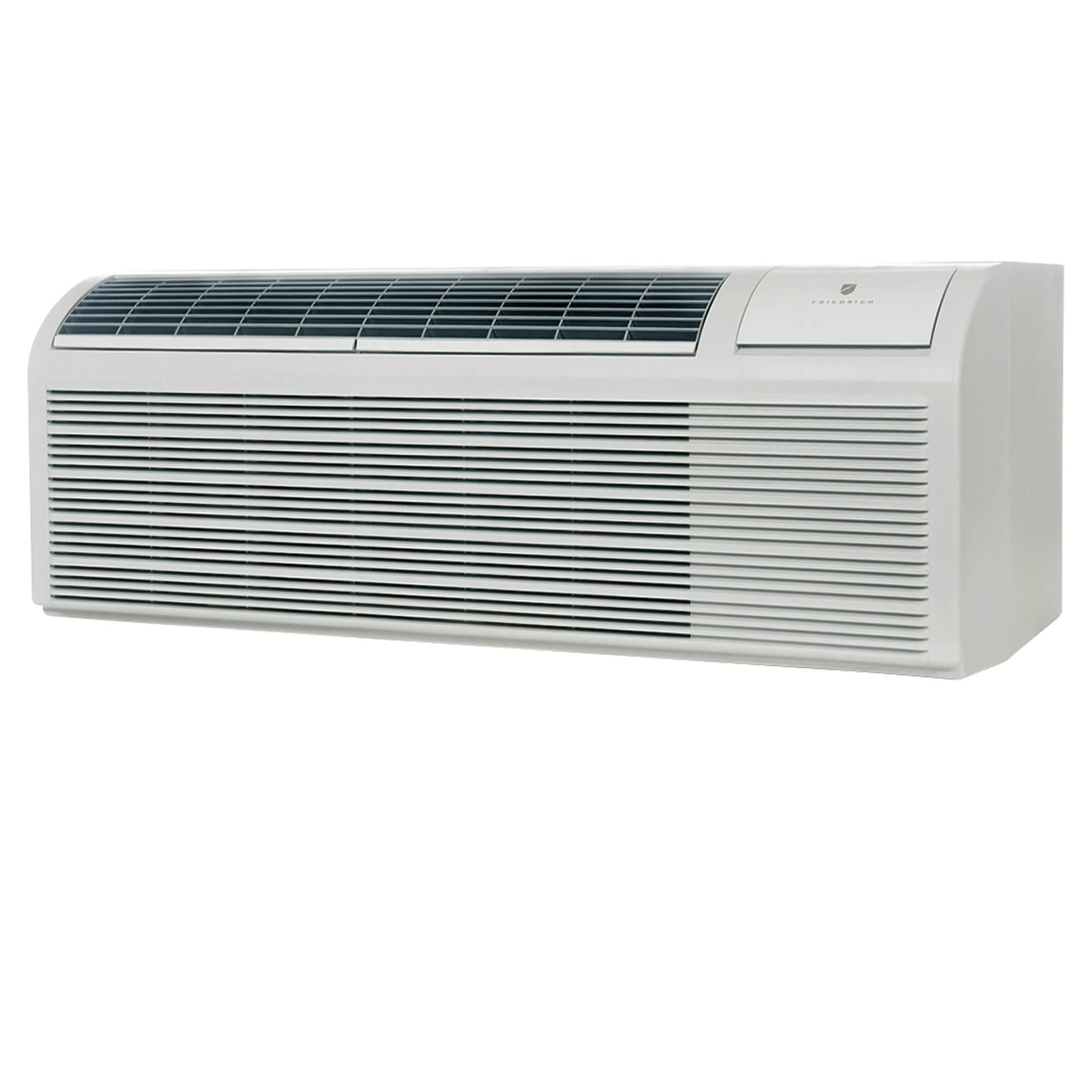

The Friedrich PZH07K2SC 7000 BTU Select Series PTAC Air Conditioner with Heat Pump is a versatile cooling and heating unit commonly used in hotels, apartments, condos, and other commercial or residential spaces. It features an easy-to-use digital control pad with LCD readout and an easily accessible antimicrobial washable filter. The unit uses R-32 refrigerant with low Global Warming Potential (GWP).
- Room Freeze Protection initiates the heat when an unoccupied room falls below 50°F
- Break-Proof Control Door
- Indoor Coil Frost Sensor protects the compressor for a longer life
Product Highlights
This Friedrich PTAC air conditioner provides 7,200 BTU cooling and 6,000 BTU heat pump, ensuring efficient and reliable performance for both commercial and residential applications.
Product Information
Standard Information
-
Brand: FRIEDRICH
-
Manufacturer Part Number: PZH07K2SC
Technical Specifications
-
Cooling Btu: 7200/6800
-
Cooling Watts: 605/570
-
EER: 11.9
-
Heater Size (kW): 2.5
-
Reverse Heating Btu: 6000/5800
-
Heating Watts: 500/485
-
COP: 3.5
-
Voltage: 230/208V-60Hz-1P
-
Current (Amps): 2.63/2.74
-
Reverse Heat. Amps: 2.1/2.3
-
Compressor LRA: 13.4
-
Compressor RLA: 2.4
-
Outdoor Fan Motor, HP: 0.07
-
Vent CFM: 75
-
Refrigerant Type: R32
-
Product Height (in.): 16
-
Product Width (in.): 42
-
Product Depth (in.): 21.5
-
Type of Through-the-Wall: 42" PTAC
-
Sleeve Required for Install: Yes
-
Fits Sleeve Size (in.): 42
-
Compressor: Standard
-
Energy Star: No
-
Dehumidification (pts/hr): 0.3
-
CFMs: 365 / 424 (L / H)
-
Includes Heat Mode: Yes
-
Heat Type: Heat Pump with Back-Up Electric
-
Cooling BTUs (@208V): 6800
-
EER (@208V): 11.9
-
Cooling Amps (@208V): 2.74
-
Cooling Watts (@208V): 570
-
Electric Heat Strip Size (kW @208V): 2.5
-
Electric Heating BTUs (@208V): 8530
-
Electric Heating Amps (@208V): 12.0
-
Electric Heating Watts (@208V): 2500
-
Heat Pump BTUs (@208V): 5800
-
Heat Pump Heating Amps (@208V): 2.3
-
Heat Pump Heating Watts (@208V): 485
-
Cooling BTUs (@230V): 7200
-
Cooling Amps (@230V): 2.63
-
Electric Heat Strip Size (kW - @230V): 2.5
-
Electric Heating BTUs (@230V): TBD
-
Electric Heating Amps (@230V): 10.9
-
Electric Heating Watts (@230V): 2500
-
Heat Pump BTUs (@230V): 6000
-
Heat Pump Heating Amps (@230V): 2.1
-
Heat Pump Heating Watts (@230V): 500
-
Vent Location: Front Top
-
Make-Up Air: No
-
Energy Saver Mode: No
-
Fan Speeds: 2
-
Control Type: Electronic/Digital
-
Filter Access: Top Lift Out
-
Connectivity: Not WiFi Compatible
-
24 Hour ON/OFF Timer: No
-
Remote Control: No
-
Fresh Air Intake: Yes
-
Sleep Mode: No
-
Overall Width (in.): 42
-
Overall Depth (in.): 21.5
-
Overall Height (in.): 16
-
Wall Cut-Out Width (in.): 42.25
-
Wall Cut-Out Height (in.): 16.25
-
Net Weight (lbs.): 95.6
-
Certifications: ETL, AHRI
-
Plug Face (NEMA): 6-15P
-
Circuit Breaker Size (Amps): 15
-
Cord Length: 67
-
Product Marketing Name: Friedrich ZoneAire Select PTAC
-
Operation: Cool / Heat Pump / Electric Heat
-
Electric Heat Capacity (BTUh): 8,300
