Product Description

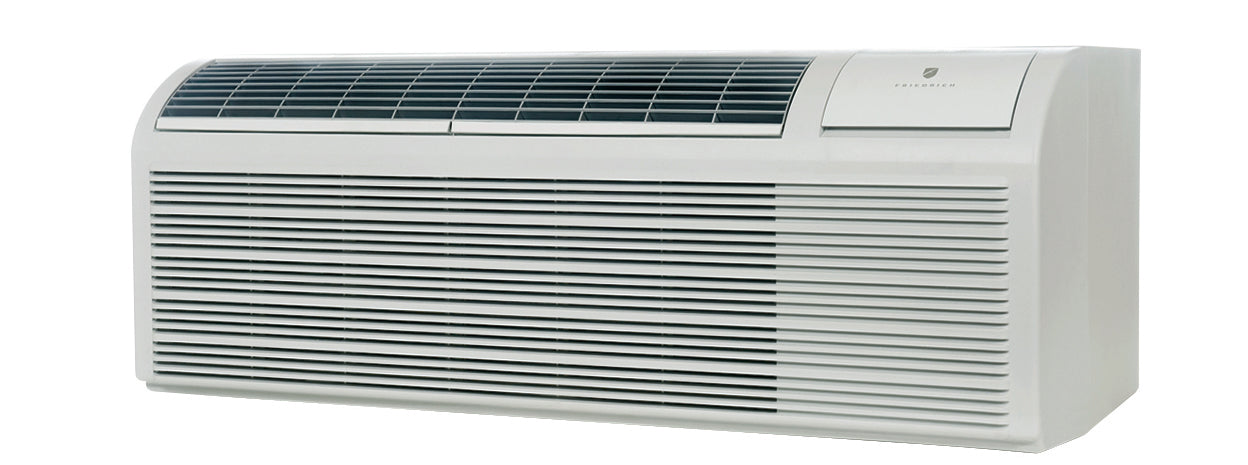

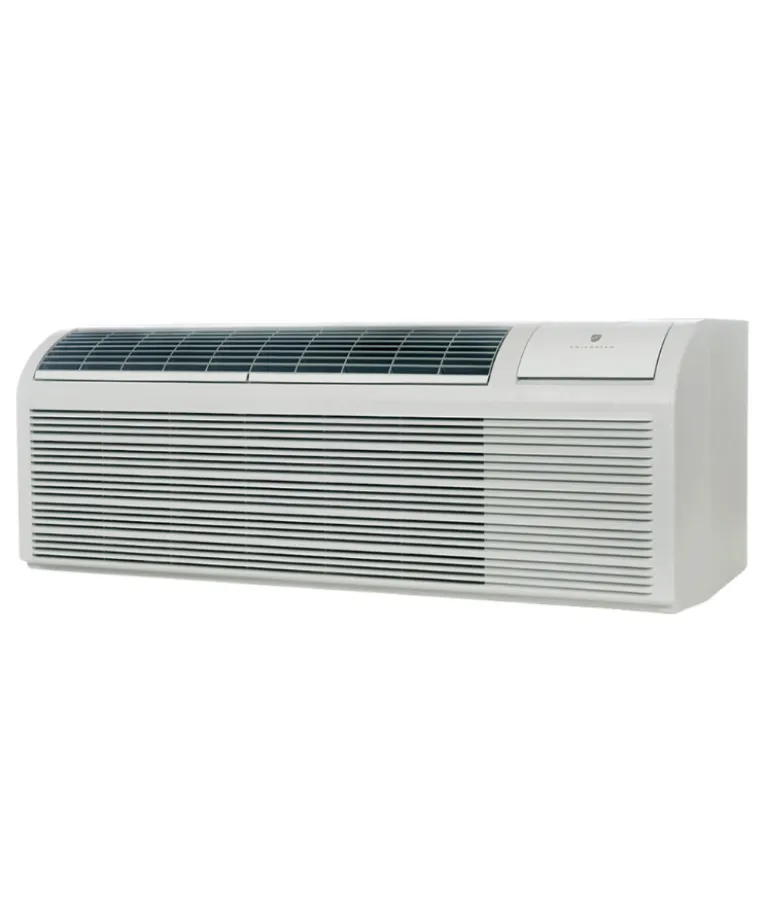

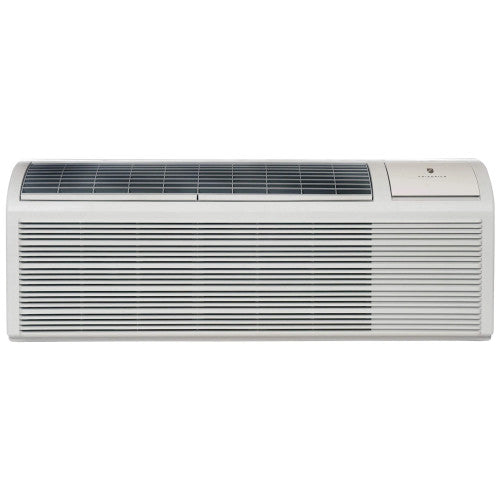

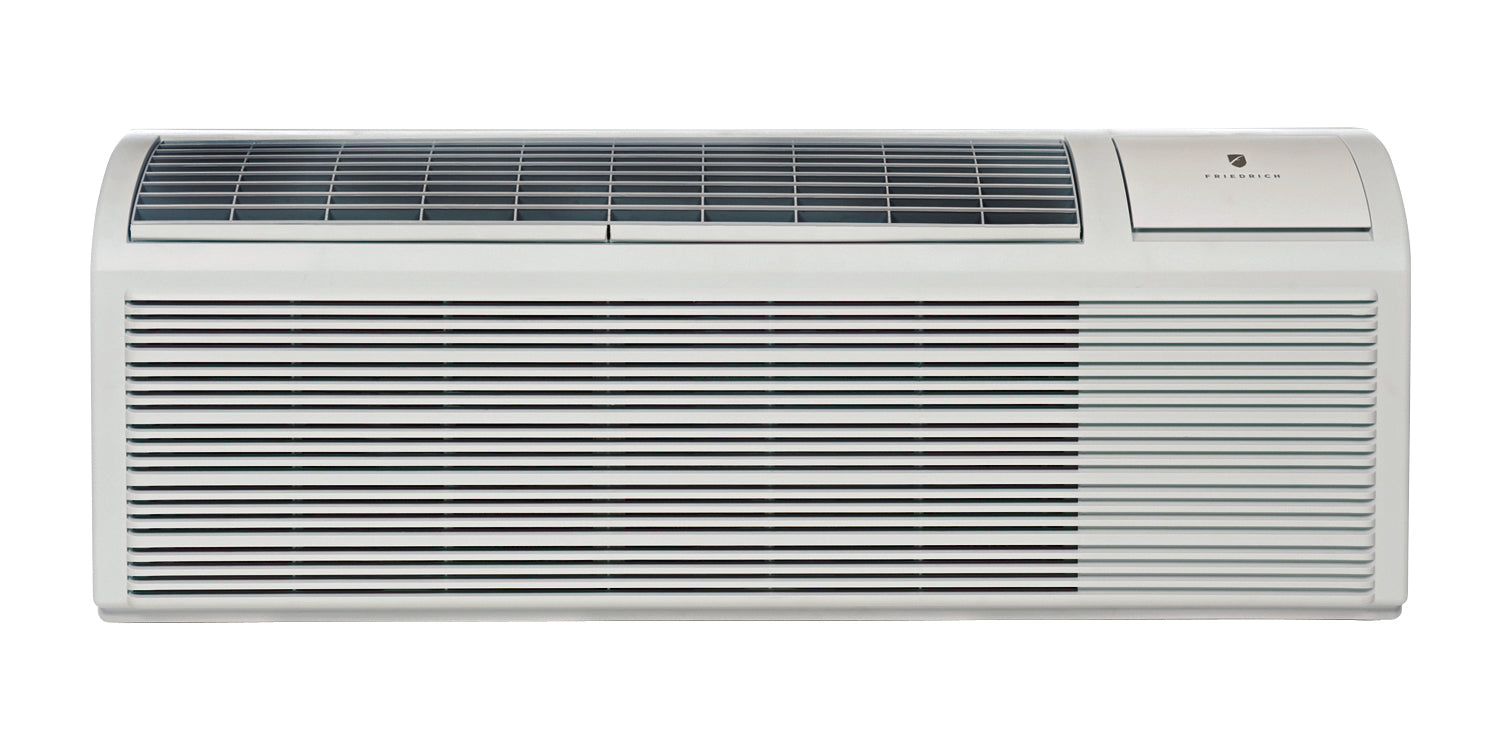

The Friedrich PZE12R3SC is a 12000 BTU cooling PTAC with a 265 Volt / 20 Amp Cord providing 3.6 kW electric heat. Friedrich PTACs are efficient and can be used in commercial and residential applications. Features include aluminum end plates and DiamonBlue Advanced Corrosion protection for a longer life in coastal areas.
- R32 refrigerant: up to 12% more efficient than R410A, resulting in lower Global Warming Potential (GWP)
- Automatic sampling of the room temperature every nine minutes
- Easy-to-use digital control pad with LCD readout and electronic one-touch operation
Product Highlights
This Friedrich PTAC unit has an EER of 10.6, a 2-speed fan, and a fresh air damper. It also has an internal diagnostic program and room freeze protection.
Product Information
Standard Information
-
Brand: FRIEDRICH
-
Manufacturer Part Number: PZE12R3SC
-
Country of Origin: CHN
Technical Specifications
-
Type of Through-the-Wall: 42" PTAC
-
Sleeve Required for Install: Yes
-
Fits Sleeve Size (in.): 42
-
Refrigerant Type: R32
-
Compressor: Standard
-
Energy Star: No
-
Dehumidification (pts/hr): 2.81
-
CFMs: 412 / 471 (L / H)
-
Includes Heat Mode: Yes
-
Heat Type: Electric Resistance Only
-
Cooling BTUs (@265V): 12000
-
EER (@265V): 10.6
-
Cooling Amps (@265V): 5.92
-
Cooling Watts (@265V): 1130
-
Electric Heat Strip Size (kW - @265V): 3.6
-
Electric Heating BTUs (@265V): 12284
-
Electric Heating Amps (@265V): 17.3
-
Electric Heating Watts (@265V): 3600
-
Vent Location: Front Top
-
Make-Up Air: No
-
Energy Saver Mode: No
-
Fan Speeds: 2
-
Control Type: Electronic/Digital
-
Filter Access: Top Lift Out
-
Connectivity: Not WiFi Compatible
-
24 Hour ON/OFF Timer: No
-
Remote Control: No
-
Fresh Air Intake: Yes
-
Sleep Mode: No
-
Certifications: ETL, AHRI
-
Voltage: 265 VAC
-
Plug Face (NEMA): 7-20P
-
Circuit Breaker Size (Amps): 20
-
Cord Length: 27.5"
-
Air Conditioner Type: PTAC
-
Manufacturer: Friedrich
-
Manufacturer Sku: PZE12R3SC
-
Condition: New
-
Machine Volts: 265/277 commercial
-
Machine Amps: 20 amp
-
Cord Included: Yes
-
Plug Type: NEMA 7-20
-
Controls: Electronic
-
Heat: Electric Heat
-
Heater Size (KW): 3.5 KW
-
Fits Standard 42" x 16" Sleeve: Yes
-
Product Length: 42
-
Product Width: 20.5
-
Product Height: 16
-
Automatic Restart: Yes
-
Seacoast Protection: Yes
-
Freeze Protection: Yes
-
Number of Fan Motors: 2
-
ADA Compliant: No
-
Energy Efficiency Rating (EER): 10.7
-
Sleeve Included: No
-
Exterior Grille Included: No
-
Maximum Cooling Watts: 1150
-
Front Cover Included: Yes
-
Maximum Cooling Amps: 5.92
-
Actual Cooling BTUs @ 265V: 12300
-
Brand: Friedrich
-
Type: Cooling With Resistance Heat
-
Cooling BTU: 12000
-
Reverse Cycle BTU: N/A
-
AMPS: 20A
-
EER: 10.6
-
COP: N/A
-
Dehumidification (Pints/Hr): 3.2
-
Digital Controls: YES
-
Auto Restart: YES
-
Fan Modes: Constant/Cycle (Hi/Med/Auto)
-
Front Desk Connection: YES
-
Modes: Heat/Cool/Heat-Pump
-
Temprature Limiting: YES
-
Options: Base Model
-
Refrigerant: R32
-
Cooling Watts: 1130
-
Moisture Removal (pints/hr.): 2.81
-
Sensible Heat Ratio: 72%
-
Current (Amps): 5.92
-
Compressor LRA: 25.9
-
Compressor RLA: 4.3
-
Outdoor Fan Motor, HP: 0.07
-
Indoor CFM, High: 471
-
Indoor CFM, Low: 412
-
Vent CFM: 75
-
Product Depth (in.): 21.5”
-
Blower Motor RPM: 900-1,150
-
Blower Motor Speeds: 3
-
CFM: 340-450
-
Compressor Type: Rotary
-
Condenser Motor HP: 4/57
-
Condenser Motor RPM: 1,680
-
Condenser Motor Watts: 90
-
Cooling Capacity: 12,000
-
Country of Origin: CHN
-
Cycle/Hertz: 60 Hz
-
Electric Heat Range [kW]: 3.6
-
Inverter: NO
-
Maximum Overcurrent Protection (MOCP): 15
-
Phase: Single
-
Product Family: PZE
-
Prop 65: YES
-
Stages Cooling: 1
-
Tonnage: 1
-
UPC: 724587445886
