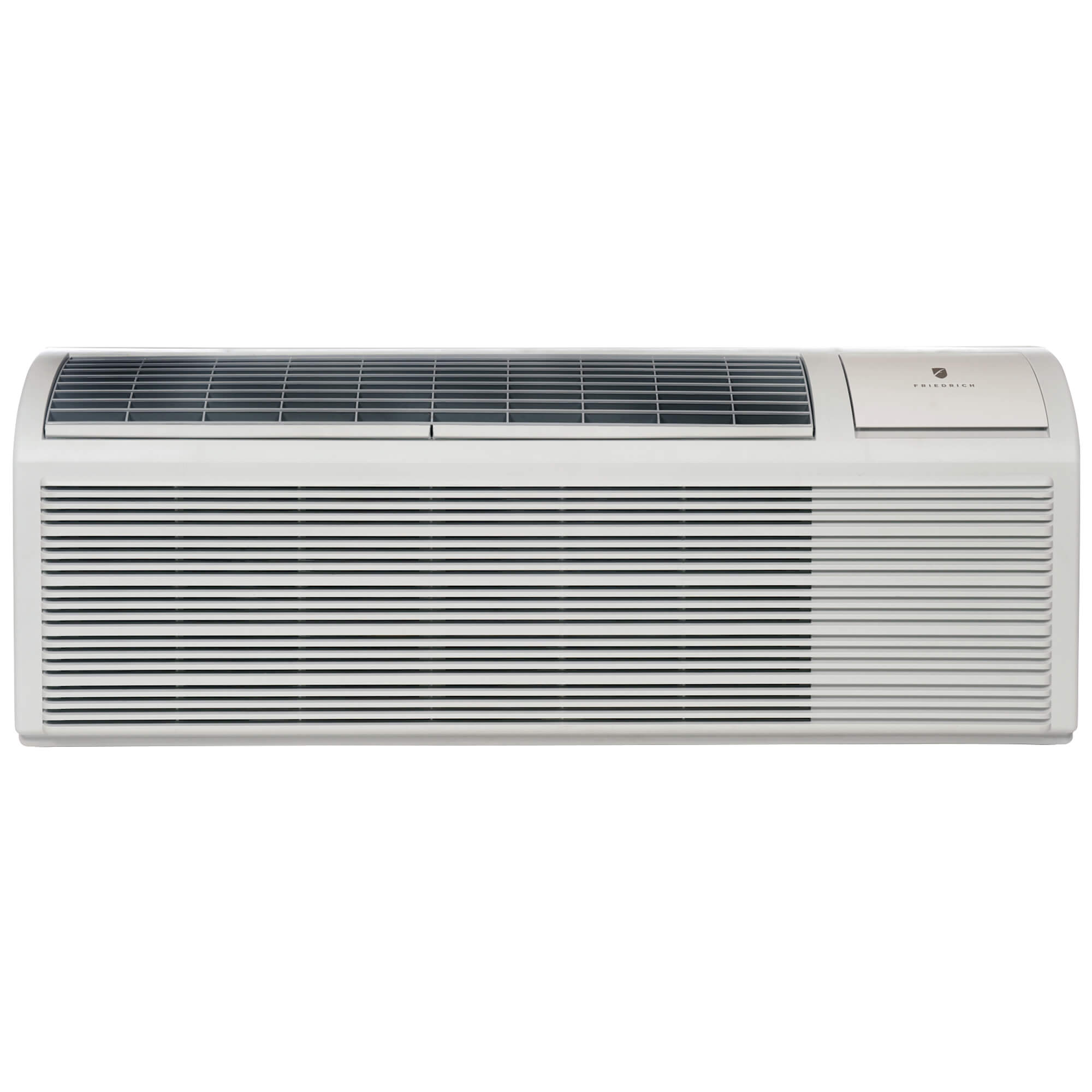

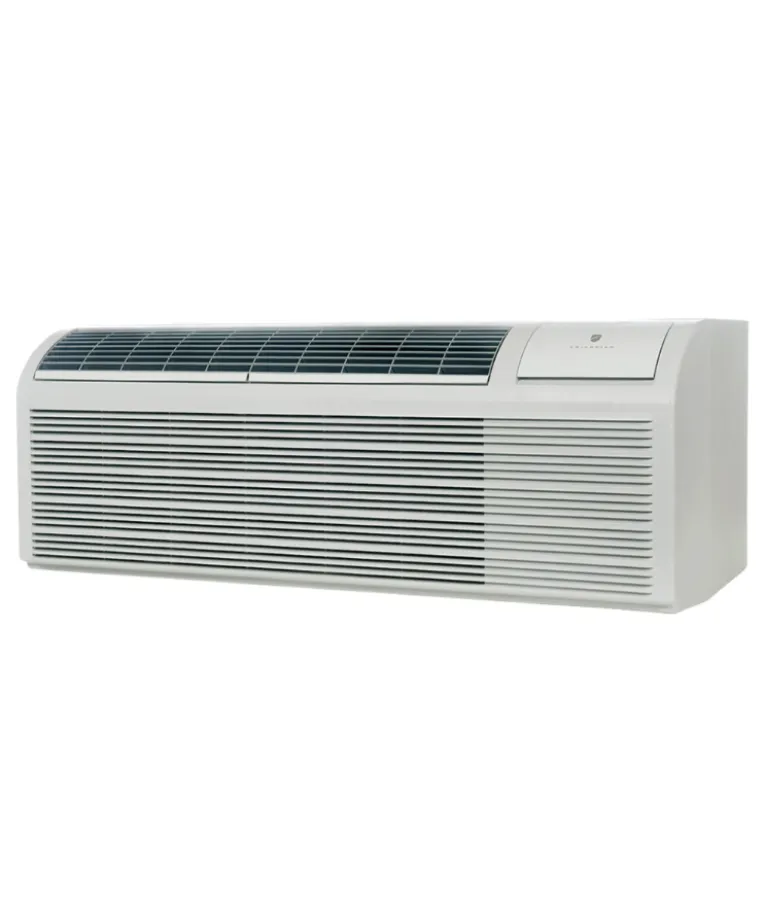

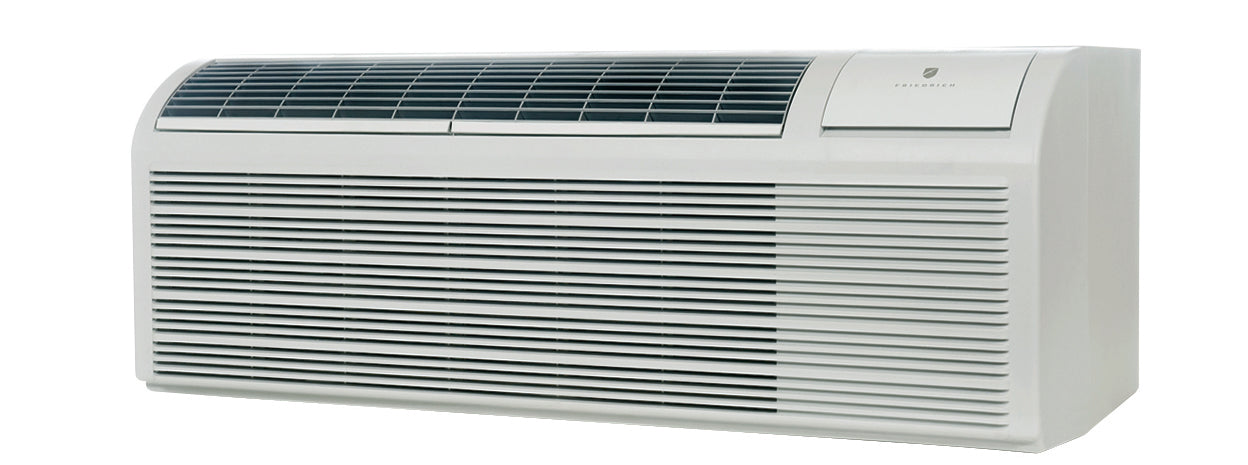

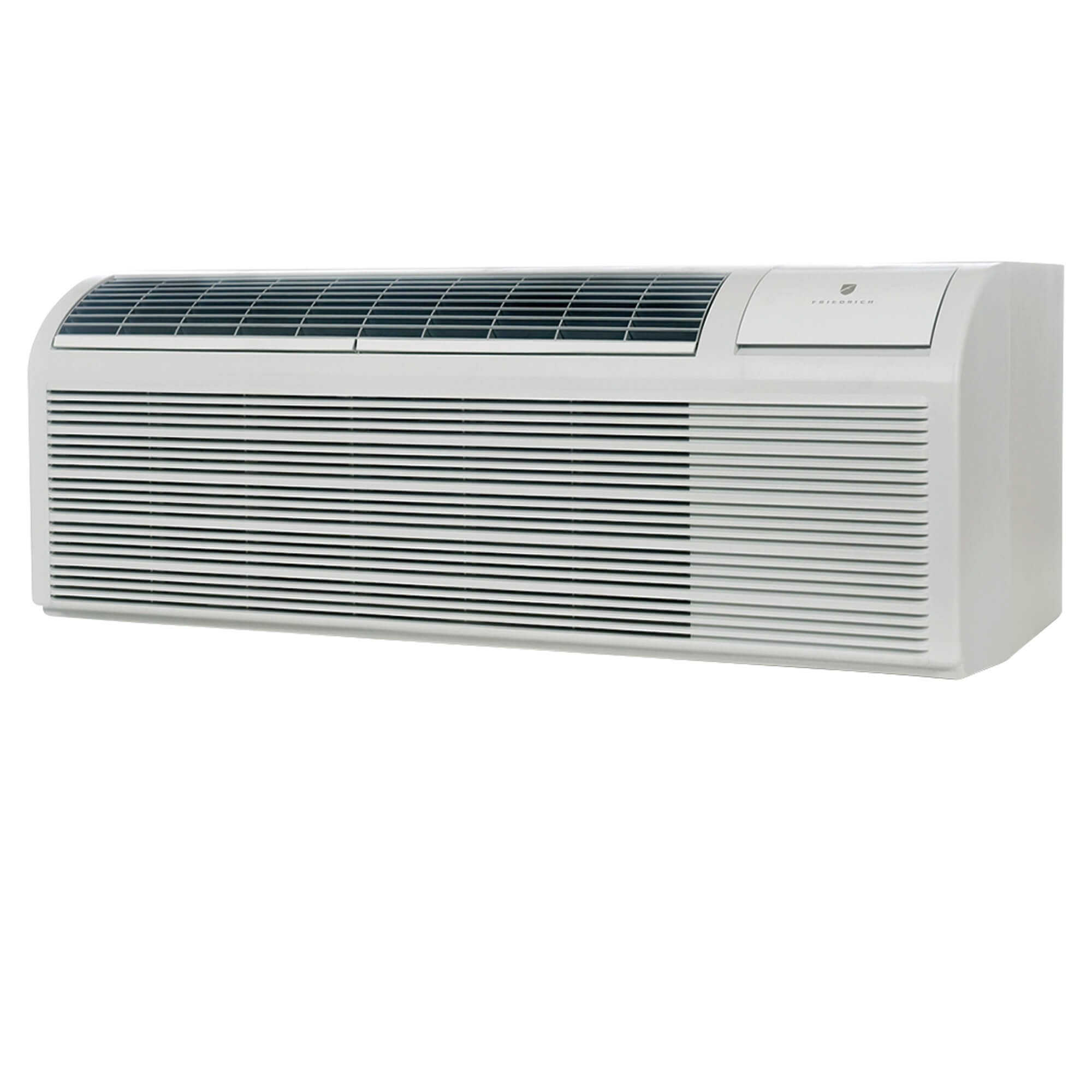

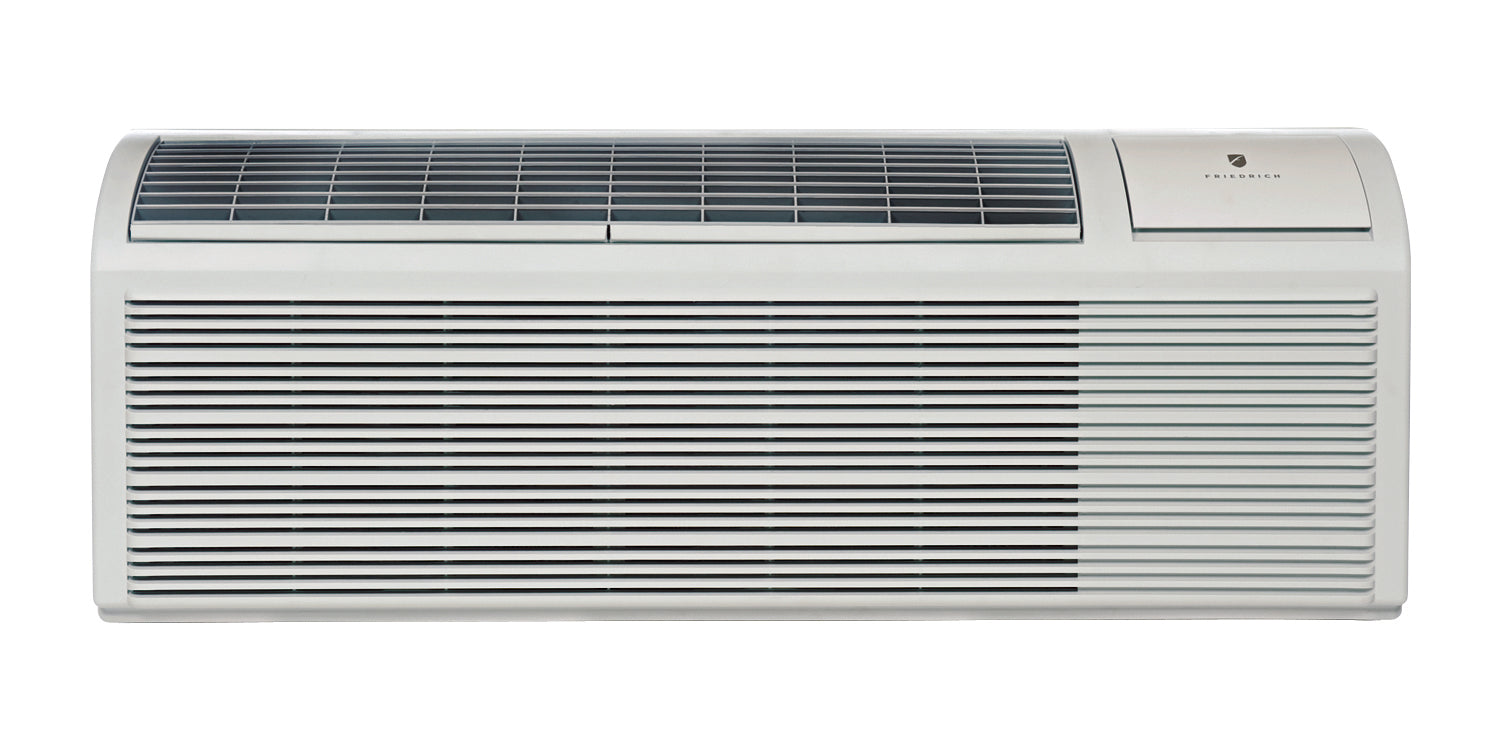

Friedrich PZE09R3SC ZoneAire Select Package Terminal Air Conditioner 9000 BTU REPLACEMENT PZE09R3SB

Product Description

The FRIEDRICH PZE09R3SC ZoneAire Select PTAC unit delivers efficient cooling and heating for both commercial and residential use. This 9000 BTU air conditioner features durable construction and uses R32 refrigerant, which is more efficient with a lower Global Warming Potential (GWP). It operates on 265V and includes a 20 Amp cord, providing 3.6 kW of electric heat.

• Quiet and efficient PTAC unit suitable for commercial and residential applications.
• Uses R32 refrigerant, which is more efficient and has a lower Global Warming Potential (GWP) than R410A.
• Features aluminum end plates and DiamonBlue Advanced Corrosion protection for durability.

Product Highlights

This Friedrich PTAC offers reliable performance with quality construction, energy efficiency, and user-friendly digital controls. It is designed for easy installation and maintenance.

Product Information

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: PZE09R3SC
• Country of Origin: CHINA

Technical Specifications

• EER: 11.5
• COP @ 47°F: Up to 3.55
• Cooling BTU: 9000 BTU
• Refrigerant Type: R32
• Compressor: Standard
• Energy Star: No
• Dehumidification (pts/hr): 1.1
• CFMs: 365 / 412 (L / H)
• Includes Heat Mode: Yes
• Heat Type: Electric Resistance Only
• Cooling BTUs (@265V): 9200
• Cooling Amps (@265V): 4.2
• Cooling Watts (@265V): 800
• Electric Heat Strip Size (kW - @265V): 3.6
• Electric Heating BTUs (@265V): 12284
• Electric Heating Amps (@265V): 17.3
• Electric Heating Watts (@265V): 3600
• Vent Location: Front Top
• Make-Up Air: No
• Energy Saver Mode: No
• Fan Speeds: 2
• Control Type: Electronic/Digital
• Filter Access: Top Lift Out
• Connectivity: Not WiFi Compatible
• 24 Hour ON/OFF Timer: No
• Remote Control: No
• Fresh Air Intake: Yes
• Sleep Mode: No
• Certifications: ETL, AHRI
• Voltage: 265V
• Plug Face (NEMA): 7-20P
• Circuit Breaker Size (Amps): 20
• Cord Length: 27.5"
• Cord Included: Yes
• Plug Type: NEMA 7-20
• Controls: Electronic
• Heat: Electric Heat
• Heater Size (KW): 3.5 KW
• Automatic Restart: Yes
• Seacoast Protection: Yes
• Freeze Protection: Yes
• Number of Fan Motors: 2
• ADA Compliant: No
• Maximum Cooling Watts: 780
• Maximum Cooling Amps: 4.2
• Actual Cooling BTUs @ 265V: 9000
• CFM (Cool/Wet Coil) - High: 390
• CFM (Cool/Wet Coil) - Low: 330
• Amperage: 3.1
• Average Coverage Area: 400 Sq Ft
• BTU Heat Rating: 11800
• Heating Method: Electric
• Package Quantity: 1
• Product Depth: 21.5 in.
• Current (Amps): 4.2
• Compressor LRA: 18.2
• Compressor RLA: 3.0
• Outdoor Fan Motor, HP: 0.07
• Indoor CFM, High: 412
• Indoor CFM, Low: 365
• Vent CFM: 75
• Cooling Capacity (BTUh): 9,000
• Electric Heat Capacity (BTUh): 11,800
• Product Length: 42
• Product Width: 21.5
• Product Height: 16
