Product Description

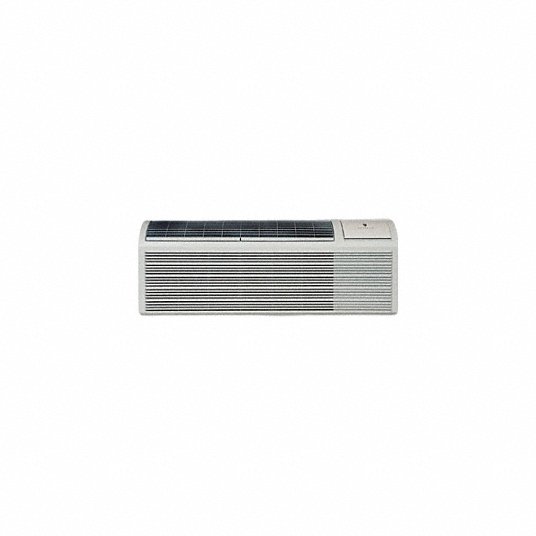

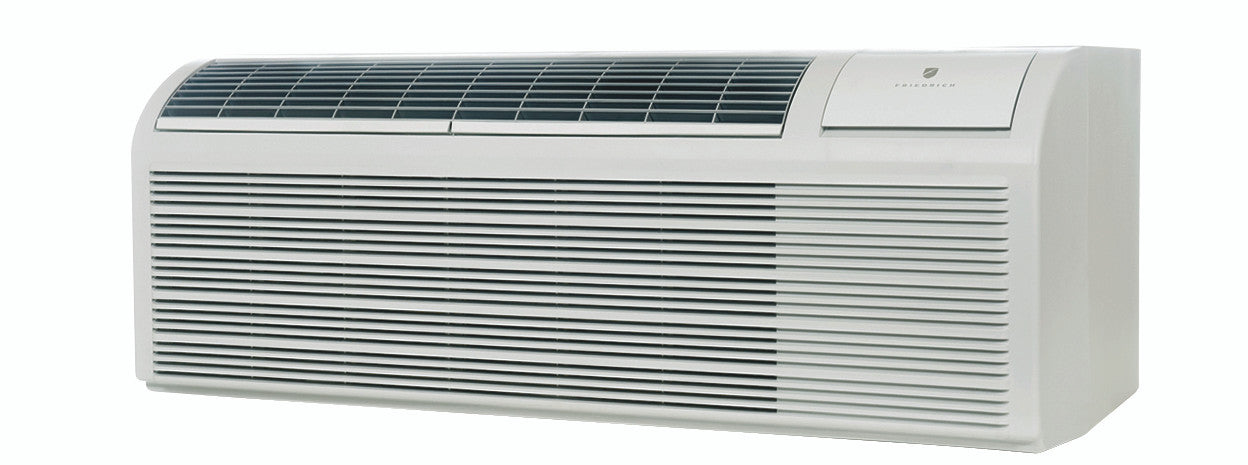

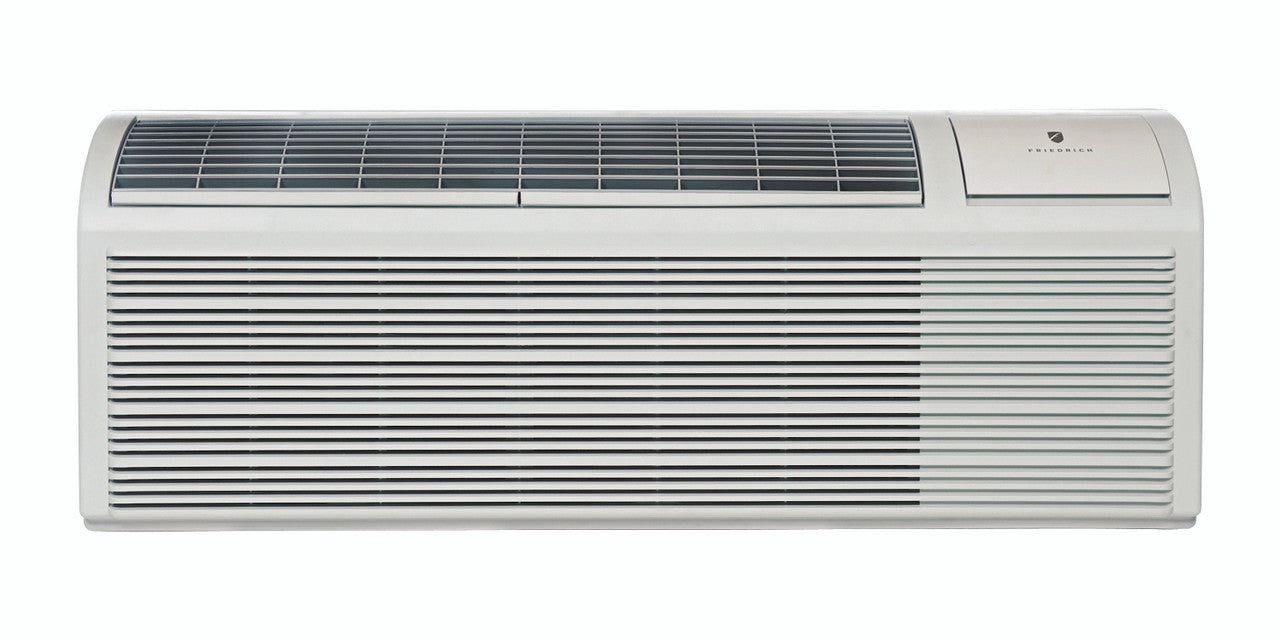

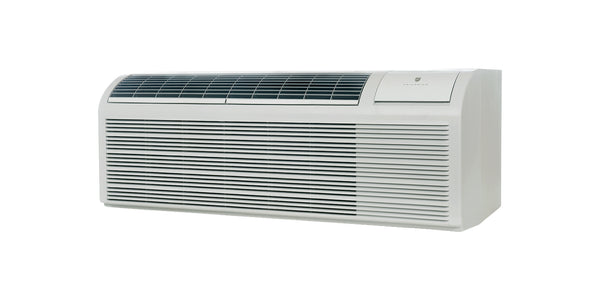

The Friedrich PVH12K3FC FreshAire packaged terminal air conditioner with heat pump delivers 12,000 BTU cooling. This FreshAire Series PTAC unit features a fully integrated make-up air system. It uses R32 refrigerant with low Global Warming Potential (GWP) and inverter technology for expanded heating and cooling capabilities. The standard industry size of 42" allows for easy installation of replacement units.
- Features a fully integrated make-up air system
- Uses R32 refrigerant with low Global Warming Potential (GWP)
- Inverter Technology for expanded heating and cooling capabilities
Product Highlights

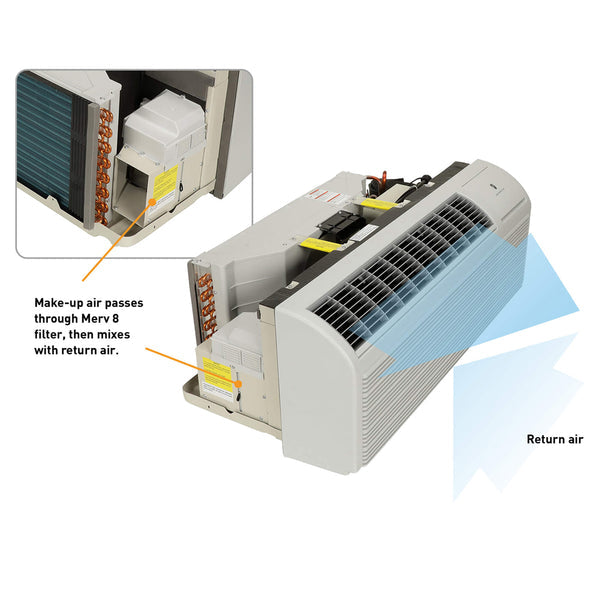

The Friedrich FreshAire PTACs meet ASHRAE 62.1-2013 requirements, delivering up to 52 CFM of conditioned, MERV 8 filtered make-up air.
Product Information
Standard Information
-
Brand: FRIEDRICH
-
Manufacturer Part Number: PVH12K3FC
-
Country of Origin: China
Technical Specifications
-
Type of Through-the-Wall: 42" PTAC
-
Sleeve Required for Install: Yes
-
Fits Sleeve Size (in.): 42
-
Refrigerant Type: R32
-
Compressor: Inverter
-
Energy Star: No
-
Dehumidification (pts/hr): 1.9
-
CFMs: 560 / 750 (L / H)
-
Includes Heat Mode: Yes
-
Heat Type: Heat Pump with Back-Up Electric
-
Cooling BTUs (@208V): 11800
-
EER (@208V): 11.5
-
Cooling Amps (@208V): 4.55
-
Cooling Watts (@208V): 1025
-
Electric Heat Strip Size (kW - @208V): 3.5
-
Electric Heating BTUs (@208V): 11943
-
Electric Heating Amps (@208V): 16.8
-
Electric Heating Watts (@208V): 3500
-
Heat Pump BTUs (@208V): 11500
-
COP (@208V): 3.65
-
Heat Pump Heating Amps (@208V): 4.1
-
Heat Pump Heating Watts (@208V): 940
-
Cooling BTUs (@230V): 12000
-
Cooling Capacity (BTUs): 6100 - 15500
-
EER (@230V): 11.5
-
Cooling Amps (@230V): 4.55
-
Cooling Watts (@230V): 1040
-
Electric Heat Strip Size (kW - @230V): 3.5
-
Electric Heating BTUs (@230V): 11943
-
Electric Heating Amps (@230V): 15.2
-
Electric Heating Watts (@230V): 3500
-
Heat Pump BTUs (@230V): 11500
-
Heating Capacity (BTUs): 6000 - 14000
-
COP (@230V): 3.65
-
Heat Pump Heating Amps (@230V): 4.5
-
Heat Pump Heating Watts (@230V): 940
-
Vent Location: Front Top
-
Make-Up Air: Yes, Non-Heated
-
Energy Saver Mode: No
-
Fan Speeds: 2
-
Control Type: Electronic/Digital
-
Filter Access: Top Lift Out
-
Connectivity: Not WiFi Compatible
-
24 Hour ON/OFF Timer: No
-
Remote Control: No
-
Fresh Air Intake: Yes
-
Sleep Mode: No
-
Net Weight (lbs.): 136
-
Certifications: ULCDTP, UL, AHRI
-
Voltage: 208-230V AC
-
Plug Face (NEMA): 6-20P
-
Circuit Breaker Size (Amps): 20
-
Cord Length: 67"
-
Model Type: Cool with Heat Pump
-
Model Function: Inverter
-
Minimum Average Coverage Area: 450 sq ft
-
Maximum Average Coverage Area: 550 sq ft
-
Compressor Technology: Variable Output (Inverter)
-
Minimum Cooling Capacity: 11,800 BtuH
-
Maximum Cooling Capacity: 12,000 BtuH
-
EER: 12.1/11.9
-
For Sleeve Depth: 13-3/4 in
-
For Sleeve Height: 16 in
-
For Sleeve Width: 42 in
-
Minimum Heat Pump Heating Capacity: 6,000 BtuH
-
Maximum Heat Pump Heating Capacity: 14,000 BtuH
-
Heating Method: Heat Pump
-
Hz: 60 Hz
-
Operation Mode: Cooling/Heating
-
Outside Make-Up Air: Make-Up Air Capable
-
Overall Depth: 21-1/2 in
-
Overall Height: 16 in
-
Overall Width: 42 in
-
Phase: Single
-
Reverse Cycle Heat COP: 3.65/3.65
-
Seacoast Corrosion Protection: Front and Rear Coil
-
Watts: 3,600 W
