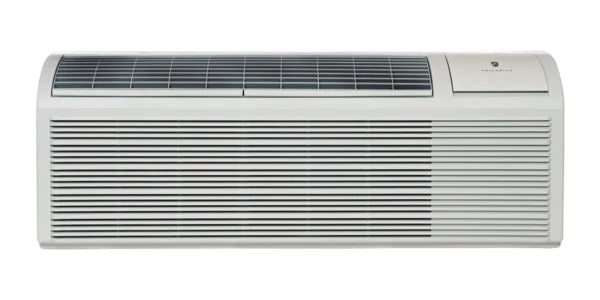

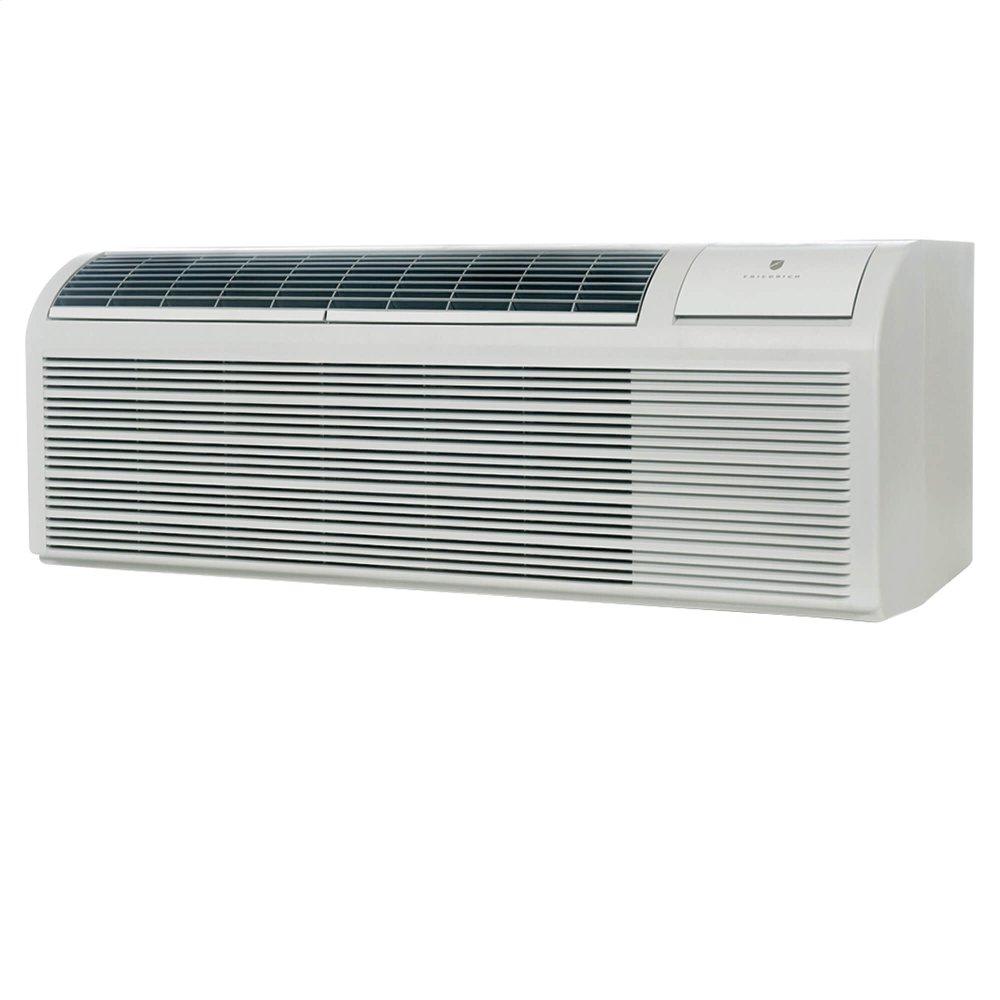

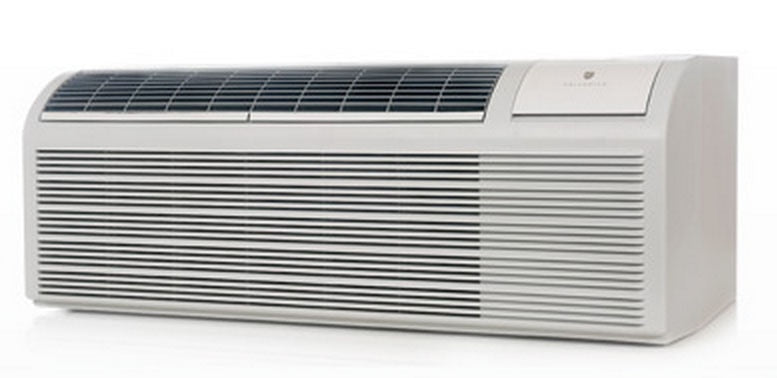

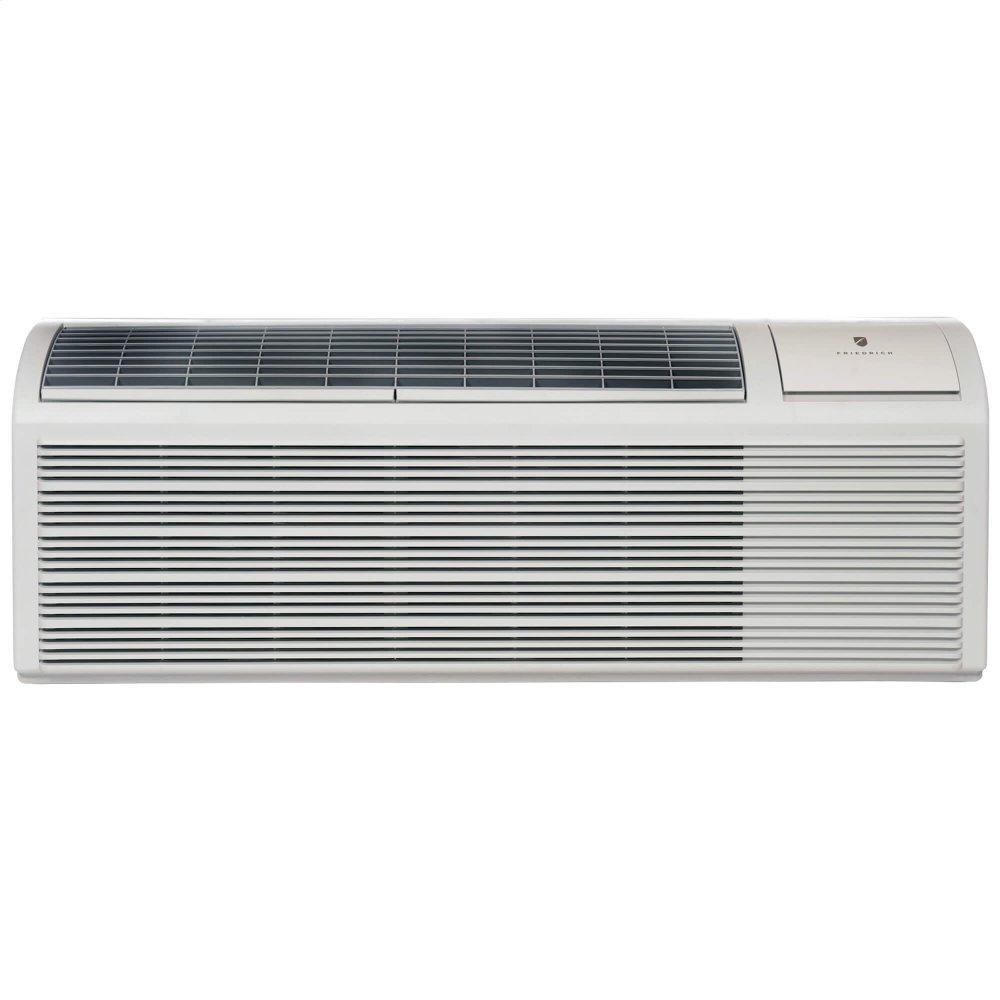

Friedrich PDH15R5SGR3 ptac air conditioner with heat pump 14500 BTU 30 amp cord

Product Description

The Friedrich PDH15R5SGR3 PTAC unit offers super quiet and efficient operation for commercial and residential applications. This Friedrich PTAC unit includes R32 refrigerant, is up to 12% more efficient than R410A. The PDH15R5SGR3 PTAC unit offers 14500 BTU cooling capacity with a 13300 BTU heat pump, plus electric heat and an EER of 10.4. This unit features 2 fan speeds and a 30 Amp power cord.

• R32 refrigerant
• 14500 BTU cooling capacity
• 13300 BTU heat pump
• EER of 10.4
• 2 fan speeds

Product Highlights

This Friedrich PTAC unit features R32 refrigerant, 14500 BTU cooling capacity, a 13300 BTU heat pump, and an EER of 10.4. It also has 2 fan speeds and a 30 Amp power cord.

Product Information

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: PDH15R5SGR3

Technical Specifications

• Type of Through-the-Wall: 42" PTAC
• Sleeve Required for Install: Yes
• Fits Sleeve Size (in.): 42
• Refrigerant Type: R32
• Compressor: Standard
• Energy Star Certified: No
• Dehumidification (pts/hr): 3.17
• CFMs: 306 / 341 (L / H)
• Includes Heat Mode: Yes
• Heat Type: Heat Pump with Back-Up Electric
• Cooling BTU: 14500
• EER: 10.4
• Cooling Amps (@265V): 5.3
• Cooling Watts (@265V): 1390
• Electric Heat Strip Size (kW - @265V): 5.0 KW
• Electric Heating BTUs (@265V): 17061
• Electric Heating Amps (@265V): 18.9
• Electric Heating Watts (@265V): 5000
• Heat Pump BTUs (@265V): 13300
• COP Rating: 3.1
• Heat Pump Heating Amps (@265V): 4.7
• Heat Pump Heating Watts (@265V): 1250
• Vent Location: Front Top
• Make-Up Air: No
• Energy Saver Mode: No
• Control Type: Electronic/Digital
• Fan Speeds: 2

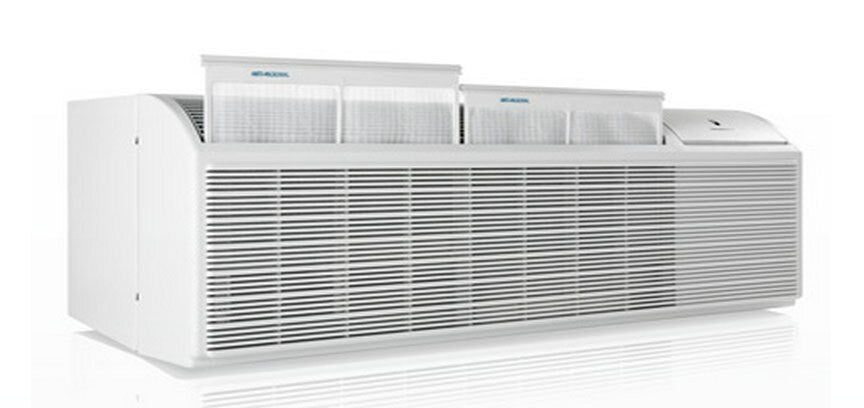

• Filter Access: Top Lift Out
• Connectivity: Not WiFi Compatible
• 24 Hour ON/OFF Timer: No
• Remote Control: No
• Fresh Air Intake: Yes
• Sleep Mode: No
• Certifications: ULCDTP, UL, AHRI
• Voltage: 265-277V
• Plug Face (NEMA): 7-30P
• Circuit Breaker Size (Amps): 30
• Cord Length: 27.5"
• Manufacturer: Friedrich
• Manufacturer Sku: PDH15R5SGR3
• Condition: New
• Machine Volts: 265/277 commercial
• Machine Amps: 30 amp
• Cord Included: Yes
• Plug Type: NEMA 7-30
• Controls: Electronic
• Heat: Heat Pump
• Fits Standard 42" x 16" Sleeve: Yes
• Product Length: 42
• Product Width: 20.5
• Product Height: 16
• Automatic Restart: Yes
• Seacoast Protection: Yes
• Freeze Protection: Yes
• Number of Fan Motors: 2
• Sleeve Included: No
• Exterior Grille Included: No
• Maximum Cooling Watts: 4250
• Maximum Cooling Amps: 5.3
• Actual Cooling BTUs @ 265V: 14500
• Reverse Cycle BTU: 13300
• Digital Controls: YES
• Auto Restart: YES
• Fan Modes: Constant/Cycle (Hi/Med/Auto)
• Front Desk Connection: YES
• Modes: Heat/Cool/Heat-Pump
• Temprature Limiting: YES
• Options: Base Model
• REFRIGERANT: R-32
