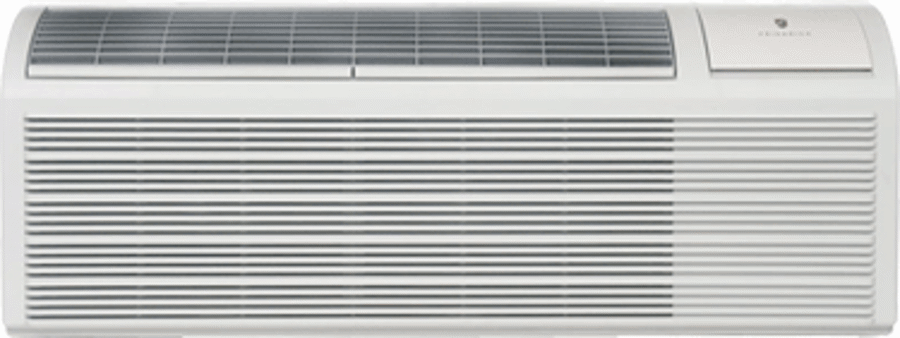

Friedrich PDH12K3SG Packaged Heat Pump 11.8/11.6 MBTUH 11.6 Er 3 kW 208-230 SG

Product Description

The Friedrich PDH12K3SG is a packaged heat pump designed for commercial HVAC applications. This unit can deliver up to eleven thousand eight hundred BTU for cooling and ten thousand six hundred BTU for heating, making it efficient for various settings.

• Cooling Capacity: 11,800 BTU
• Heating Capacity: 10,600 BTU
• Voltage: 208-230 VAC

Product Highlights

This unit features rotary compressor technology and is designed for single-stage operation, ideal for businesses requiring reliable climate control.

Product Information

Standard Information

• Brand: Friedrich
• Part Number: PDH12K3SG

Technical Specifications

• Weight: 142 lbs
• Dimensions: 19 inches (Height) x 26 inches (Width) x 45 inches (Length)
• Electric Heat Range: 3.5 kW
• Current Amps: 4.7 RLA, 4.8 RCA
• Refrigerant: R-410A
• Energy Efficiency Ratio (EER): 11.6
• Blower Motor Type: PSC (Permanent Split Capacitor)
• Compressor Type: Rotary
• Condenser Motor HP: 2/25 HP
• CFM Range: 310-400
