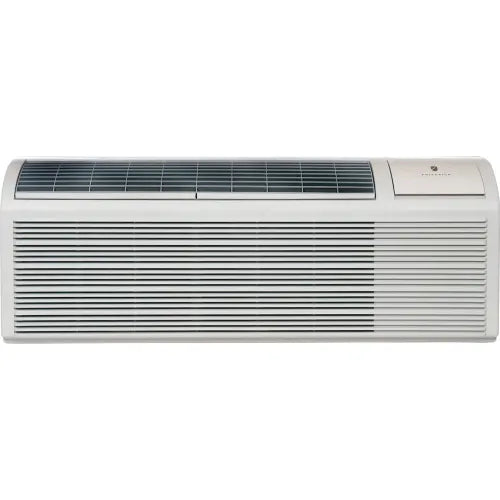

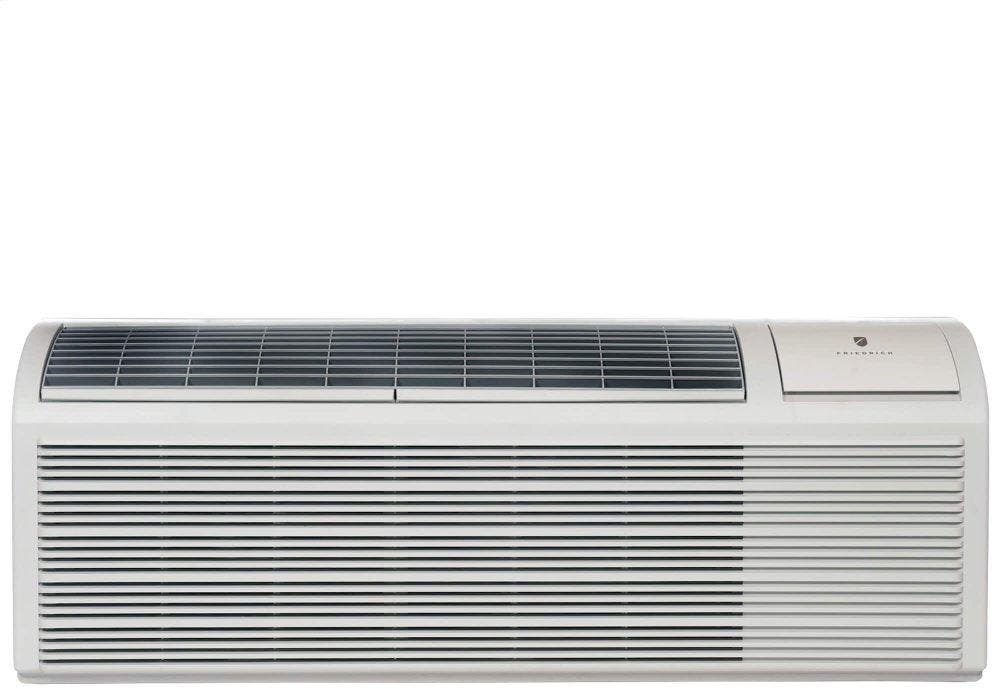

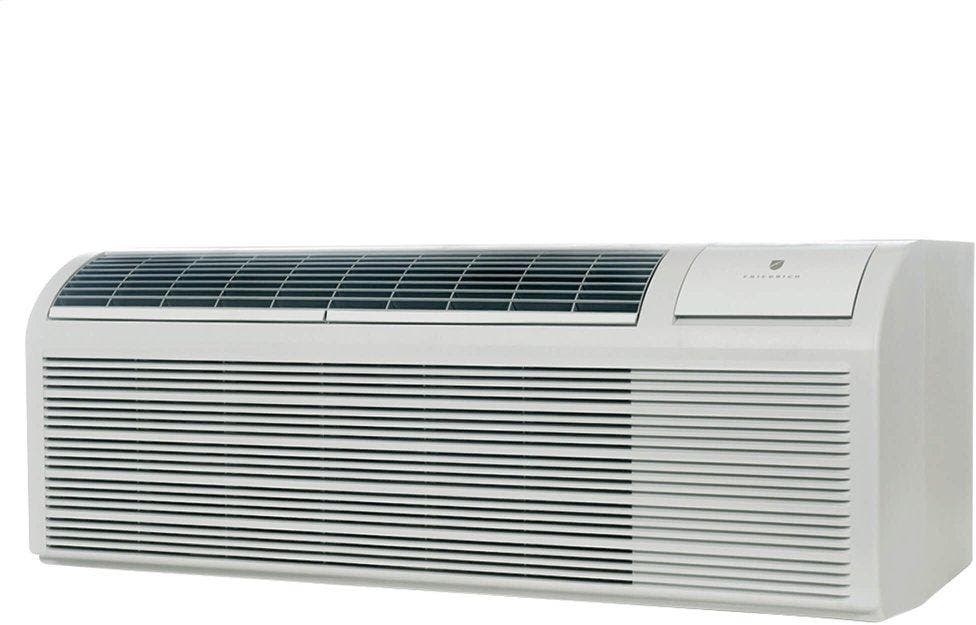

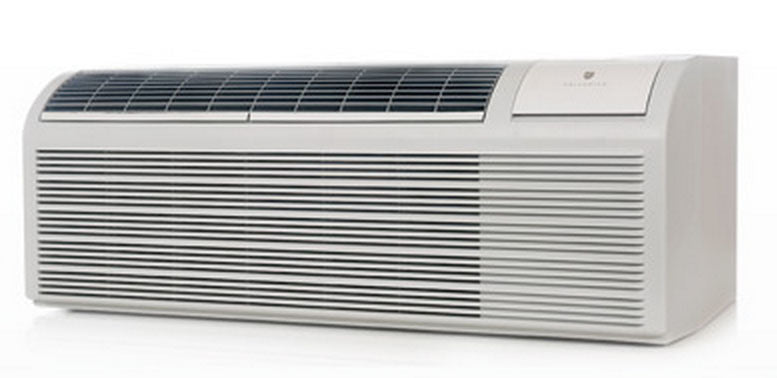

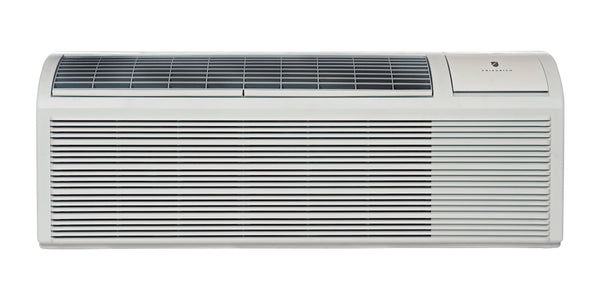

Friedrich PDH09R3SGR3 Zoneaire Premier PTAC w/ Heat Pump - R32 - 9400 BTU

Product Description

The Friedrich PDH09R3SGR3 ZoneAire Premier Packaged Terminal Air Conditioner (PTAC) is one of the quietest PTACs on the market. It comes standard with an interchangeable power cord. This unit has DiamonBlue technology that offers corrosion protection on the internal and external coils which extends the life of the unit. It uses R32 refrigerant.

• Quiet PTAC
• Interchangeable power cord
• DiamonBlue technology for corrosion protection

Product Highlights

The Friedrich PDH09R3SGR3 PTAC unit offers 9,800 BTU cooling capacity with an 8,600 BTU heat pump. This unit features 2 fan speeds for better circulation.

Product Information

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: PDH09R3SGR3
• Country of Origin: China

Technical Specifications

• Brand: Friedrich
• Hertz: 60 Hz
• Phase: 1
• Voltage: 265-277V
• Includes: Power Cord
• Depth: 21 in
• Width: 42 in
• BTU Cooling: 9800
• BTU Heating: 8600
• Refrigerant Type: R32
• Height: 16 in
• Amps Cooling: 3.1 A
• Amps Heating: 2.6 A
• Air Discharge: 330
• Watts Cooling: 810 W
• Watts Heating: 690 W
• Dehumidification: 2.11 pts/hr
• Coverage Area: 400 sq ft ft²
• Manufacturers Part Number: PDH09R3SGR3
• Certifications: UL, cUL Listed
• Energy Efficiency Rating (EER): 12.1
• Heating Method: Heat Pump
• Reverse Cycle Heat COP: 3.5
• Heating Capacity - Heat Pump: 8,300 BtuH
• NEMA Plug Configuration - HVAC: 6-15P
• Type of Through-the-Wall: 42" PTAC
• Sleeve Required for Install: Yes
• Fits Sleeve Size (in.): 42
• Compressor: Standard
• Includes Heat Mode: Yes
• Heat Type: Heat Pump with Back-Up Electric
• Vent Location: Front Top
• Make-Up Air: No
• Energy Saver Mode: No
• Fan Speeds: 2
• Control Type: Electronic/Digital
• Filter Access: Top Lift Out
• Connectivity: Not WiFi Compatible
• 24 Hour ON/OFF Timer: No
• Remote Control: No
• Fresh Air Intake: Yes
• Sleep Mode: No
• Plug Face (NEMA): 7-20P
• Circuit Breaker Size (Amps): 20
• Cooling BTU: 9,000 BTU
• Heating Reverse Cycle (btuh/aham): 8600
• Cooling Capacity BTU (max): 9800
• Machine Volts: 265/277 commercial
• Machine Amps: 20 amp
• Cord Included: Yes
• Plug Type: NEMA 7-20
• Controls: Electronic
• Heat: Heat Pump
• Heater Size (KW): 3.5 KW
• Fits Standard 42" x 16" Sleeve: Yes
• Automatic Restart: Yes
• Seacoast Protection: Yes
• Freeze Protection: Yes
• Number of Fan Motors: 2
• ADA Compliant: No
• COP Rating: 3.7
• Sleeve Included: No
• Exterior Grille Included: No
• Maximum Cooling Watts: 2875
• Maximum Cooling Amps: 3.1
• Actual Cooling BTUs @ 265V: 9800
• CFM (Cool/Wet Coil) - High: 330
• CFM (Cool/Wet Coil) - Low: 282
