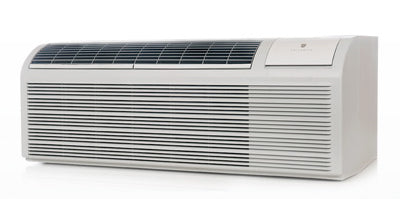

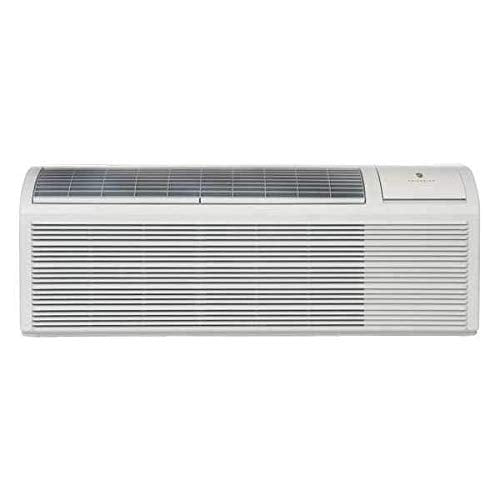

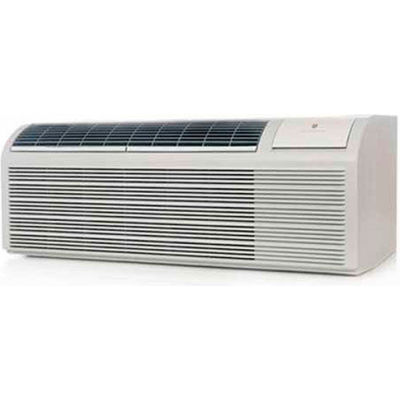

Friedrich PDH09R3SG packaged terminal air conditioner and heat pump 9400 BTU

Product Description

The Friedrich PDH09R3SG packaged terminal air conditioner and heat pump is engineered for quieter performance, featuring a tangential blower wheel and a modular component design for service. This PTAC unit delivers 9400 BTU of cooling and 11,700 BTU of heating, suitable for an average coverage area of 350 to 400 sq ft. It operates at 265V AC, 60 Hz, and includes a NEMA plug configuration of LCDI, 7-20P.

• Cooling capacity of 9,400 BTU and heating capacity of 11,700 BTU
• Features a reverse cycle heat COP of 3.5 and an EER of 12.1
• Equipped with a tangential fan for quiet and powerful airflow

Product Highlights

This Friedrich PTAC unit combines efficient cooling and heating with user-friendly features and a design focused on easy maintenance.

Product Information

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: PDH09R3SG
• Country of Origin: China

Technical Specifications

• Brand: Friedrich
• Model / MPN: PDH09R3SG
• MPN: PDH09R3SG
• Product Type: AIR_CONDITIONER
• Product Group: Home Improvement
• Hz: 60
• EER: 12.1
• Amps: 3.3
• Item: Packaged Terminal Heat Pump
• Phase: 1
• Voltage: 265/277V
• Includes: Chasis, Front Panel, Installation Instructions
• Requires: Wall Sleeve and Exterior Grille
• Heating kW: 3.5
• BtuH Cooling: 9400
• BtuH Heating: 11,700
• Power Supply: 20A
• Heating Method: Heat Pump with Electric Heat
• Cooling Capacity: 9,400 BtuH
• Refrigerant Type: R-410A
• Min. Circuit Amps: 17.0
• Power Cord Length: 2.5 ft
• Smart Connectivity: No Connectivity
• Seacoast Protection: Yes
• Operation Mode - HVAC: Cooling/Heating
• Programming Capability: Not Programmable
• Reverse Cycle Heat COP: 3.5
• NEMA Plug Configuration: 7-20P
• Reverse Cycle Heat BtuH: 8300
• Remote Control Functions: No Remote Control Included
• Fits Wall Sleeve Dimensions: 16" x 42" x 13-3/4"
• Fits Wall Sleeve - H x W x D: 16 in x 42 in x 13-3/4 in
• Heating Capacity - Heat Pump: 11,700 BtuH
• Seacoast Corrosion Protection: Front and Rear Coil
• NEMA Plug Configuration - HVAC: LCDI, 7-20P
• Country of Origin (subject to change): China
• EER - Air Conditioners and Heat Pumps: 12.1
• Item - Air Conditioners and Heat Pumps: Packaged Terminal Heat Pump
• Voltage - Air Conditioners and Heat Pumps: 265VAC
• NEMA Plug Configuration - Air Conditioners and Heat Pumps: 7-20P
• Type: Cooling With Heat Pump
• Cooling BTU: 9000
• Reverse Cycle BTU: 8300
• COP: 3.5
• Dehumidification (Pints/Hr): 2.1

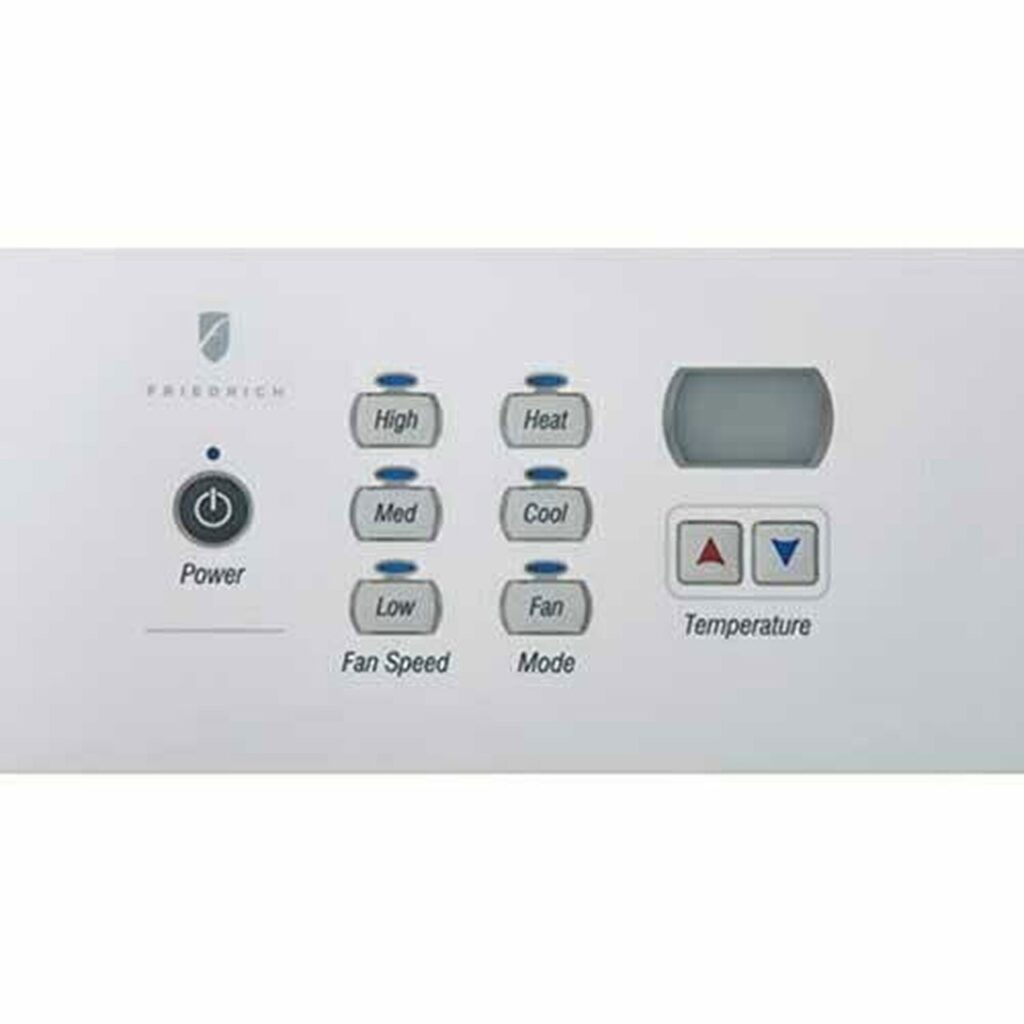

• Digital Controls: YES
• Auto Restart: YES
• Fan Modes: Constant/Cycle (Hi/Med/Auto)
• Freeze Protection: YES
• Front Desk Connection: YES
• Modes: Heat/Cool/Heat-Pump
• Temprature Limiting: YES
• Options: Base Model
• Refrigerant: R32A
• System Model#: PDH09R3SG
• Electric Heat Capacity: 3.5 KW
• Cooling Watts: 775 Watts
• Moisture Removal: 2.1 Pints/Hr
• Sensible Heat Ration: 0.85
• Air Circulation: 300 CFM
• Indoor CFM High: 355
• Indoor CFM Low: n/a
• Vent CFM: 75
• R-410A Charge: 34 oz
• Volt Range: 239-292
• Current (Amps): 3.3
• Power factor: 0.97
• Compressor LRA: 13.5
• Compressor RLA: 3
• Outdoor Fan Motor, HP: 0.080
• Reverse Heating Amps: 3.1
• Reverse Heating Watts: 695
• Item (W x H x D) (inches): 42 x 16 x 13-3/4
• Packing (W x H x D) (inches): 45 x 17-7/8 x 25-1/4
• Net Weight (lbs.): 119
• Shipping Weight (lbs.): 139
• Front Cover Height: 16
• Front Cover Width: 42
• Front Cover Depth: 7 3/4
• Cut-Out Height: 16 1/4
• Cut-Out Width: 42 1/4
• Dimensions With Package: 21 1/2
• Sensible Heat Ratio: 0.85
• Cooling Btu/hr: 9400
• Cooling Amps: 3.3
• Outdoor Fan Motor: HP
• Reverse Heating Btu/hr: 8300
• Height: 16
• Width: 42
• Depth: 13 3/4
• Volts Rated: 265V
