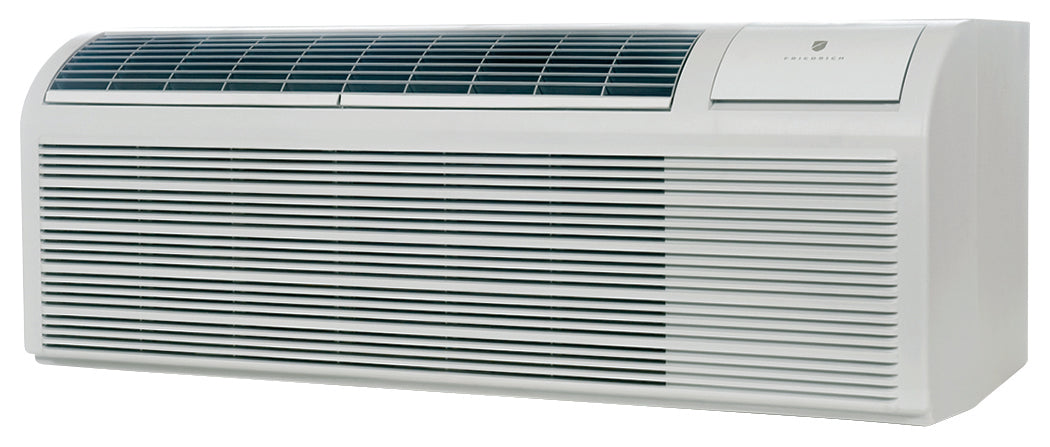

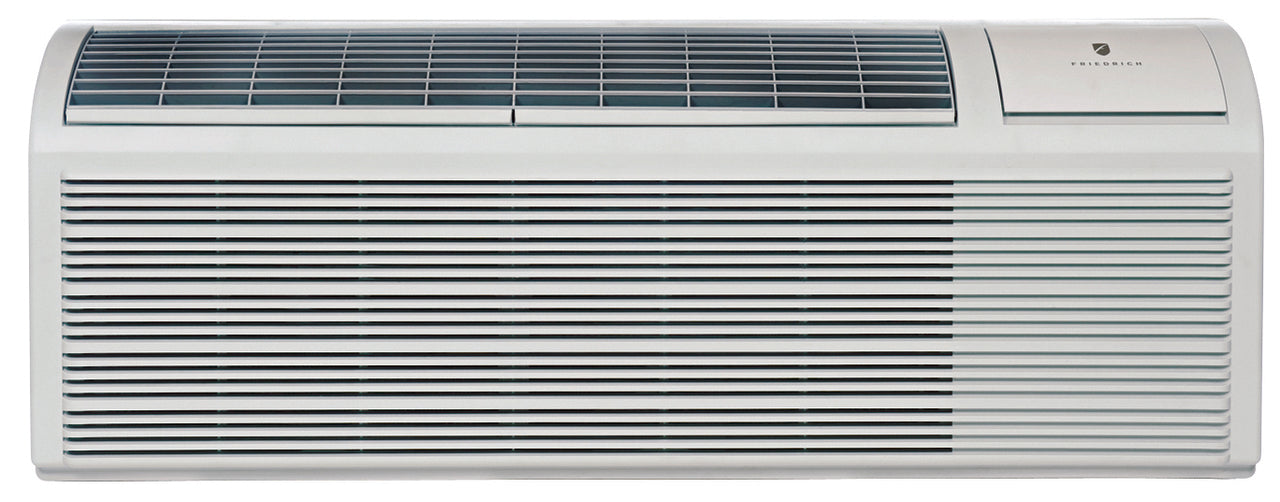

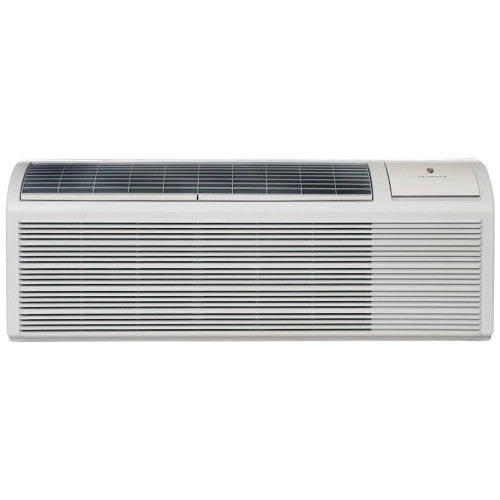

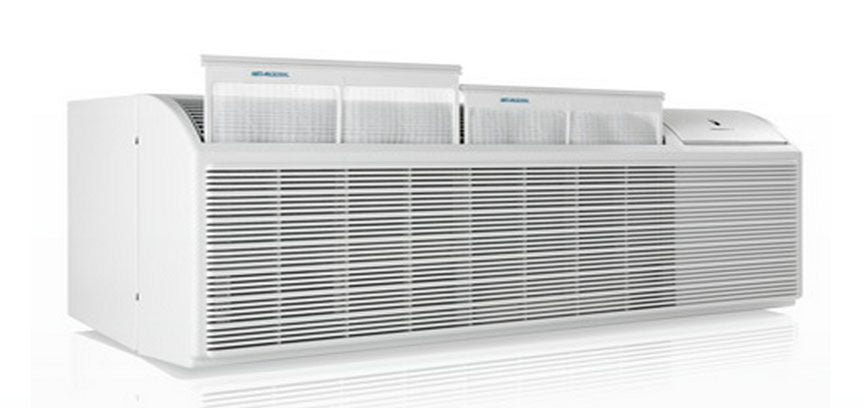

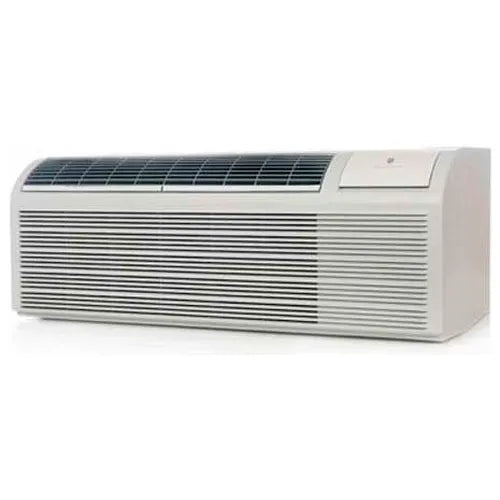

Friedrich PDH07K3SGR3 PTAC Air Conditioner 7000 BTU Heat Pump

Product Description

The FRIEDRICH PDH07K3SGR3 is a PTAC designed for new construction or replacement. This unit features cooling with a heat pump, offering 7000 BTU cooling and 6000 BTU reverse cycle. It operates on 208/230V and includes options for FreshAire Indoor Air Quality. The unit has digital controls and auto restart, with constant/cycle fan modes.

• 7000 BTU cooling capacity with 6000 BTU heat pump
• Operates on 208/230V with 15A, 20A options
• Digital controls, auto restart, and multiple fan modes

Product Highlights

The Friedrich PDH07K3SGR3 PTAC delivers efficient cooling and heating with user-friendly digital controls and multiple fan settings.

Product Information

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: PDH07K3SGR3

Technical Specifications

• Brand: Friedrich
• Type: Cooling With Heat Pump
• Cooling BTU: 7000
• Reverse Cycle BTU: 6000
• Voltage: 208/230 V
• AMPS: 15A, 20A
• EER: 13.0
• COP: 3.6
• Dehumidification (Pints/Hr): 1.7
• Digital Controls: YES
• Auto Restart: YES
• Fan Modes: Constant/Cycle (Hi/Med/Auto)
• Freeze Protection: YES
• Front Desk Connection: YES
• Modes: Heat/Cool/Heat-Pump
• Sea Coast Protection: YES
• Temprature Limiting: YES
• Options: Base Model
• Refrigerant: R32A
• Type of Through-the-Wall: 42" PTAC
• Sleeve Required for Install: Yes
• Fits Sleeve Size (in.): 42
• Refrigerant Type: R32
• Compressor: Standard
• Energy Star: No
• CFMs: 255 / 345 (L / H)
• Includes Heat Mode: Yes
• Heat Type: Heat Pump with Back-Up Electric
• Cooling BTUs (@208V): 7000
• Cooling Amps (@208V): 2.9
• Cooling Watts (@208V): 535
• Electric Heat Strip Size (kW - @208V): 3.5
• Electric Heating BTUs (@208V): 11943
• Electric Heating Amps (@208V): 16.8
• Electric Heating Watts (@208V): 3500
• Heat Pump BTUs (@208V): 5800
• Heat Pump Heating Amps (@208V): 2.6
• Heat Pump Heating Watts (@208V): 470
• Cooling BTUs (@230V): 7200
• Cooling Amps (@230V): 2.7
• Cooling Watts (@230V): 550
• Electric Heat Strip Size (kW - @230V): 3.5
• Electric Heating BTUs (@230V): 11943
• Electric Heating Amps (@230V): 15.2
• Electric Heating Watts (@230V): 3500
• Heat Pump BTUs (@230V): 6000
• Heat Pump Heating Amps (@230V): 2.4
• Heat Pump Heating Watts (@230V): 485
• Vent Location: Front Top
• Make-Up Air: No
• Energy Saver Mode: No
• Fan Speeds: 2
• Control Type: Electronic/Digital
• Filter Access: Top Lift Out
• Connectivity: Not WiFi Compatible
• 24 Hour ON/OFF Timer: No
• Remote Control: No
• Fresh Air Intake: Yes
• Sleep Mode: No
• Net Weight (lbs.): 113
• Certifications: ULCDTP, UL, AHRI, ETL & cETL Listed
• Plug Face (NEMA): 6-20P
• Circuit Breaker Size (Amps): 20
• Cord Length: 67"
• Air Conditioner Type: PTHP
• Manufacturer: Friedrich
• Manufacturer Sku: PDH07K3SGR3
• Condition: New
• Machine Volts: 208/230
• Machine Amps: 20 amp
• Cord Included: Yes
• Plug Type: NEMA 6-20
• Controls: Electronic
• Heat: Heat Pump
• Heater Size (KW): 3.5 KW
• Fits Standard 42" x 16" Sleeve: Yes
• Product Length: 42
• Product Width: 20.5
• Product Height: 16
• Automatic Restart: Yes
• ADA Compliant: No
• Energy Efficiency Rating (EER): 13
• Sleeve Included: No
• Exterior Grille Included: No
• Maximum Cooling Watts: 2172
• Maximum Cooling Amps: 2.6
• Actual Cooling BTUs @ 208V: 7200
• Actual Cooling BTUs @ 230V: 7400
• Actual Heating BTUs Heat Pump @ 208V: 5800
• Actual Heating BTUs Heat Pump @ 230V: 6000
• CFM (Cool/Wet Coil) - High: 311.9
• CFM (Cool/Wet Coil) - Low: 282.5
• Coverage Area: 300 ft²
• Assembly Required: No
• Amps Heating: 2.1 A
• Number of Speeds: 3
• Refrigerant Charge: 27.51 oz
• CFM: 312 CFM
• Watts Heating: 490 W
• Hertz: 60 Hz
• Amp Circuit: 20 A
• Decibels: 58
