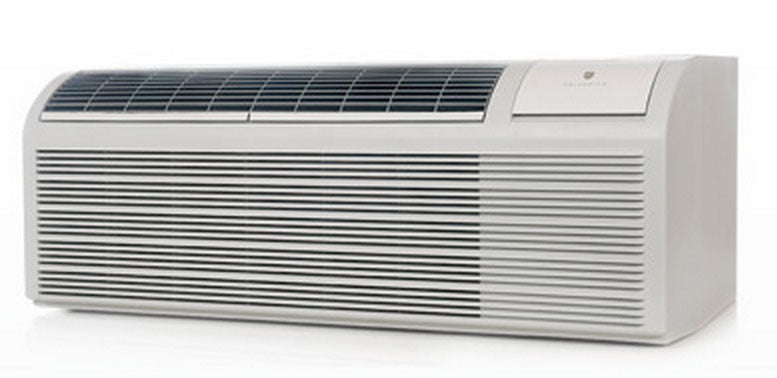

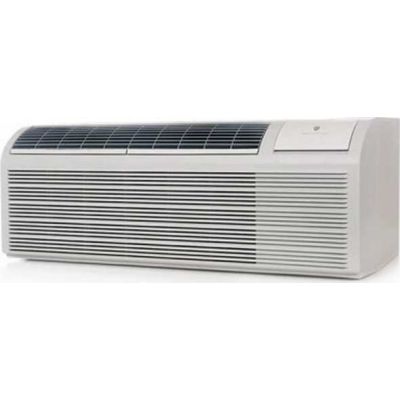

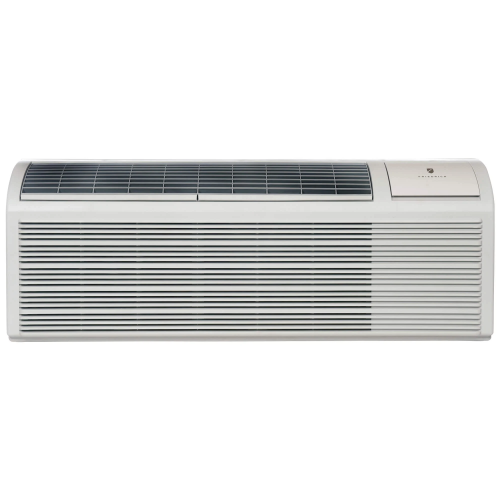

Friedrich PDE15R5SGR3 14800 BTU Commercial PTAC Air Conditioner - 30 Amp Cord - 265 Volt - R32 Refrigerant

Product Description

The Friedrich PDE15R5SGR3 is a 14,800 BTU cooling PTAC with electric resistive heat and an EER of 10.6. This Friedrich unit features 2 fan speeds for better circulation and with 265V electricity, it is for commercial use only. The Constant Fan Mode produces an uninterrupted stream of white noise. This PTAC unit includes R32 refrigerant, which is more efficient and has a lower Global Warming Potential (GWP).

• R32 refrigerant for efficient cooling
• Features a LCD digital control pad
• Equipped with electronic temperature limiting and electronic defrost control

Product Highlights

This Friedrich PTAC unit offers quiet and efficient performance with features like a constant fan mode, LCD digital control, and easy-to-access air filters.

Product Information

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: PDE15R5SGR3

Technical Specifications

• Type of Through-the-Wall: 42" PTAC
• Sleeve Required for Install: Yes
• Fits Sleeve Size (in.): 42
• Refrigerant Type: R32
• Energy Star: No
• Dehumidification (pts/hr): 3.17
• CFMs: 306 / 341 (L / H)
• Includes Heat Mode: Yes
• Heat Type: Electric Resistance Only
• Cooling BTUs (@265V): 14800
• EER (@265V): 10.6
• Cooling Amps (@265V): 5.3
• Cooling Watts (@265V): 1400
• Electric Heat Strip Size (kW - @265V): 5.0
• Electric Heating BTUs (@265V): 17061
• Electric Heating Amps (@265V): 18.9
• Electric Heating Watts (@265V): 5000
• Vent Location: Front Top
• Make-Up Air: No
• Energy Saver Mode: No
• Fan Speeds: 2
• Control Type: Electronic/Digital
• Filter Access: Top Lift Out
• Connectivity: Not WiFi Compatible
• 24 Hour ON/OFF Timer: No
• Remote Control: No
• Fresh Air Intake: Yes
• Sleep Mode: No
• Net Weight (lbs.): 114.7
• Certifications: ULCDTP, UL, AHRI
• Voltage: 265-277V
• Plug Face (NEMA): 7-30P
• Circuit Breaker Size (Amps): 30
• Cord Length: 27.5"
• Air Conditioner Type: PTAC
• Manufacturer: Friedrich
• Manufacturer Sku: PDE15R5SGR3
• Condition: New
• Machine Volts: 265/277 commercial
• Machine Amps: 30 amp
• Cord Included: Yes
• Plug Type: NEMA 7-30
• Controls: Electronic
• Heat: Electric Heat
• Heater Size (KW): 5.0 KW
• Fits Standard 42" x 16" Sleeve: Yes
• Product Length: 42
• Product Width: 20.5
• Product Height: 16
• Wi-Fi Compatible: No
• Automatic Restart: Yes
• Seacoast Protection: Yes
• Freeze Protection: Yes
• Number of Fan Motors: 2
• ADA Compliant: No
• Energy Efficiency Rating (EER): 10.6
• Sleeve Included: No
• Exterior Grille Included: No
• Maximum Cooling Watts: 1400 Watts
• Front Cover Included: Yes
• Maximum Cooling Amps: 5.3 Amps
• Actual Cooling BTUs @ 265V: 14800
• CFM (Cool/Wet Coil) - High: 341.3
• CFM (Cool/Wet Coil) - Low: 306
• Installation: Wall
• BTU: 14,800 BTU
• Depth: 21 1/4"
• Amps: 5.3 Amps
• EER: 10.6
• Model: PDE15R5SGR3
• Compressor LRA: 26.0
• Power Factor: 0.97
• Current Amps: 5.3
• Volt Range: 292-239
• Compressor RLA: 6.4
• Outdoor Fan Motor HP: 0.086
• Indoor CFM Low: 306.02
• Indoor CFM High: 341.33
• Sensible Heat Ratio: 67%
• Moisture Removal: 3.17
• Heater Size: 5
• Cooling Watts: 1400
• Cooling BTU: 14,800
• R-410A Charge (oz.): 19.67
