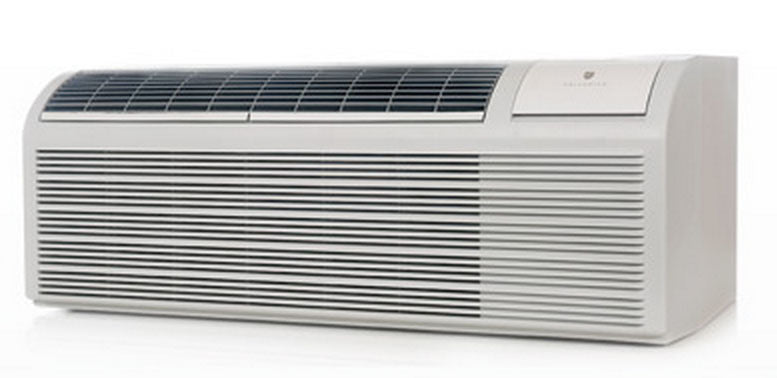

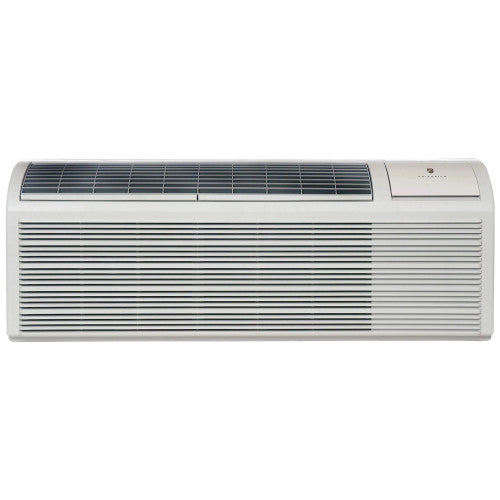

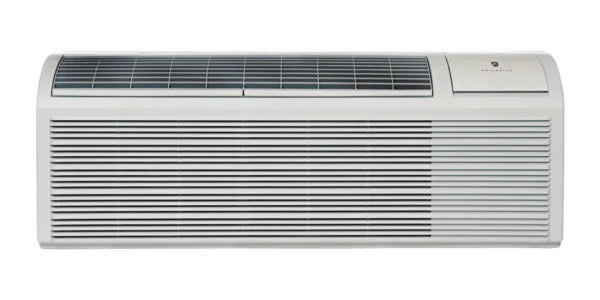

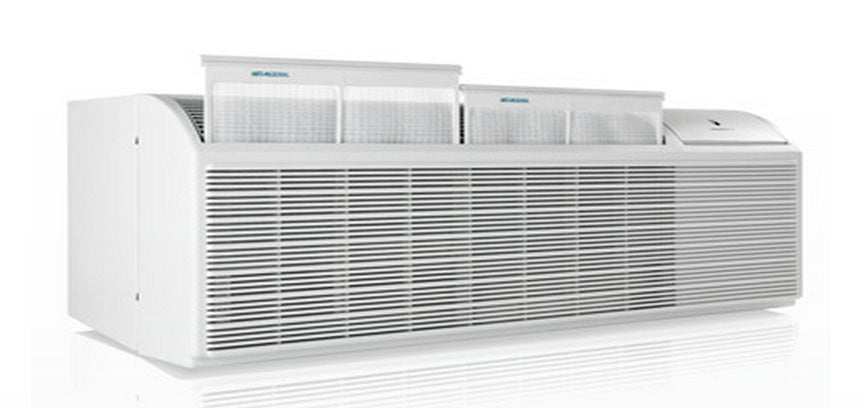

Friedrich PDE12R3SGR3 12300 BTU Commercial PTAC Air Conditioner 20 Amp Cord 265 Volt

Product Description

The Friedrich PDE12R3SGR3 is a 12300 BTU cooling PTAC with electric resistive heat and an EER of 11.6. This Friedrich PTAC unit features 2 fan speeds for better circulation and includes R32 refrigerant. Designed for commercial use with 265V electricity, it ships standard with a 20 Amp cord providing 3.6 kW of electric heat.

• Features R32 refrigerant, up to 12% more efficient than R410A.
• Includes a LCD digital control pad with one-touch operation.
• Equipped with Room Freeze Protection and a fresh air damper.

Product Highlights

This Friedrich PTAC unit fits a standard 42" x 16" sleeve

Product Information

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: PDE12R3SGR3

Technical Specifications

• Type of Through-the-Wall: 42" PTAC
• Sleeve Required for Install: Yes
• Fits Sleeve Size (in.): 42
• Refrigerant Type: R32
• Compressor: Standard
• Energy Star: No
• Dehumidification (pts/hr): 2.7
• CFMs: 306 / 341 (L / H)
• Includes Heat Mode: Yes
• Heat Type: Electric Resistance Only
• Cooling BTUs (@265V): 12300
• EER (@265V): 11.6
• Cooling Amps (@265V): 4.0
• Cooling Watts (@265V): 1060
• Electric Heat Strip Size (kW - @265V): 3.6
• Electric Heating BTUs (@265V): 12284
• Electric Heating Amps (@265V): 13.6
• Electric Heating Watts (@265V): 3600
• Vent Location: Front Top
• Make-Up Air: No
• Energy Saver Mode: No
• Fan Speeds: 2
• Control Type: Electronic/Digital
• Filter Access: Top Lift Out
• Connectivity: Not WiFi Compatible
• 24 Hour ON/OFF Timer: No
• Remote Control: No
• Fresh Air Intake: Yes
• Sleep Mode: No
• Certifications: ULCDTP, UL, AHRI
• Voltage: 265-277V
• Plug Face (NEMA): 7-20P
• Circuit Breaker Size (Amps): 20
• Cord Length: 27.5"
• Air Conditioner Type: PTAC
• Manufacturer: Friedrich
• Manufacturer Sku: PDE12R3SGR3
• Condition: New
• Cooling BTU: 12,000 BTU
• Machine Volts: 265/277 commercial
• Machine Amps: 20 amp
• Cord Included: Yes
• Plug Type: NEMA 7-20
• Controls: Electronic
• Heat: Electric Heat
• Heater Size (KW): 3.5 KW
• Fits Standard 42" x 16" Sleeve: Yes
• Automatic Restart: Yes
• Seacoast Protection: Yes
• Freeze Protection: Yes
• Number of Fan Motors: 2
• Sleeve Included: No
• Exterior Grille Included: No
• Maximum Cooling Watts: 3605
• Maximum Cooling Amps: 4
• Actual Cooling BTUs @ 265V: 12300
• Brand: Friedrich
• Type: Cooling With Resistance Heat
• Reverse Cycle BTU: N/A
• Digital Controls: YES
• Fan Modes: Constant/Cycle (Hi/Med/Auto)
• Front Desk Connection: YES
• Modes: Heat/Cool/Heat-Pump
• Temprature Limiting: YES
• Options: Base Model
• Heating: Yes
• ZoneAire Series: Yes
• Volts: 265
• ADA Compliant: No
