Product Description

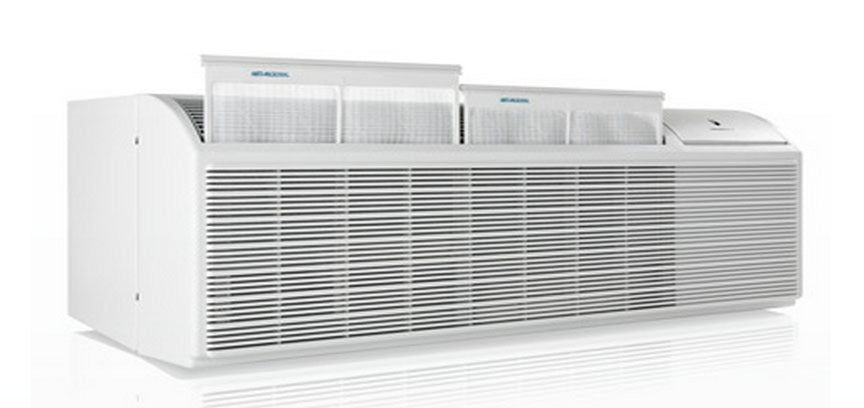

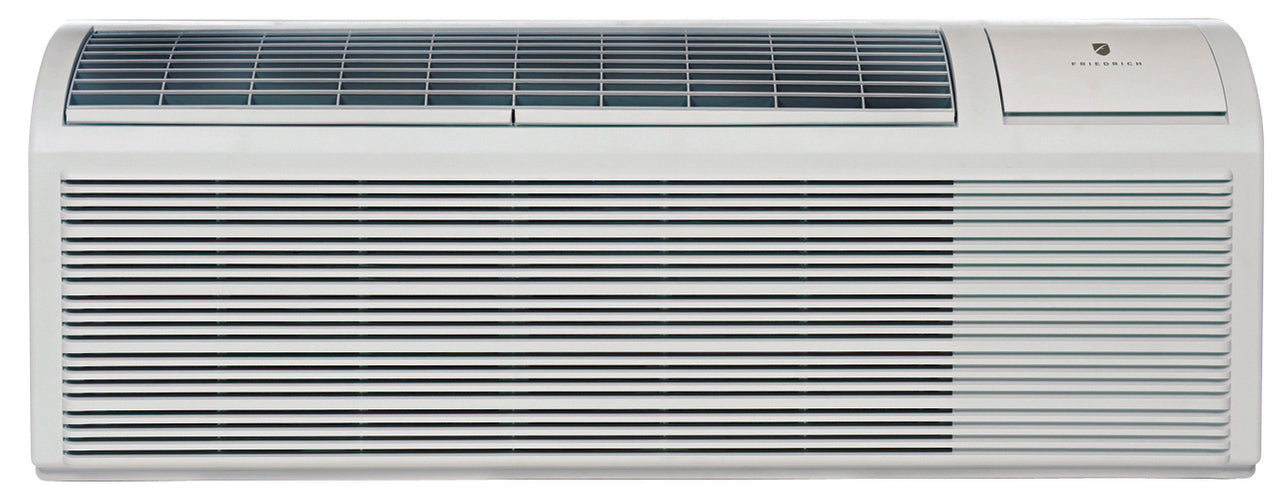

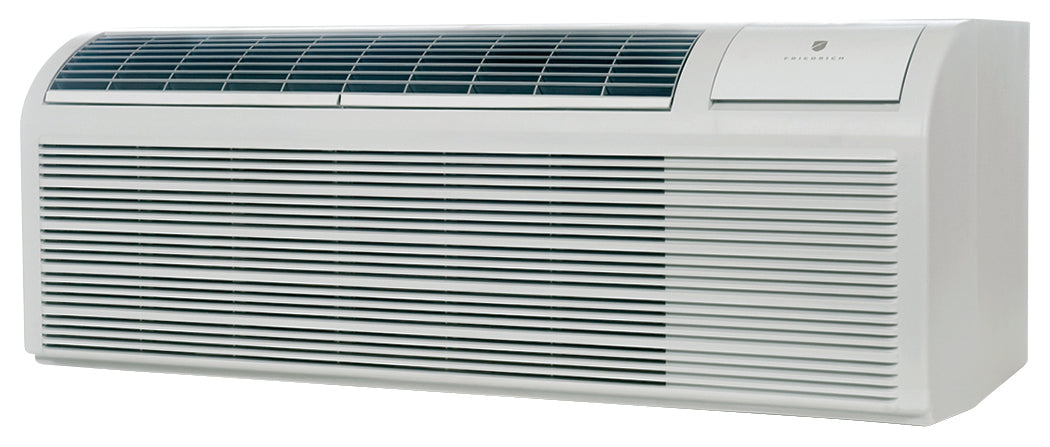

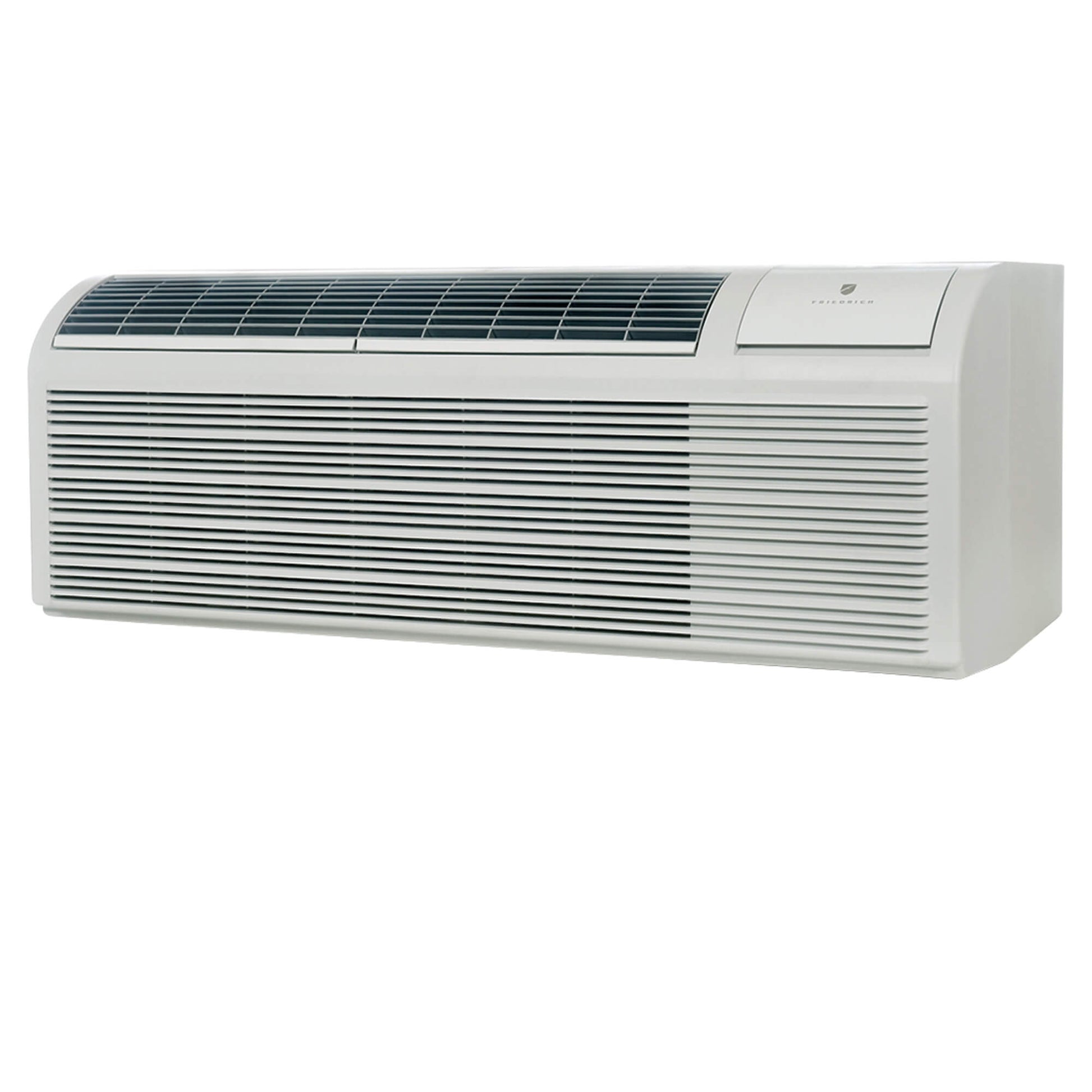

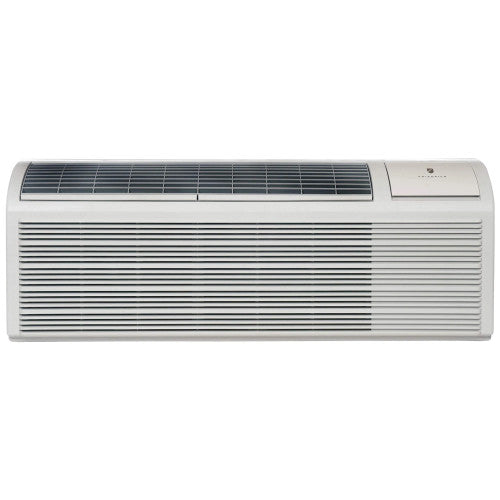

The FRIEDRICH PDE12K3SGR3 PTAC unit features R32 refrigerant and is designed for both commercial and residential use. This unit provides 12,100 to 12,300 BTU cooling with electric resistive heat and an EER of 11.8 to 11.6. It operates on 208/230V electricity and includes a 2-speed fan. The constant fan mode delivers continuous white noise.
- Equipped with R32 refrigerant, which is more efficient than R410A.
- Features two separate motors for quieter operation.
- Includes a digital control pad with LCD readout.
Product Highlights
This PTAC unit offers efficient cooling and heating with user-friendly controls and quiet operation. It is designed for easy maintenance and includes features like a washable filter and room freeze protection.
Product Information
Standard Information
-
Brand: FRIEDRICH
-
Manufacturer Part Number: PDE12K3SGR3
Technical Specifications
-
MPN: PDE12K3SGR3
-
Brand: FRIEDRICH
-
Type of Through-the-Wall: 42" PTAC
-
Sleeve Required for Install: Yes
-
Fits Sleeve Size (in.): 42
-
Refrigerant Type: R32
-
Compressor: Standard
-
Energy Star: No
-
Dehumidification (pts/hr): 2.74
-
CFMs: 306 / 341 (L / H)
-
Includes Heat Mode: Yes
-
Heat Type: Electric Resistance Only
-
Cooling BTUs (@208V): 12100
-
EER (@208V): 11.8
-
Cooling Amps (@208V): 5.0
-
Cooling Watts (@208V): 1020
-
Electric Heat Strip Size (kW @208V): 3.6
-
Electric Heating BTUs (@208V): 12284
-
Electric Heating Amps (@208V): 17.3
-
Electric Heating Watts (@208V): 3600
-
Cooling BTUs (@230V): 12300
-
EER (@230V): 11.6
-
Cooling Amps (@230V): 4.7
-
Cooling Watts (@230V): 1060
-
Electric Heat Strip Size (kW - @230V): 3.6
-
Electric Heating BTUs (@230V): 12284
-
Electric Heating Amps (@230V): 15.7
-
Electric Heating Watts (@230V): 3600
-
Vent Location: Front Top
-
Make-Up Air: No
-
Energy Saver Mode: No
-
Fan Speeds: 2
-
Control Type: Electronic/Digital
-
Filter Access: Top Lift Out
-
Connectivity: Not WiFi Compatible
-
24 Hour ON/OFF Timer: No
-
Remote Control: No
-
Fresh Air Intake: Yes
-
Sleep Mode: No
-
Net Weight (lbs.): 114.66
-
Certifications: ULCDTP, UL, AHRI
-
Voltage: 208-230V
-
Plug Face (NEMA): 6-20P
-
Circuit Breaker Size (Amps): 20
-
Cord Length: 67"
-
Air Conditioner Type: PTAC
-
Manufacturer: Friedrich
-
Manufacturer Sku: PDE12K3SGR3
-
Cooling BTU: 12,000 BTU
-
Machine Volts: 208/230
-
Machine Amps: 20 amp
-
Cord Included: Yes
-
Plug Type: NEMA 6-20
-
Controls: Electronic
-
Heat: Electric Heat
-
Heater Size (KW): 3.5 KW
-
Fits Standard 42" x 16" Sleeve: Yes
-
Automatic Restart: Yes
-
Seacoast Protection: Yes
-
Freeze Protection: Yes
-
Number of Fan Motors: 2
-
Energy Efficiency Rating (EER): 11.6
-
Sleeve Included: No
-
Exterior Grille Included: No
-
Maximum Cooling Watts: 3605
-
Front Cover Included: Yes
-
Maximum Cooling Amps: 5
-
Actual Cooling BTUs @ 208V: 12100
-
Actual Cooling BTUs @ 230V: 12100
-
CFM (Cool/Wet Coil) - High: 341.3
-
CFM (Cool/Wet Coil) - Low: 306
-
Cooling Capacity (BTUh): 12,300/12,100
-
Electric Heat Capacity (BTUh): 17,000/11,800/8,300
-
EER(2): 11.6/11.8
-
Cooling Area (Sq Ft.): Up to 550
-
Refrigerant: R-32
