Product Description

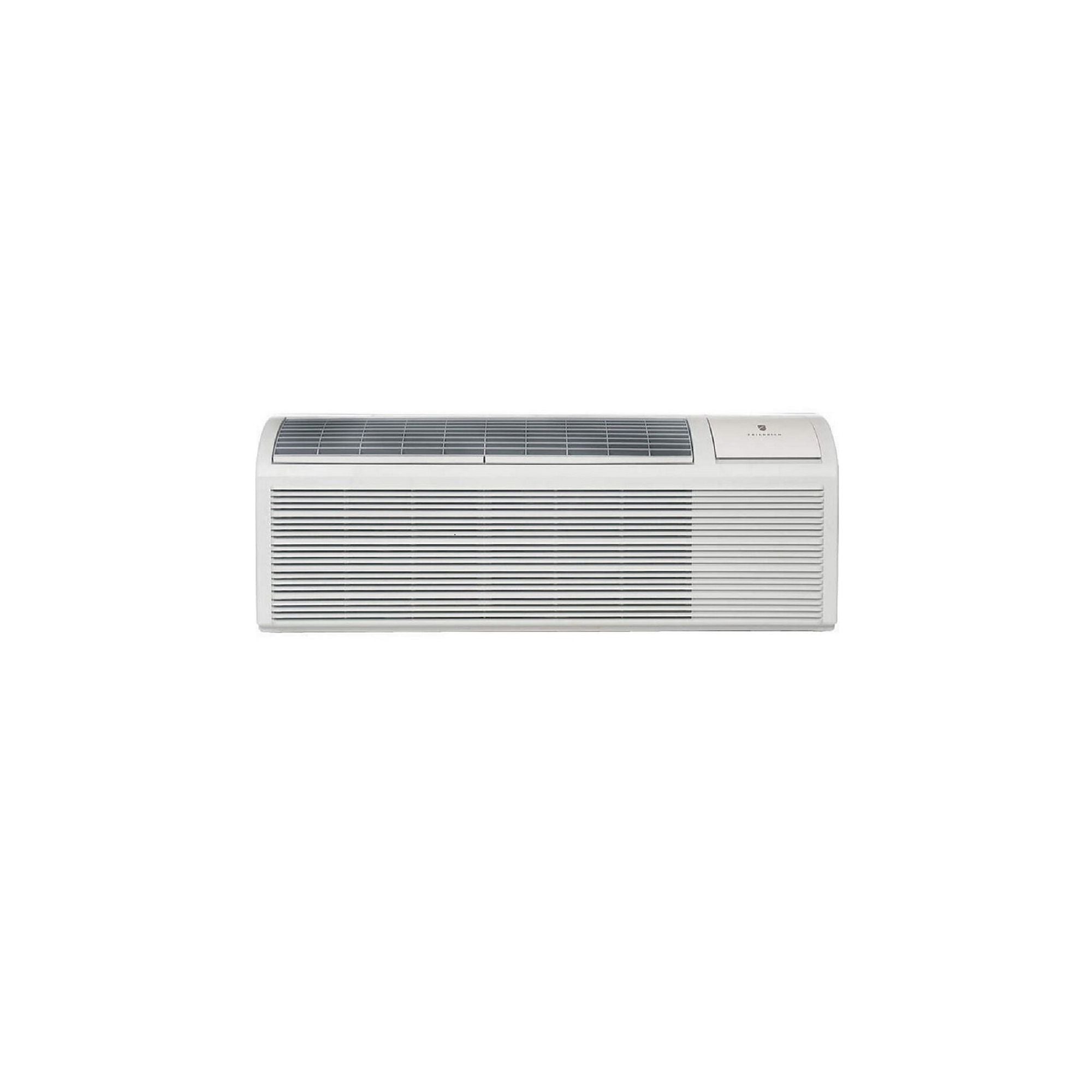

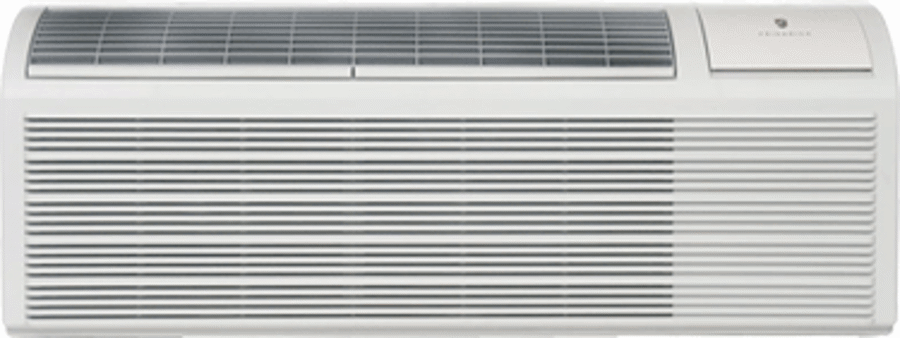

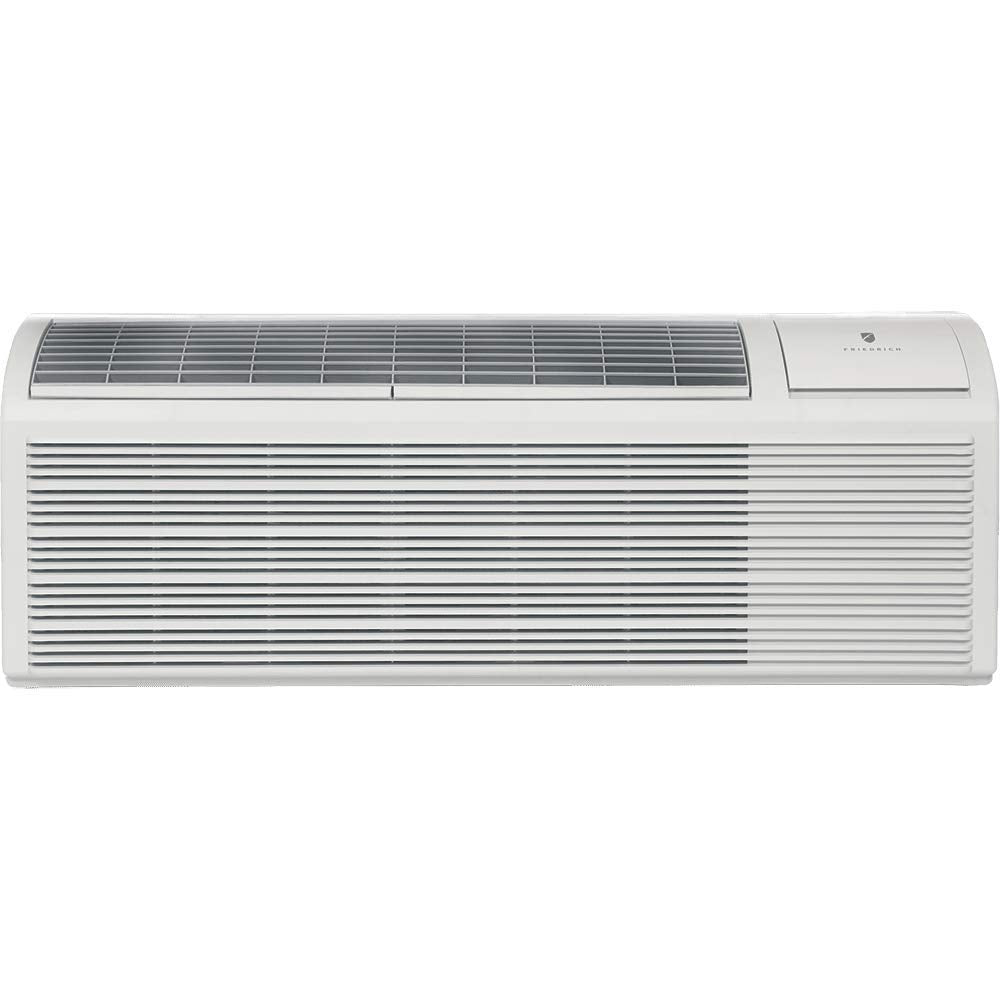

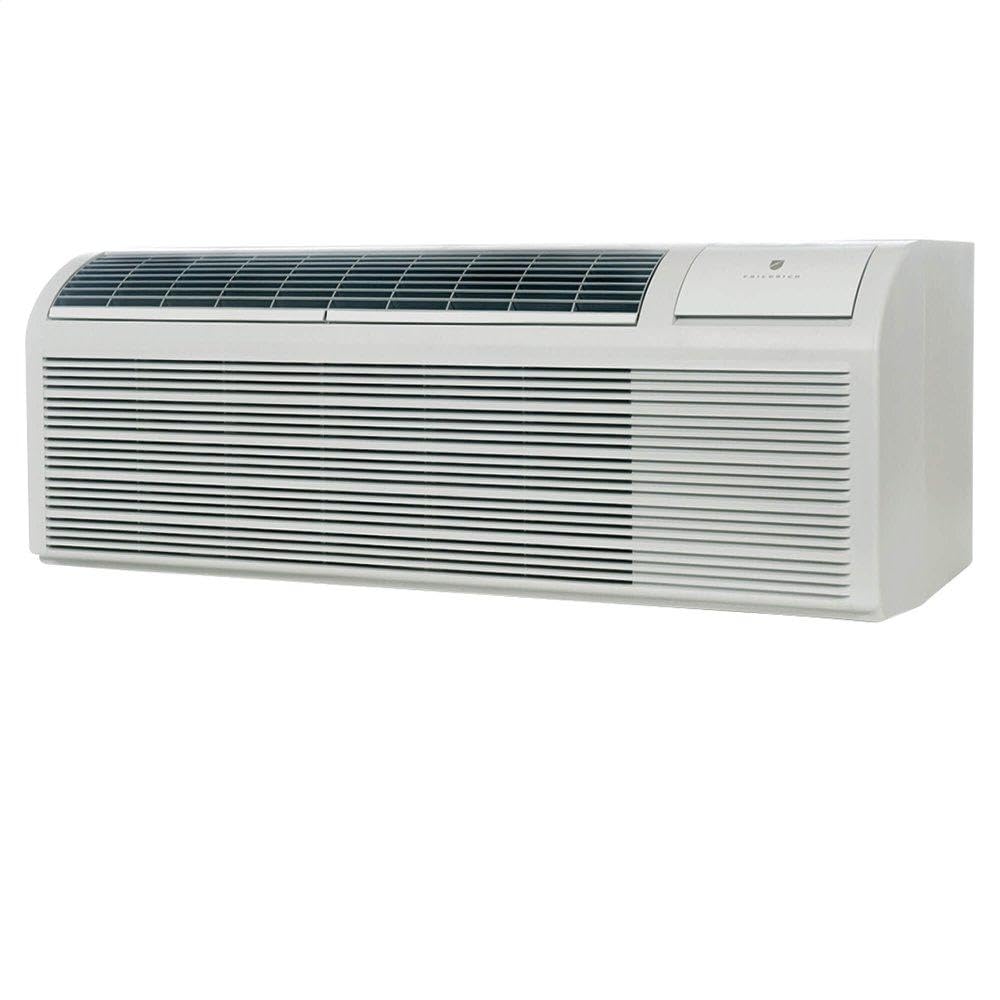

The Friedrich PDE12K3SG is a 42" packaged terminal air conditioner with 12000 BTU cooling and 11600 BTU heating capacity. This unit operates on 230/208 Volts and features Diamonblue Technology for advanced corrosion protection. It is designed for both heating and cooling, covering a floor area of approximately 450 square feet.
- 12000 BTU Cooling
- 11600 BTU Heating
- 230/208 Volts
- 10.7 EER
Product Highlights
This Friedrich PTAC unit provides efficient cooling and heating with corrosion protection for reliable performance.
Product Information
Standard Information
-
Brand: FRIEDRICH
-
Manufacturer Part Number: PDE12K3SG
-
Country of Origin: CHN
Technical Specifications
-
Color: White
-
Voltage: 208 Volts
-
Floor Area: 450 Square Feet
-
Model Name: pde12k3sg
-
Refrigerant: R 410A
-
Cooling Power: 12000 British Thermal Units
-
Special Feature: Heating,Cooling
-
Seasonal Energy Efficiency Ratio (SEER): 10.7
-
CFM: 310-400
-
EER: 11.6
-
UPC: 724587431445
-
Phase: Single
-
Stage: Single
-
Width: 26
-
Height: 19
-
Length: 45
-
Prop 65: Yes
-
Tonnage: 1
-
UL Listed: Yes
-
ETL Listed: No
-
Cycle/Hertz: 60 Hz
-
Equipment Type: Straight Cool
-
Cooling Capacity: 12000
-
Heating Capacity: 10236
-
Blower Motor Type: PSC (Permanent Split Capacitor)
-
Blower Motor Speeds: 3 (Three)
-
Condenser Motor Type: PSC (Permanent Split Capacitor)
-
Electric Heat Range [kW]: 3.5
-
Maximum Overcurrent Protection (MOCP): 20
-
Heating Method: Electric Heat
-
Amps: 4.9/5.1
-
Hz: 60
-
NEMA Plug Configuration - HVAC LCDI: 6-20P
-
Power Cord Length: 5 ft
-
Item Description: Packaged Terminal Air Conditioner
-
Cooling Square Feet: 650
-
BTU Cooling: 11,800
-
Average Coverage Area: 400 to 450 sq ft
-
Heating Capacity - Electric: 11,700/9600
-
Heating Capacity - Heat Pump: 11,700/9600
-
Outside Make-Up Air: Without
-
NEMA Plug Configuration - HVAC: LCDI, 6-20P
-
System Model#: PDE12K3SG
-
Electric Heat Capacity: 3.5 KW
-

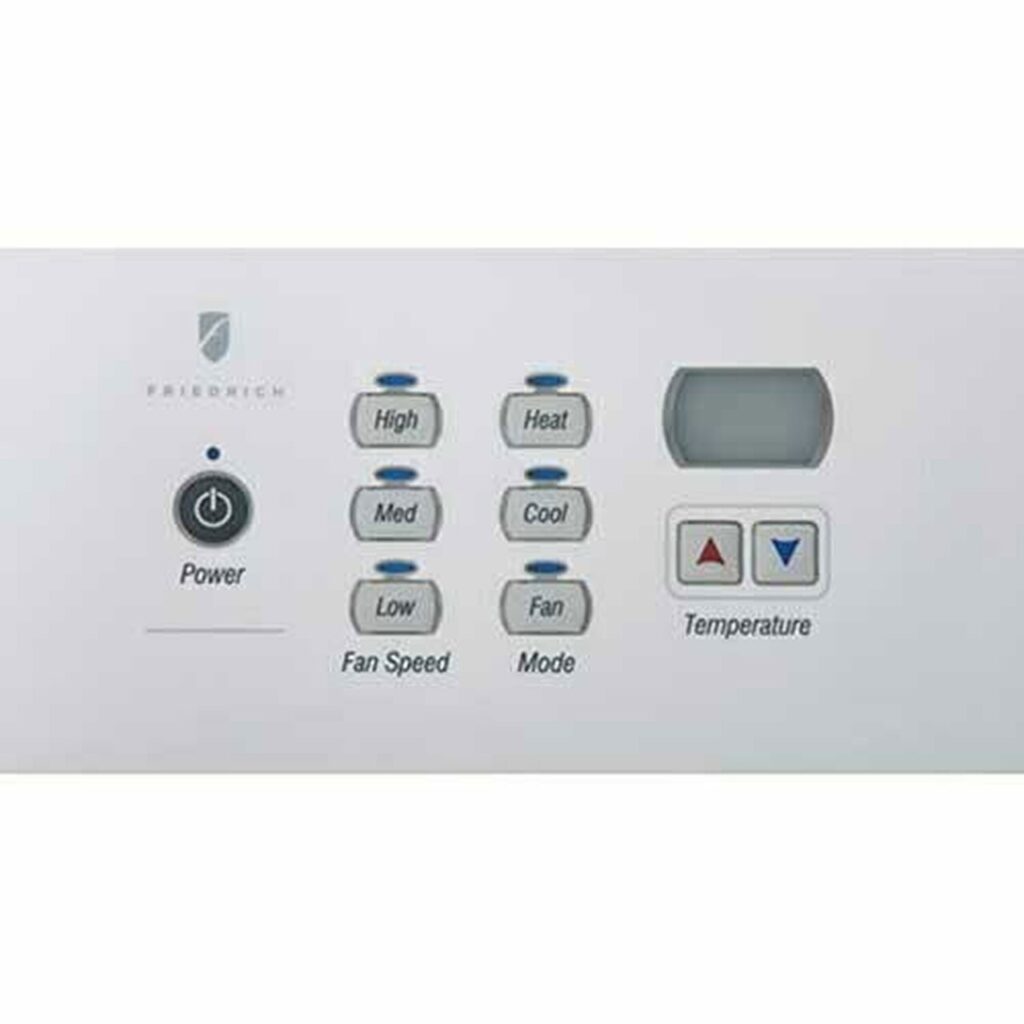

Control Type: Digital
-
Cooling Capacity (BTU/H): 11,800/11,600 BTU
-
Cooling Watts: 1015/1000 Watts
-
Moisture Removal: 2.7 Pints/Hr
-
Sensible Heat Ration: 0.75
-
Air Circulation: 300 CFM
-
Indoor CFM High: 400
-
Indoor CFM Low: 390
-
Vent CFM: 75
-
R-410A Charge: 36 oz.
-
Volt Range: 253-187
-
Current (Amps): 4.9/5.1
-
Power factor: 0.97
-
Compressor LRA: 21.5
-
Compressor RLA: 4.7
-
Outdoor Fan Motor, HP: 0.086
-
Reverse Heating Amps: 21.8/19.7|15.0/13.6|10.7/9.7
-
Reverse Heating Watts: 5000/2450/2450
-
Type: Cooling With Resistance Heat
-
Cooling BTU: 12000
-
Dehumidification (Pints/Hr): 2.7
-
Digital Controls: YES
-
Auto Restart: YES
-
Fan Modes: Constant/Cycle (Hi/Med/Auto)
-
Freeze Protection: YES
-
Front Desk Connection: YES
-
Modes: Heat/Cool/Heat-Pump
-
Sea Coast Protection: YES
-
Temprature Limiting: YES
-
Options: Base Model
-
Included Components: Assembly Guide
-
Item Package Quantity: 1
-
Control Method: Remote
-
Installation Type: Packaged
-
Compressor Type: Rotary Scroll
-
Power Source Type: Corded Electric
-
Material: Stainless Steel
-
Noise Level: 50.0
-
Power Supply: 20A
-
BtuH Cooling: 11,800/11,600
-
BtuH Heating: 11,700/9600
-
Min. Circuit Amps: 19
-
Smart Connectivity: No Connectivity
-
Seacoast Corrosion Protection: Front and Rear Coil
-
Remote Control Functions: No Remote Control Included
-
Fits Wall Sleeve Dimensions: 16" x 42" x 13-3/4"
-
Fits Wall Sleeve - H x W x D: 16 in x 42 in x 13-3/4 in
-
NEMA Plug Configuration - Air Conditioners and Heat Pumps: 6-20P
-
Voltage - Air Conditioners and Heat Pumps: 208/230VAC
-
EER - Air Conditioners and Heat Pumps: 11.6/11.6
-
Item - Air Conditioners and Heat Pumps: Packaged Terminal Air Conditioner
-
Country of Origin (subject to change): China
-
Requires: Wall Sleeve
-
Heating kW: 3.5
-
Watts Cooling: 1,120
-
Speeds: 3
-
Manufacturers Part Number: PDE12K3SG
-
Depth Inches: 21-1/2
-
Width Inches: 42
-
Height Inches: 16
-
Power Cord Length Feet: 5
-
Type 2: Cooling w/Electric Heat
