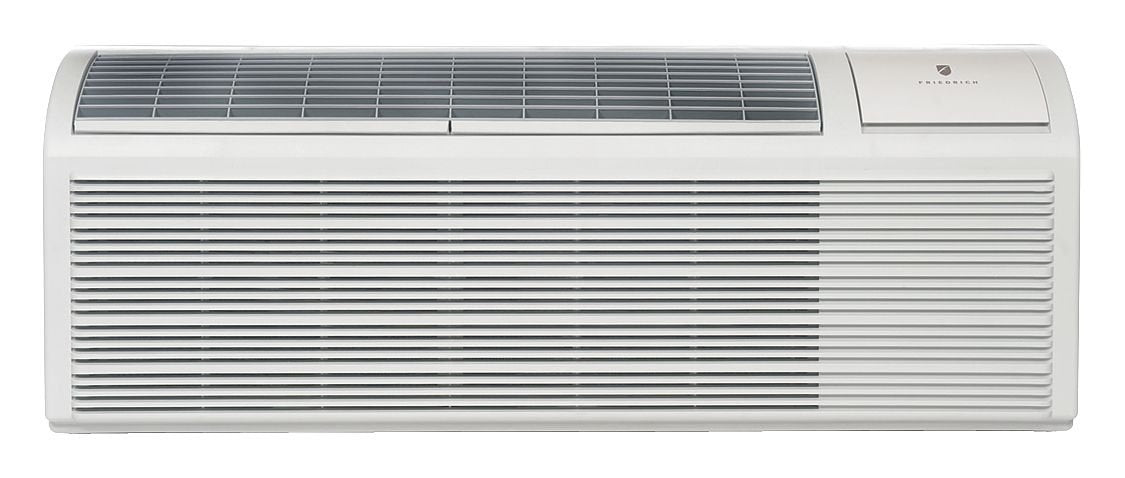

Friedrich PDE09R3SG PTAC Air Conditioner 9400 BtuH 265V

Product Description

The FRIEDRICH PDE09R3SG PTAC Air Conditioner features a 9400 BTU cooling capacity and 265V voltage. It efficiently cools and heats spaces ranging from 350 to 400 square feet. The unit offers app, remote, and touch control methods for user convenience. Designed with a tangential blower wheel and a modular component design for easy service.

• Offers both heating and cooling functions.
• Features app, remote, and touch control.
• Equipped with a tangential blower wheel for efficient airflow.

Product Highlights

This PTAC air conditioner provides efficient cooling and heating with user-friendly controls and a design focused on easy maintenance.

Product Information

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: PDE09R3SG
• Country of Origin: China

Technical Specifications

• Color: Gray
• Voltage: 265V AC
• Floor Area: 400 Square Feet
• Refrigerant: R410A
• Cooling Power: 9400 British Thermal Units
• Control Method: App, Remote, Touch
• Special Feature: Heating,Cooling
• Cooling Capacity: 9400 BtuH
• Heating Method: Electric Heat
• Heating Capacity - Electric: 11,700 BtuH
• Heating Capacity - Heat Pump: 11,700 BtuH
• Average Coverage Area: 350 to 400 sq ft
• EER: 12.1
• Amps: 3.3
• Phase: 1
• Frequency: 60 Hz
• NEMA Plug Configuration - HVAC LCDI: 7-20P
• Power Cord Length: 1.5 ft
• Hz: 60
• Item: Packaged Terminal Air Conditioner
• Includes: Chassis, Front Panel, Installation Instructions
• Requires: Wall Sleeve
• Heating kW: 3.5
• BtuH Cooling: 9400
• BtuH Heating: 11,700
• Power Supply: 20A
• Refrigerant Type: R-410A
• Min. Circuit Amps: 17.0
• Smart Connectivity: No Connectivity
• Seacoast Protection: Yes
• Operation Mode - HVAC: Cooling/Heating
• Programming Capability: Not Programmable
• NEMA Plug Configuration: 7-20P
• Fits Wall Sleeve Dimensions: 16" x 42" x 13-3/4"
• Fits Wall Sleeve - H x W x D: 16 in x 42 in x 13-3/4 in
• Seacoast Corrosion Protection: Front and Rear Coil
• EER - Air Conditioners and Heat Pumps: 12.1
• Item - Air Conditioners and Heat Pumps: Packaged Terminal Air Conditioner
• Voltage - Air Conditioners and Heat Pumps: 265VAC
• NEMA Plug Configuration - Air Conditioners and Heat Pumps: 7-20P
• System Model#: PDE09R3SG
• Cooling Capacity (BTU): 9,400 BTU
• Electric Heat Capacity: 3.5 KW
• Control Type: Digital
• Cooling Capacity (BTU/H): 9,400 BTU
• Cooling Watts: 775 Watts
• Moisture Removal: 2.1 Pints/Hr
• Sensible Heat Ration: 0.85
• Air Circulation: 300 CFM
• Indoor CFM High: 355
• Indoor CFM Low: n/a
• Vent CFM: 75
• R-410A Charge: 24 oz
• Voltage (1 PHASE, 60 Hz): 265
• Volt Range: 292-239
• Current (Amps): 3.3
• Power factor: 0.97
• Compressor LRA: 13.5
• Compressor RLA: 3.0
• Outdoor Fan Motor, HP: 0.080
• Reverse Heating Amps: 18.9|13.1|9.3
• Reverse Heating Watts: 5000/3450/2450
• Width (in.): 42
• Depth (in.): 21.5
• Height (in.): 16
• Wattage: 775
• Collection: ZoneAire® Premier
• Color Finish Name: White
• Air Conditioner Type: Through-the-Wall
• Maximum CFM: 355
• BTU Cooling Rating: 9400
• Recommended Room Size: 400
• Shipping Depth (in.): 25.25
• Shipping Width (in.): 45
• Shipping Height (in.): 17.88
• Ac Room Size: Medium Room ACs (300-600 SQ FT)
• Air Conditioner Features: Dehumidifier
• Moisture Removal Capacity Pints Per Day: 50.4
• Air Filter Features: Removable, Washable
• Heater Included: Yes
