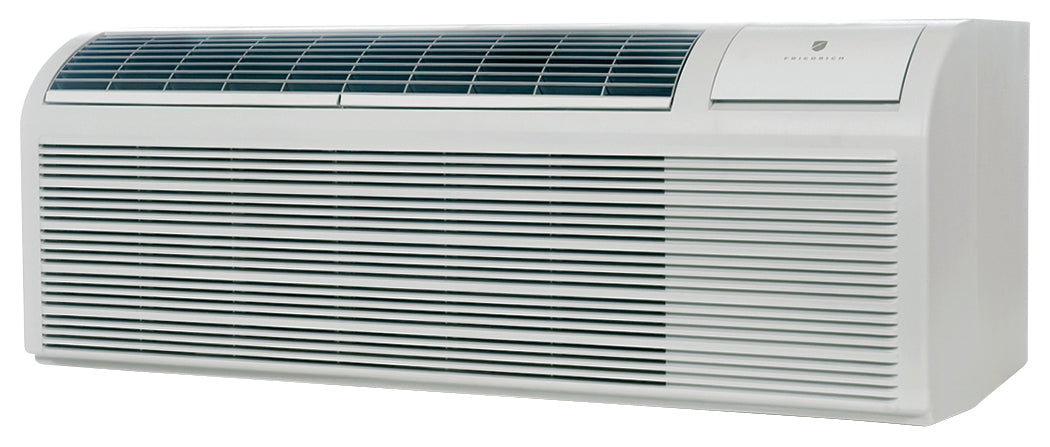

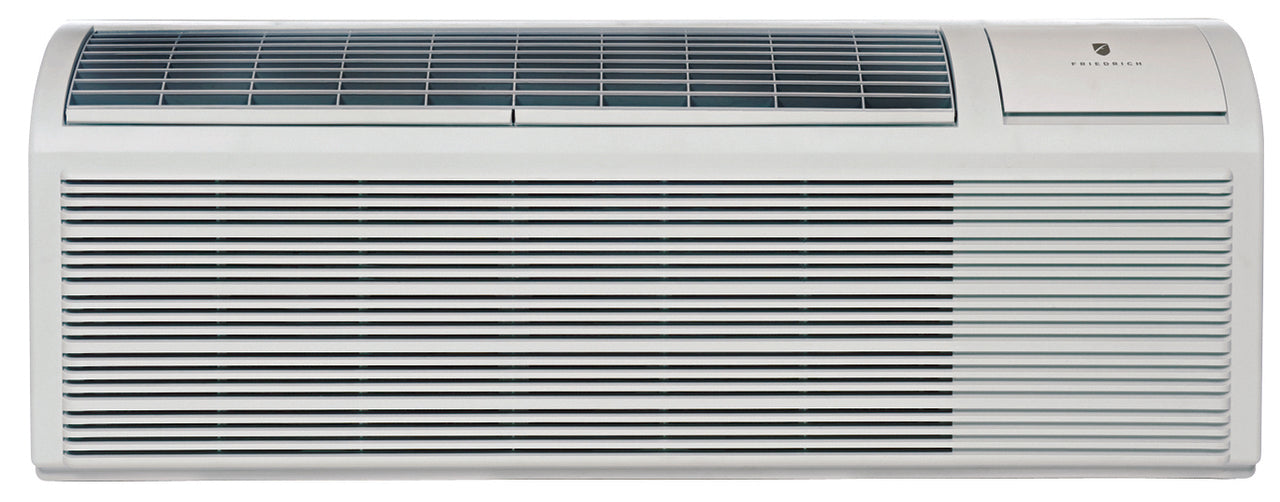

Friedrich PDE09K3SGR3 9000 BTU Class, 12.5 EER PTAC Air Conditioner - 20 Amp - 230 Volt - R32 Refrigerant

Product Description

The Friedrich PDE09K3SGR3 is a super quiet and efficient PTAC air conditioner suitable for commercial and residential use. This 9,900 / 10,200 BTU unit features electric resistive heat, an EER of 12.5, and uses R32 refrigerant. It operates on 208 / 230V electricity and includes a 2-speed fan with a constant fan mode for white noise. The unit ships with a 20 Amp cord providing 3.6 kW of electric heat.

• Includes R32 refrigerant, up to 12% more efficient than R410A
• Features two separate motors and a tangential blower wheel for efficiency
• Equipped with a digital control pad, internal diagnostics, and easy-access filters

Product Highlights

Efficient PTAC unit with R32 refrigerant, quiet operation, and user-friendly design for easy maintenance.

Product Information

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: PDE09K3SGR3

Technical Specifications

• Type of Through-the-Wall: 42" PTAC
• Sleeve Required for Install: Yes
• Fits Sleeve Size (in.): 42
• Refrigerant Type: R32
• Compressor: Standard
• Energy Star: No
• Dehumidification (pts/hr): 2.11
• CFMs: 282 / 330 (L / H)
• Includes Heat Mode: Yes
• Heat Type: Electric Resistance Only
• Cooling BTUs (@208V): 9900
• EER (@208V): 12.5
• Cooling Amps (@208V): 3.9
• Cooling Watts (@208V): 790
• Electric Heat Strip Size (kW @208V): 3.6
• Electric Heating BTUs (@208V): 12284
• Electric Heating Amps (@208V): 17.3
• Electric Heating Watts (@208V): 3600
• Cooling BTUs (@230V): 10200
• EER (@230V): 12.5
• Cooling Amps (@230V): 3.6
• Cooling Watts (@230V): 810
• Electric Heat Strip Size (kW - @230V): 3.6
• Electric Heating BTUs (@230V): 12284
• Electric Heating Amps (@230V): 15.7
• Electric Heating Watts (@230V): 3600
• Vent Location: Front Top
• Make-Up Air: No
• Energy Saver Mode: No
• Fan Speeds: 2
• Control Type: Electronic/Digital
• Filter Access: Top Lift Out
• Connectivity: Not WiFi Compatible
• 24 Hour ON/OFF Timer: No
• Remote Control: No
• Fresh Air Intake: Yes
• Sleep Mode: No
• Net Weight (lbs.): 110.25
• Certifications: ULCDTP, UL, AHRI
• Voltage: 208-230V
• Plug Face (NEMA): 6-20P
• Circuit Breaker Size (Amps): 20
• Cord Length: 67"
