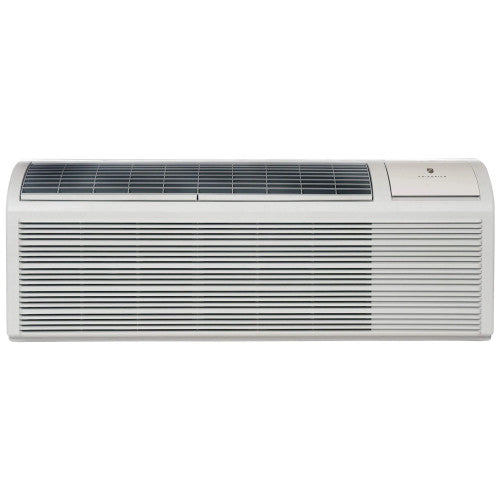

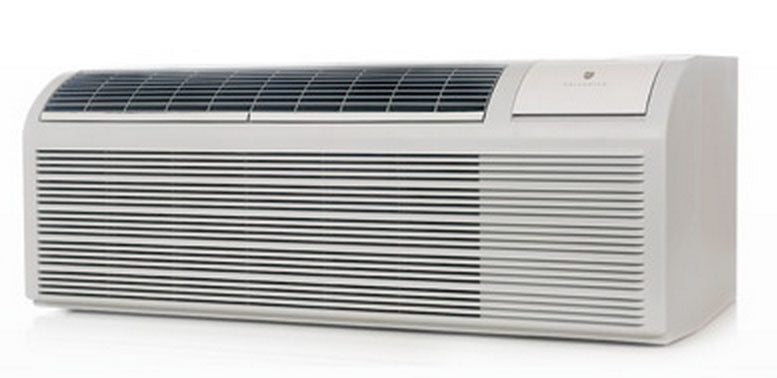

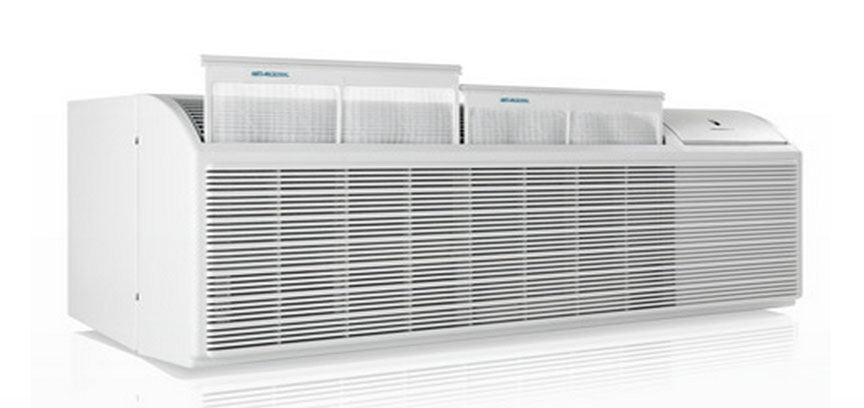

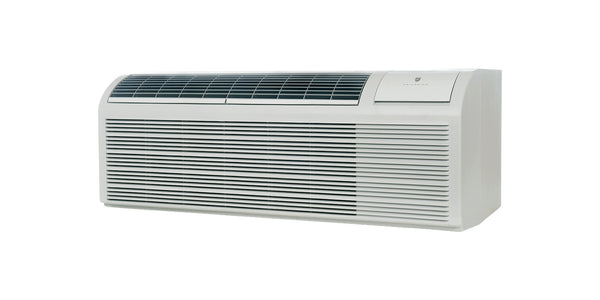

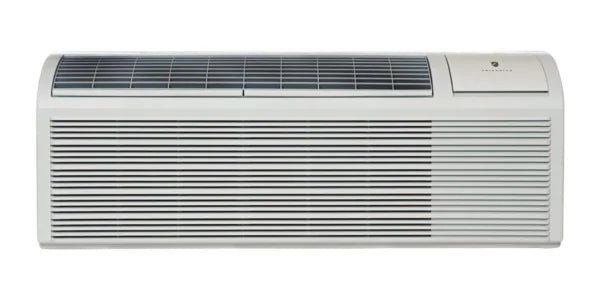

Friedrich PDE07R3SGR3 7,000 BTU PTAC Unit 265/277 Volts - 20 Amp - Electric Heat - Digital Control

Product Description

The Friedrich PDE07R3SGR3 is a 7,000 BTU PTAC air conditioner designed to maintain guest comfort year-round. This PTAC unit features high-quality construction and customizable settings. It operates on 265/277 Volts and 20 Amps and is equipped with digital temperature control for easy adjustment to preferred comfort levels.

• 7,000 BTU PTAC Unit
• Operates on 265/277 Volts, 20 Amp
• Features Digital Controls and Electric Heat

Product Highlights

This Friedrich PTAC unit provides efficient cooling and heating with user-friendly digital controls, ensuring a comfortable environment.

Product Information

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: PDE07R3SGR3

Technical Specifications

• Air Conditioner Type: PTAC
• Manufacturer: Friedrich
• Manufacturer Sku: PDE07R3SGR3
• Condition: New
• Cooling BTU: 7,000 BTU
• Input Voltage: 265/277V
• Machine Amps: 20 amp
• Circuit Breaker Size (Amps): 20
• Cord Included: Yes
• Plug Type: NEMA 7-20
• Controls: Electronic
• Digital Controls: YES
• Heat: Electric Heat
• Heater Size (KW): 3.5 KW
• Fits Standard 42" x 16" Sleeve: Yes
• Product Length: 42
• Product Width: 20.5
• Product Height: 16
• Energy Star Certified: No
• Refrigerant Type: R-32
• Refrigerant: R32A
• Wi-Fi Compatible: No
• Remote Control: No
• Automatic Restart: Yes
• Seacoast Protection: Yes
• Freeze Protection: Yes
• Number of Fan Motors: 2
• Fan Speeds: 2
• ADA Compliant: No
• Energy Efficiency Rating (EER): 13.3
• Maximum Cooling Watts: 2198
• Maximum Cooling Amps: 2.1
• Actual Cooling BTUs @ 265V: 7500
• CFM (Cool/Wet Coil) - High: 312
• Type: Cooling With Resistance Heat
• Dehumidification (Pints/Hr): 1.7
• Fan Modes: Constant/Cycle (Hi/Med/Auto)
• Compressor: Standard
• Dehumidification (pts/hr): 1.7
• CFMs: 283 / 312 (L / H)
• Includes Heat Mode: Yes
• Heat Type: Electric Resistance Only
• Cooling Amps (@265V): 2.1
• Cooling Watts (@265V): 560
• Electric Heat Strip Size (kW - @265V): 3.6
• Electric Heating BTUs (@265V): 12284
• Electric Heating Amps (@265V): 13.6
• Electric Heating Watts (@265V): 3600
• Vent Location: Front Top
• Make-Up Air: No
• Energy Saver Mode: No
• Control Type: Electronic/Digital
• Filter Access: Top Lift Out
• Connectivity: Not WiFi Compatible
• 24 Hour ON/OFF Timer: No
• Fresh Air Intake: Yes
• Sleep Mode: No
• Certifications: ULCDTP, UL, AHRI
• Plug Face (NEMA): 7-20P
• Cord Length: 27.5"
• Model Type: Cool with Electric Heat
• Model Function: Single-speed
• Heating BTU Range: 8,300-17,000
• Reverse Cycle BTU: N/A
