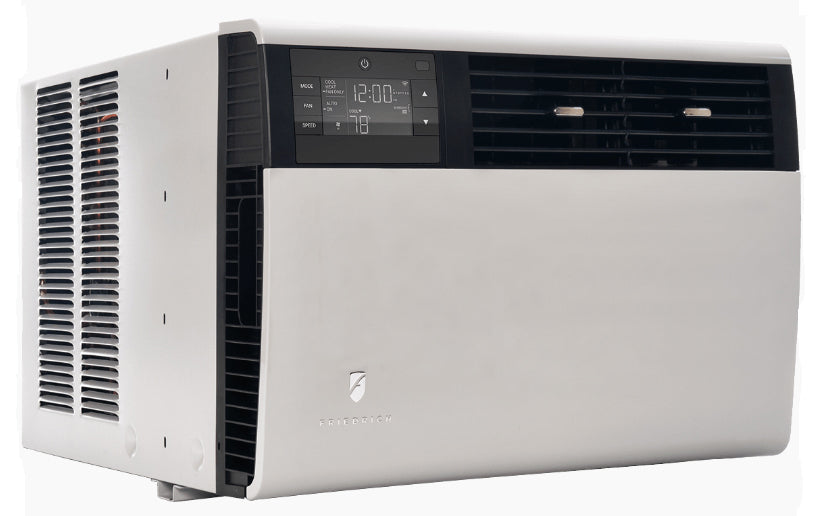

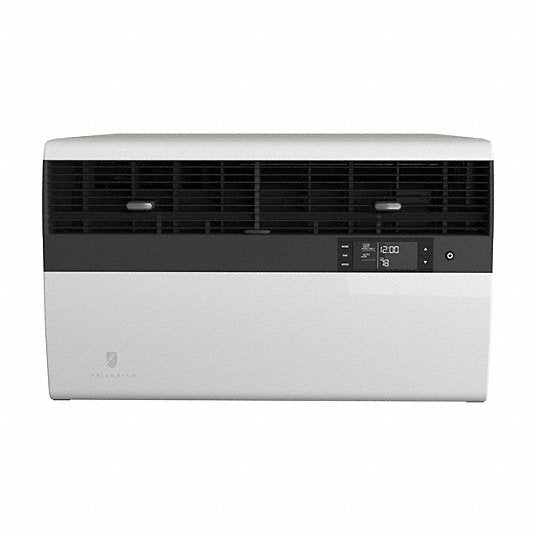

Friedrich KHVS10B11A Kuhl+ Series Cooling with Heat Pump Smart Window Air Conditioner 10000 BTU

Product Description

The Friedrich KHVS10B11A Kuhl+ Series air conditioner features commercial-grade quality and construction. With Precision Inverter Technology, the compressor adjusts to your room's needs, saving up to 35% on energy costs. This unit includes integrated WiFi, compatible with smartphones, Amazon Alexa, and Google Home. Constructed of high-quality materials, Kuhl delivers dependable operation in harsh environments and plugs into any standard 115 volt outlet.

• Features R32 Refrigerant and Precision Inverter Technology.
• Offers cooling, heat pump operation, and back-up electric heat.
• Control with FriedrichLink app or voice command and customizable 7-day schedules.

Product Highlights

The Friedrich KHVS10B11A is a smart, efficient, and durable window air conditioner with cooling and heating capabilities, perfect for maintaining comfort in any room.

Product Information

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: KHVS10B11A
• Country of Origin: Mexico

Technical Specifications

• Installation Type: Window
• Chassis Type: Slide-Out (Window/Wall)
• Window Type: Standard
• Window Mounting Kit Included: Yes
• Refrigerant Type: R-32
• Compressor Technology: Variable Output (Inverter)
• Energy Star: Yes
• Dehumidification (pts/hr): 3.3
• Airflow: 300 cfm
• Includes Heat Mode: Yes
• Heat Type: Heat Pump with Back-Up Electric
• Cooling BTUs (@115V): 10000
• EER (@115V): 11.2
• CEER (@115V): 14.0
• Cooling Amps (@115V): 10.2
• Cooling Watts (@115V): 501
• Electric Heat Strip Size (kW) (@115V): 1.1
• Electric Heating BTUs (@115V): 4000
• Electric Heating Watts (@115V): 1100
• Heat Pump BTUs (@115V): 8700
• COP (@115V): 3.0
• Heat Pump Heating Amps (@115V): 11.2
• Heat Pump Heating Watts (@115V): 895
• Vent Location: Front Top
• Make-Up Air: No
• Energy Saver Mode: Yes
• Fan Speeds: 3
• Control Type: Electronic/Digital
• Filter Access: Hinged door for easy maintenance
• Connectivity: Built-In WiFi
• 24 Hour ON/OFF Timer: Yes
• Remote Control: Yes
• Fresh Air Intake: No
• Sleep Mode: No
• Width (in.): 25.938
• Depth (in.): 29
• Height (in.): 15.938
• Window Width (Min.)(in.): 27.375
• Window Width (Max.)(in.): 42
• In-Wall Installation Height (in.): 15.938
• In-Wall Installation Width (in.): 26.188
• Weight (lbs.): 105
• Certifications: AHAM, UL, CUL
• Voltage: 110-120V
• Plug Face (NEMA): 5-15P
• Circuit Breaker Size (Amps): 15
• Cord Length: 6'
• Air Filtration: Air Filtering
• Airflow Direction: Eight-Way
• Airflow Type: Oscillating
• Minimum Average Coverage Area: 400 sq ft
• Maximum Average Coverage Area: 450 sq ft
• Compatible Apps: FriedrichLink
• Minimum Cooling Capacity: 5000 BtuH
• Maximum Cooling Capacity: 10000 BtuH
• Current - Heating: 11.2 A
• Maximum Electric Heating Capacity: 4000 BtuH
• Energy Efficiency Ratio (EER) Rating: 11.2
• Maximum Heat Pump Heating Capacity: 8700 BtuH
• Heating Method: Heat Pump/Electric
• Includes Air Filter: Air Filter Included
• NEMA Plug Configuration: 5-15P
• Number of Speeds: Variable
• Operation Mode: Cooling/Heating
• Power Cord Length: 6 ft
• Power Source: Plug-In
• Remote Control Functions: On/Off; Temperature
• Smart Connectivity: Wi-Fi
• Current - Cooling: 10.2 A
• Duty Rating: Commercial Grade
• For Window Width - Minimum: 27.375 in
• For Window Width - Maximum: 42 in
• Wattage - Cooling: 501 W
• Wattage - Heating: 895 W
• Overall Height: 15.9375 in
• Overall Width: 25.9375 in
• Overall Depth: 29 in
• Cooling Capacity (Btu/hr): 10200
• Installation Mounting Type: Does Not Straddle Window or Windowsill
• Support Bracket: Yes
• Variable Speed Compressor: Yes
• Annual Energy Use (kWh/yr): 546.4
• Percent Less Energy Use than US Federal Standard: 43
• Connected Capable: No
