Product Description

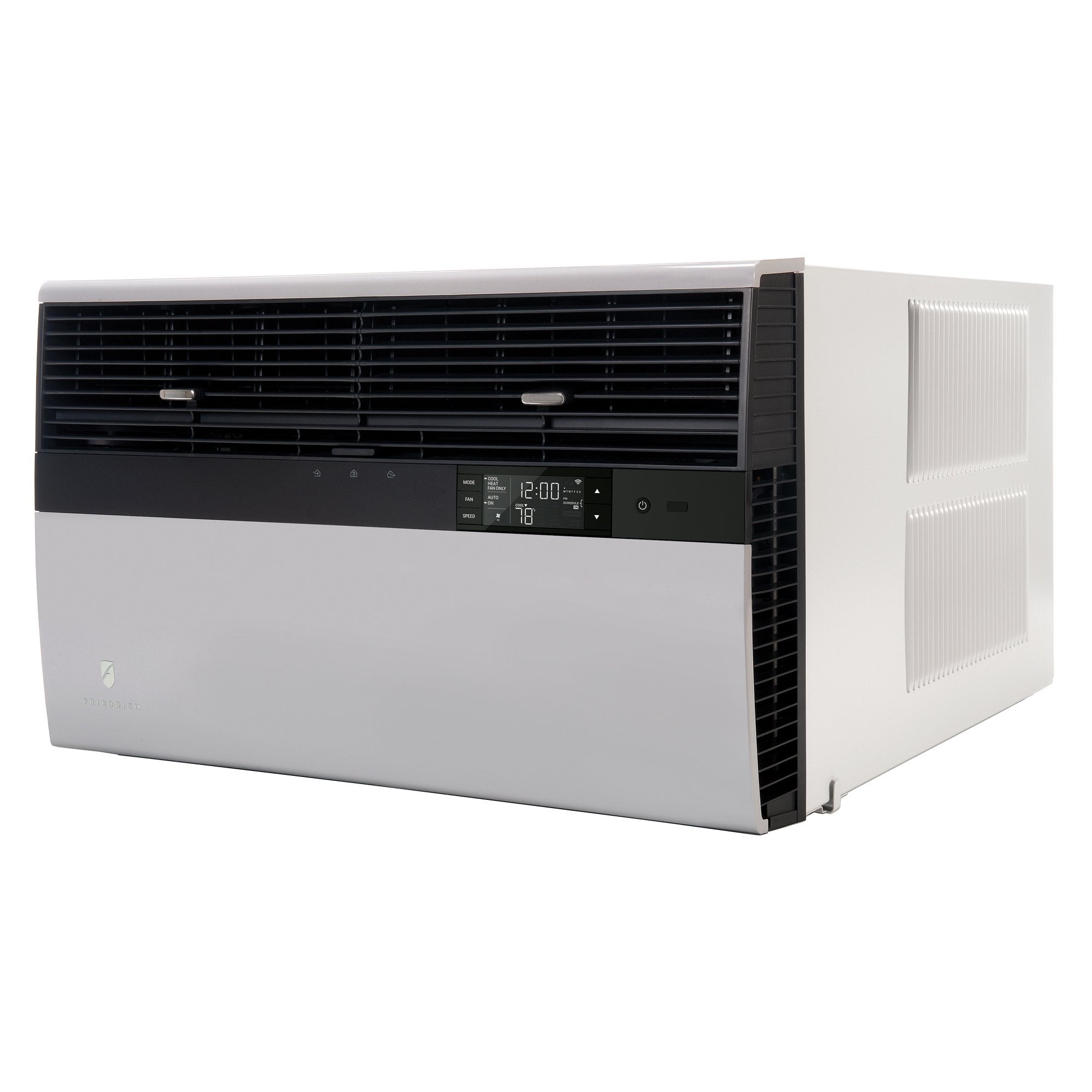

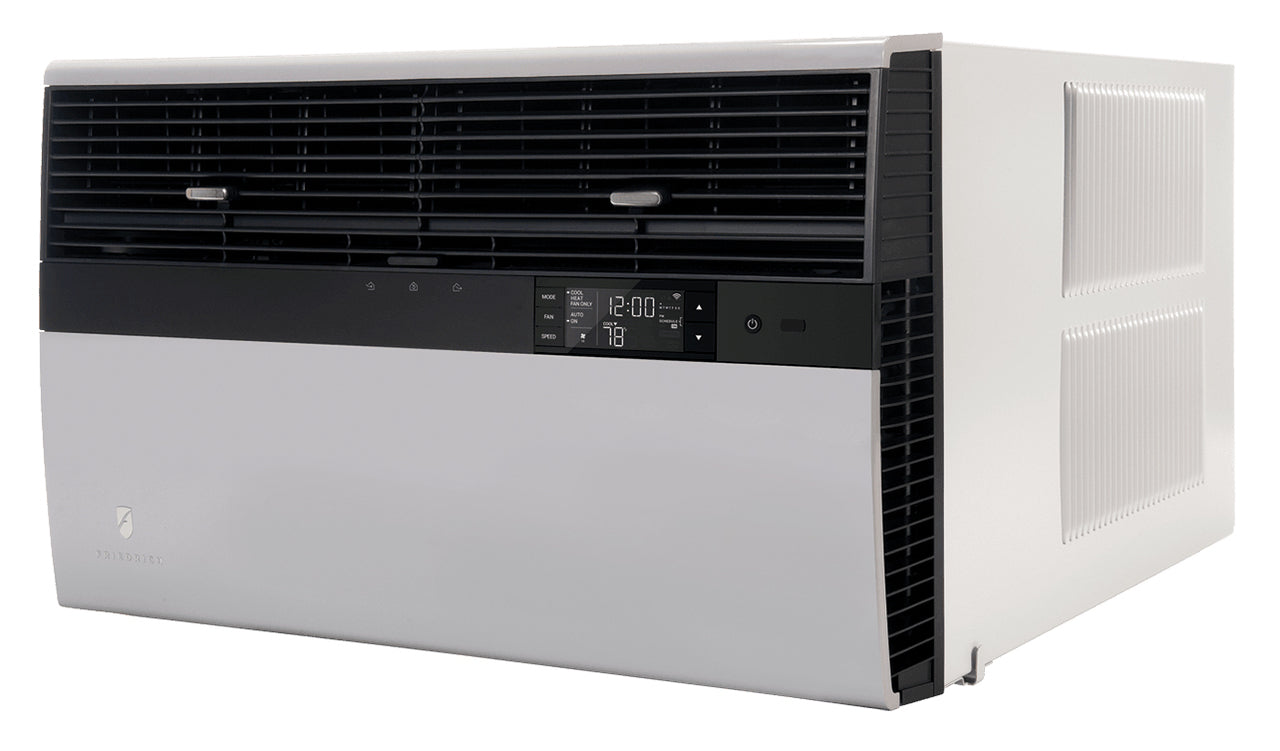

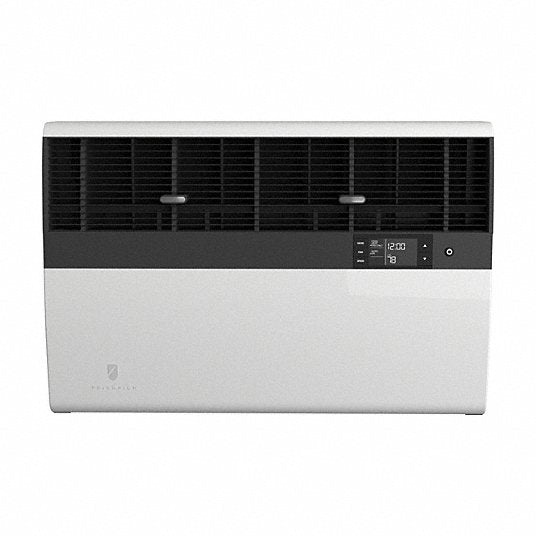

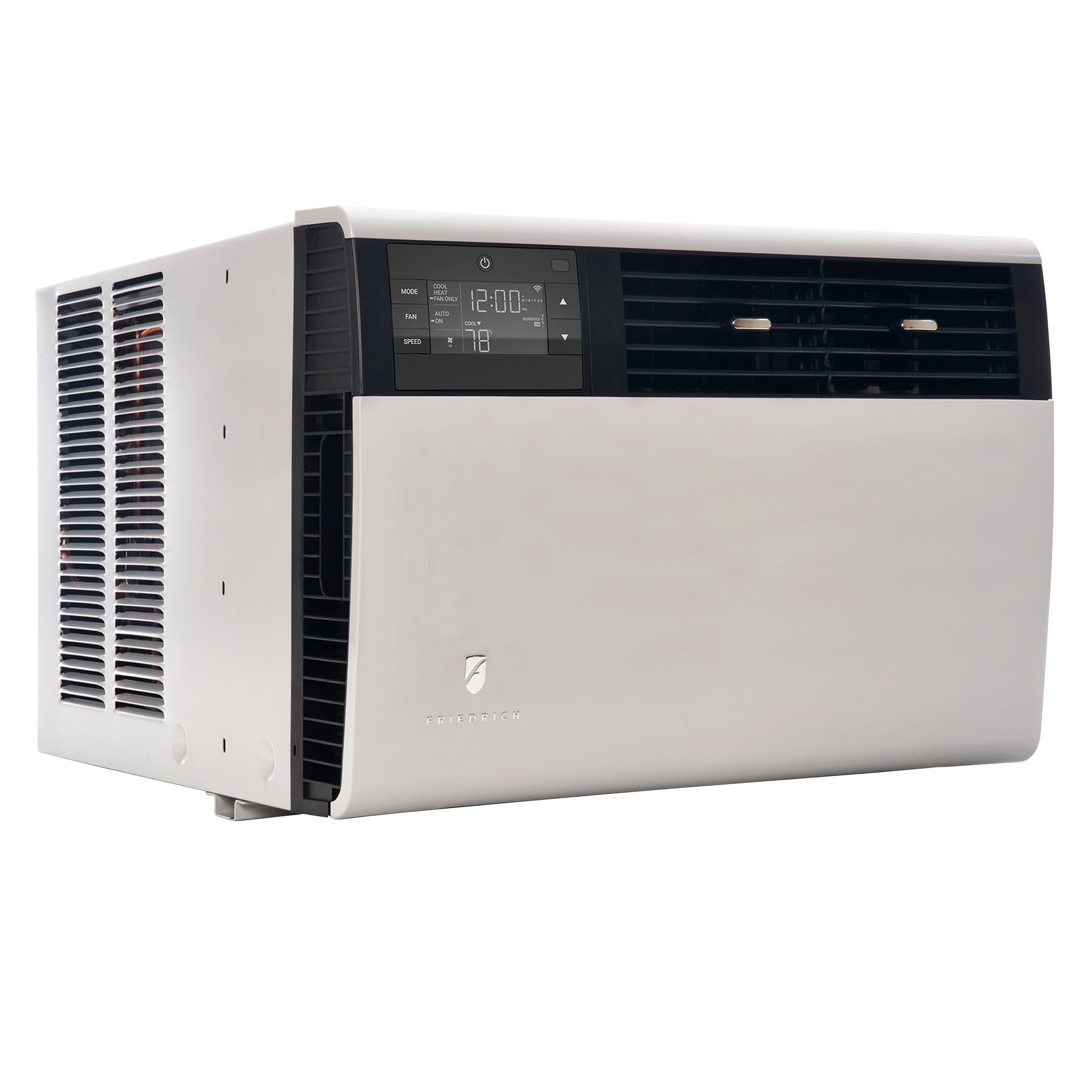

The Friedrich KHVL28B35A is a Kuhl+ Series smart window air conditioner with heat pump and precision inverter technology. This unit features commercial-grade quality and construction. Integrated WiFi works with your smartphone, Amazon Alexa, and Google Home. Constructed of high-quality materials, Kuhl delivers dependable operation. The Friedrich KHVL28B35A will plug into a 230 volt outlet.
- R32 Refrigerant
- Precision Inverter Technology
- Cooling, Heat Pump, Back-Up Electric Heat
Product Highlights
This Friedrich Kuhl Series air conditioner features cooling, heat pump operation, and backup electric heat. It connects in minutes with the FriedrichLink App.
Product Information
Standard Information
-
Brand: FRIEDRICH
-
Manufacturer Part Number: KHVL28B35A
-
Country of Origin: Mexico
Technical Specifications
-
Installation Type: Window
-
Chassis Type: Slide-Out (Window/Wall)
-
Window Type: Standard
-
Window Mounting Kit Included: Yes
-
Refrigerant Type: R-32
-
Compressor: Inverter
-
Energy Star: Yes
-
Dehumidification (pts/hr): 11.2
-
CFMs: 600
-
Includes Heat Mode: Yes
-
Heat Type: Heat Pump with Back-Up Electric
-
Cooling BTUs (@230V): 28200
-
EER2 (@230V): 10.1
-
CEER (@230V): 12.6
-
Cooling Amps (@230V): 15.5
-
Cooling Watts (@230V): 1566
-
Electric Heat Strip Size (kW - @230V): 5.0
-
Electric Heating BTUs (@230V): 17300
-
Electric Heating Amps (@230V): TBD
-
Electric Heating Watts (@230V): 5000
-
Heat Pump BTUs (@230V): 21700
-
COP (@230V): 3.0
-
Heat Pump Heating Amps (@230V): 11.5
-
Heat Pump Heating Watts (@230V): 2137
-
Vent Location: Front Top
-
Make-Up Air: No
-
Energy Saver Mode: Yes
-
Fan Speeds: 3
-
Control Type: Electronic/Digital
-
Filter Access: Hinged door for easy maintenance
-
Connectivity: Built-In WiFi
-
24 Hour ON/OFF Timer: Yes
-
Remote Control: Yes
-
Fresh Air Intake: Yes
-
Sleep Mode: No
-
Width (in.): 28
-
Depth (in.): 35.5
-
Height (in.): 20.188
-
Window Width (Min.)(in.): 29.875
-
Window Width (Max.)(in.): 42
-
In-Wall Installation Height (in.): 20.375
-
In-Wall Installation Width (in.): 28.25
-
Voltage: 208-230V
-
Plug Face (NEMA): 6-30P
-
Circuit Breaker Size (Amps): 30
-
Cord Length: 6'
-
Air Filter Performance Rating: MERV
-
Air Filtration: Air Filtering
-
Airflow: 600 cfm
-
Airflow Direction: Eight-Way
-
Airflow Type: Oscillating
-
Compatible Apps: FriedrichLink
-
Compressor Technology: Variable Output (Inverter)
-
Control Location: App
-
Minimum Cooling Capacity: 14,000 BtuH
-
Maximum Cooling Capacity: 28,000 BtuH
-
Current - Heating: 11.5 A
-
Maximum Electric Heating Capacity: 17,300 BtuH
-
Energy Efficiency Ratio (EER) Rating: 10.0
-
Maximum Heat Pump Heating Capacity: 21,000 BtuH
-
Heating Method: Heat Pump/Electric Heat
-
Includes Air Filter: Air Filter Included
-
NEMA Plug Configuration: 6-30P
-
Number of Speeds: Variable
-
Operation Mode: Cooling/Heating
-
Power Cord Length: 6 ft
-
Power Source: Plug-In
-
Remote Control Functions: On/Off; Temperature
-
Smart Connectivity: Wi-Fi
-
Current - Cooling: 15.5 A
-
Duty Rating: Commercial Grade
-
For Window Width - Minimum: 29-7/8 in
-
For Window Width - Maximum: 42 in
-
Wattage - Cooling: 1,566 W
-
Wattage - Heating: 2,137 W
-
Overall Height: 20-3/16 in
-
Overall Width: 28 in
-
Overall Depth: 35-1/2 in
-
Annual Energy Use (kWh/yr): 1678.6
-
Combined Energy Efficiency Ratio (CEER): 12.6
-
Percent Less Energy Use than US Federal Standard: 35
-
Heating Mode: Yes
-
ENERGY STAR Certified: Yes
