Friedrich KEVS16B33A Kuhl 16200 Btu Smart Window Ac 230V

Product Description

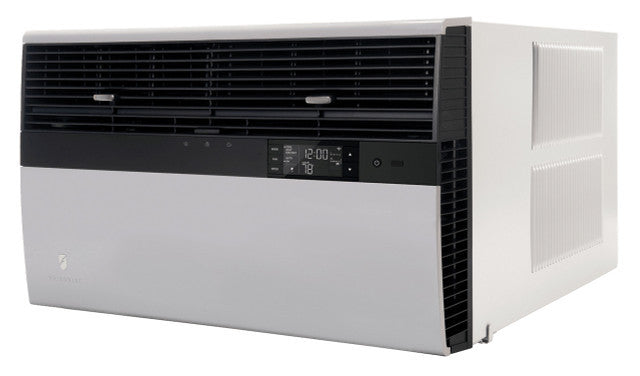

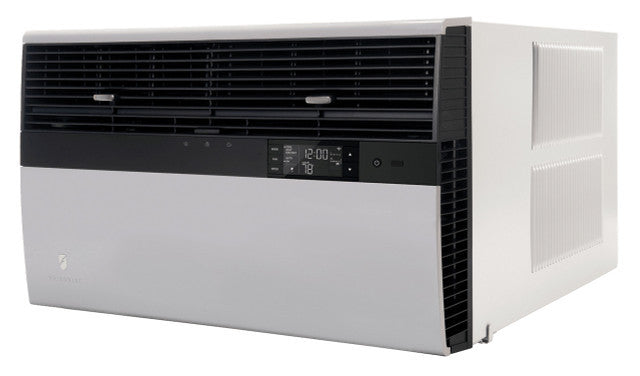

The FRIEDRICH KEVS16B33A is a 16,200 BTU smart room air conditioner from the Kuhl Series, designed for window or through-the-wall installation in large rooms from 550 to 700 square feet. It runs on 230 volts and uses a Precision Inverter compressor that adjusts speed continuously to match the load, delivering an EER2 of 10.6 and a CEER of 14.4. R32 refrigerant is used in place of R410A for a lower Global Warming Potential. An integrated 3.5 kW electric resistance heat strip provides 10,700 BTU/h of supplemental heat. Licensed HVAC technicians and experienced installers handle this unit in both residential and light commercial settings.

This unit fits standard double-hung windows with opening widths from 27.375 inches to 42 inches. It can also be installed through a wall using a finished rough opening of 15.938 inches high by 26.188 inches wide with a maximum wall depth of 7.375 inches. The slide-out chassis simplifies sleeve-based in-wall installations. A window mounting kit with heavy-duty side curtains is included. The unit replaces the KES16A33A and KES12A33A Kuhl models. Cooling operates across outdoor ambient temperatures of 60 degrees F to 115 degrees F. Controls are managed via the FriedrichLink app, a remote control, or voice commands through Amazon Alexa and Google Home integration.

Key Features

• Precision Inverter compressor runs variable speed from 7,750 BTU/h minimum to 16,200 BTU/h maximum cooling output, reducing cycling wear and improving efficiency
• Built-in WiFi with FriedrichLink app supports 7-day custom scheduling, multi-unit grouping, and remote on/off and setpoint control
• Electric resistance heat strip rated at 3.5 kW (10,700 BTU/h) for year-round operation without a separate heat source
• R32 refrigerant with lower Global Warming Potential than R410A
• Dehumidification capacity of 6.0 pints per hour at 230 volts
• FreshAire IAQ-ready port accepts an optional MERV 13 filter capturing particles down to 1 micron
• Corrosion-resistant aluminum fins and fully enclosed fan motor for durability in harsh environments

Compatibility

Designed as a direct replacement for the KES16A33A and KES12A33A Friedrich Kuhl units. Uses the Friedrich small chassis for window or through-the-wall applications requiring a finished in-wall opening of 15.938 inches high by 26.188 inches wide.

Installation Notes

Installation should be performed by a qualified HVAC technician or electrician familiar with 230-volt dedicated-circuit requirements per NEC guidelines. Disconnect and lock out power at the panel before servicing or removing the unit from its sleeve. The slide-out chassis must be fully seated and secured before restoring power. In-wall installations require a structurally sound sleeve and support bracket rated for the 110-pound unit weight.

Technical Specifications

• Cooling Capacity: 16,200 BTU/h at 230 volts
• Minimum Cooling Output: 7,750 BTU/h
• Electric Heat Output: 10,700 BTU/h (3.5 kW)
• EER2: 10.6
• CEER: 14.4
• Voltage: 230 volts
• Cooling Amps: 8.6 amps
• Cooling Watts: 833 watts
• Electric Heating Amps: 16.0 amps
• Electric Heating Watts: 3,500 watts
• Refrigerant Type: R32
• Compressor Type: Inverter
• Dehumidification: 6.0 pints per hour
• Airflow (CFM): 350 CFM
• Fan Speeds: 4
• Connectivity: Built-in WiFi
• Installation Type: Window or Through-the-Wall
• Chassis Type: Slide-Out
• Window Width (Min.): 27.375 inches
• Window Width (Max.): 42 inches
• Unit Width: 25.938 inches
• Unit Depth: 29 inches
• Unit Height: 15.938 inches
• In-Wall Opening Width: 26.188 inches
• In-Wall Opening Height: 15.938 inches
• Weight: 110 pounds
• Certifications: AHAM, UL, CUL

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: KEVS16B33A
