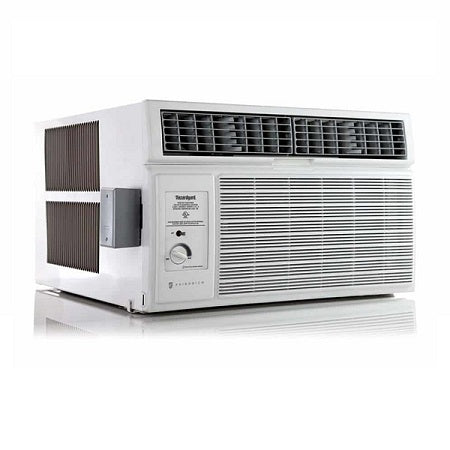

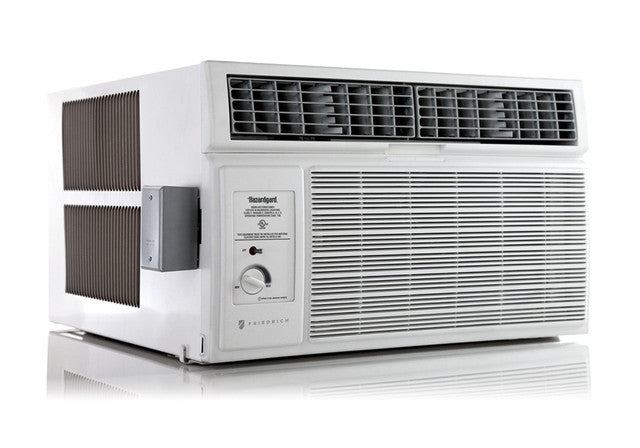

Friedrich HCM20A50A Hazardgard Series Air Conditioner 21000 BTU 50 HERTZ

Product Description

The Friedrich HCM20A50A Hazardgard series air conditioner is designed for use in areas with flammable liquids, gasses, or toxic chemicals. This 50Hz model has a T4 Temperature Rating and can operate in low ambient conditions as low as 45°F / 7°C without freezing, and tolerate outdoor temperatures up to 130°F / 55°C. The surface temperature will not rise above 275°F (135°C).

• Designed for use in areas where flammable liquids, gasses, or toxic chemicals are present.
• Operates in low ambient conditions as low as 45°F / 7°C without freezing, and tolerates outdoor temperatures up to 130°F / 55°C.
• Features Diamonblue Advanced Corrosion Protection on 100% of metallic surfaces.

Product Highlights

The Friedrich Hazardgard endures tough conditions, trusted by professionals in oil companies, military bases, and government offices. It features direct wire connection and a hermetically sealed refrigeration system.

Product Information

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: HCM20A50A

Technical Specifications

• Installation Type: Window
• Chassis Type: Slide-Out (Window/Wall)
• Window Type: Standard
• Window Mounting Kit Included: No
• Refrigerant Type: R32
• Compressor: Standard
• Energy Star: No
• CFMs: 425
• Includes Heat Mode: No
• Cooling BTUs (@240V): 21000
• EER (@240V): 9.5
• Dehumidification (pts/hr) (@240V): 7.5
• Cooling Amps (@240V): 10.3
• Cooling Watts (@240V): 6150
• Vent Location: Top Front
• Make-Up Air: No
• Energy Saver Mode: No
• Fan Speeds: Variable
• Control Type: Rotary
• Filter Access: Hinged door for easy maintenance
• Connectivity: Not WiFi Compatible
• 24 Hour ON/OFF Timer: No
• Remote Control: No
• Fresh Air Intake: No
• Sleep Mode: No
• Width (in.): 25.938
• Depth (in.): 27.375
• Height (in.): 17.938
• Window Width (Min.)(in.): 27.875
• Window Width (Max.)(in.): 42
• Voltage: 220-240V
• Plug Face (NEMA): Hardwire
• Circuit Breaker Size (Amps): 25
• Item Type: Hazardous Location Air Conditioner
• Cooling BTU: 21000
• Temp. Classification: T4
• Cooling Capacity BTU: 19,500/19,100
• Cooling Current (Amps): 9.8/10.3
• Cooling Power (Watts): 2,167/2,156
• EER Rating: 9.0/9.0
• Moisture Removal (Pints/Hour): 5.60
• Heating Capacity BTU: N/A
• Heating Current (Amps): N/A
• Heating Power (Watts): N/A
• Heat Pump Capacity BTU: N/A
• Heat Pump Amps: N/A
• Heat Pump Watts: N/A
• COP: N/A
• Air Flow CFM (H/M/L): 425
• Agency Compliance: UL Listed For Use in Class I, Division 2, Groups A, B, C and D
• NEMA Plug Configuration: 250V-15A, 50Hz
• Power Cord Length: 4'
• Minimum Extension in Room: 3 1/6"
• Minimum Extension Outside: 16 15/16"
• Cut Out Dimension Height: 18 3/16"
• Cut Out Dimension Width: 26 3/16"
• Max. Wall Depth: 6"
